Hi-Hog’s PASS Alley (Palpation And Sorting Section) combines our sheeted PASS panel and PASS gate with adjustable or non-adjustable alley spreaders. The result is a 4’ long alley section that can be used as a palpation cage, cattle sorting section, alley access or alley pass through.
PASS alley overview
When the PASS panel and PASS gate are hung on our adjustable alley spreaders it allows the resulting PASS section to adjust with the width of the rest of the alley. This creates an extremely adaptable alley section that will work equally well at the beginning, middle or end of any of your cattle working alleys.

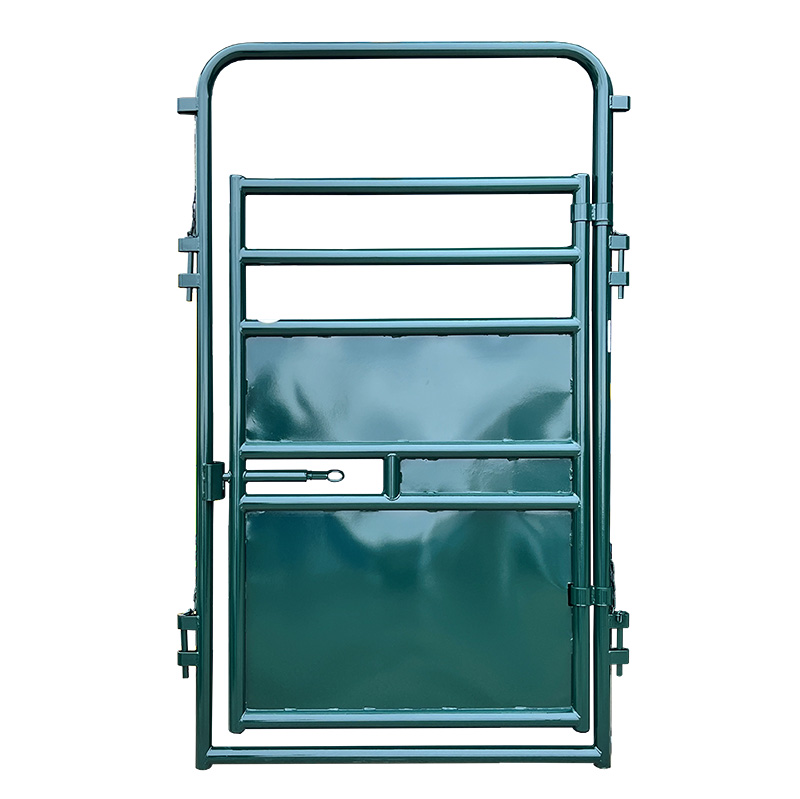

#85 P.A.S.S. Alley Gate for Sorting Cattle and / or Alley Access

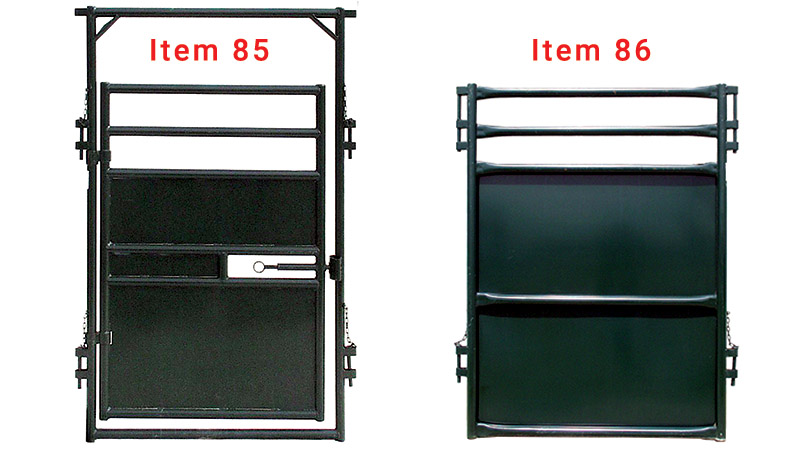

The PASS Gate (Item 85) and the PASS Panel (item 86) are two of the most versatile items Hi-Hog builds. These items are at home anywhere you require a sheeted 52” long gate or panel (measured from the outside edge of the connectors).
Ask an expert about Hi-Hog's PASS palpation cage option
The PASS Gate is a versatile piece of cattle handling equipment. It can be used to sort livestock out of the working alley, or to provide vet access for palpation behind the cattle squeeze chute, or to provide handler access to the working alley, or for handler access through the alley.
PASS Gate Specifications
- Item Number: 85
- Length: 52”
- Height of gate: 66”
- Height of frame: 80”
- Width: 2”
- Weight: 122 lbs
The PASS Panel is often located on the opposite side of the cattle working alley from the PASS gate.

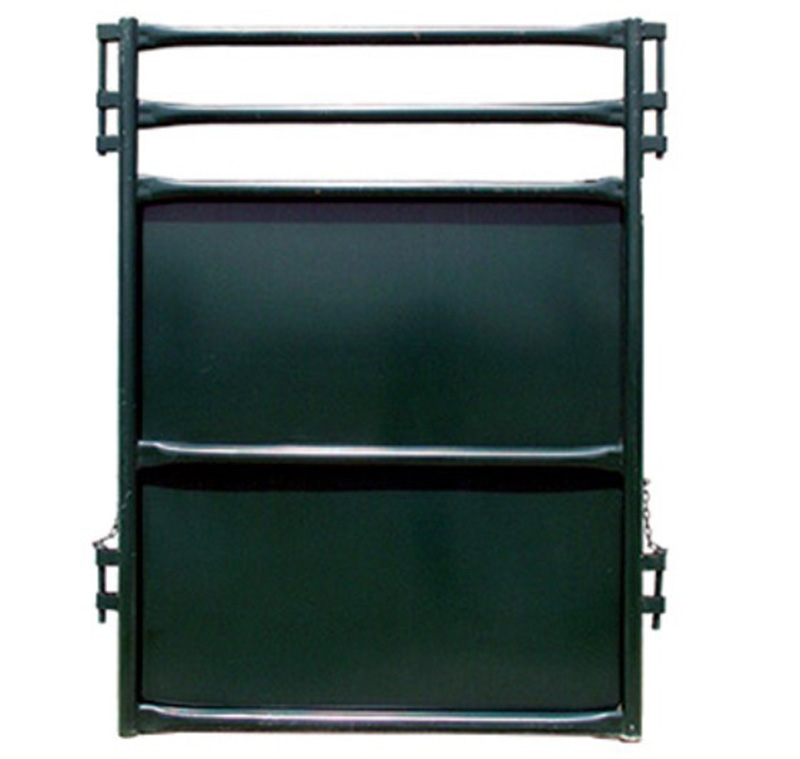

#86 P.A.S.S. Panel is a 52" x 66" Solid Panel That Goes Opposite The #85 P.A.S.S. Gate
PASS Panel Specifications
- Item Number: 86
- Length: 52”
- Height of panel: 66”
- Width: 2”
- Weight: 93 lbs
Ask an expert about Hi-Hog's PASS palpation cage option
Sample handling systems that utilize Hi-Hog's PASS options
In the sample drawings below the PASS panel and PASS gate are identified with red item numbers. These are just a few of the ways ranchers have made use of these very adaptable items.

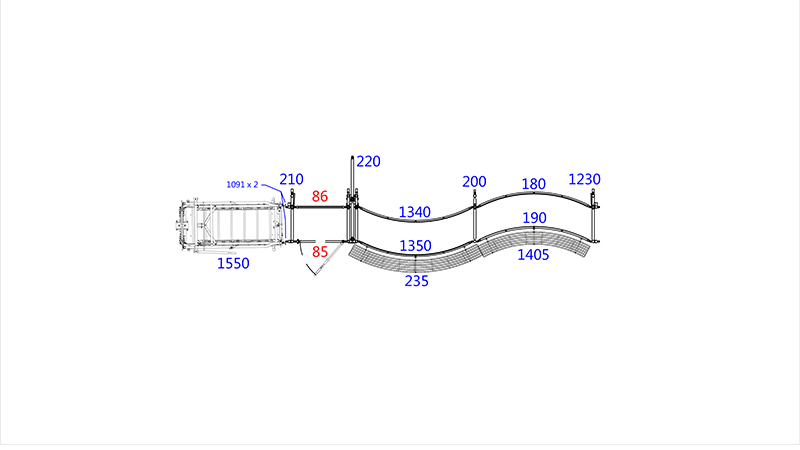

Sample 1; as a palpation cage for vet access

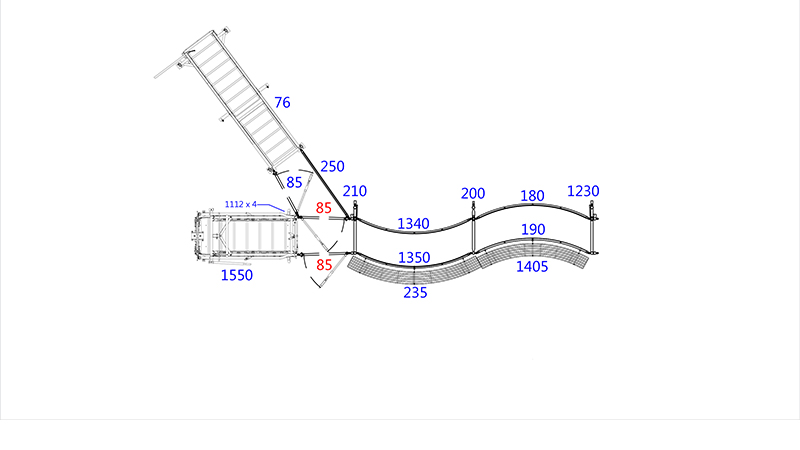

Sample 2; as a palpation cage and sorting section

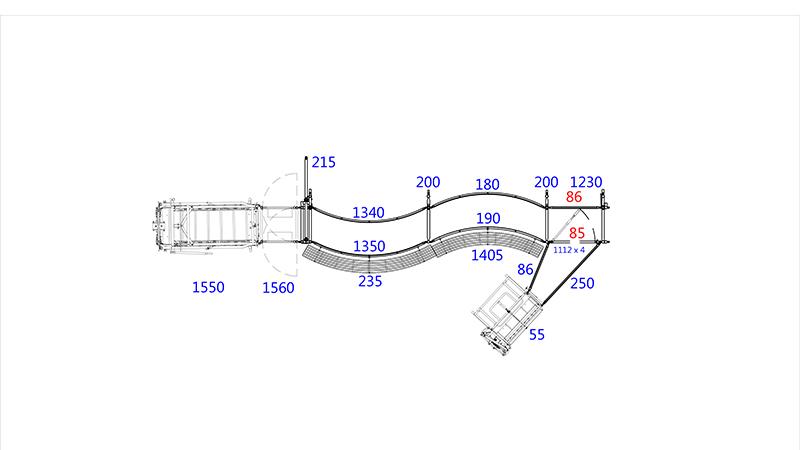

Sample 3; as a sorting alley section
Ask an expert about Hi-Hog's PASS palpation cage option

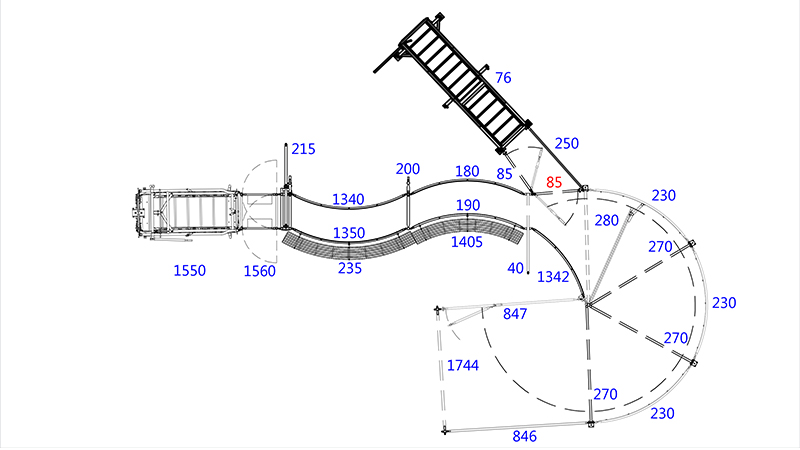

Sample 4; as part of a modified crowding tub

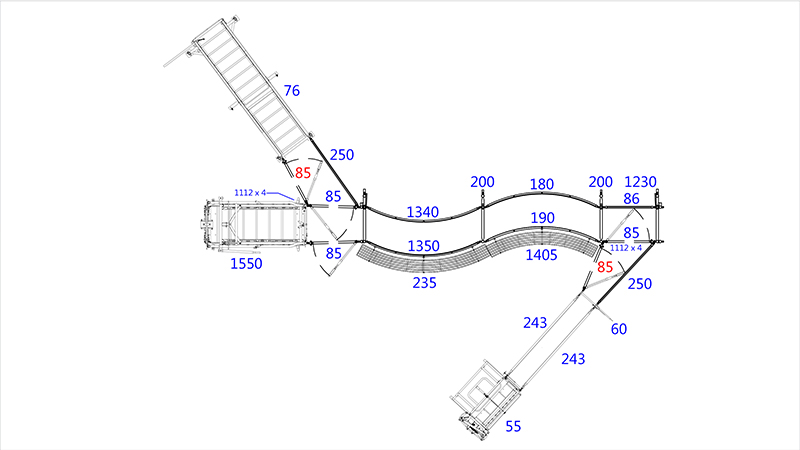

Sample 5; as part of a calf alley, for handler access and to push a calf forward

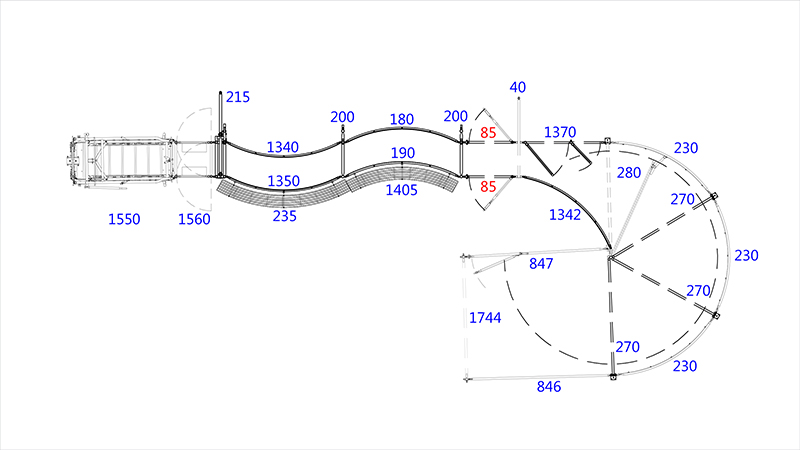

Sample 6; as part of a handler pass through
