Hi-Hog offers several horse feeder options to choose from including:

Box Stall Hay Rack

Box Stall Hay Rack

Wall mount Box Stall Hay Rack

Hi-Hog’s heavy duty wall mount hay rack makes an excellent stall accessory. Simply bolt to the stall wall at the desired height. The powder coated hay manger is 28″ wide x 28″ tall and has an opening at the top for inserting hay with a depth of 18″.

  • Item 4030, 20 lbs.

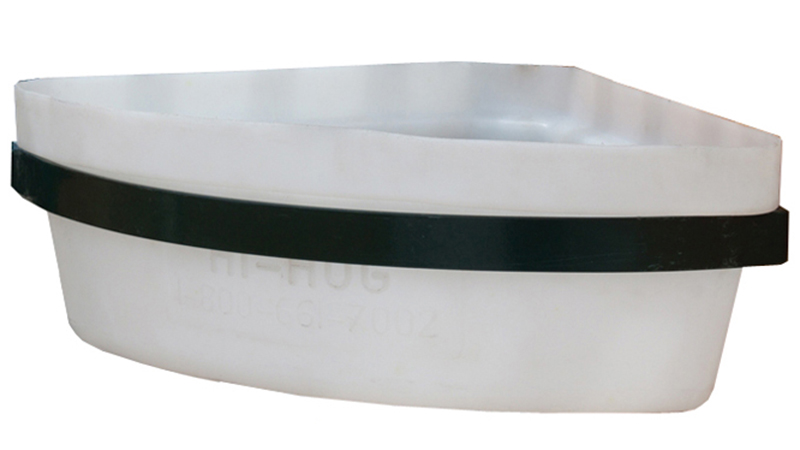

Box Stall Corner Feeder

Box Stall corner feeder bucket and support ring

Box Stall Corner Feed Bucket

The corner feeder is designed to be easily mounted in the corner of your horse stall. This feeder has a capacity of 21 quarts or 0.67 bushels. The feeder can be easily removed for cleaning. Some owners keep two feeders so that when they remove the one feeder for cleaning there is always a feeder in the ring (reducing the opportunity for your horse to get caught up in an empty support ring). The corner feeder and the support ring are also available separately:

  • Horse Stall Corner Feeder, Item #4041, 6 lbs
  • Support Ring For Corner Feeder, Item 4042, 8 lbs

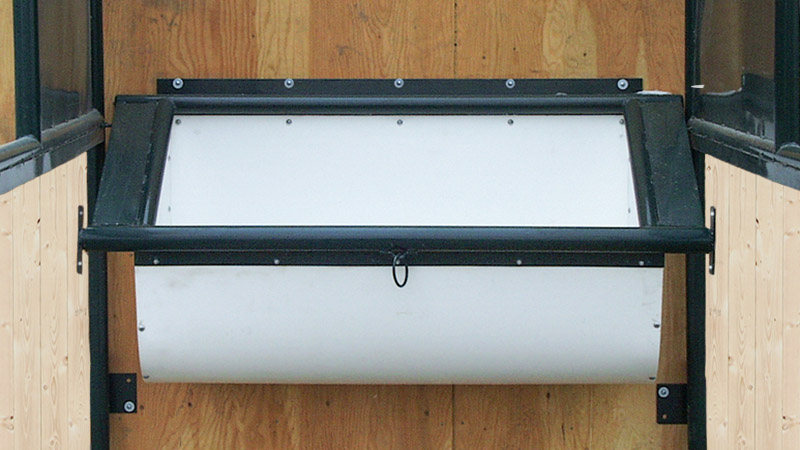

Standing Tie Stall Feed Manger

Standing Tie Stall Feed Manger

Standing Tie Stall Feed Manger

The optional feed manger comes with mounting brackets for mounting your manger to the front wall of your barn. Sleeved brackets also slide out sideways from the manger to attach to either the side wall of your barn or the side of your Hi-Hog tie stall partitions

When mounted between two Hi-Hog tie stalls, the partitions will be on 60” centers

The manger is made from high density polyethylene copolymer sheets and possess high rigidity and excellent impact strength

A tether ring is mounted on the front of the feed manger. To prevent your horse from getting tangled it is recommended that you maintain some tension on the tether rope. Make sure the rope is long enough to allow the horse to lie down

8 cubic foot capacity.

  • Item 6113, 86 lbs.

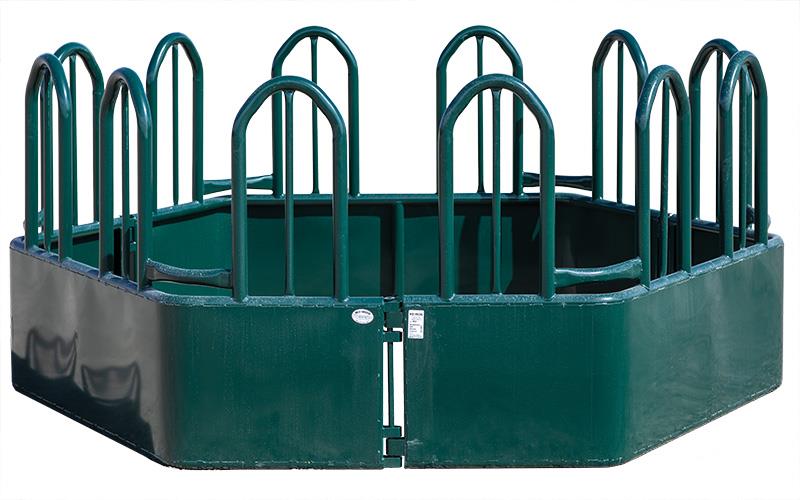

Tombstone Round Bale Feeder

Tombstone round bale horse feeder

Tombstone Round Bale Horse Feeder

Design:

  • The tombstones separate your horses and reduce feed waste
  • Three bent feeder sections pin together to create a solid stock feeder
  • 12 feeding positions


Construction:

  • 1.9” OD high tensile, 12-gauge tubing for the feeder frame
  • 1.9” OD 14 gauge for the tombstone hoops
  • Each of the hoops is filled with 1” OD 14-gauge
  • Each corner and tombstone hoop is braced
  • The 22” high base is sheeted on the outside with 16-gauge sheet metal

Specifications:

  • Inside Diameter: 95.625”
  • Outside Diameter: 113.625”
  • Stanchion opening horizontal width: ~ 12.5”
  • Feeder Height: 49.75”
  • Feeder Weight: 375 lbs.
  • Item 954

This feeder is preferred by ranchers with horned livestock. This is also a popular feeder for horses because there is no top horizontal hoop for the horses to wear their manes on.

Tombstone Fence Line Feeder Panel

Tombstone Fenceline horse feeder panel

Tombstone Fence Line Feeder Panel

Design:

The tombstones separate the livestock for feeding and reduces feed waste
Feeder Panels pin together to create a continuous fence line feeder
The modular design lets you pin one tombstone feeder panel to the next panel
NOTE: feeder panels should be secured to pasture posts.

Construction:

  • 2-3/8” OD, for the panel frame
  • 1.9” OD, 14-gauge, for the tombstone hoops
  • 1” OD, 14-gauge. for the interior vertical inside the tombstone hoops.

Specifications:

Height of tombstone feeder panels: 49.75”
NOTE: The number of feeding positions depends on the length of the tombstone feeder panel you select
