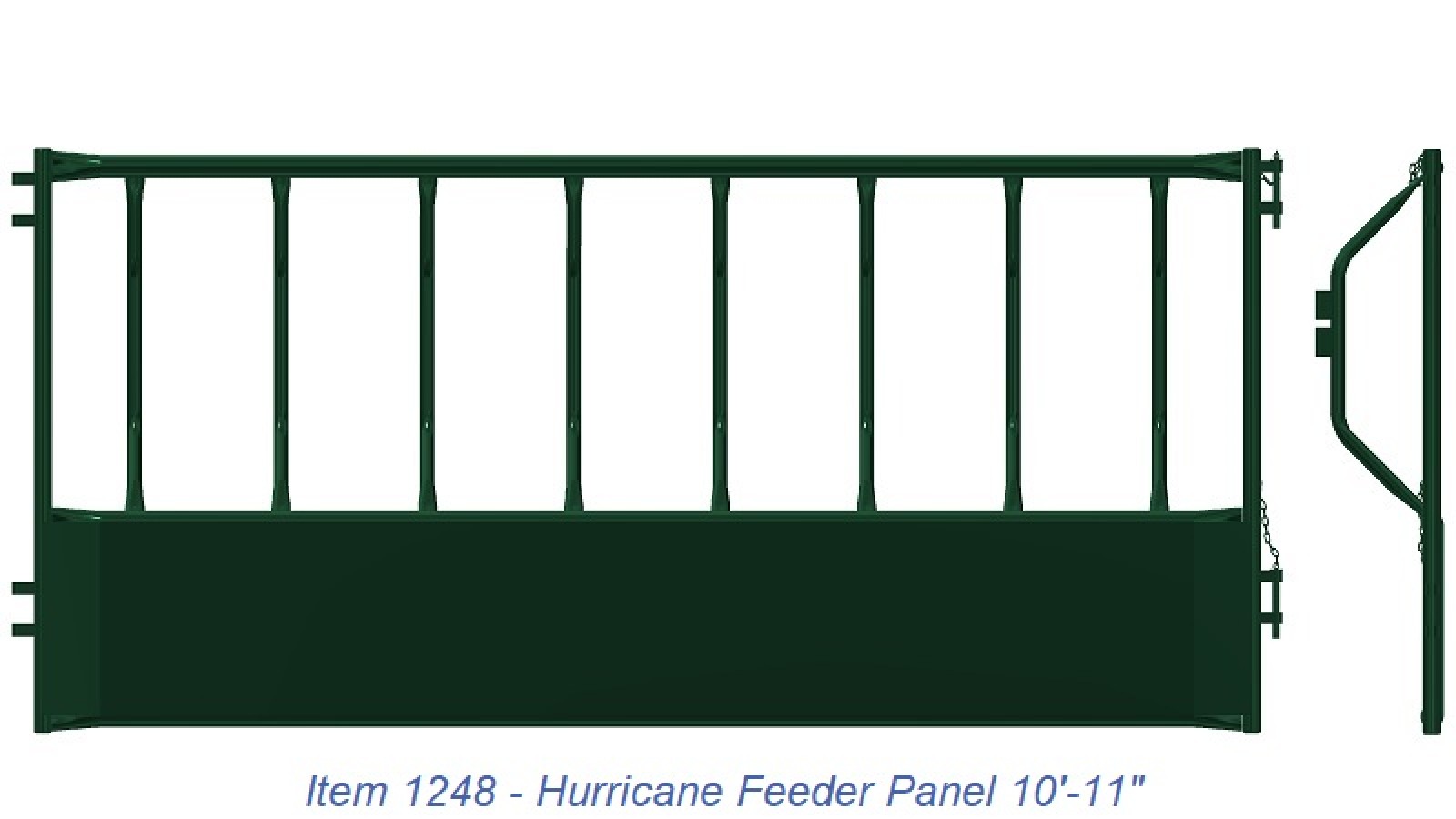

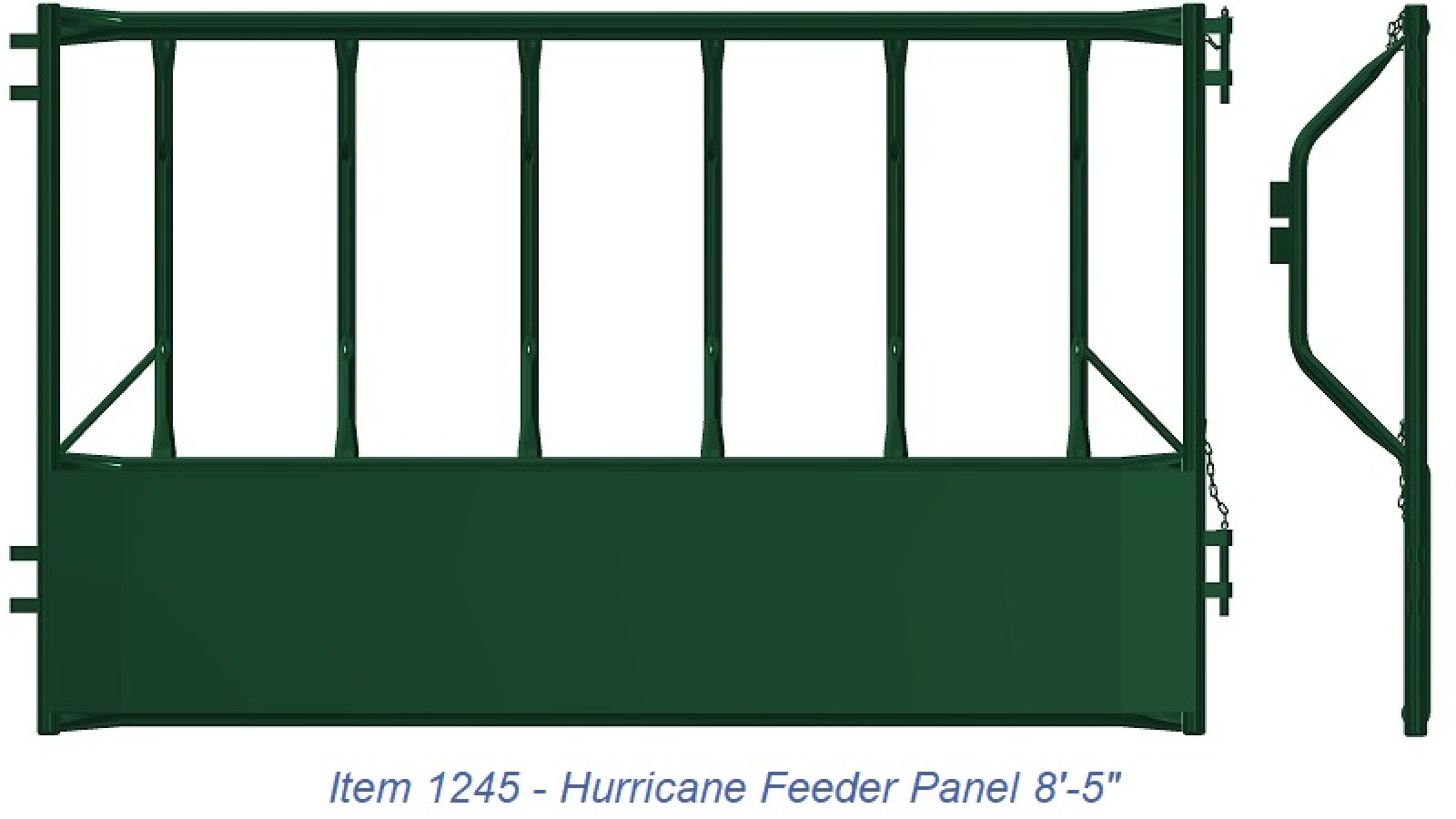

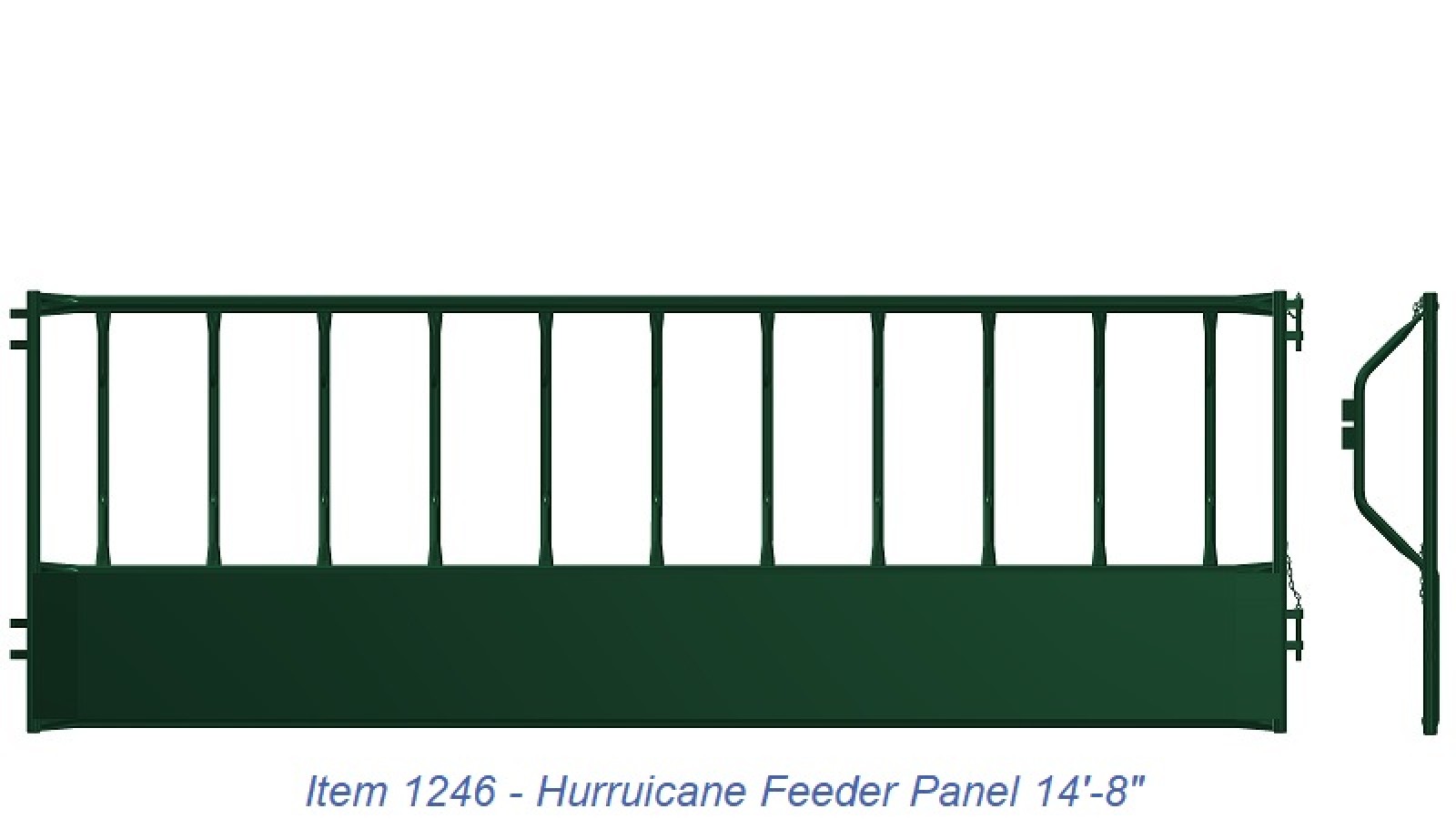

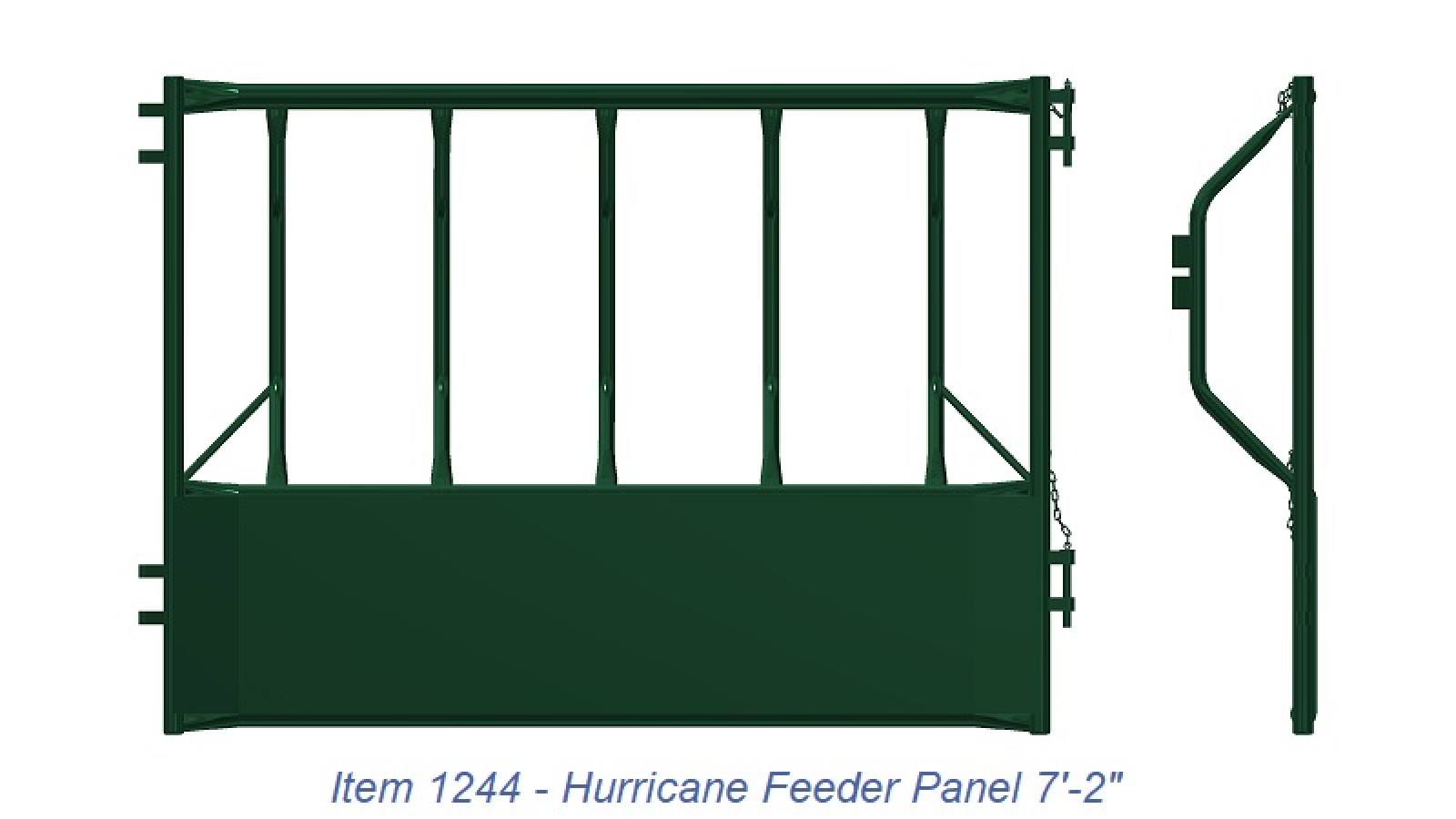

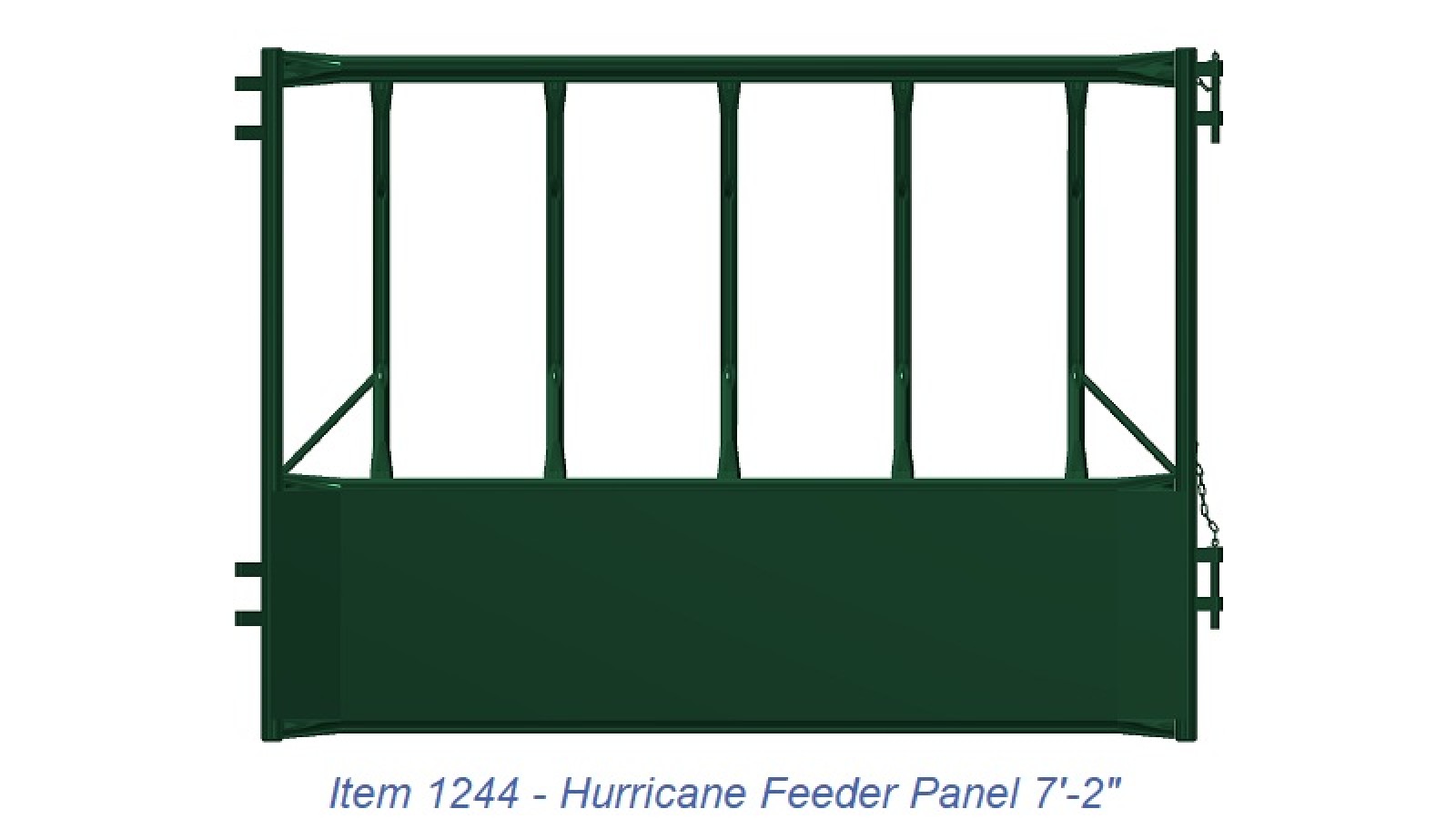

Hi-Hog offers four styles of fence line feeder panels; Tombstone feeder panel, Hurricane feeder panel, Slant-Bar feeder panel, and creep feeder panel.

Hi-Hog offers four styles of fence line feeder panels

  1. Tombstone fence line feeder panel
  2. Slantbar fence line feeder panel
  3. Fence line Creep feeder panel

Tombstone fence line feeder panels

The tombstone feeder panels provide improved access for horned animals such as cattle or bison, and are preferred for feeding horses because there is no top horizontal bar for the horses to wear their manes on.

Tombstone Feeder Panel

Tombstone Feeder Panel

Design:

  • The tombstones separate the livestock for feeding and reduces feed waste
  • Feeder Panels pin together to create a continuous fence line feeder
  • The modular design lets you pin one tombstone feeder panel to the next panel

NOTE: feeder panels should be secured to pasture posts.

Construction:

  • 2-3/8” OD, for the panel frame
  • 1.9” OD, 14-gauge, for the tombstone hoops
  • 1” OD, 14-gauge. for the interior vertical inside the tombstone hoops.

Specifications:

  • Height of tombstone feeder panels: 49.75”
  • The opening between the stanchions is ~12.5"

NOTE: The number of feeding positions depends on the length of the tombstone feeder panel you select (see table below).

Length Feeding Positions Item Number Weight

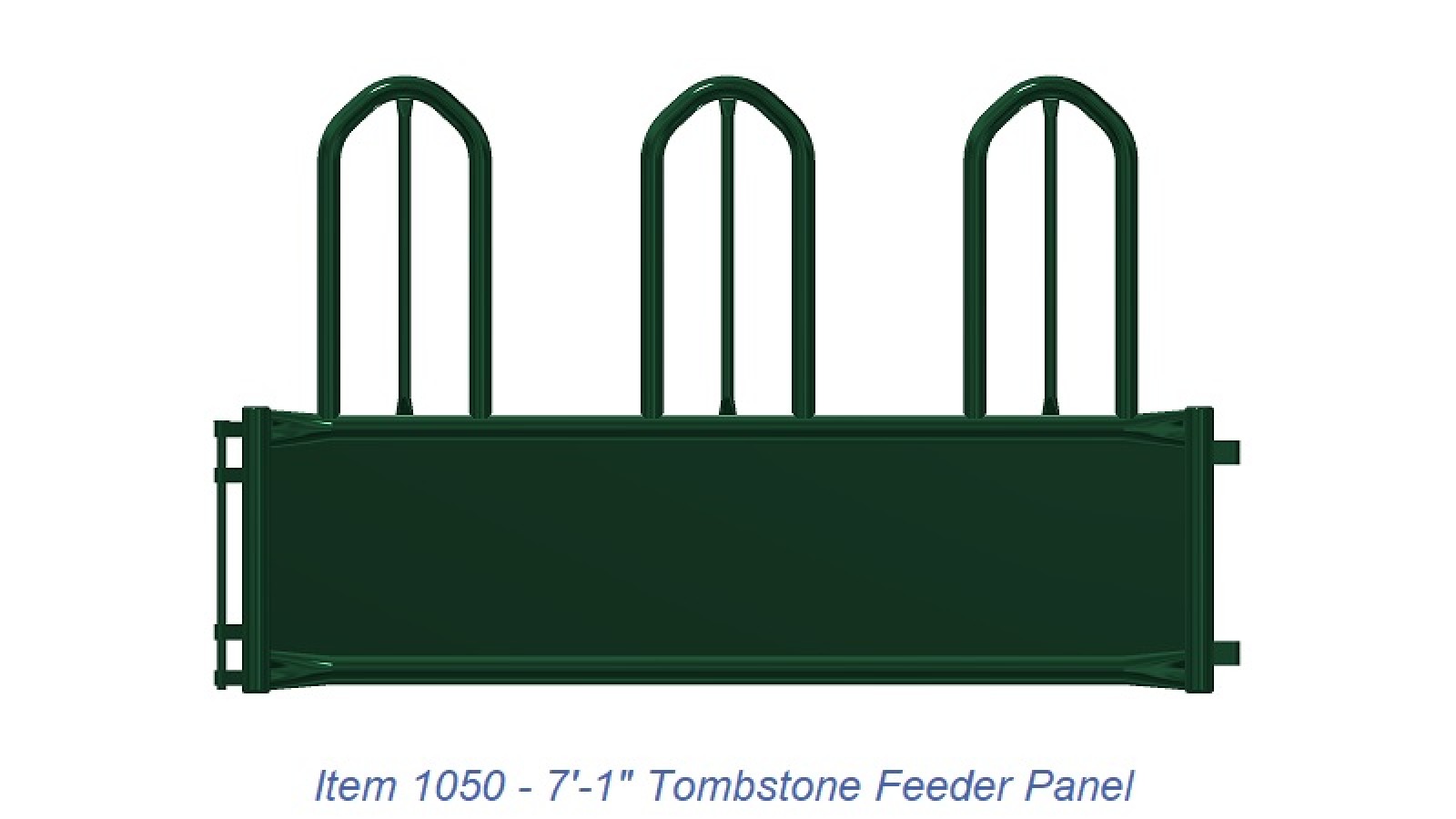

7'-1" 2 1050 111 Lbs
9'-6" 3 1060 150 Lbs

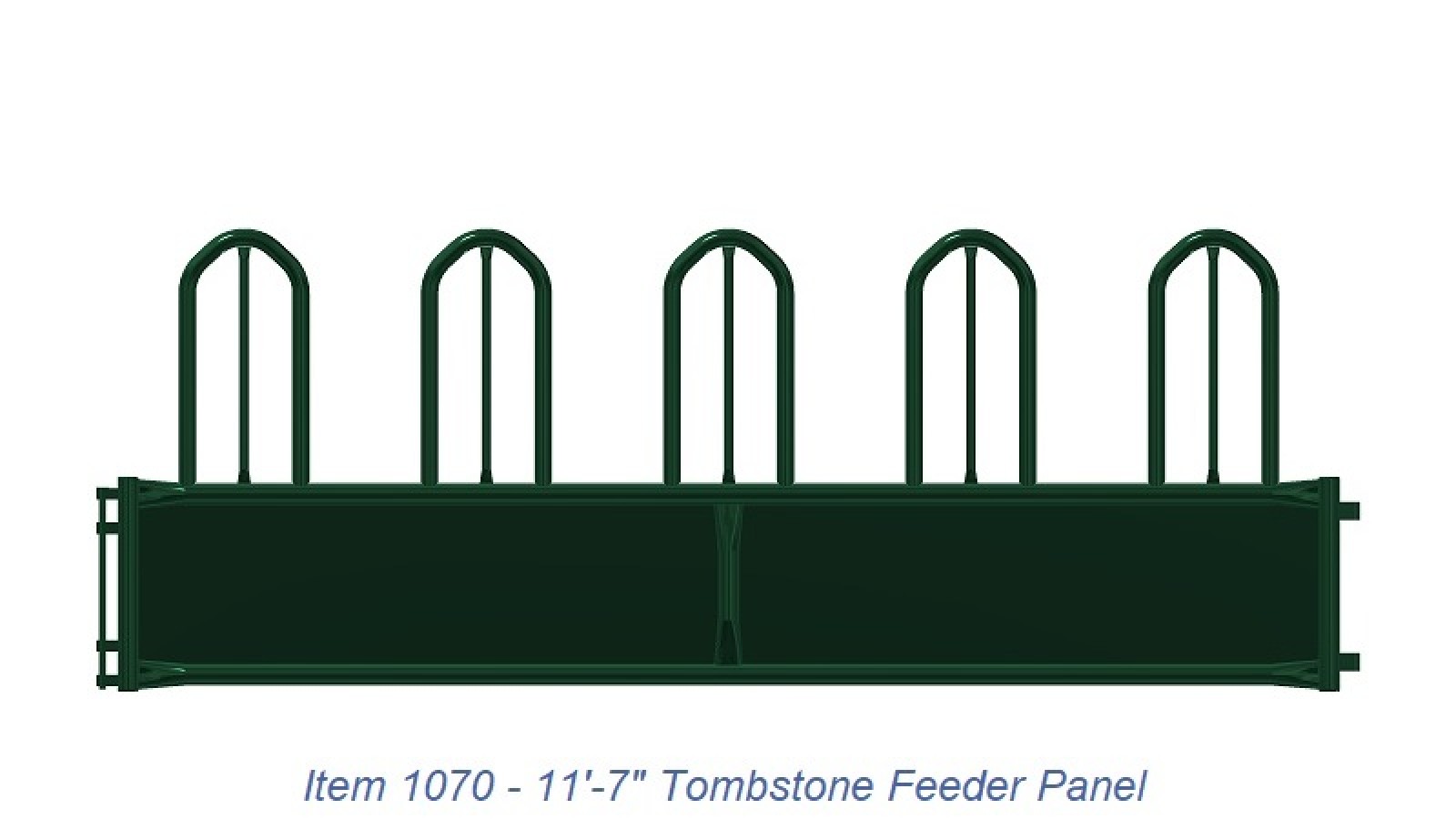

11'-7" 4 1070 181 Lbs

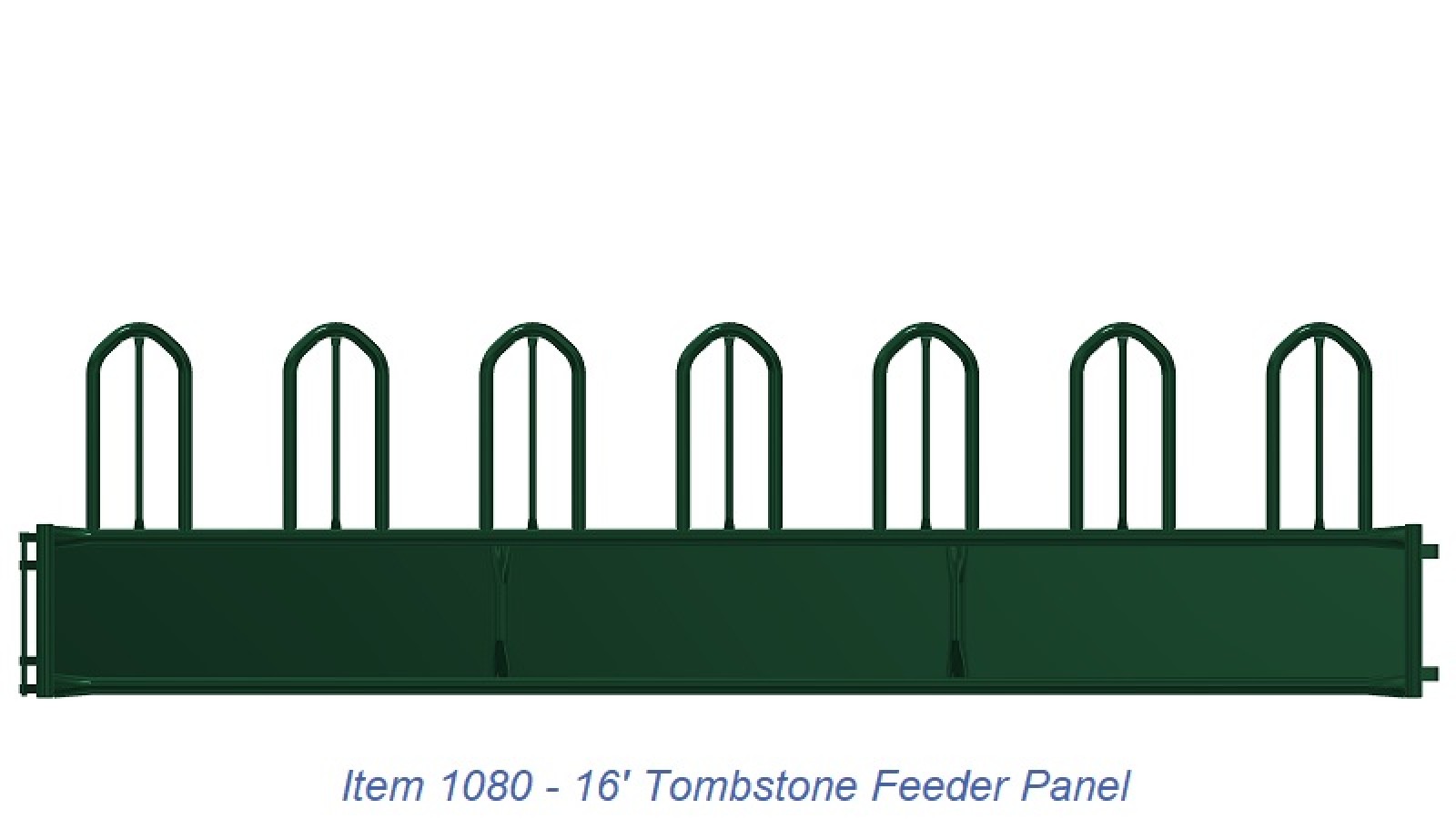

16' 6 1080 294 Lbs








Slantbar fence line feeder panels

The slantbar feeder panel makes an excellent 60” high fence line feeder. Panels are available in several lengths. The common connector system allows any combination of slantbar feeder panels to be pinned together.

Slant Bar, Fence line, Feeder Panel

Slant bar feeder panel

Design:

  • Slantbar deters livestock from crawling into the feeder
  • A double top rail provides additional panel strength
  • Tubing ends have been coned to eliminate sharp edges
  • The opening between the stanchions (horizontal) is ~15.5"

NOTE: feeder panels should be secured to pasture posts.

Construction:

  • 1-1/2” OD, 14-gauge. for the top rail
  • 1.9” OD, 12-gauge for the two interior horizontals
  • 1.9 OD 14-gauge. for the bottom horizontal and outside verticals
  • The slantbar stanchions are 1-5/16” OD, 0.125 wall

NOTE: The 16’ long slantbar feeder panel is built heavier

Specifications:

  • Panels are 60” high

 NOTE: The number of feeding positions depends on the length of the slantbar feeder panel you select (see table below).

Length Feeding Positions Item Number Weight

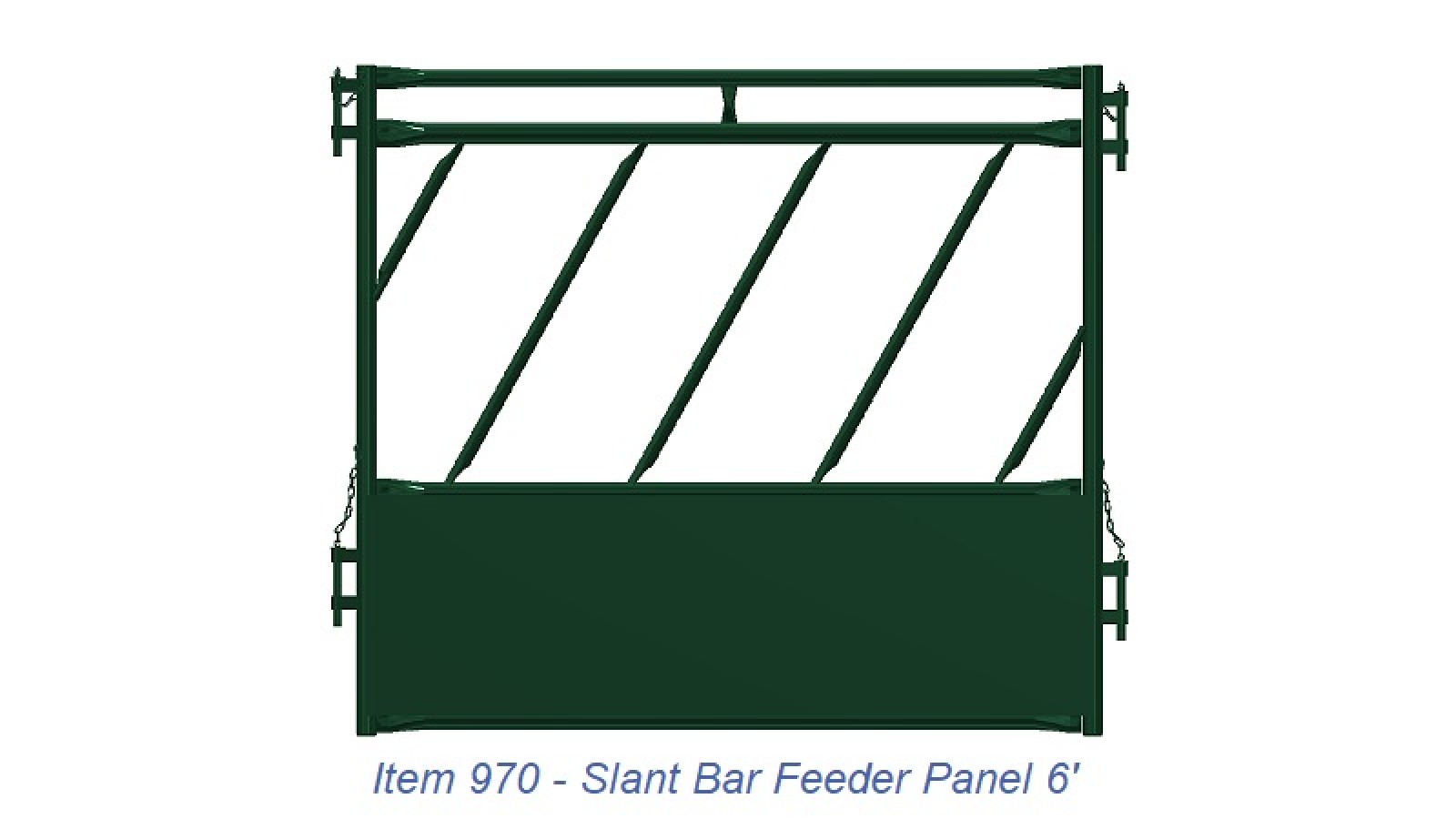

6' 4 970 103 Lbs

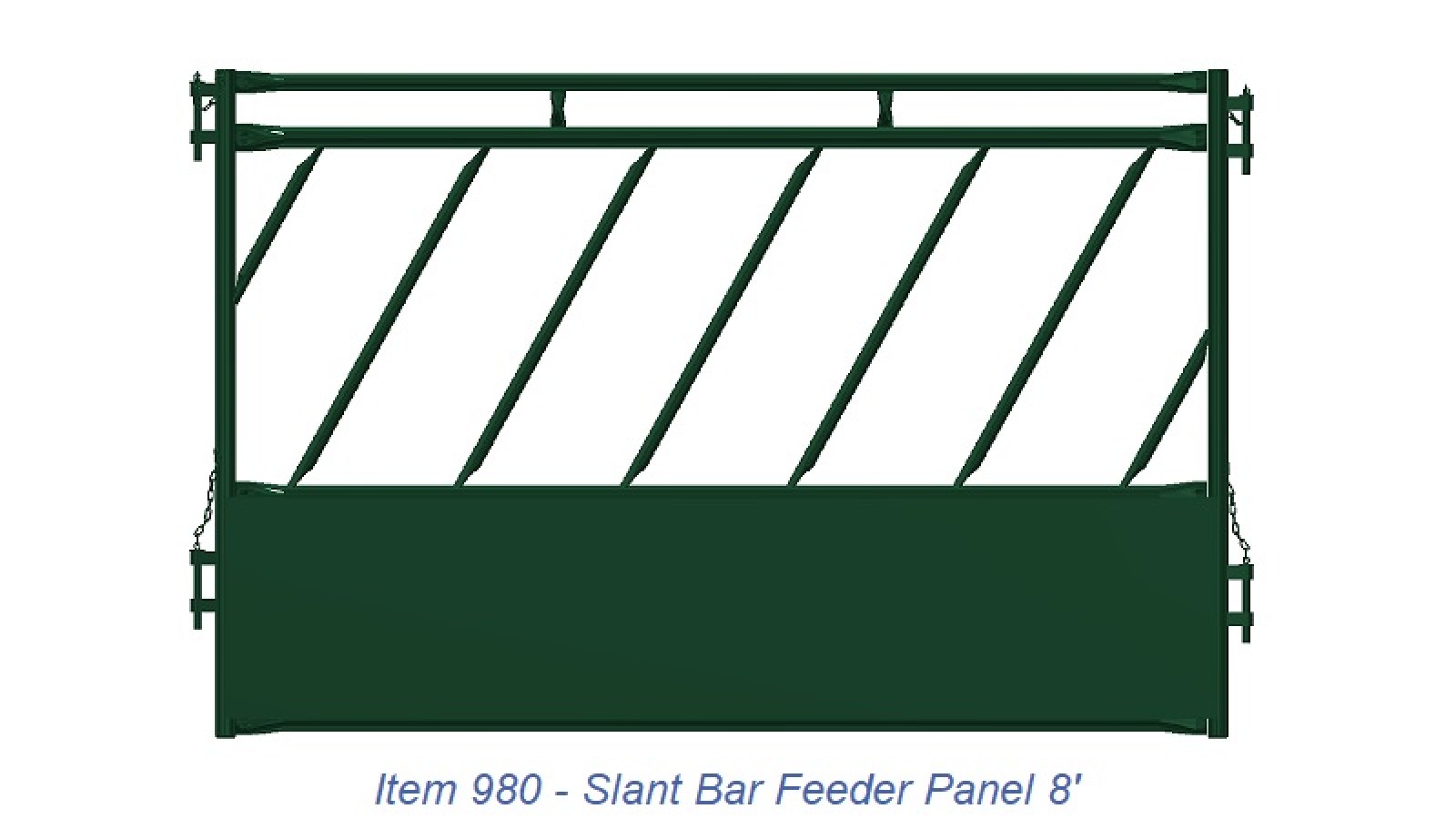

8' 5 980 138 Lbs

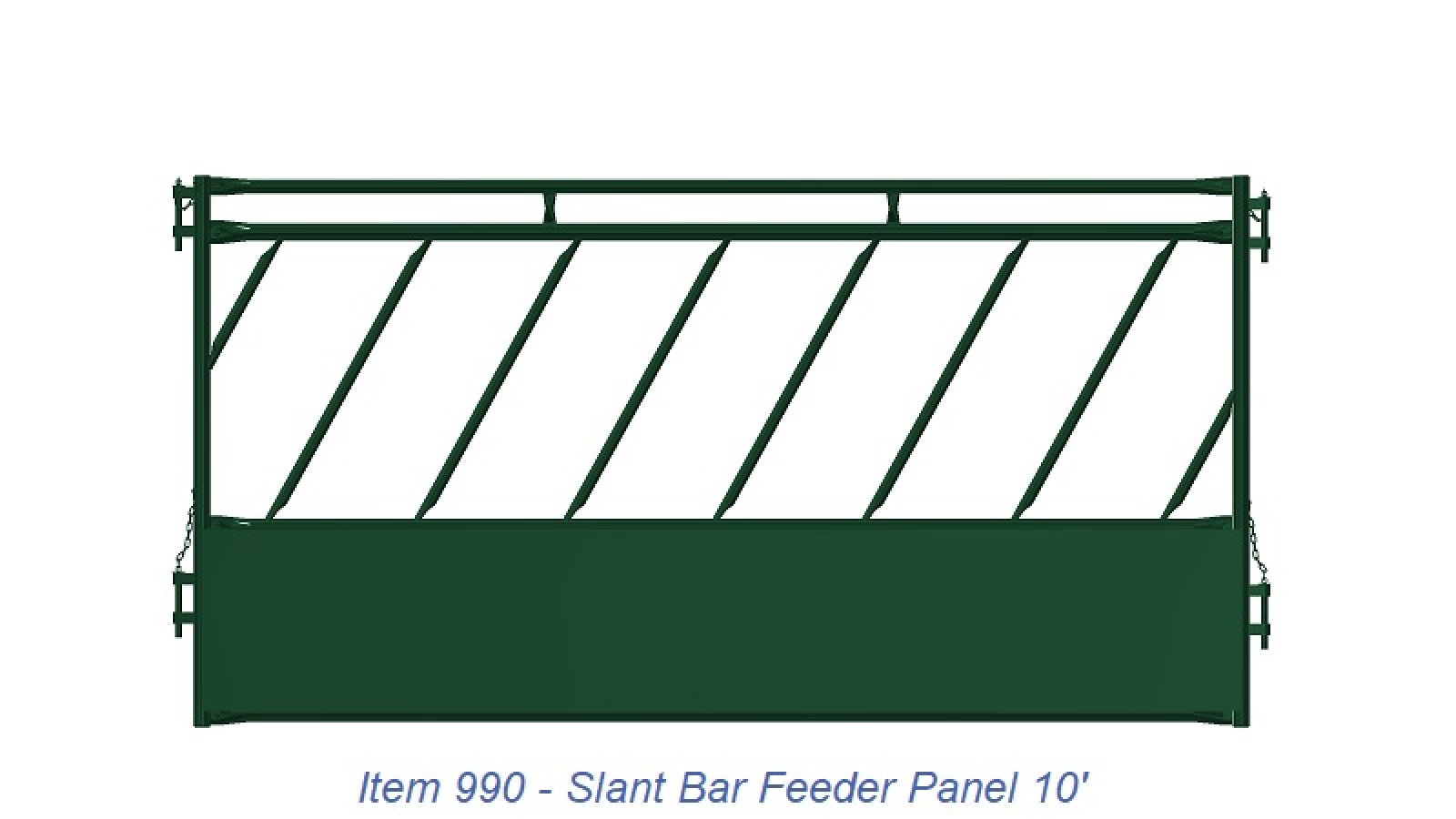

10' 6 990 166 Lbs

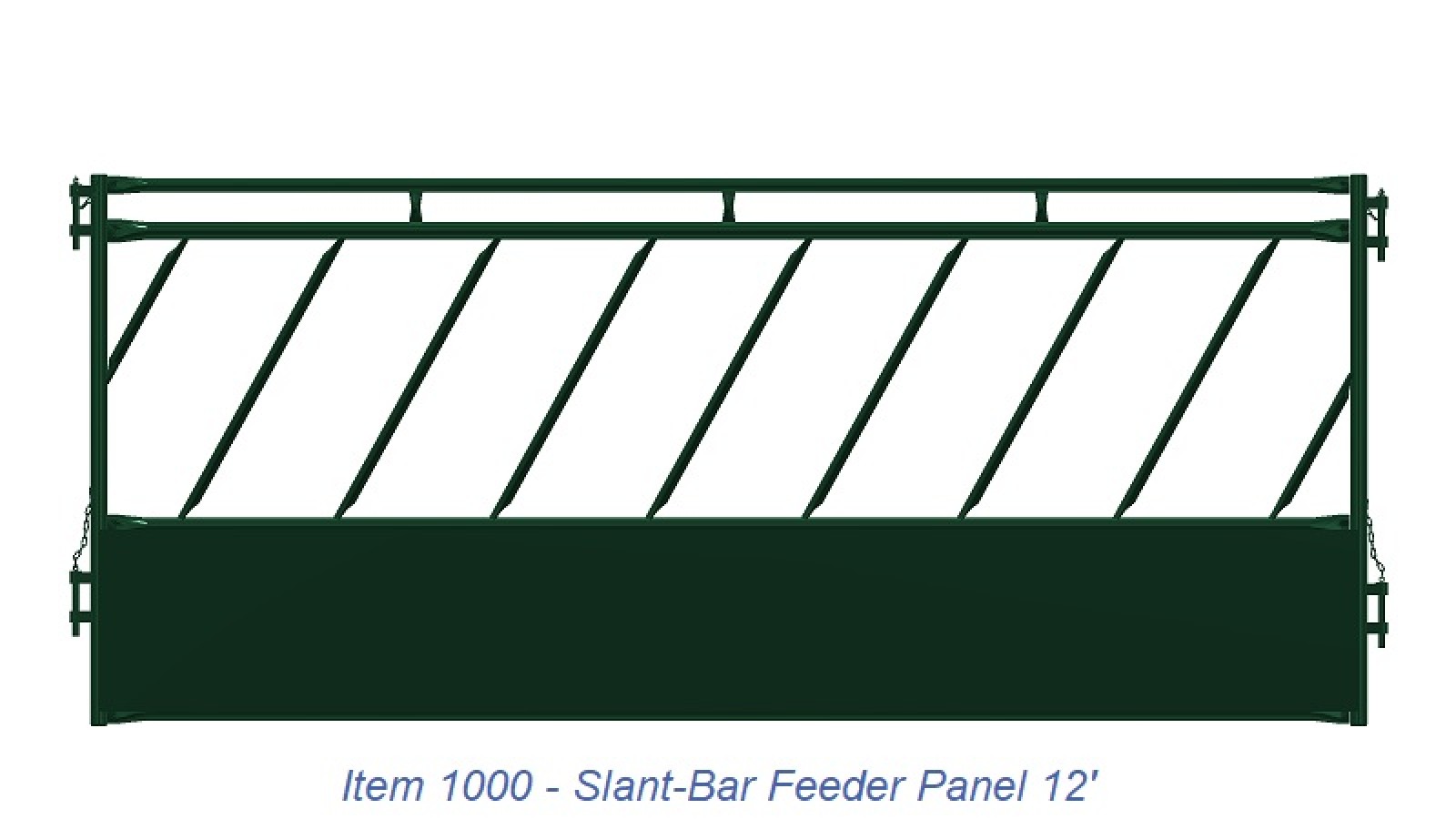

12' 8 1000 197 Lbs

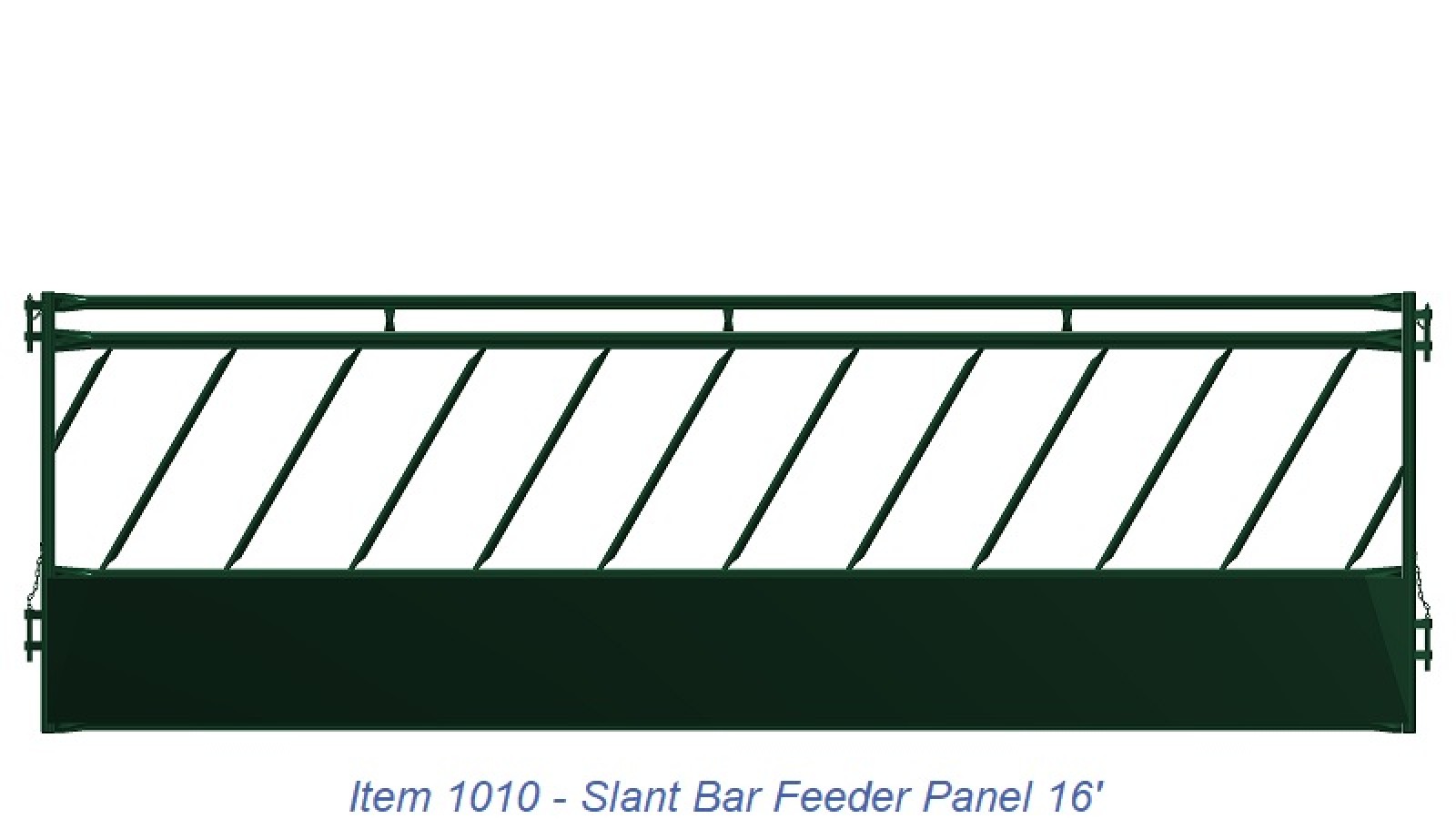

16' 10 1010 300 Lbs

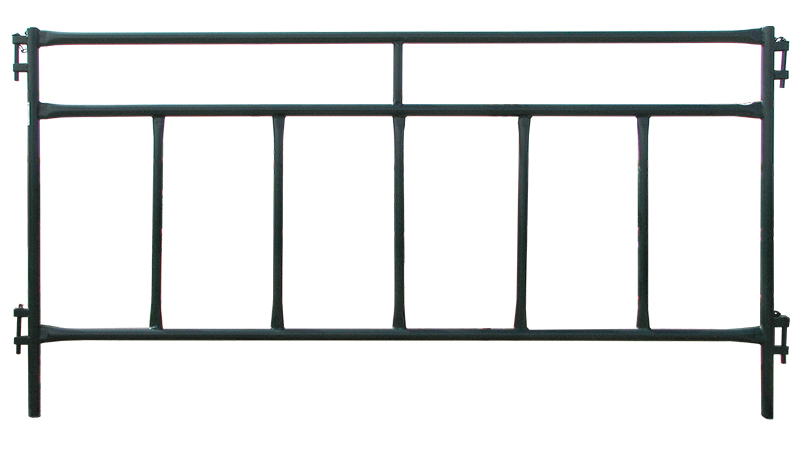

Creep Feeder Panel



Hi-Hog's Creep Feeder Panel

Creep Feeder Panel

Length Feeding Positions ITEM # WEIGHT
9'-11" 6 1490 81 Lbs

Features:

  • Comes with a pin and chain at both ends
  • Will connect with any Hi-Hog panel or frame & gate
  • All exposed tubing ends have been coned to eliminate sharp edges
  • 60" high panel
  • The opening between verticals is ~ 17.25" (horizontal)

Construction:

Built from 1-1/2” OD, 16 ga. & 1.9 14 Ga high tensile steel tubing.
