Hi-Hog’s square bale feeder is the perfect feeder for the cow / calf operator feeding square bales. Four rugged hurricane feeder panels quickly pin together to create a rigid square bale livestock feeder.

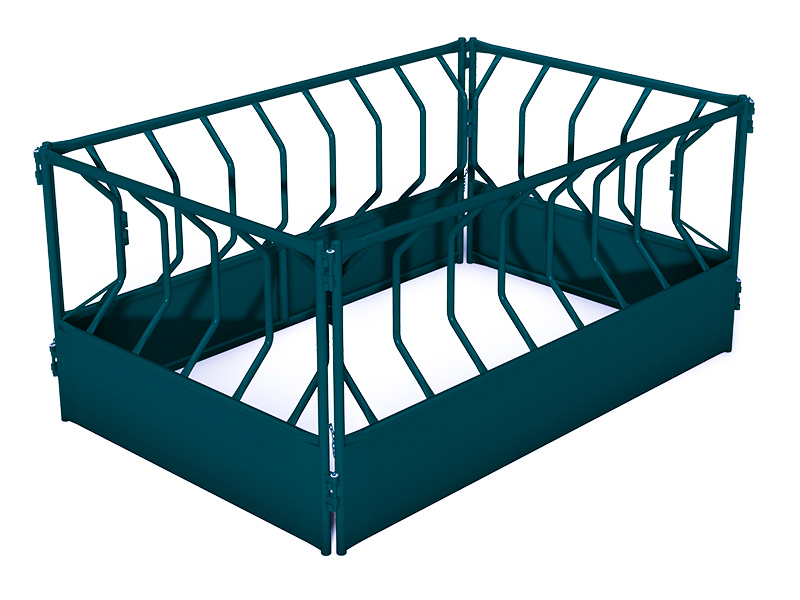

Hurricane Square Bale Feeder
This is a cow / calf feeder
- The bale saver stanchions project inwards to reduce feed waste
- Four hurricane feeder panels pin together to create a solid cow/calf feeder
- The panels pin together to create a rigid corner brace
- The corner stanchions are closed off to block feed access
- 22 feeding positions
- The frame ends are 1.9” OD 12-gauge
- The frames rails are 2-3/8" OD (0.125) wall
- The stanchions are 1-1/2”, 14-gauge
- The 22” high base is sheeted on the outside with 16-gauge sheet metal
- Inside dimension: 8'-11" x 5'-2"
- Outside dimension: 10’-11” x 7’-2”
- Stanchion opening horizontal width: ~ 13.5”
- Feeder Height: 60”
- Feeder Weight: 676 lbs.
- Combine two item 1244 and two item 1248
The individual feeder panels can also be used as fence line feeder panels.
