Item Number: Hydraulic Bison Squeeze Chutes #2367 (Electric), #2369 (Gas)

The Hi-Hog Hydraulic Bison Chute is designed to safely and efficiently handle Bison. This chute has been designed from the ground up to address the distinct structure and behaviour of the Bison.

A Heavy Duty Bison Squeeze Chute used for veterinarian treatments on Bison

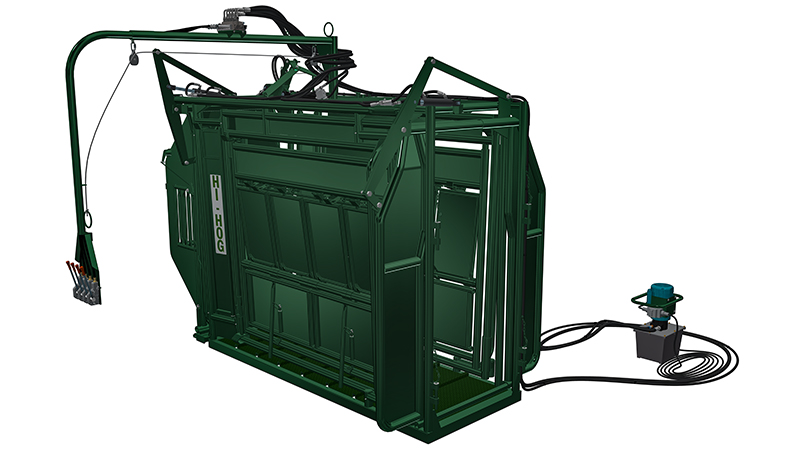

Hi-Hog's Hydraulic Bison Squeeze Chute with Full Parallel Axis Squeeze Motion

Item # Description Weight (lbs)
2367 Hydraulic Bison Squeeze Chute with Electric Hydraulic Pump 3762
2369 Hydraulic Bison Squeeze Chute with Gas Powered Hydraulic Pump 3782

Hi-Hog has been manufacturing Bison Squeeze Chutes and Batch Handling Systems, in Calgary, Alberta since 1994.

Bison have strong fight-or-flight responses which makes them highly sensitive to perceived threats. This is where smart design can make an enormous difference. What bison see, hear, and feel when they approach, enter, and are held in the bison chute will have an impact on how safely and efficiently you can work your stock, as well as how much stress your stock will endure in the process. With a headgate and tailgate that open the full width of the Squeeze, Bison are not restricted when heading towards the only light at the head of the Crash Gate.

Hydraulic bison squeeze chute for access, control and safe efficient handling


Bison are more comfortable in enclosed spaces than in environments where they can see threats all around them. This is why Hi-Hog’s bison chute is enclosed in sheet metal. For further animal comfort, all the metal sheeting has also been caulked to reduce both noise and vibration.

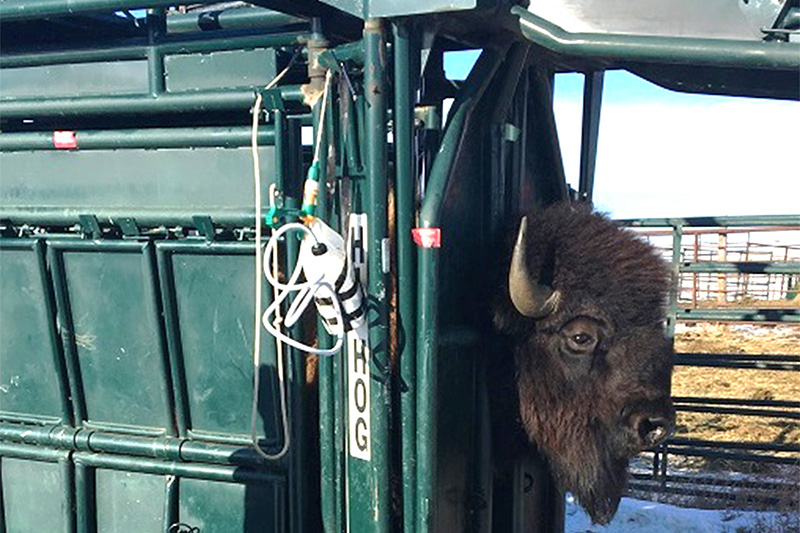

A Squeeze Chute strong enough to handle Bison

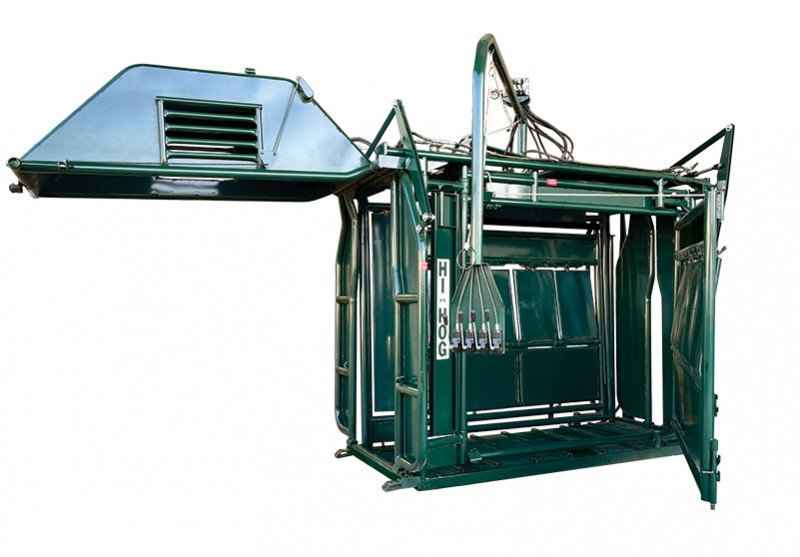

Full Sheeted Enclosure with Full Access and Sorting

Ask an expert about Hi-Hog's hydraulic bison squeeze chute

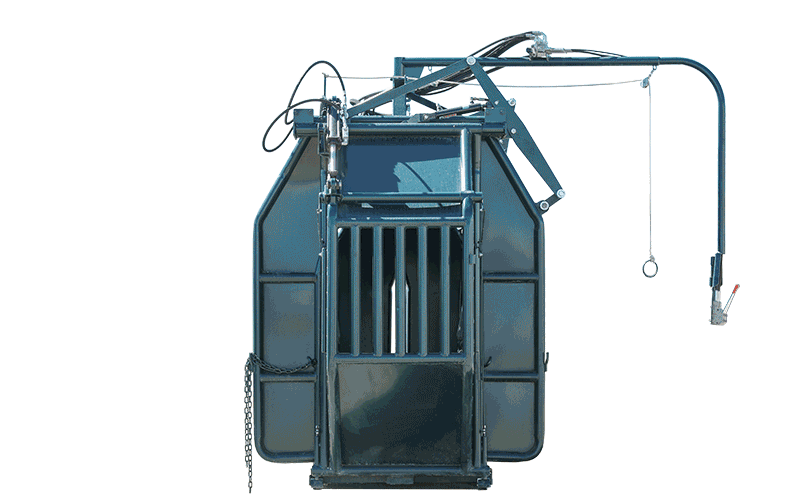

To make the chute less of a threat, both the tail gate and head gate open to the full width of the squeeze chute. The full width opening delivers superior bison flow through the squeeze.

The heavy checker plate floor includes sturdy 1.25” traction bars on thirteen inch centers to ensure your stock feel confident and secure standing on the floor.

Squeeze Chute used for the capture of Bison

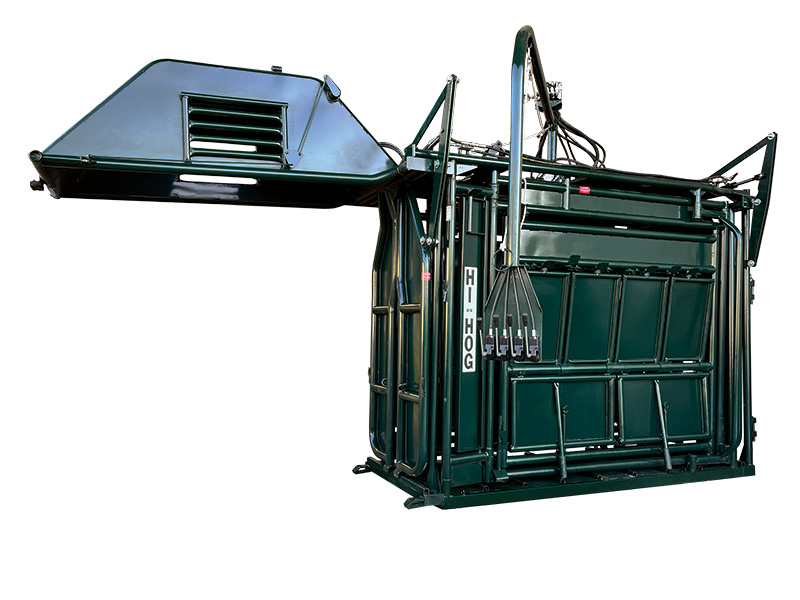

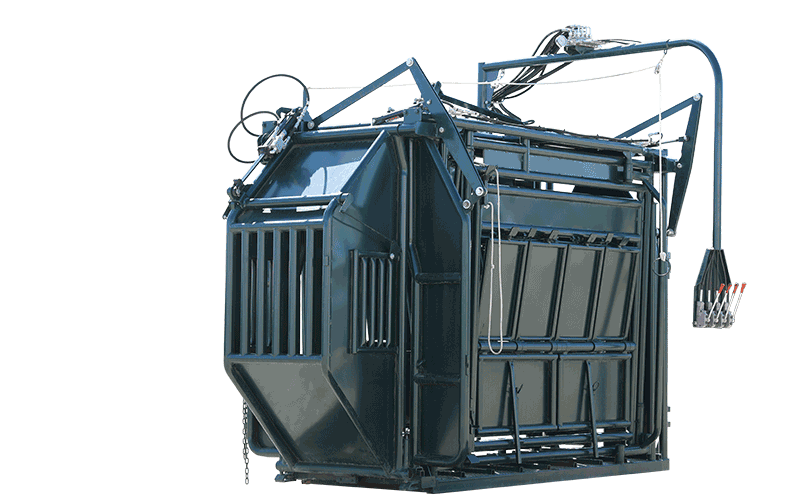

Hydraulic Bison Squeeze Chute with Hydraulic Crash Gate

The parallel axis squeeze action draws both slightly-tapered sides in, and forward, at the same time, to support and control the Bison in a balanced central position.

The smooth interior reduces bruising and prevents the Bison from climbing the walls.

Bison have little respect for open cages and will make every effort to simply run through them.

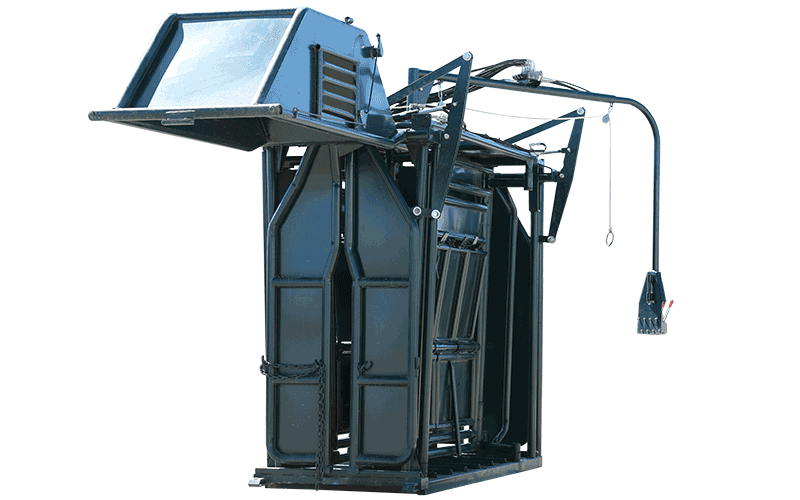

Hi-Hog’s Crash Cage is fully sheeted except for a small front window and two side windows. The windows provide enough light to encourage forward movement but not so much that your bison want to run through it.

Ask an expert about Hi-Hog's hydraulic bison squeeze chute

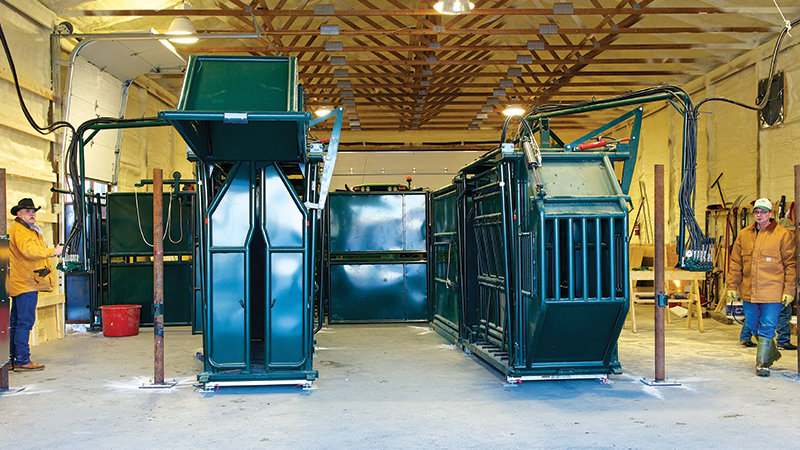

Hi Hog Hydraulic Bison Squeeze Chute - Chinook Bison installation

Chinook Bison, Tompkins, SK

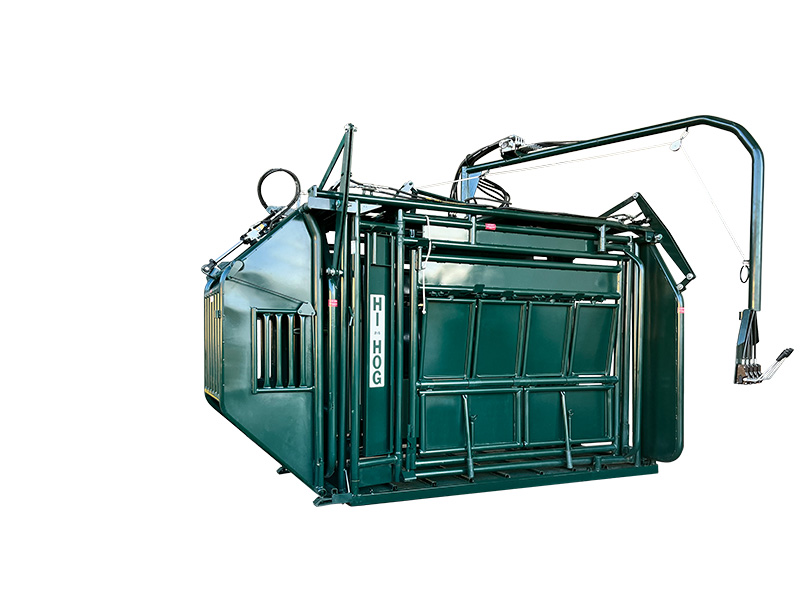

The squeeze can be operated from either side and provides three possible exits; forward, left or right.

The side exit panels come with four sheeted drop down panels for easy access to the body, two lift-up sheeted panels for access to the feet, and one full height sheeted shoulder access panel for access to the shoulder.

All latches come with quick locks to safely secure the latches against accidental opening.

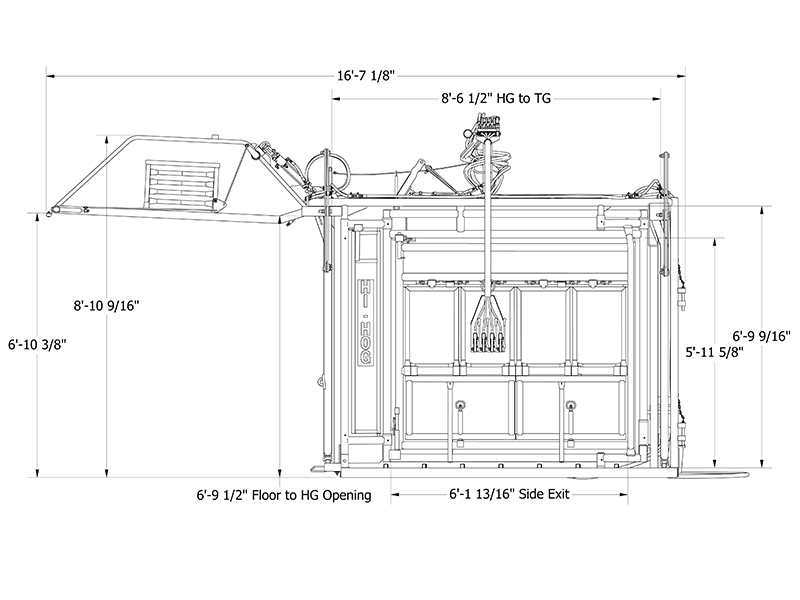

Hi-Hog Hydraulic Squeeze Chute Dimensions


Ask an expert about Hi-Hog's hydraulic bison squeeze chute

The hydraulic controls are mounted on a pivoting arm which provides the operator with access to the controls from any location around the chute.

You have your choice of either an electric or gas powered hydraulic pump. The pump comes with long hydraulic hoses to allow the operator freedom to position the pump away from the chute. This reduces the noise and vibration at the chute which results in less bison hesitation.

Hydraulic Pump Options:

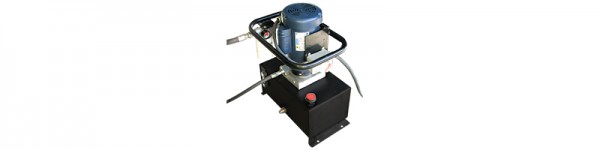

Hydraulic Bison Squeeze Chute with Electric Power Pack, Item No 2367

Hi Hog Hydraulic Chute WebRGB 800 x 600 04

Hi-Hog’s 2 horsepower electric hydraulic pump is set at the factory to pump 1.5 gallons/minute at 1000 psi. The electric pump can run on either 110 V or, for best performance, 220 V.

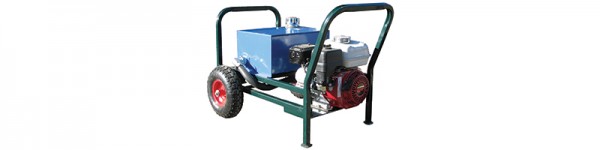

Hydraulic Bison Squeeze Chute with Gas Power Pack, Item No 2369

Hi Hog Hydraulic Chute WebRGB 800 x 600 03

Hi-Hog’s 5.5 horsepower gas hydraulic pump offers 10.6 gallons/minute at low pressure and 2.9 gallons/minute at high pressure.

Ask an expert about Hi-Hog's hydraulic bison squeeze chute
Hydraulic Squeeze Chute Options

ITEM # DESCRIPTION WEIGHT (LBS)
2367 Hydraulic Bison Chute with Electric Hydraulic Pump 3,762
2369 Hydraulic Bison Chute with Gas Powered Hydraulic Pump 3,782



Testimonial



In 1996 our operation started with a manual Hi-Hog bison chute. At the time, this chute was probably the most bison friendly, well built chute in the industry.

We handle a lot of bison for ourselves. We also help and mentor new producers with their bison handling. One of these producers owned Hi-Hog’s hydraulic bison chute. After helping them work their bison for 6 years, and watching their ranch grow from 100 to 2000 head of bison, with no casualties, we knew we could not have done a better job.

With human error, handling bison can be dangerous. For the safety of our bison and our people, we now have a Hi-Hog hydraulic chute too. Well done Hi-Hog. You are a plus for the bison industry.

Kurt Wigness
Wigness Bison
