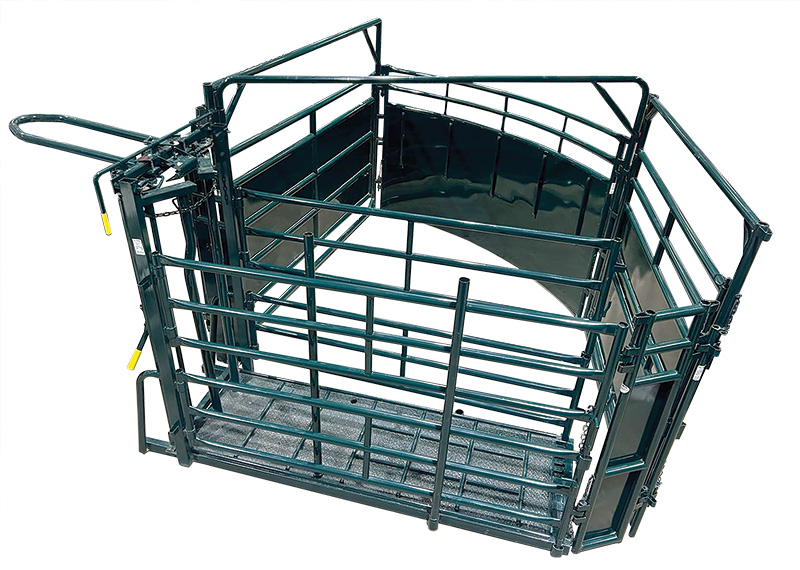

Hi-Hog’s Calving Maternity Tub is designed to improve safety, efficiency, and ease during calving season. Built with durability and functionality in mind, this system ensures you have full access to your cow while keeping both the animal and the handler secure.
The system includes Hi-Hog’s #125 Calving Trimming Chute, a versatile and innovative chute featuring a split-panel design.

A Smarter, Safer Way to Handle Calving

Ask an expert about Hi-Hog's #Maternity Tub

A well-designed calving system can mean the difference between a smooth delivery and a dangerous situation. Hi-Hog’s Calving Maternity Tub provides a secure, controlled space that allows ranchers to manage cows with confidence.

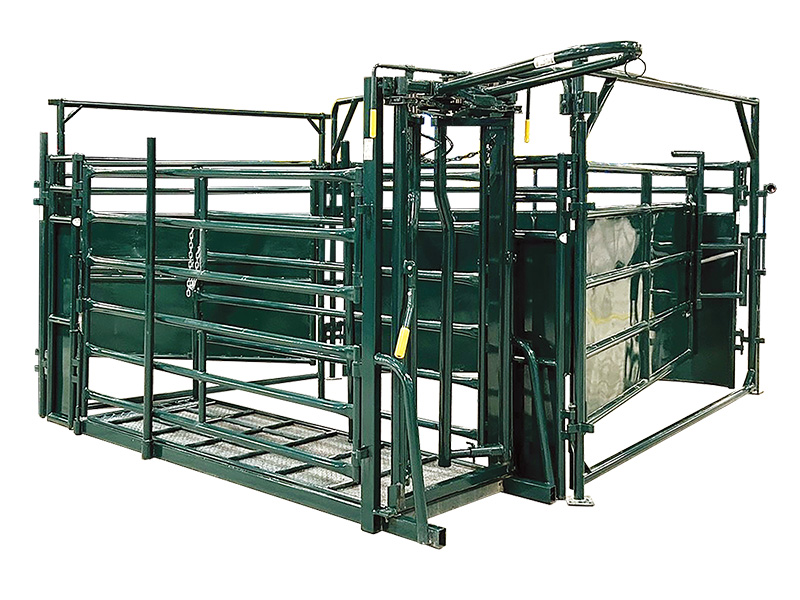

At the core of this system is the Hi-Hog #125 Calving Trimming Chute, known for its versatility and complete cow access. The split-panel design makes it easy to reach the cow from all sides, allowing for:

• Calving assistance
• Medical care and treatments
• Hoof trimming and maintenance

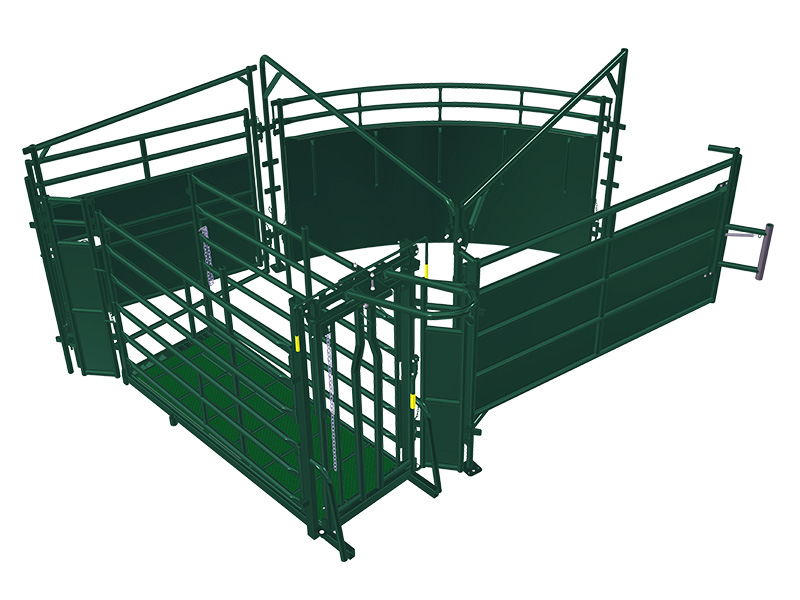

The Crowding Tub Section of Hi-Hog's Maternity Tub is constructed with a #230- 66” high sheeted Curved Panels. The panel is held in position by a #270 Overhead Tub Spreader.

The crowding tub is a very high pressure area. To ensure your crowding tub is secure, the #280 Pivot Gate frame and the overhead spreaders are made with provisions to anchor in place. If your tub happens to be located on a concrete pad simply anchor through the base plates and if not, the supplied 24" ground stakes will prevent the tub from shifting.

The solid pivot gate comes mounted in its own frame. The hinges are 2-7/8” OD x 4” and come with grease fittings for outstanding year round performance. The spring loaded pivot gate latch is rubber coated for smooth, quiet and secure operation. The latch is reversible for clockwise or counter-clockwise operation.

Designed for ranchers who demand reliability, the Hi-Hog Calving Maternity Tub is an essential tool for ensuring a smooth calving season.

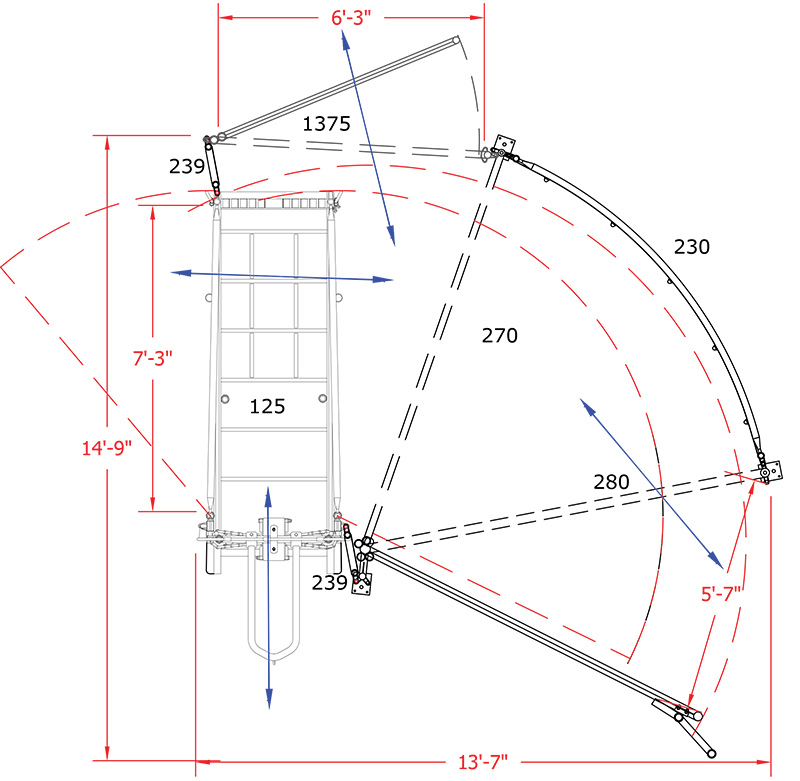

Maternity Pen Layout:

At the core of this system is the Hi-Hog #125 Calving Trimming Chute, known for its versatility and complete cow access.


Alternative Terms: Calving Enclosure, Calving Tub, Veterinarian Chute, Vet Chute, Treatment Chute, 4-H Chute

Built from Hi-Tensile North American Steel Tubing, the maternity tub is engineered for maximum strength and durability. Hi-Hog’s steel holds its shape, ensuring long-term performance in demanding farm environments. The Hi-Hog Green, hi-gloss Polyester Powder Coat finish protects against rust and corrosion, maintaining a clean, professional look for years to come

With Hi-Hog’s Calving Maternity Tub, you can work quickly, safely, and efficiently, reducing stress on both livestock and handlers.

The split-panel design allows you to safely tend to your animals without compromising their comfort or your safety.

Find your Hi-Hog Dealer

Hi-Hog's Maternity Tub is Built Around the #125 Calving Chute, Known For: Durability – Flexibility – Accessibility – Stability

• The chute includes four independent split panels hinged at the headgate
• The upper and lower split panels can be latched together to act as one side panel
• Swing the bottom panel out on either side of the chute to give access for a calf to get started on the cow
• Swing all the side panels out and insert the included grooming posts in one of the two receivers on each side of the chute floor to have full access to your livestock for unrestricted trimming and grooming.
