Hi-Hog offers a range of sorting panels designed to work seamlessly with Hi-Hogs standard alley connectors.
Hi-Hog offers several options for sorting livestock. Our funnel crowding tub provides an option to sort out of the crowding tub. Our squeeze chutes provide two side exits as well as the exit through the head gate. For most situations, these sorting options are all that are required. In some situations however, you may require an option to sort out of your alley.
Four sheeted panels with sorting gates
| ITEM # | DESCRIPTION | WEIGHT (LBS) |
| 85 | 4'-6" Sheeted PASS Gate | 122 |
| 1370 | 7' Sheeted panel with sort gate and access gate | 224 |
| 1375 | 7' frame with sheeted gate | 208 |
| 1380 | 7' Sheeted panel with sort gate | 209 |
Ask an expert about Hi-Hog's adjustable sorting alley options
To satisfy these conditions we have four sheeted bow gates designed for use in a wide range of sorting situations.

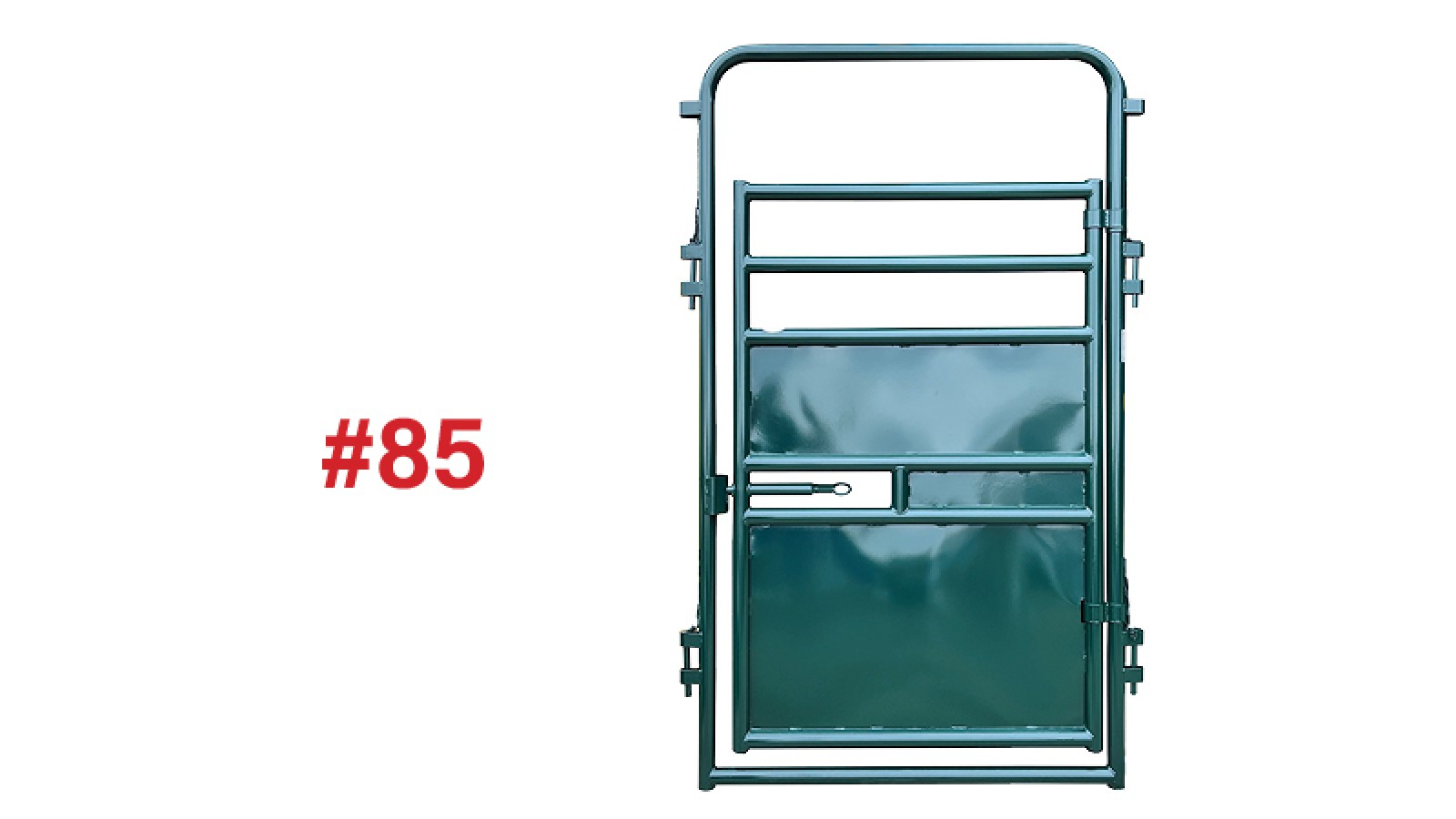

- Item #85, (PASS gate) is a 4’ long x 66” high sheeted bow gate. This is paired with item #86, (PASS panel) 4’ long x 66” high sheeted panel

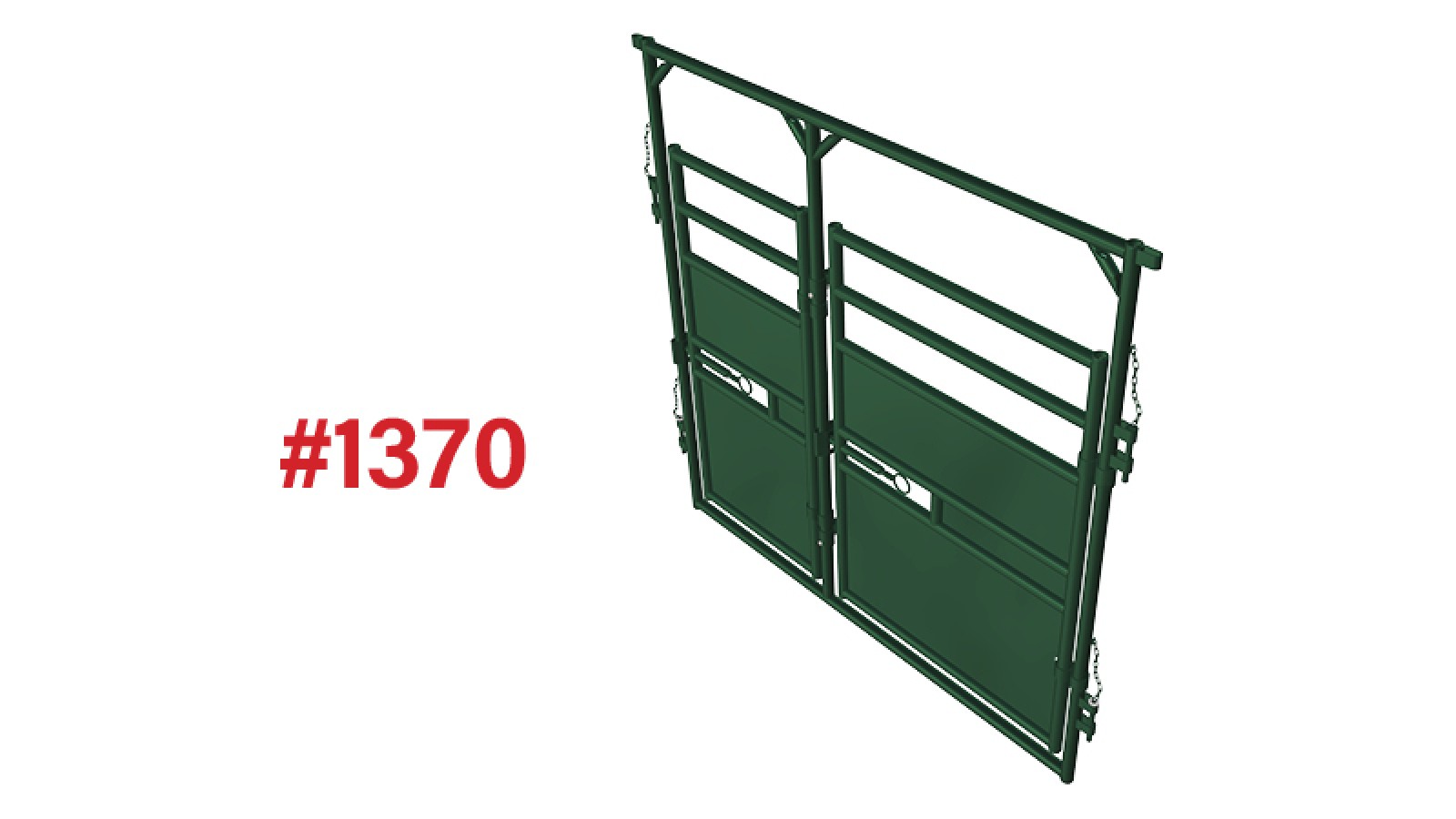

- Item 1370, is a 7’ long x 80” high sheeted panel with two 66” high gates. One gate is 4’ wide while the other is 3’ wide. This item is most often used in a funnel crowding tub where the large gate is for sorting animals and the small gate provides access for the operator/handler. This item can however be paired with item #250, 7’ long x 66” high sheeted panel, or item #251, a 7’ long x 60” high sheeted panel

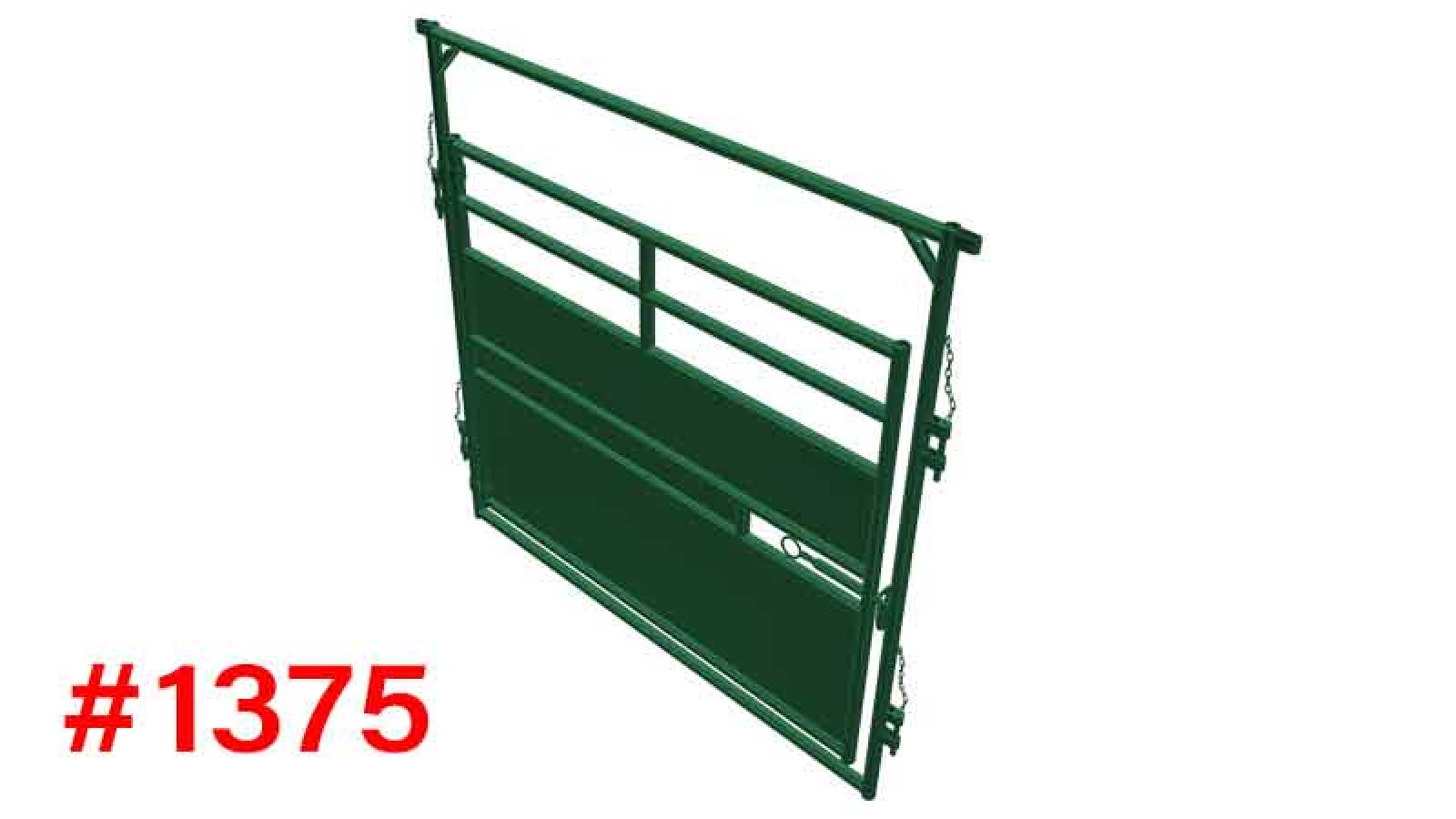

- Item 1375, is a 7’ long x 80” high frame with a 7’ wide x 66” high sheeted gate. This item can however be paired with item #250, 7’ long x 66” high sheeted panel, or item #251, a 7’ long x 60” high sheeted panel

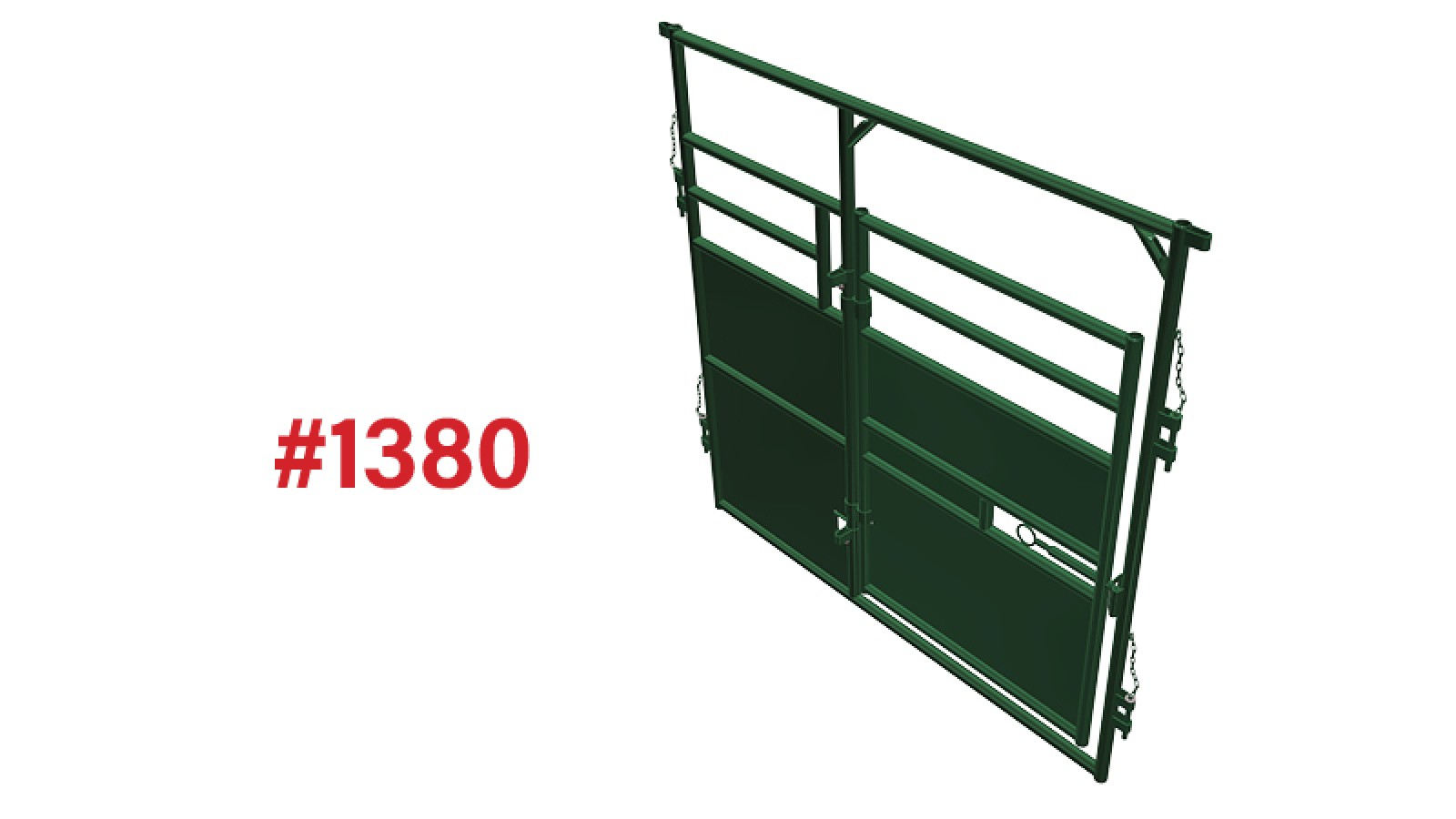

- Item #1380, is a 7’ long x 66” high sheeted panel with 4’ wide bow gate. This is paired with item #250, 7’ long x 66” high sheeted panel, and item #251, 7’ long x 60” high sheeted panel.
These four bow gates integrate seamlessly with Hi-Hog's core cattle handling equipment such as our crowding tubs or working alleys.

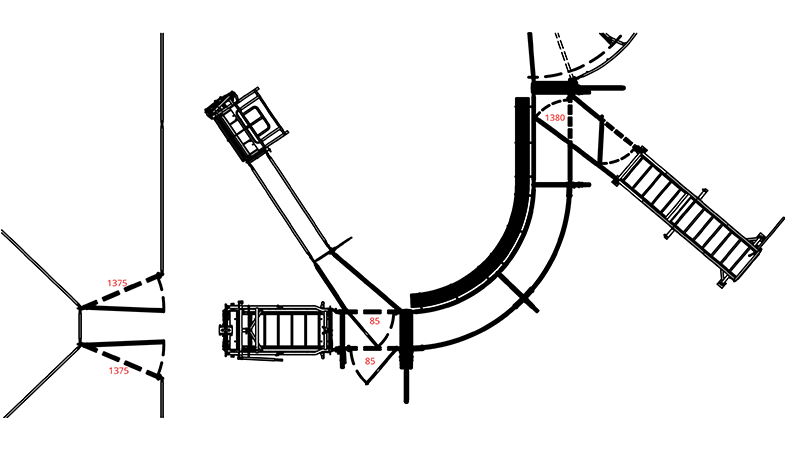

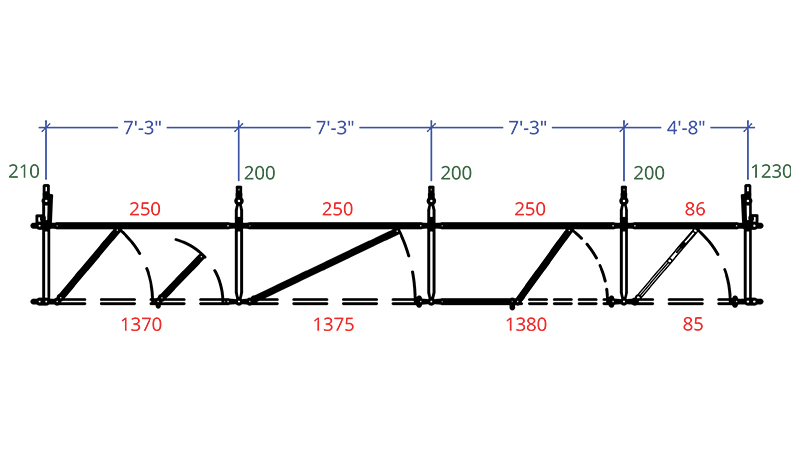

Sample cattle handling system utilizing Hi-Hog's sorting panels
All Hi-Hog's panels and bow gates utilize a common connector system. This system allows Hi-Hog cattle handling system designers to freely locate these sorting gates where they are needed. Each of these bow gates are paired with sheeted panels with matching lengths to seamlessly integrate with our alley systems.
Ask an expert about Hi-Hog's adjustable sorting alley options
Hi-Hog also carries both a fixed width (item 80) and an adjustable width (item 1560) palpation cage. Although palpation cages are not recommended for sorting large cattle they can be used as a 3’ long sorting box for small livestock.
