Hi-Hog's cattle handling alley options include an alley stop, and elevated walkways
Which options do you need for your cattle working alley?
- Alley Stop
- Elevated Walkways
- Walkway Stairs

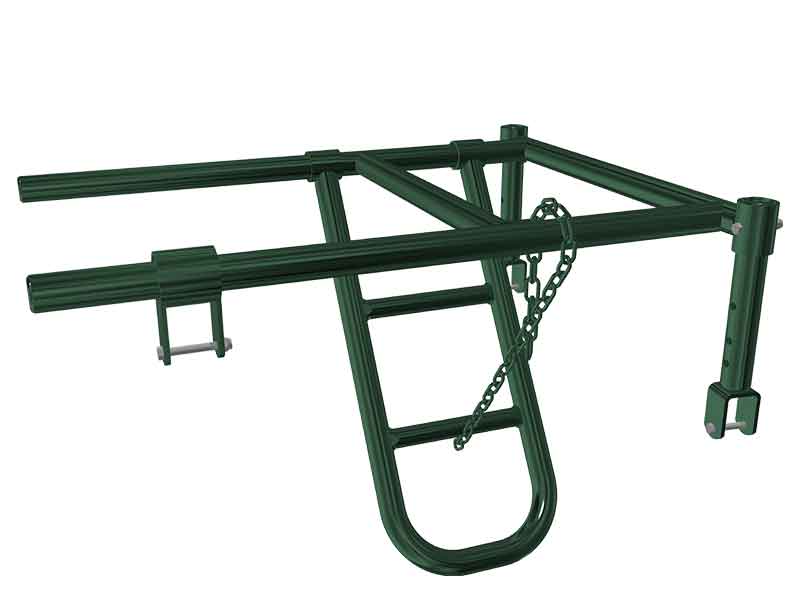

Adjustable Alley Stop, item #170
Adjustable Alley Stop
The no-back alley stop is positioned overhead in the cattle working alley. The height of the alley stop can be quickly and easily adjusted for any sized animal. When the animal passes under the alley stop the stop will drop behind the animal to prevent cattle from backing up in the working chute.

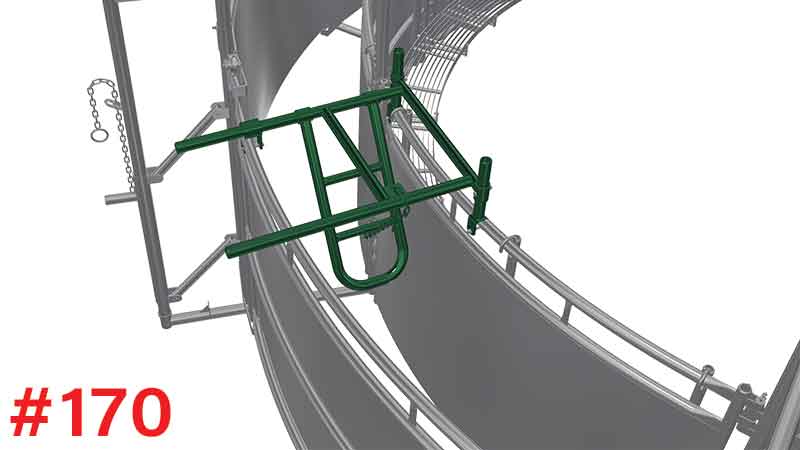

![Adjust the level of the alley-stop to match the sides of your alley Hi-Hog Alley-Stop mounted on an adjustable U-Alley](assets/Uploads/170.jpg)
Alley-Stop mounted on Hi-Hog's adjustable U-Alley

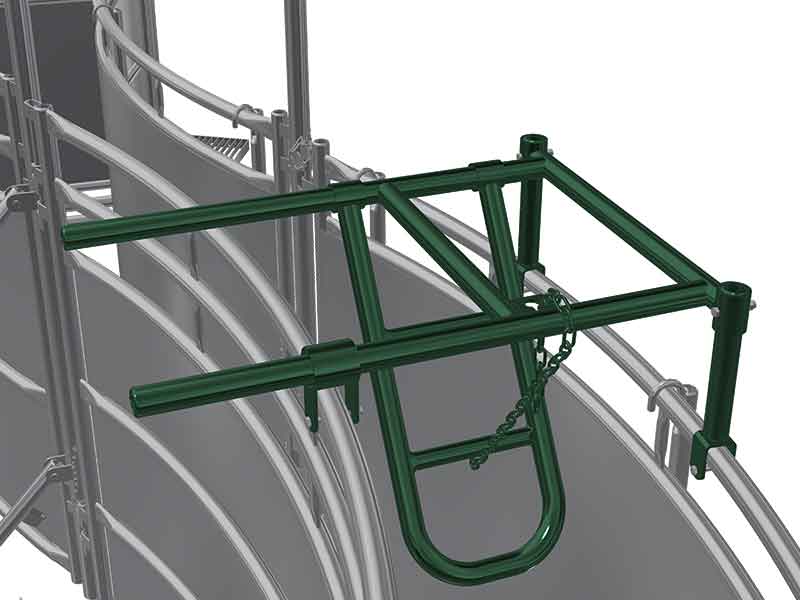

![To adjust the height of the alley stop, simply set the chain to your desired height. Hi-Hog Alley-Stop mounted on an adjustable S-Alley](assets/Uploads/170-Alley-Stop-on-S-Alley.jpg)
Alley-Stop mounted on Hi-Hog's adjustable S-Alley
For optimum flow we suggest the first alley stop is placed at least two animal lengths up the alley from the crowding tub.
The alley stop will not restrict the functionality of the working alley in any way.
- Item: 170
- Weight: 45 lbs.
Ask an expert about Hi-Hog's working alley options
Elevated Walkways

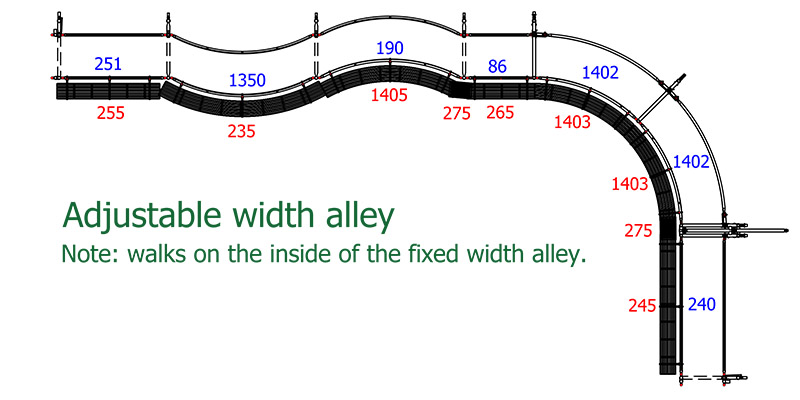

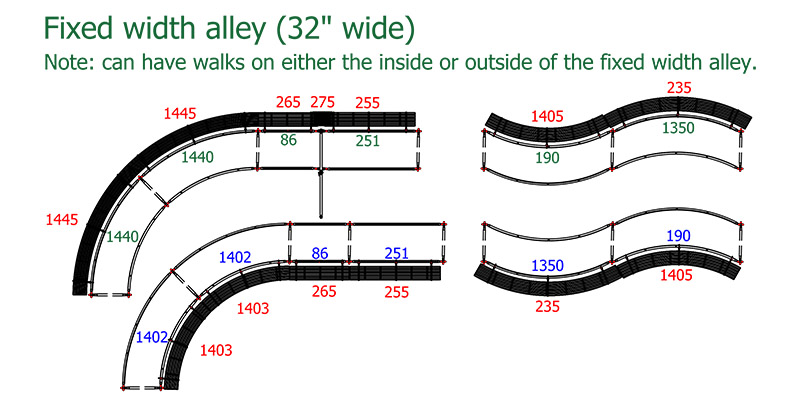

Hi-Hog offers a range of curved and straight elevated walks. The walks hang on the side of the working alley.
If you require help identifying what walkway's you need contact Hi-Hog.

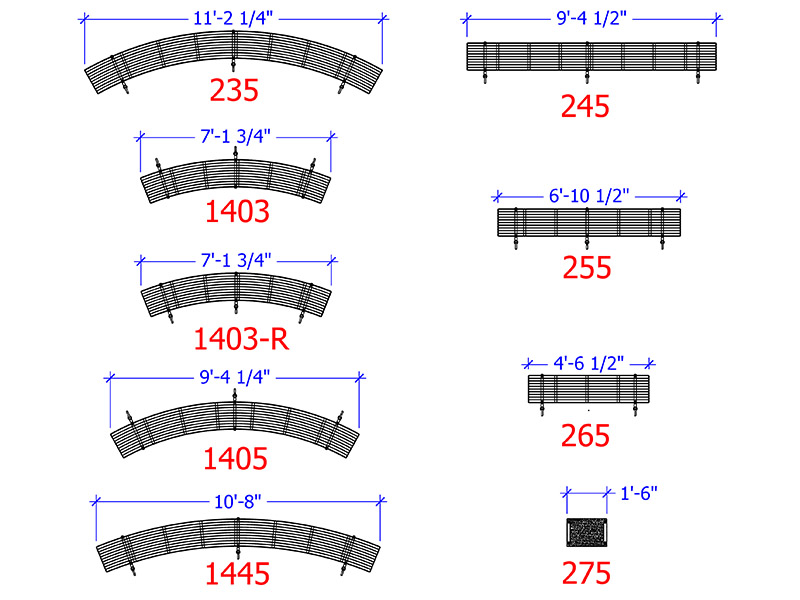

Item # | Description | Fits on | Weight (LBS.) |
235 | Outside Curve | 1350, 180, 230 | 105 |
245 | Straight - 9'-4.375" | 240 | 94 |
255 | Straight - 6'10.375" | 250 | 80 |
265 | Straight - 4'-6.375" | 86 | 51 |
275 | Transition Walkway | rolling door gaps | 9.5 |
1403 | Inside Curve - 7'-3 3/4" | 1402 | 80 |
1403-R | Outside Curve - 7'-3 3/4" | 180 | 78 |
1405 | Inside Curve - 9'-9" | 1340, 190 | 94 |
1445 | Outside Curve 10'-8" | 1440 | 104 |
Walkway Transition
Hi-Hog's standard walkways are designed to attach end-to-end with the neighboring walkway when using plain alley spreaders. When you use an alley spreader that includes a rolling door a gap is created between the walkways. The Walkway Transition securely fills this gap. The design of the Walkway Transition adapts easily to any combination of walkways.

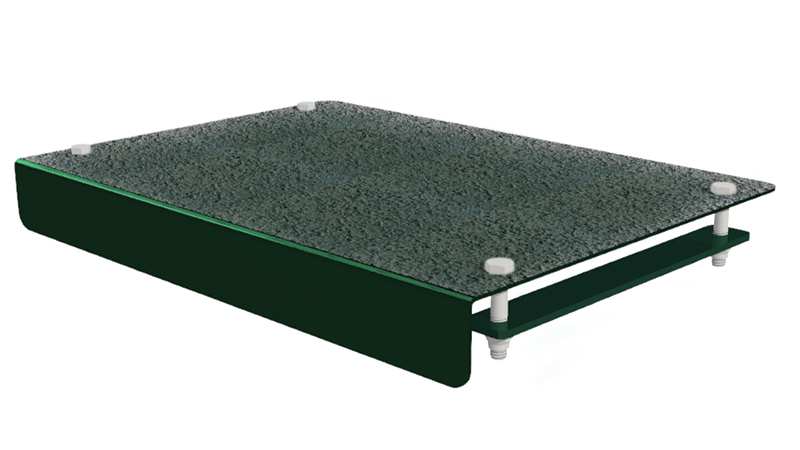

![When adding an alley spreader with a rolling door consider adding a walkway transition Transition Walk](assets/Uploads/Transition-Walk-276.jpg)
Optional Transition Walk, Item 275, 9.5 lbs.
Ask an expert about Hi-Hog's working alley options
Walkway Stairs
Hi-Hog's standard walkways are mounted at a height of 18" above grade. If you prefer a gentler climb the addition of a set of stairs will satisfy your needs. The stairs can be set anywhere along your walkway. No tools are required for installation and you can easily relocate the stairs if needed.

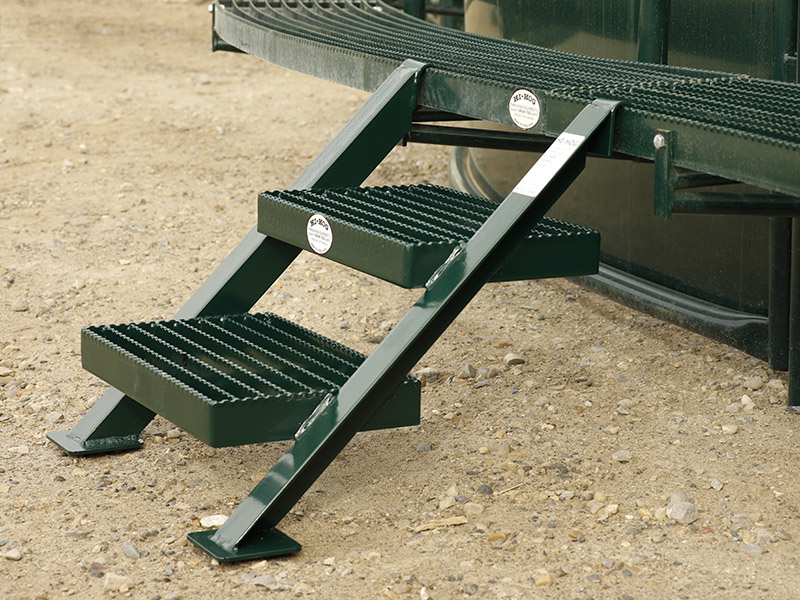

![Gain easy access to Hi-Hog's elevated walkway with a set of stairs Stairs for accessing Hi-Hog's cattle working alley elevated walkway](assets/Uploads/1406-Walkway-Stairs-attached.jpg)
Walkway Stairs, Item 1406, 31 lbs.

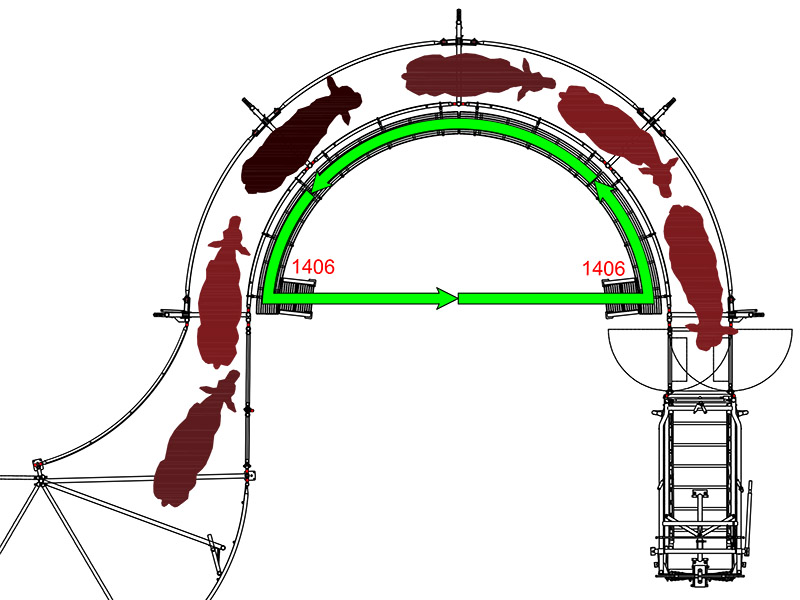

![Save your energy with the addition of walk stairs Add stairs to support cattle flow and reduce work](assets/Uploads/Sample-alley-with-stairs-and-walks.jpg)
Work the point of balance and minimize effort with addition of stairs
