Item Number: Double Alley Parts

A double alley can speed up the time it takes to fill the cattle working alley. Hi-Hog offers the components to create an adjustable or a non-adjustable double alley

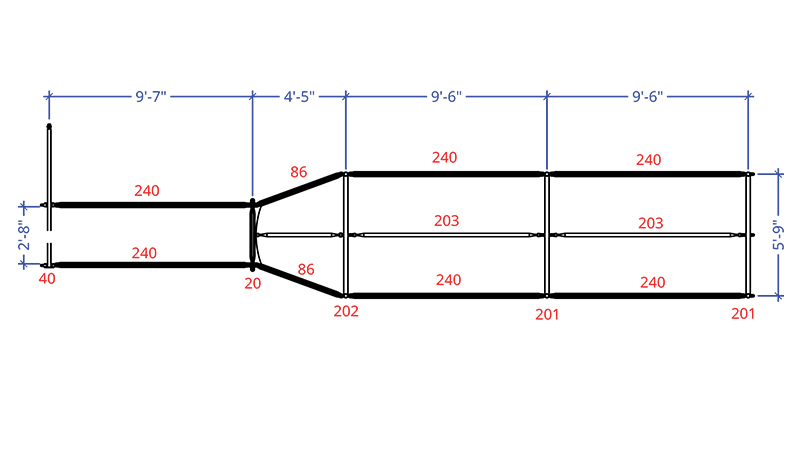

Plan view of Hi-Hog's Non-Adjustable double cattle handling alley

Non-Adjustable Double Alley

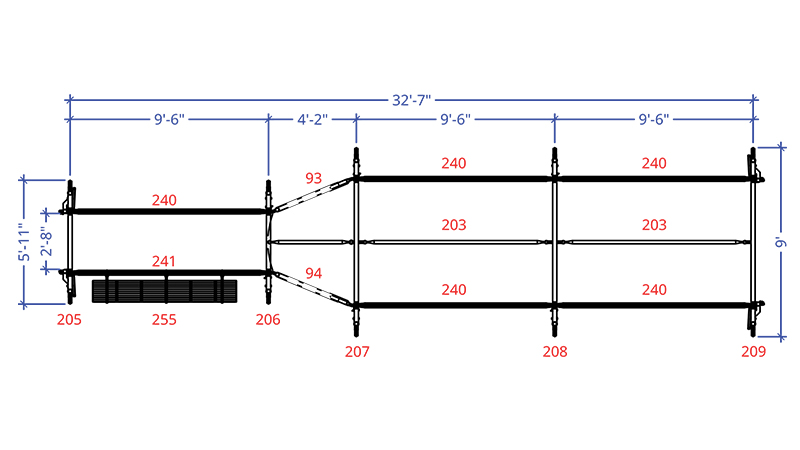

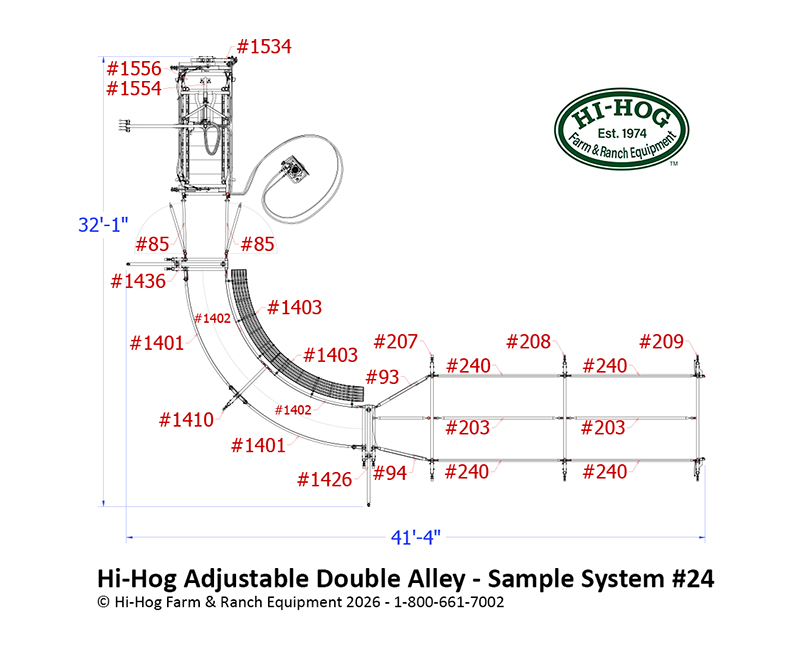

Plan view of Hi-Hog's Adjustable double cattle handling alley

Adjustable Double Alley

Cattle Sorting Double Alley Designed for Fast Sorting

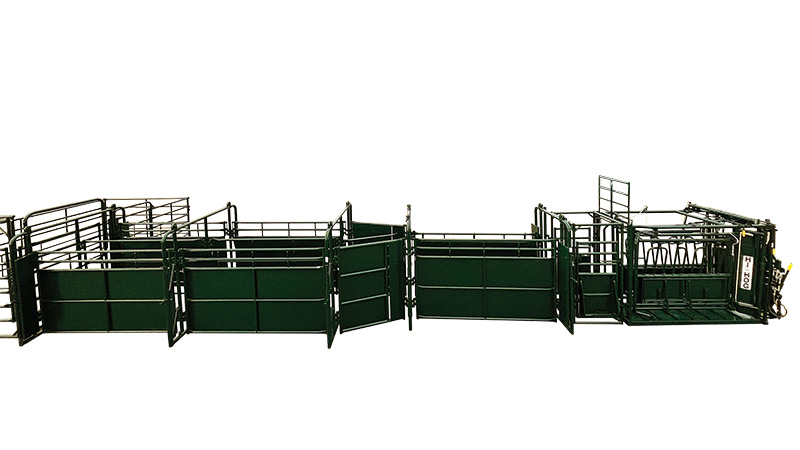

Hi-Hog Adjustable Double Alley with Manual Squeeze Chute

Ask an expert about Hi-Hog's Double Alley

The twin alley can improve cattle flow as it offers a larger opening compared with traditional single file working alleys. Additionally, livestock can flow through the double alley with their herd mates visibly at their side which helps to reduce stress caused by isolation.

A double alley can be added to a variety of cattle working facilities. In the samples below you will see the double alley coming off of a crowding tub, a bud box, and a curved alley.

As with our other alley systems, the modular components provide the designer freedom to create a design that meets your individual ranch requirements.

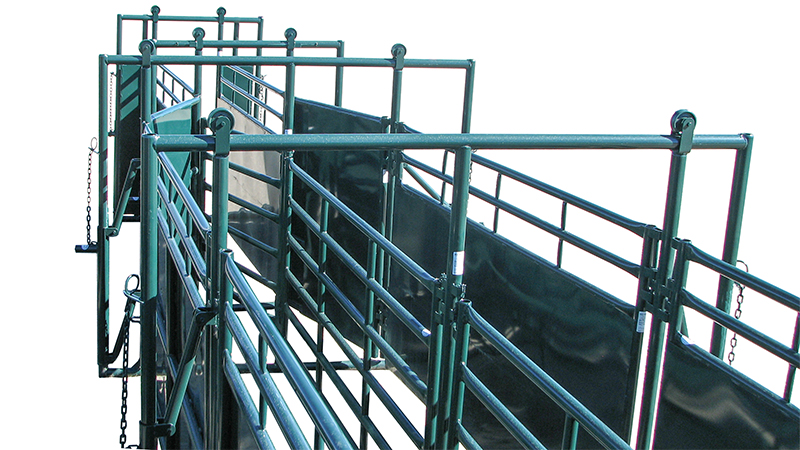

Photo of Hi-Hog's adjustable double alley

 Non Adjustable Double Alley Parts



ITEM #

DESCRIPTION

WEIGHT (LBS)

20

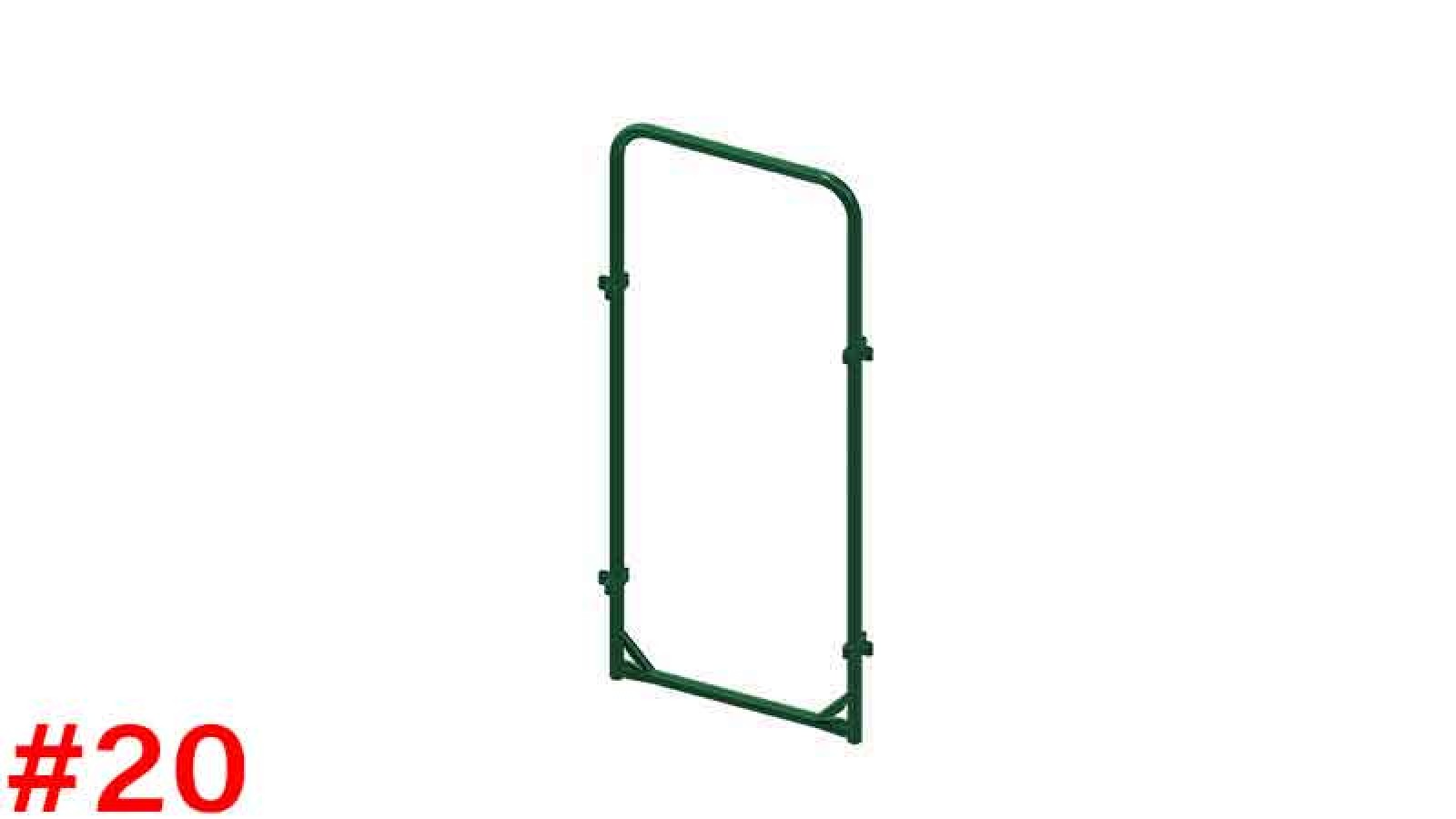

32" Non-Adjustable Alley Spreader

41

40

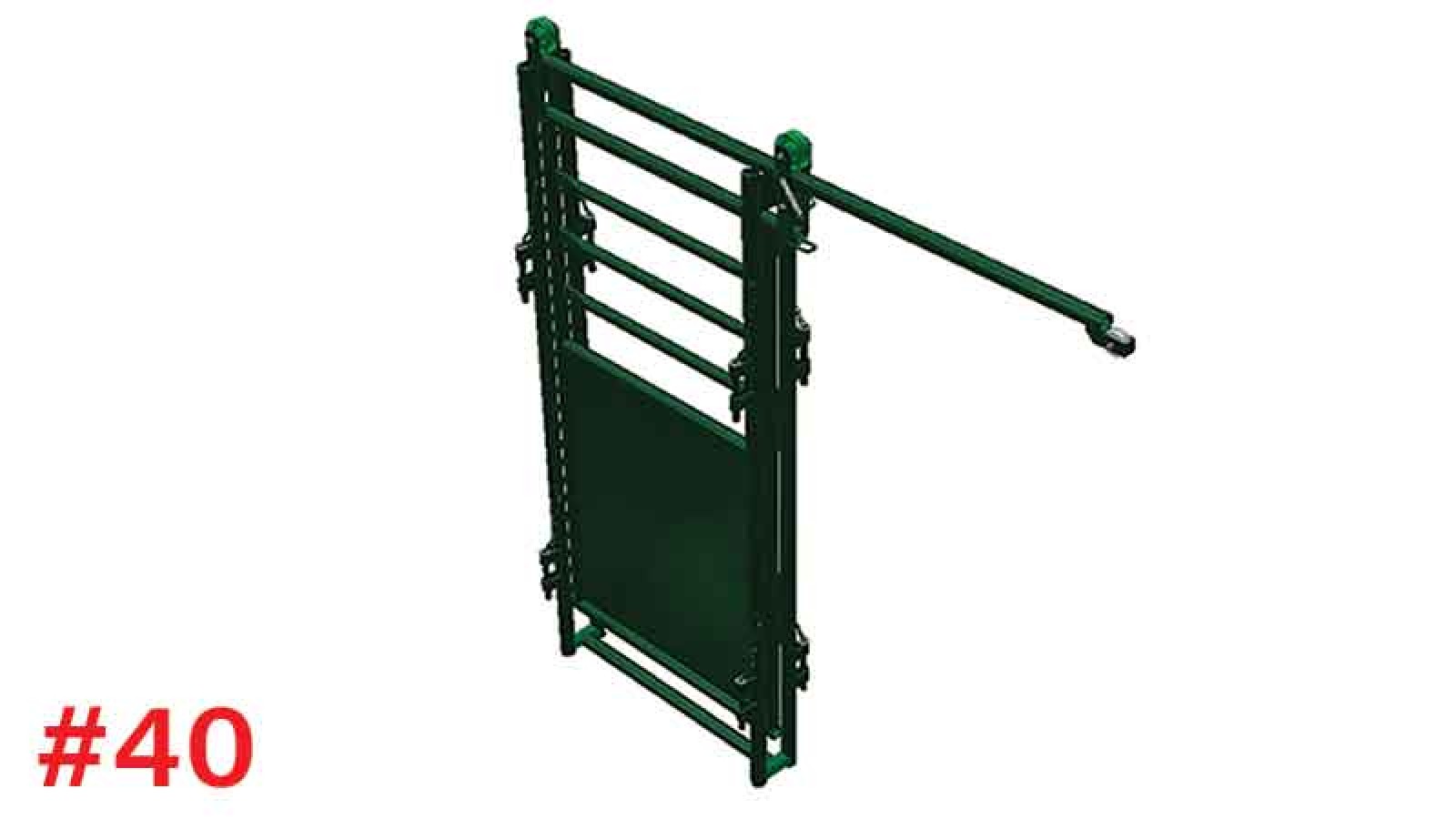

32" Non Adjustable Alley Spreader with Rolling Door

177

86

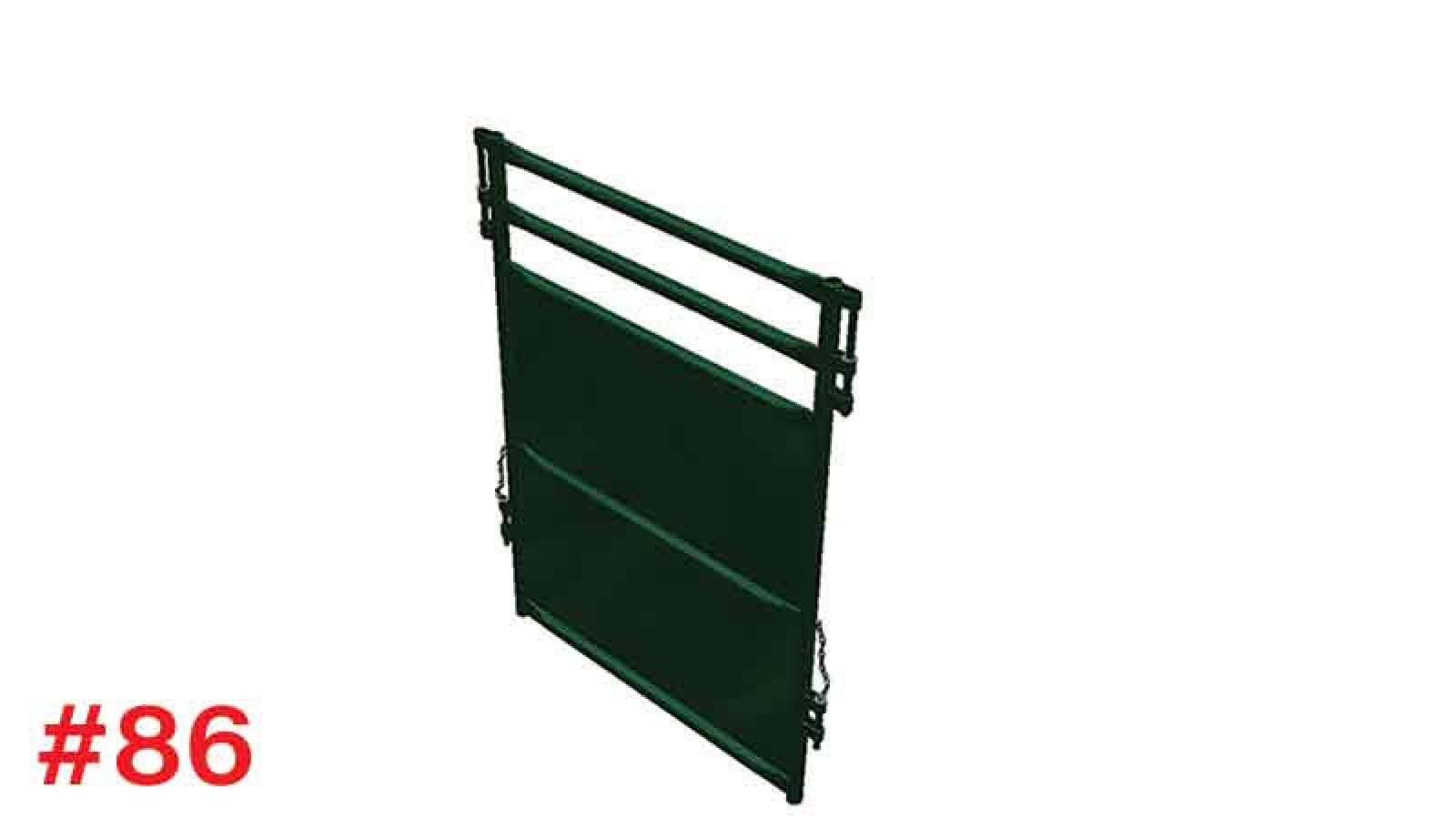

4'-6" wide x 66" high Panel

95

201

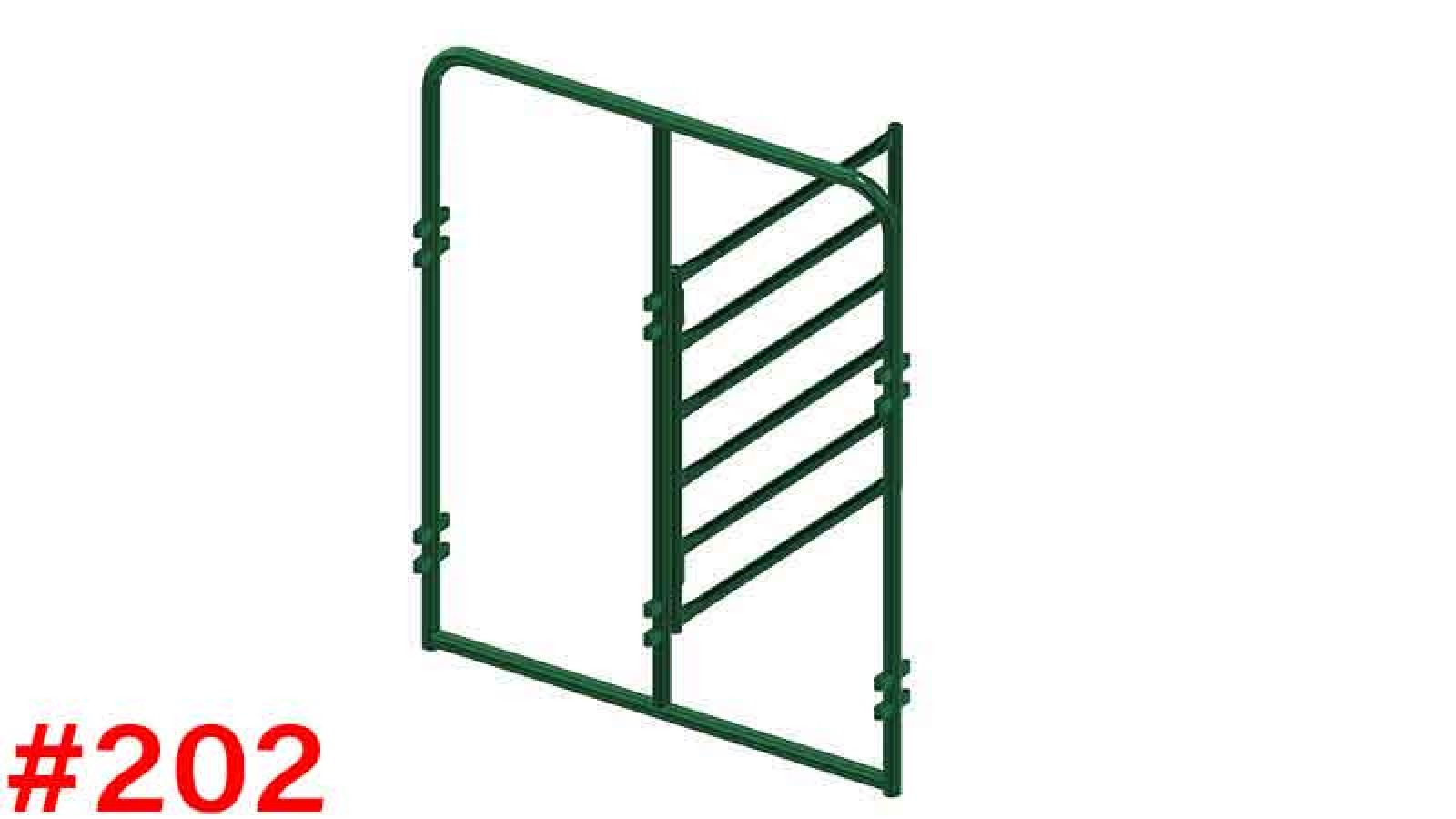

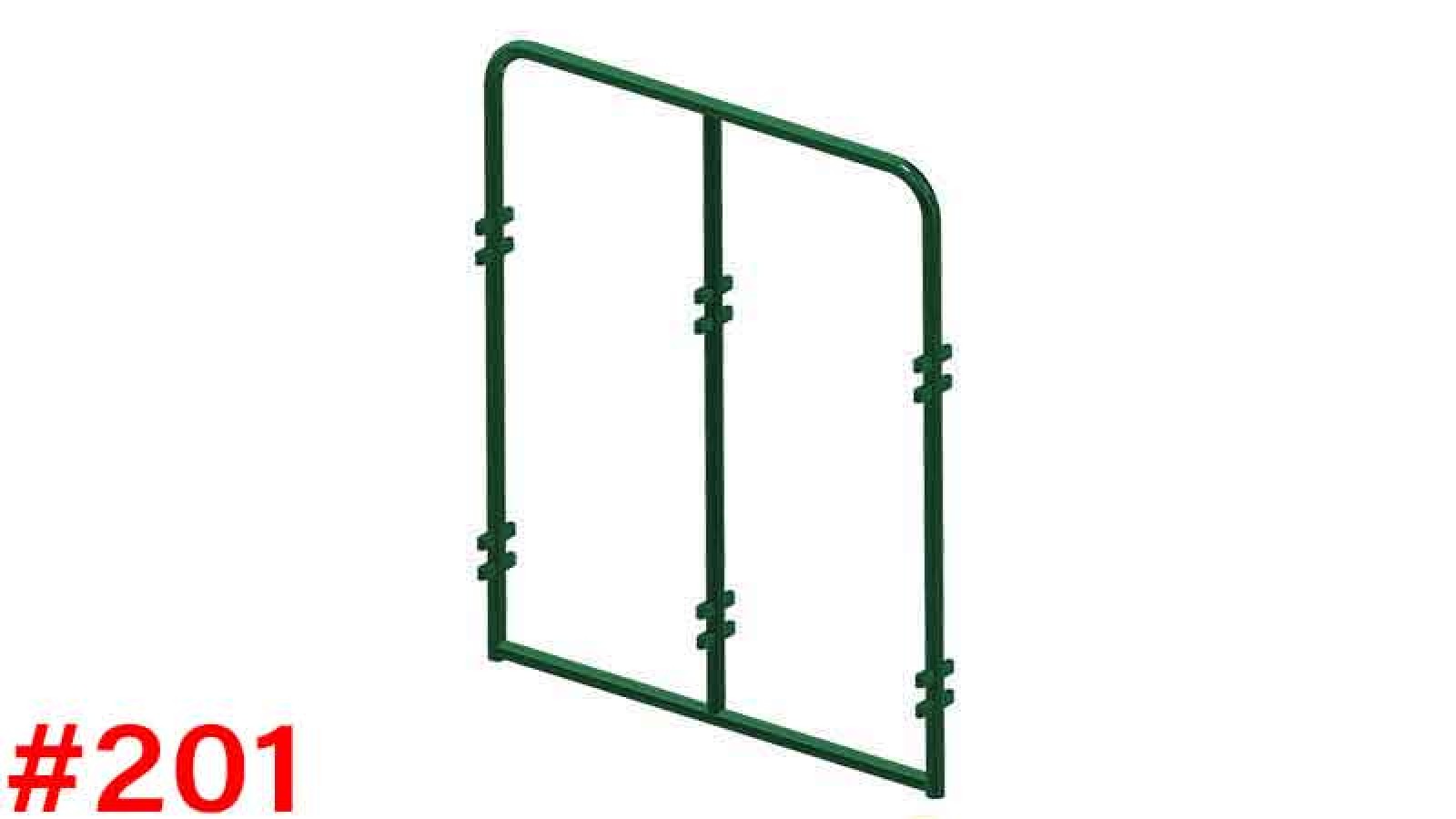

Double Alley Spreader - 32" Fixed Width

104

202

Double Alley Spreader - 32" Fixed Width - With Sort Gate

156

203

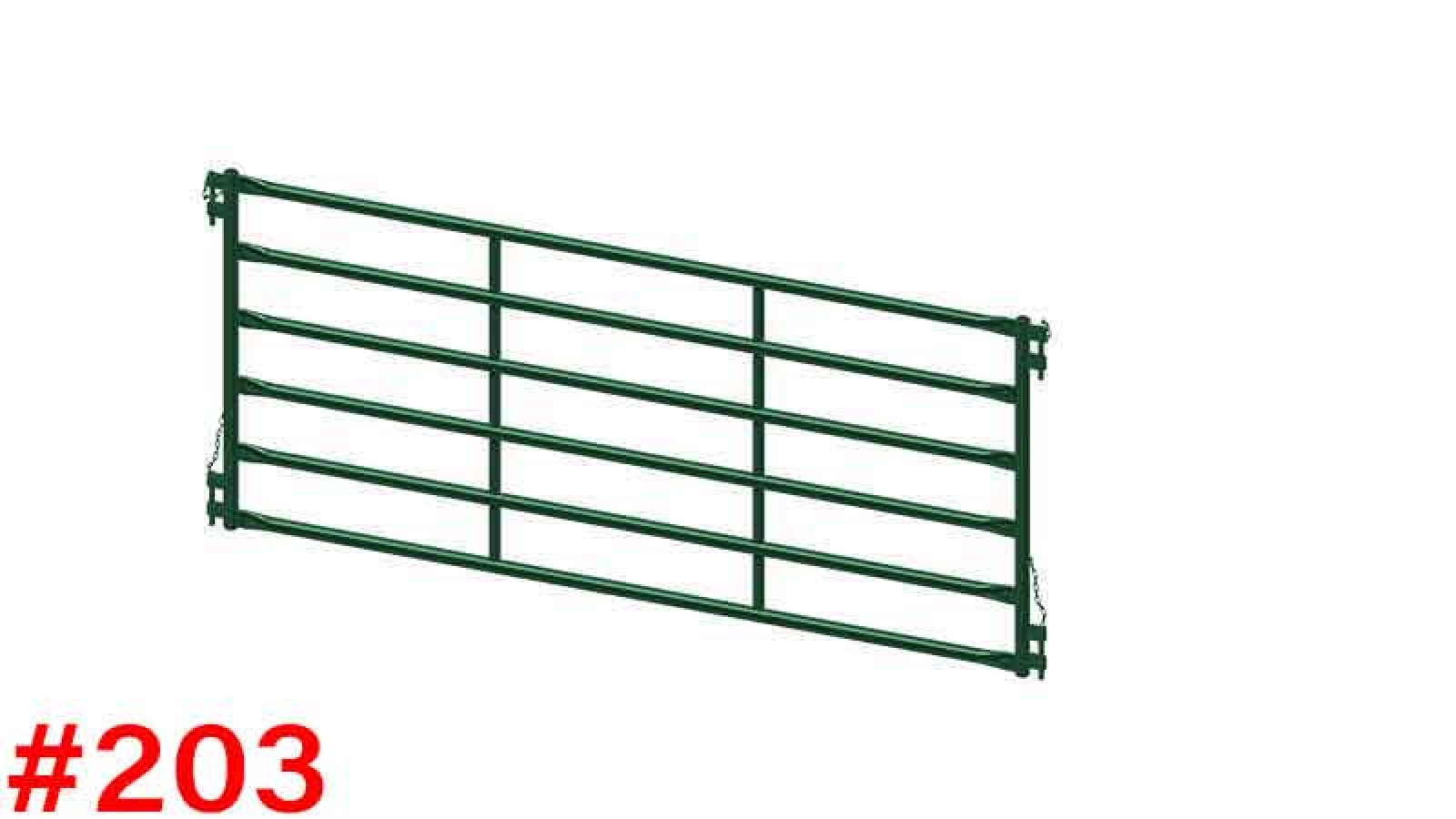

Double Alley Center Panel - 9'-3" long, 6-Bar

108

240

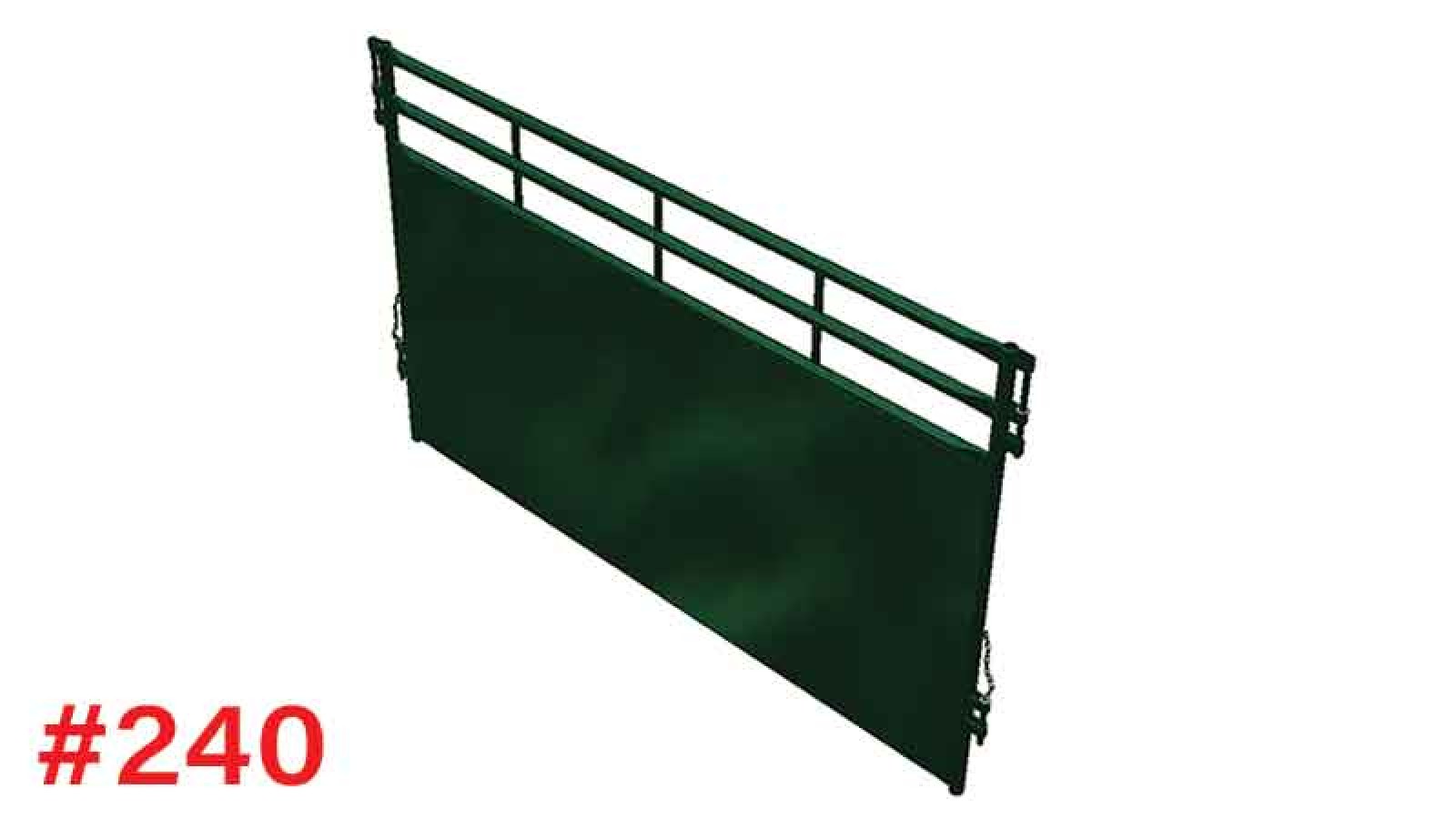

Sheeted Straight Panel - 9'-3" L x 66" H

194


Adjustable Double Alley Parts



ITEM #

DESCRIPTION

WEIGHT (LBS)

93

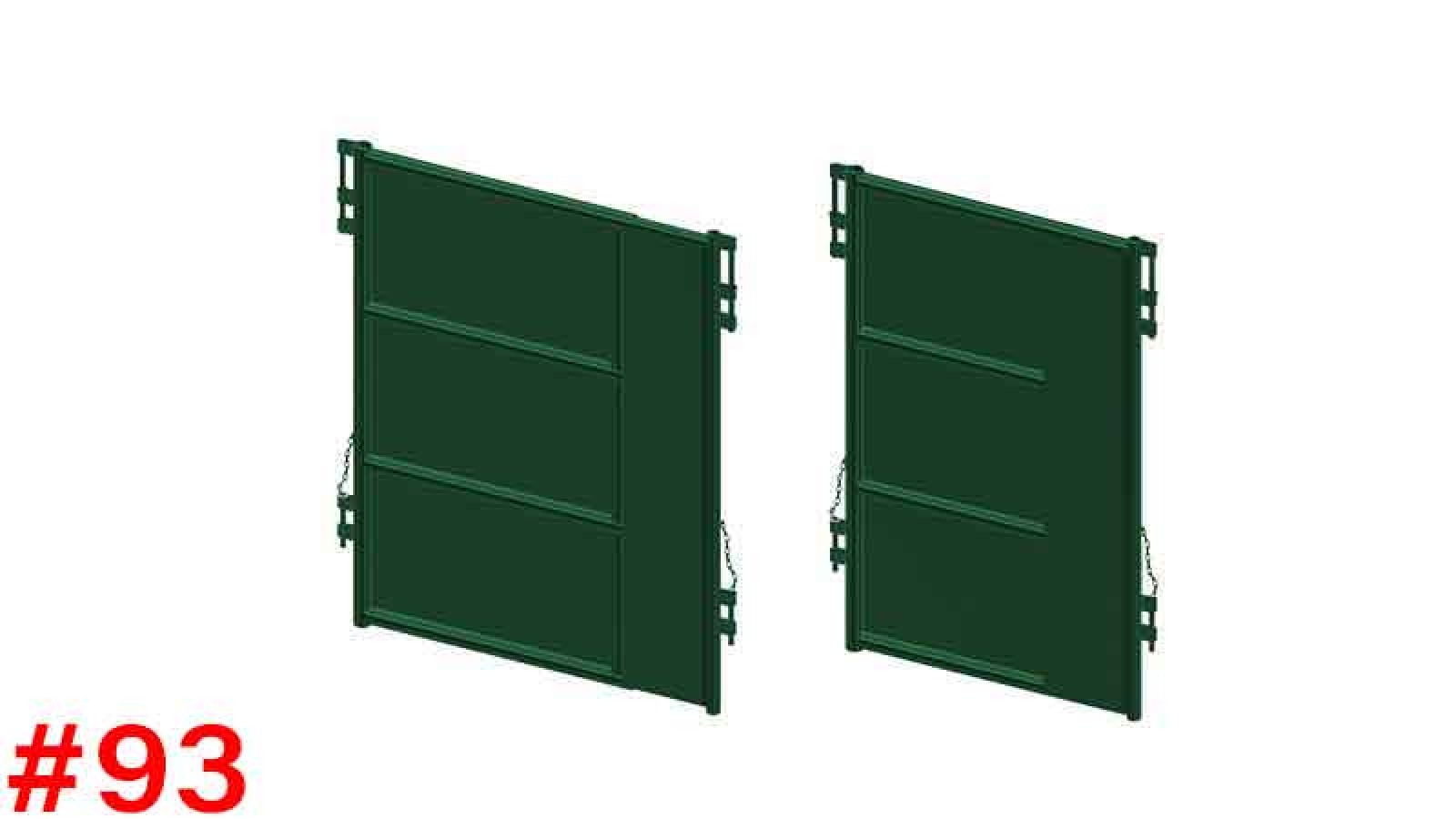

Sheeted Expanding Panel - 3'-10.5" to 4'-6" - Right Hand

182

94

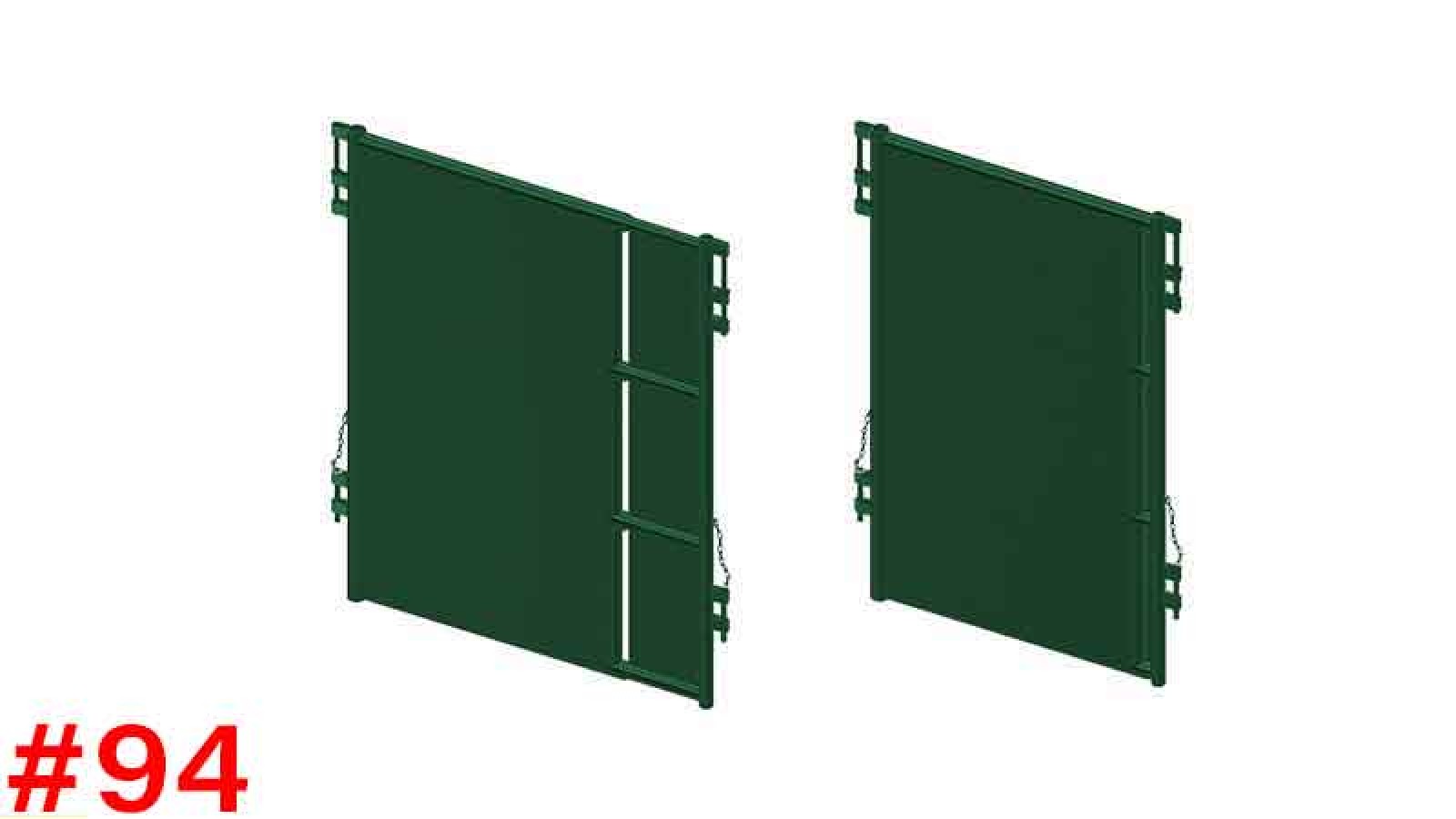

Sheeted Expanding Panel - 3'-10.5" to 4'-6" - Left Hand

182

203

Double Alley Center Panel - 9'-3" long, 6-Bar

108

205

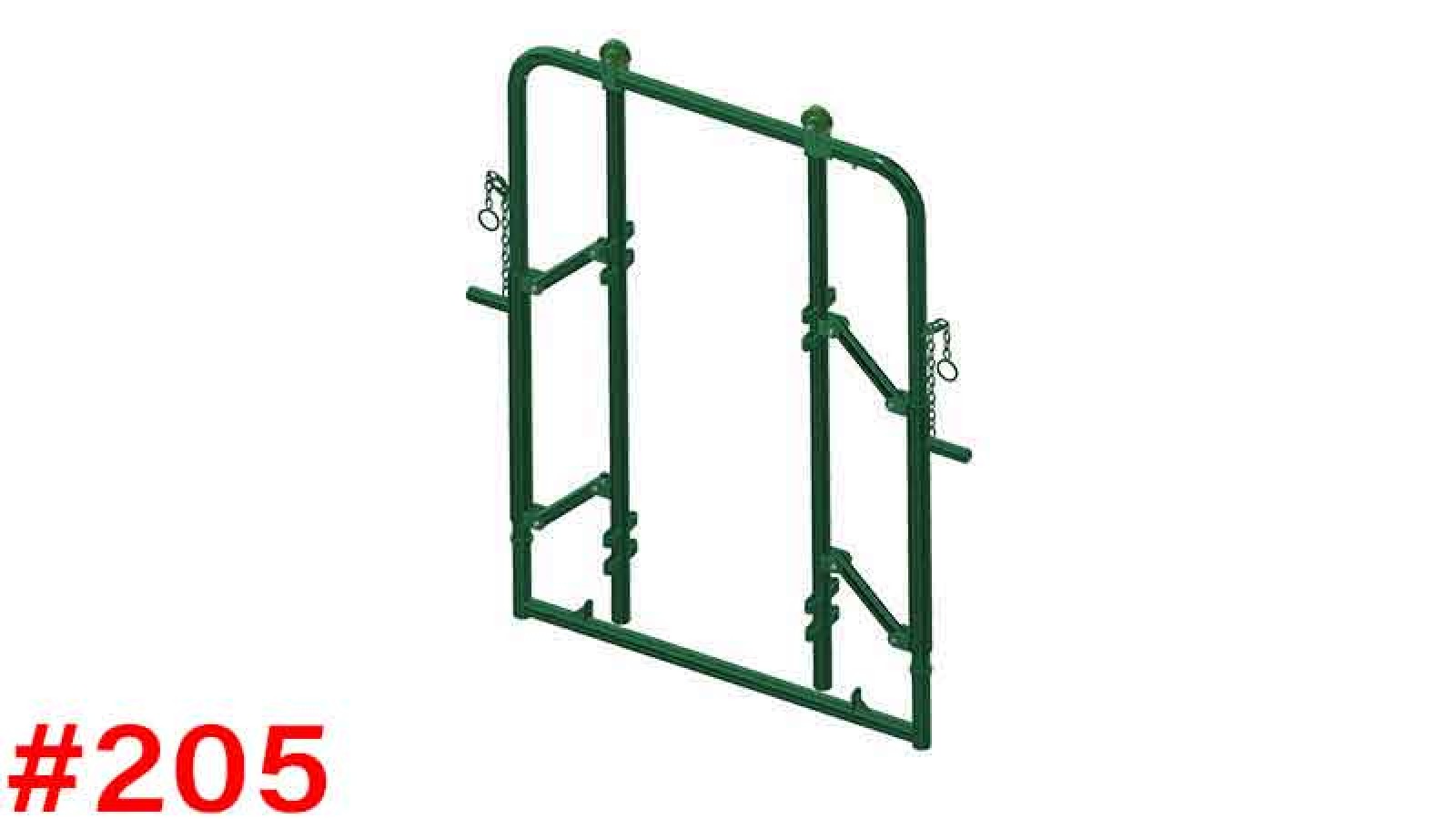

Adjustable Double Alley Spreader - Dual Controls - 32" wide - End

265

206

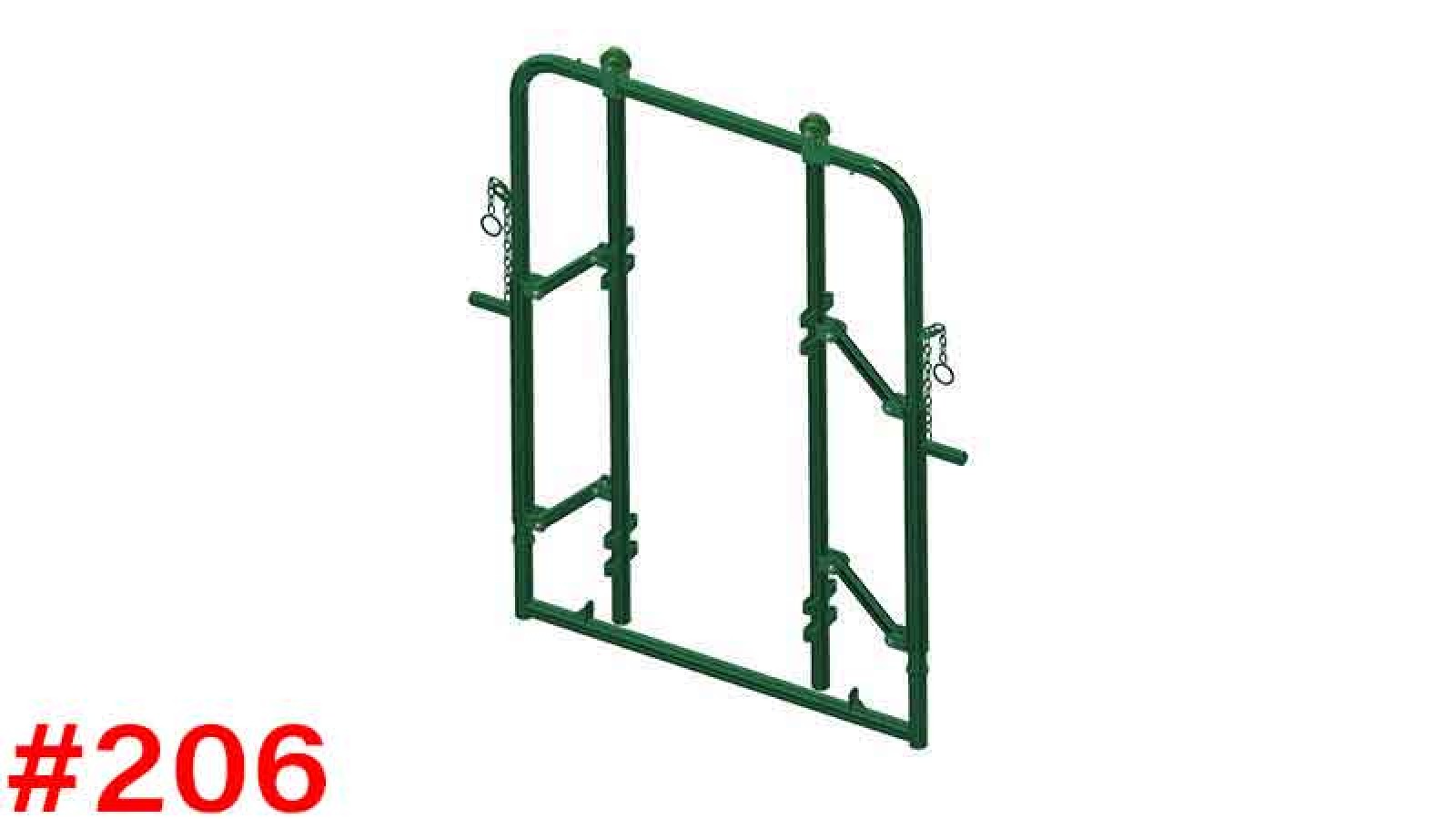

Adjustable Double Alley Spreader - Dual Controls - 32" wide - Interior

164

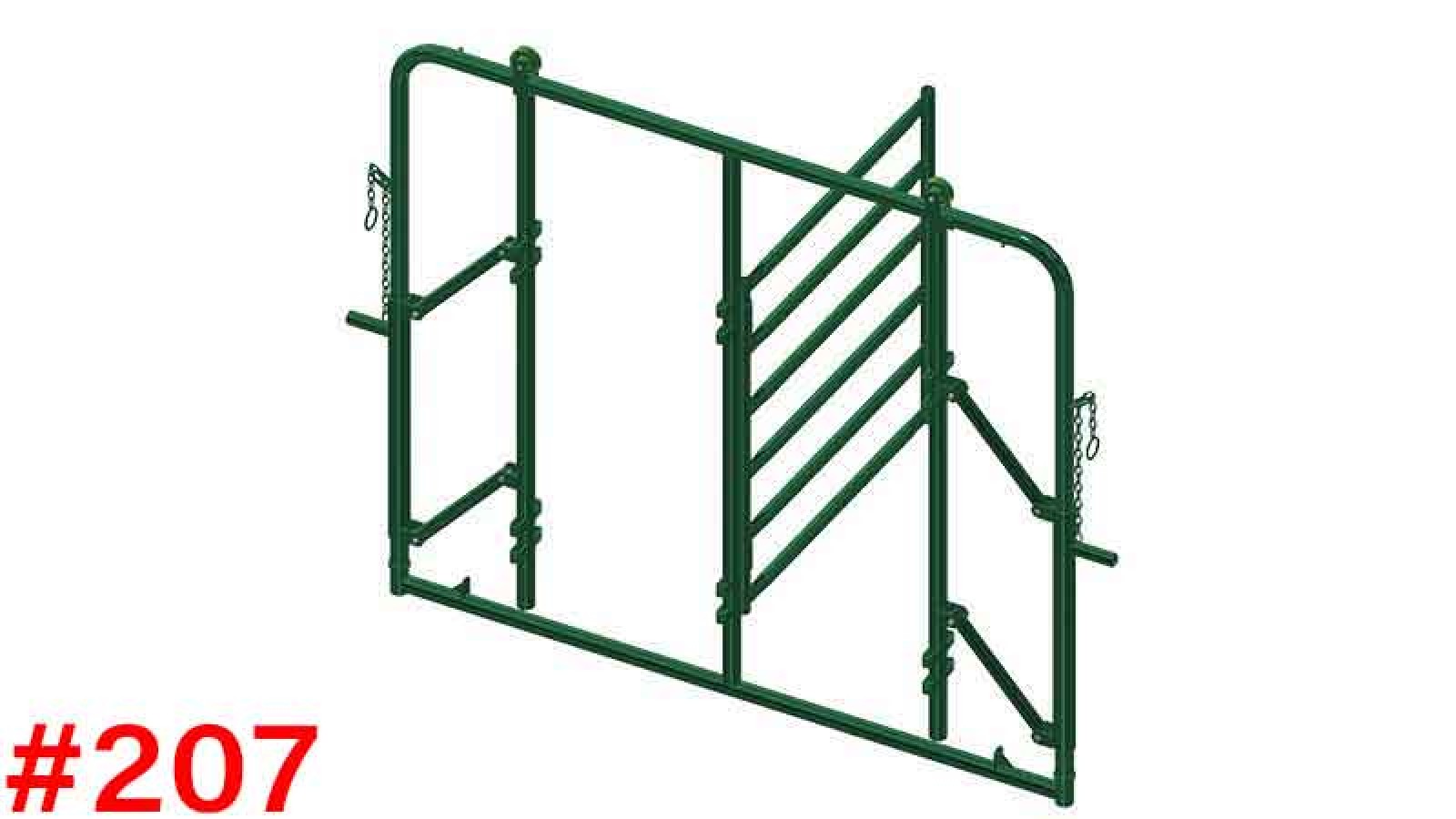

207

Adjustable Double Alley Spreader -  Dual Controls - 64" wide - With Sort Gate

263

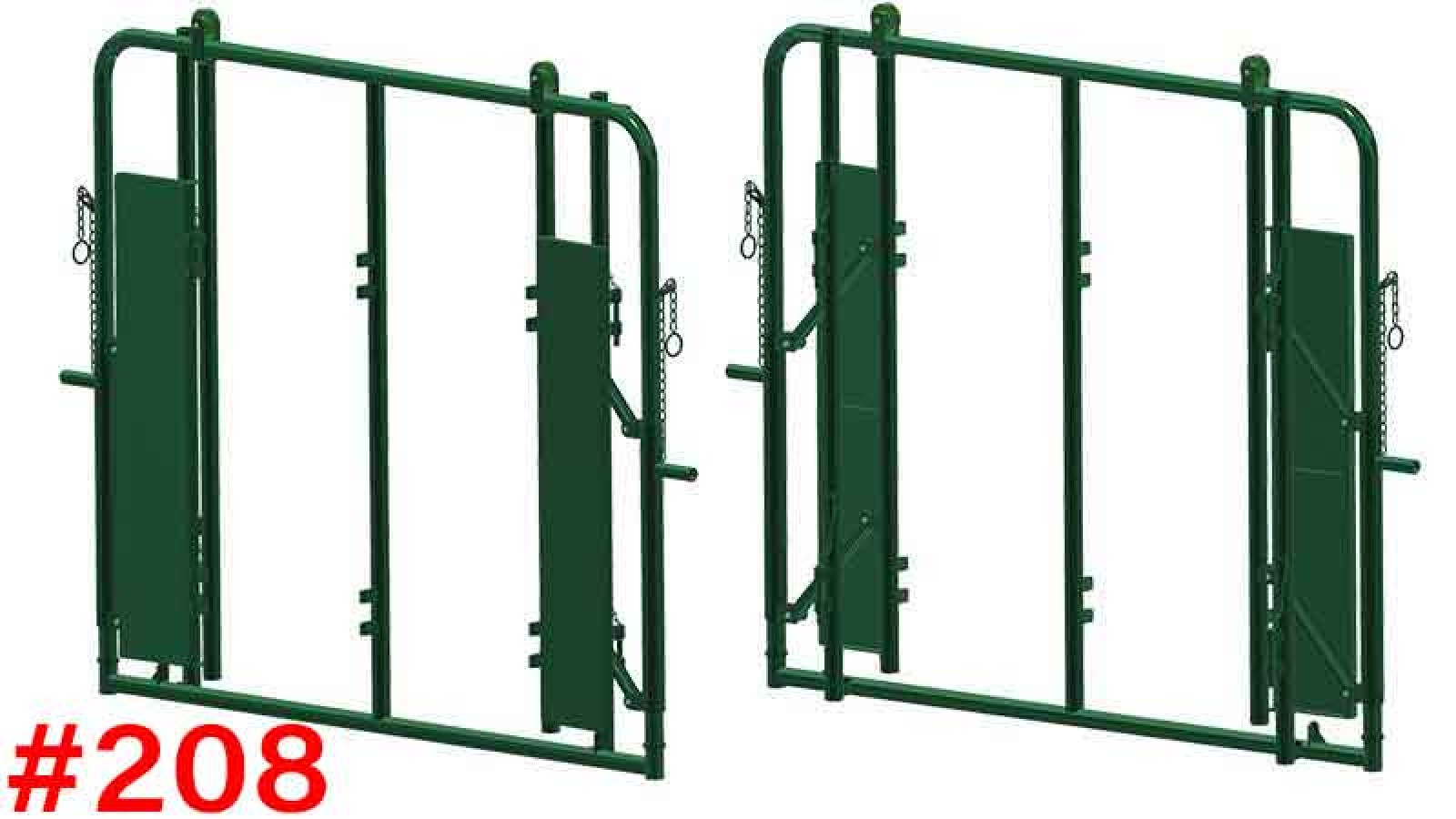

208

Adjustable Double Alley Spreader - Dual Controls - 64" wide - Interior

211

209

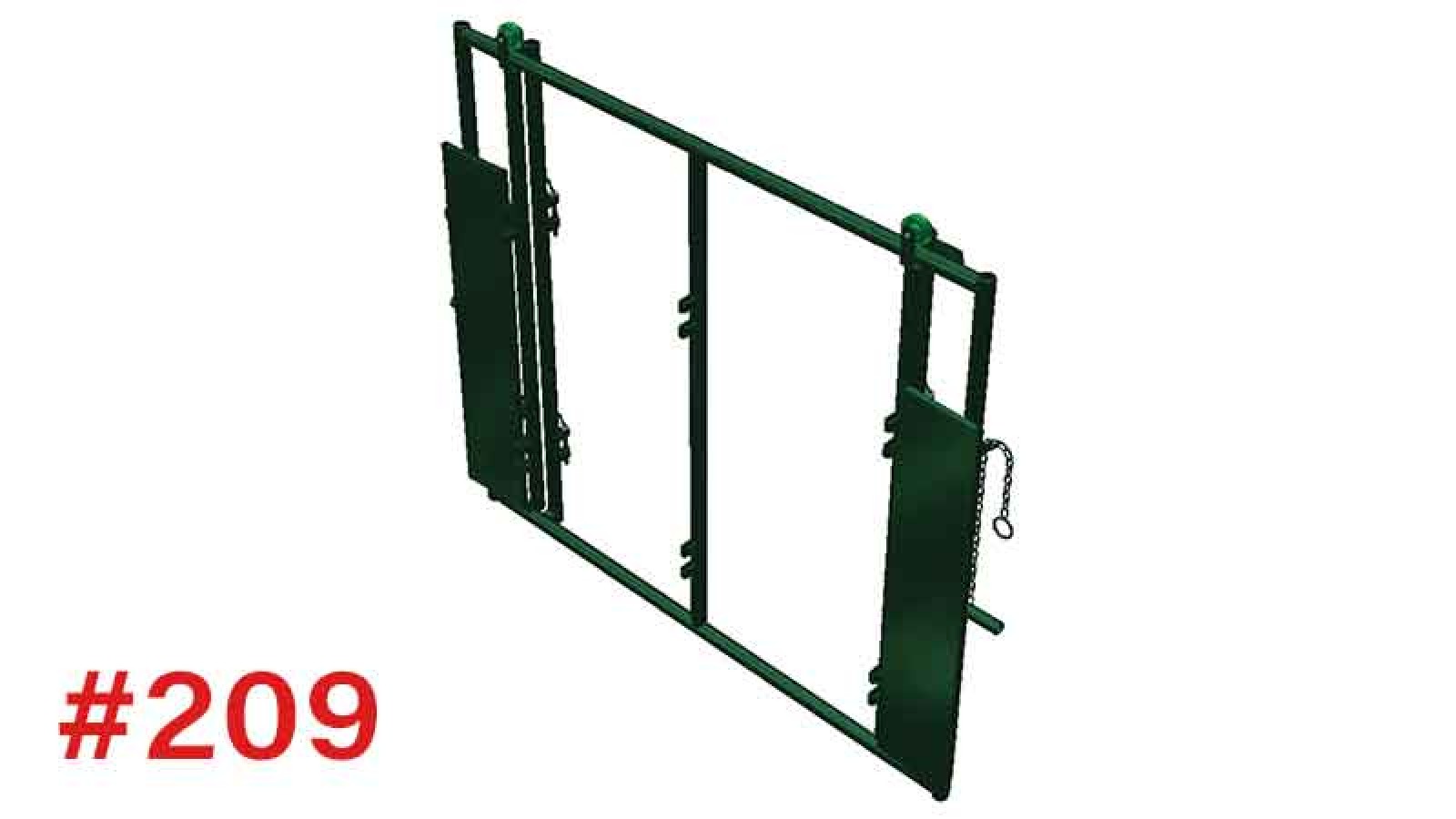

Adjustable Double Alley Spreader - Dual Controls - 64" wide - End

310

240

Sheeted Straight Panel - 9'-3" L x 66" H

194

Ask an expert about Hi-Hog's Double Alley


The end of the double alley funnels your stock into a single file alley section, leading to the Palpation Cage and Cattle Squeeze Chute.

Hi-Hog offers both a fixed-width Palpation Cage and an adjustable-width Palpation Cage or you can use the PASS Gate / PASS Alley combination for rapid sorting ahead of the Squeeze Chute.

Below is an Adjustable Double Alley with Palpation Cage and Manual Squeeze Chute. See more sample cattle handling systems

A cattle handling system designed to reduce animal stress and speed up the cattle handling process.

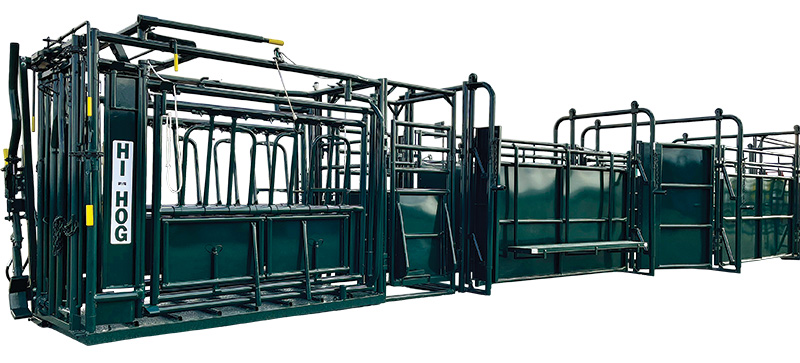

Adjustable Double Alley Funnels Into a Palpation Cage and Manual PA Cattle Squeeze Chute

Work smarter with this efficient system that minimizes handler movement and maximizes cattle flow

We are happy to help you with your design. Give us a call and our design staff will prepare a design just for you. This is a free service.
