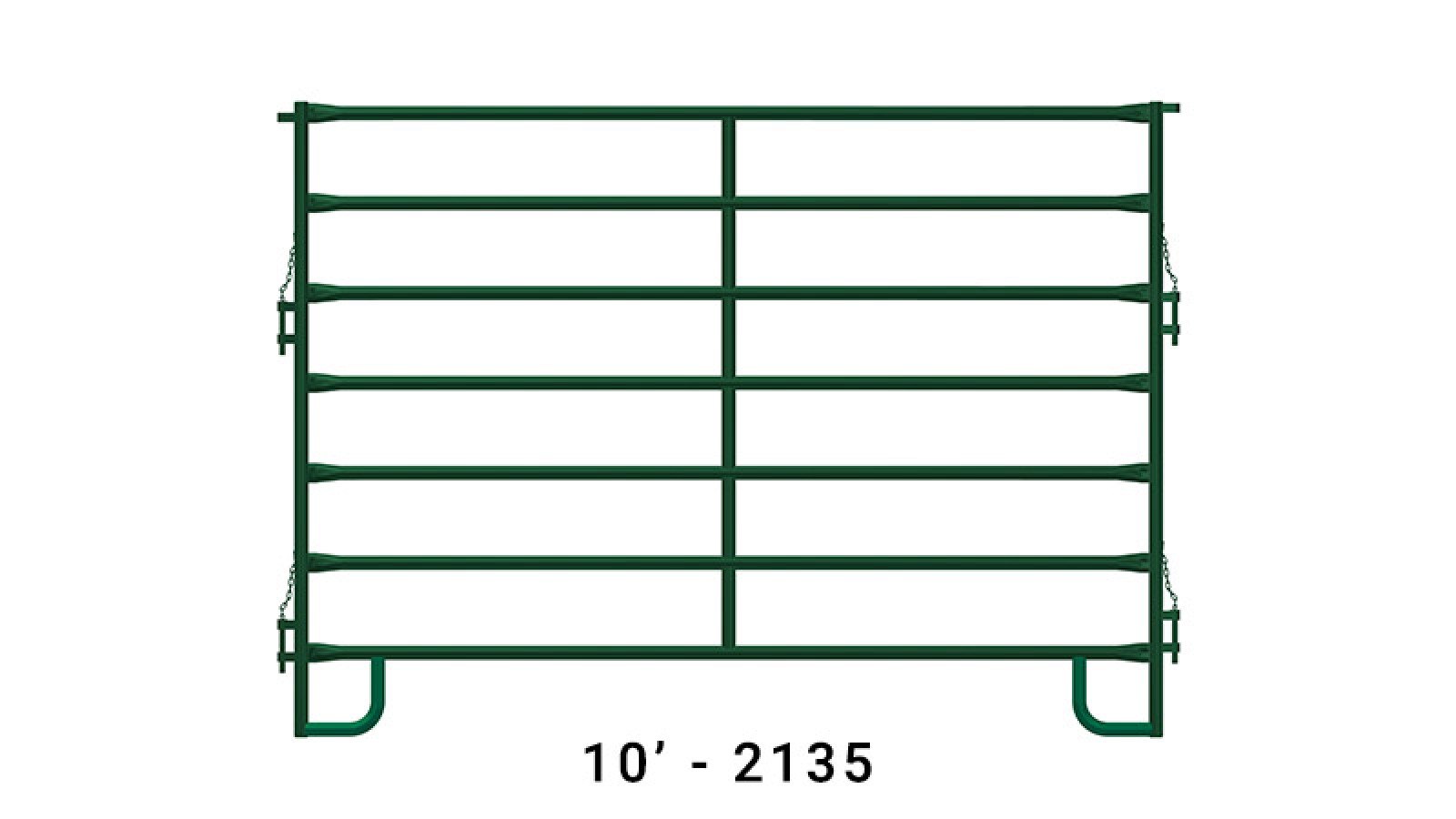

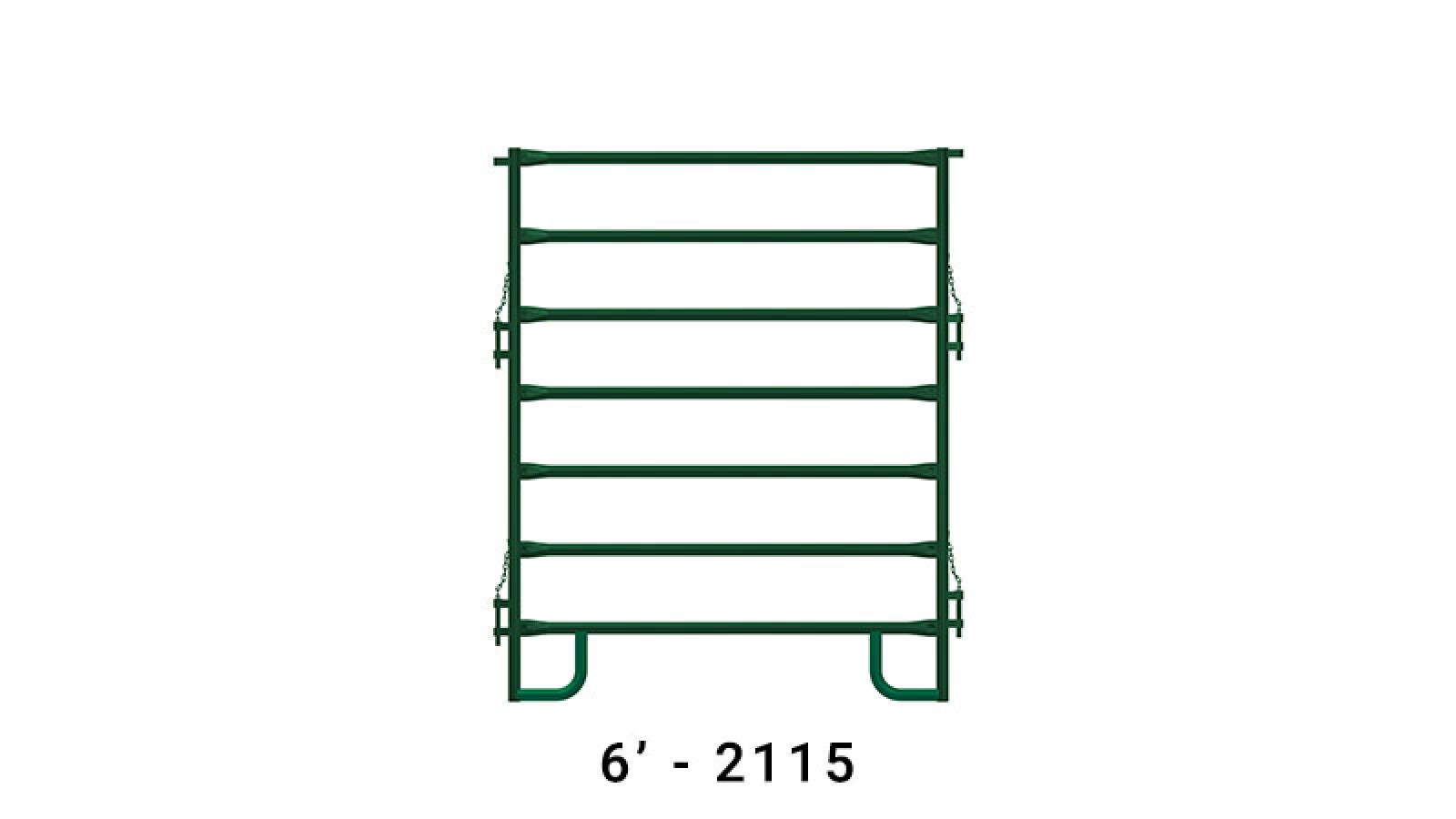

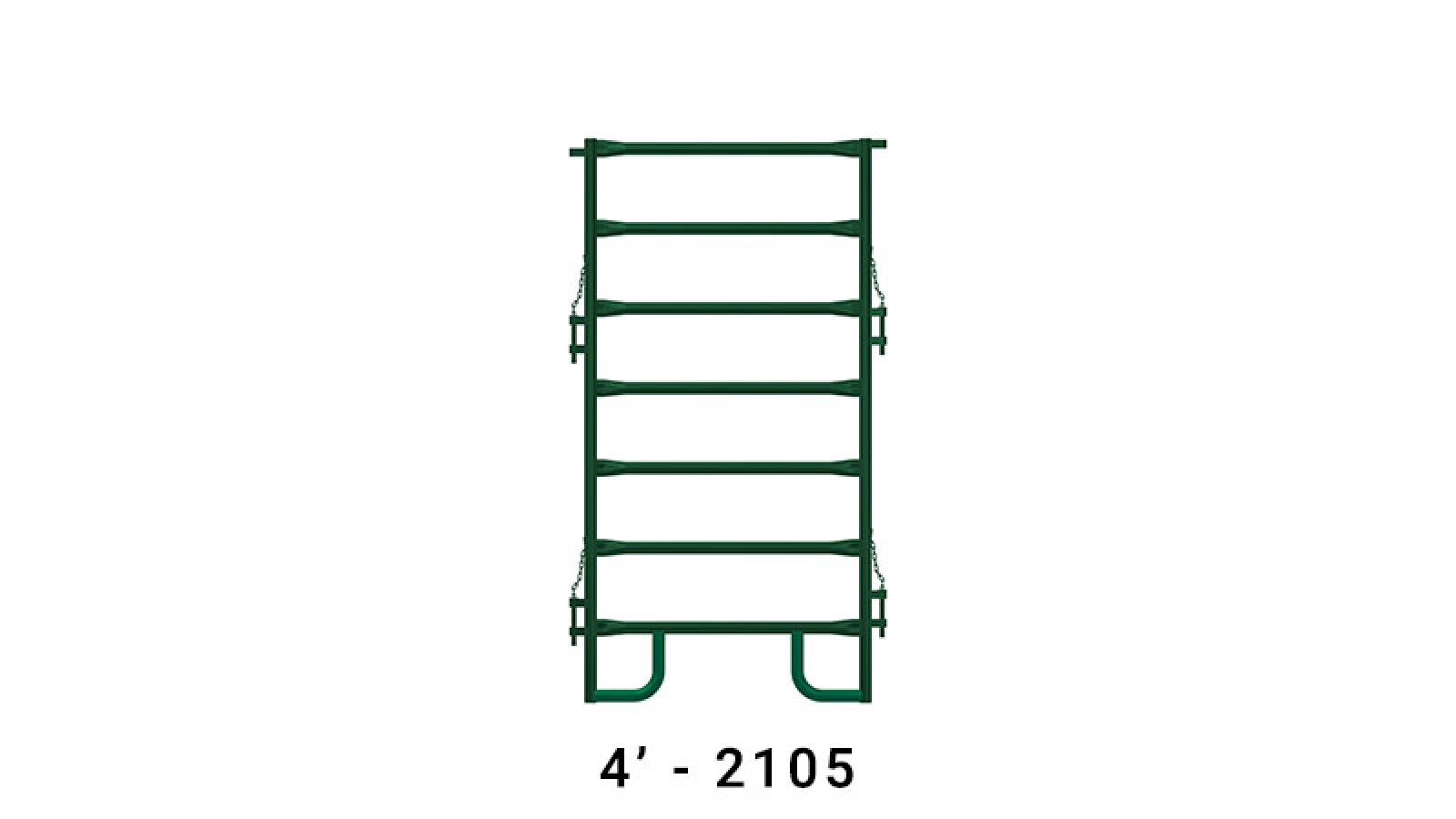

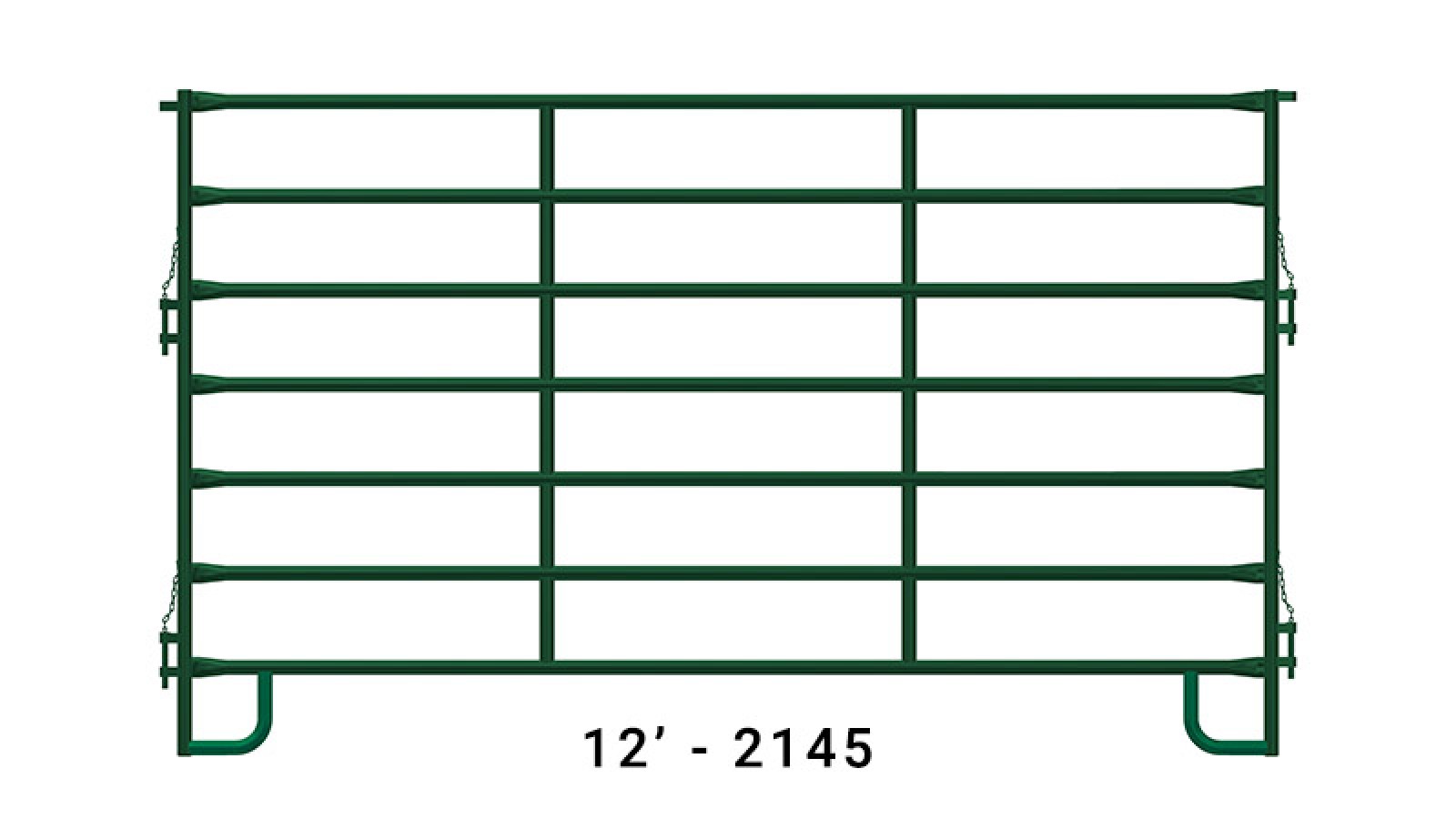

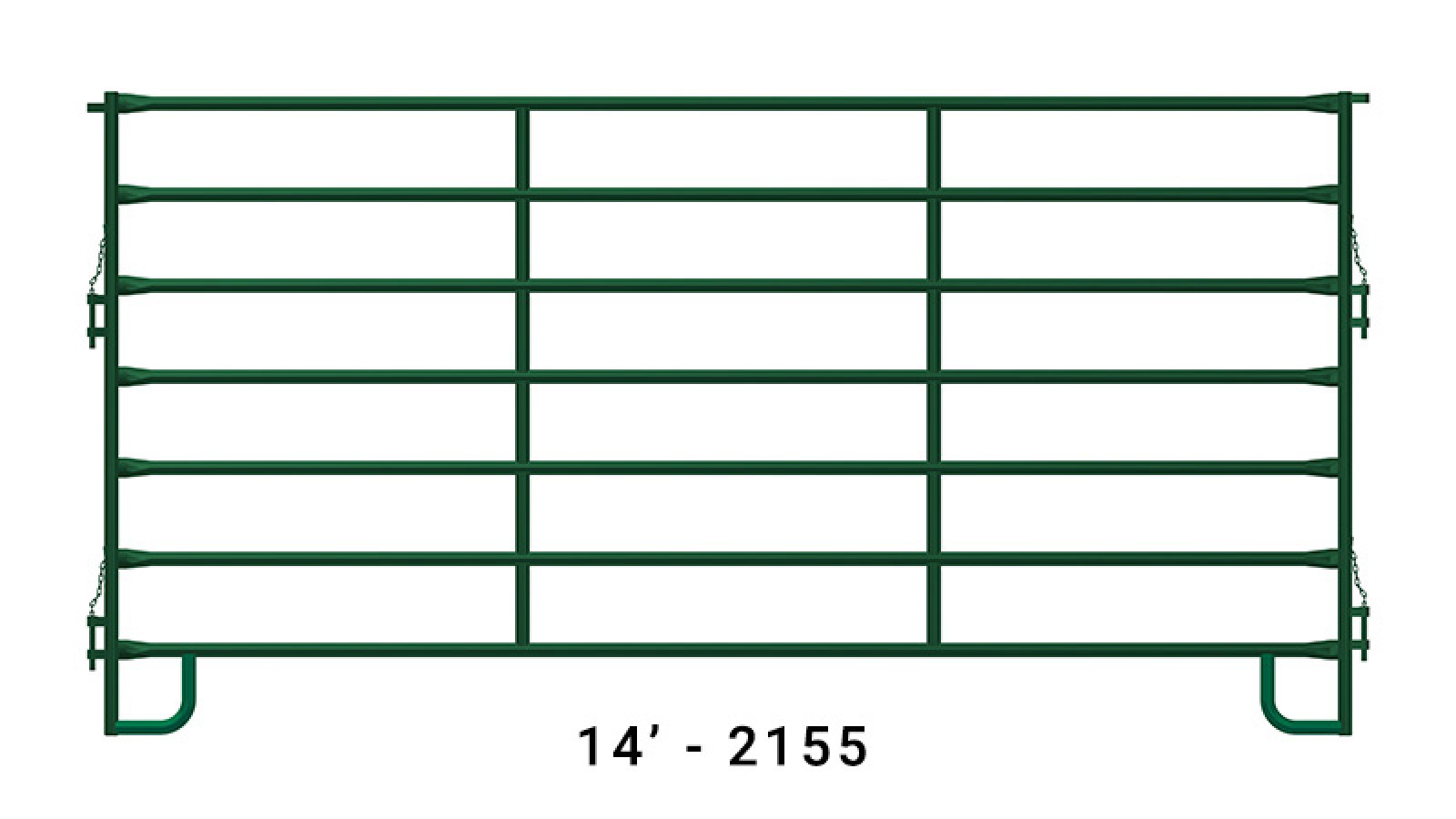

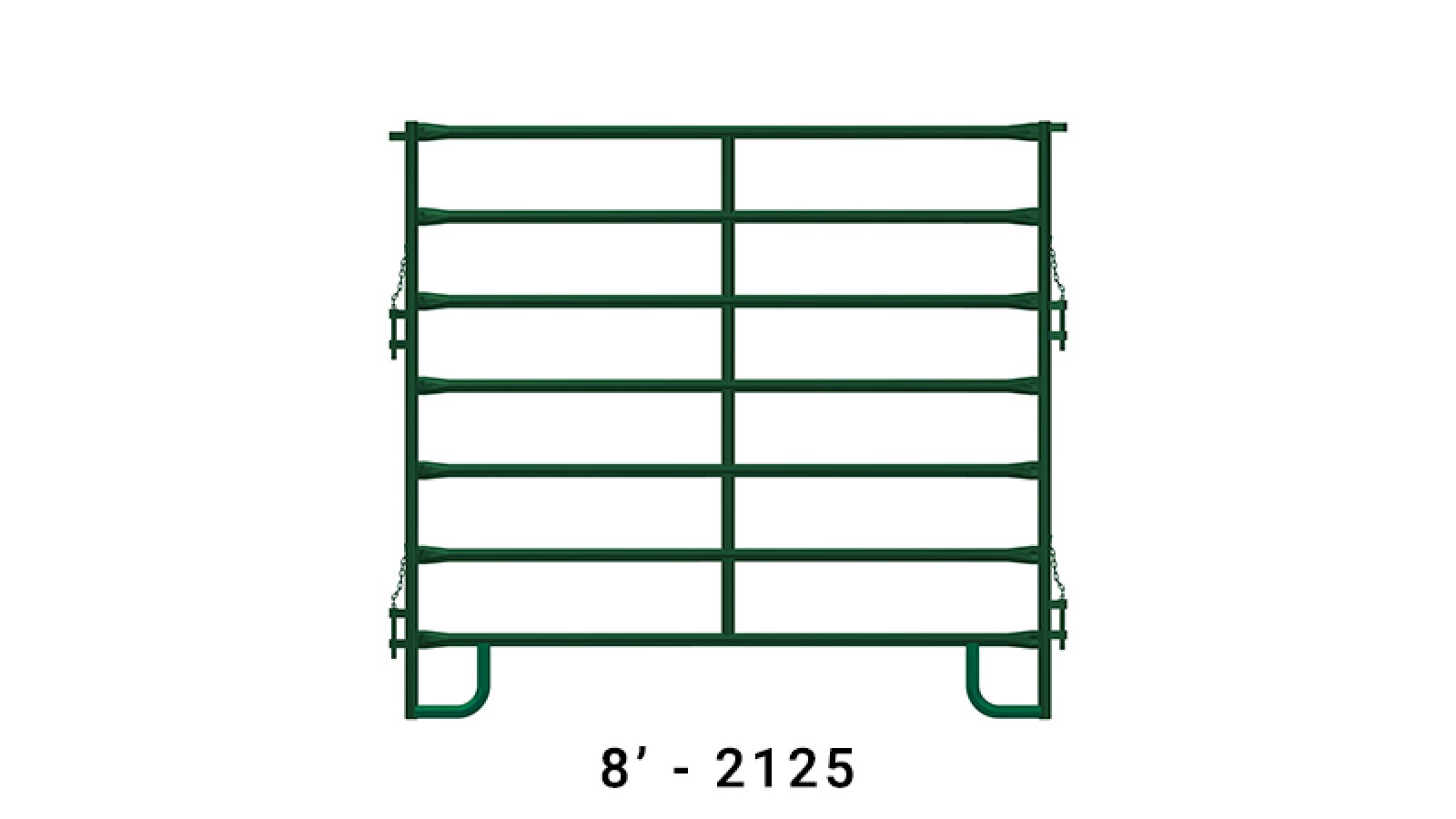

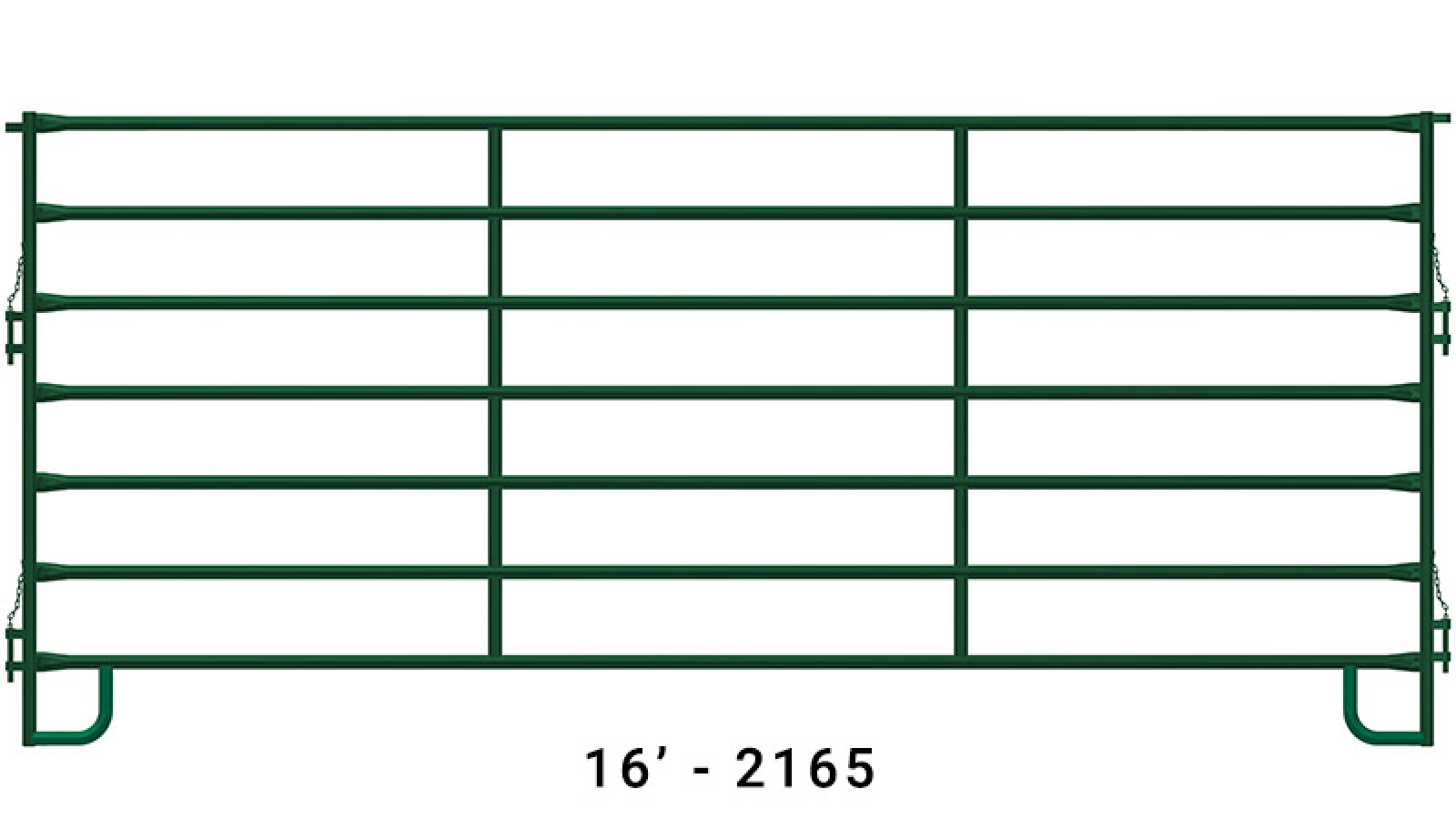

Heavy Duty Panels designed for use in bison corrals and rodeo rough stock confinement areas. The panel is constructed from 1.9” 14-gauge high tensile tubing with the addition of mud-legs to inhibit the panels from sinking into the ground.

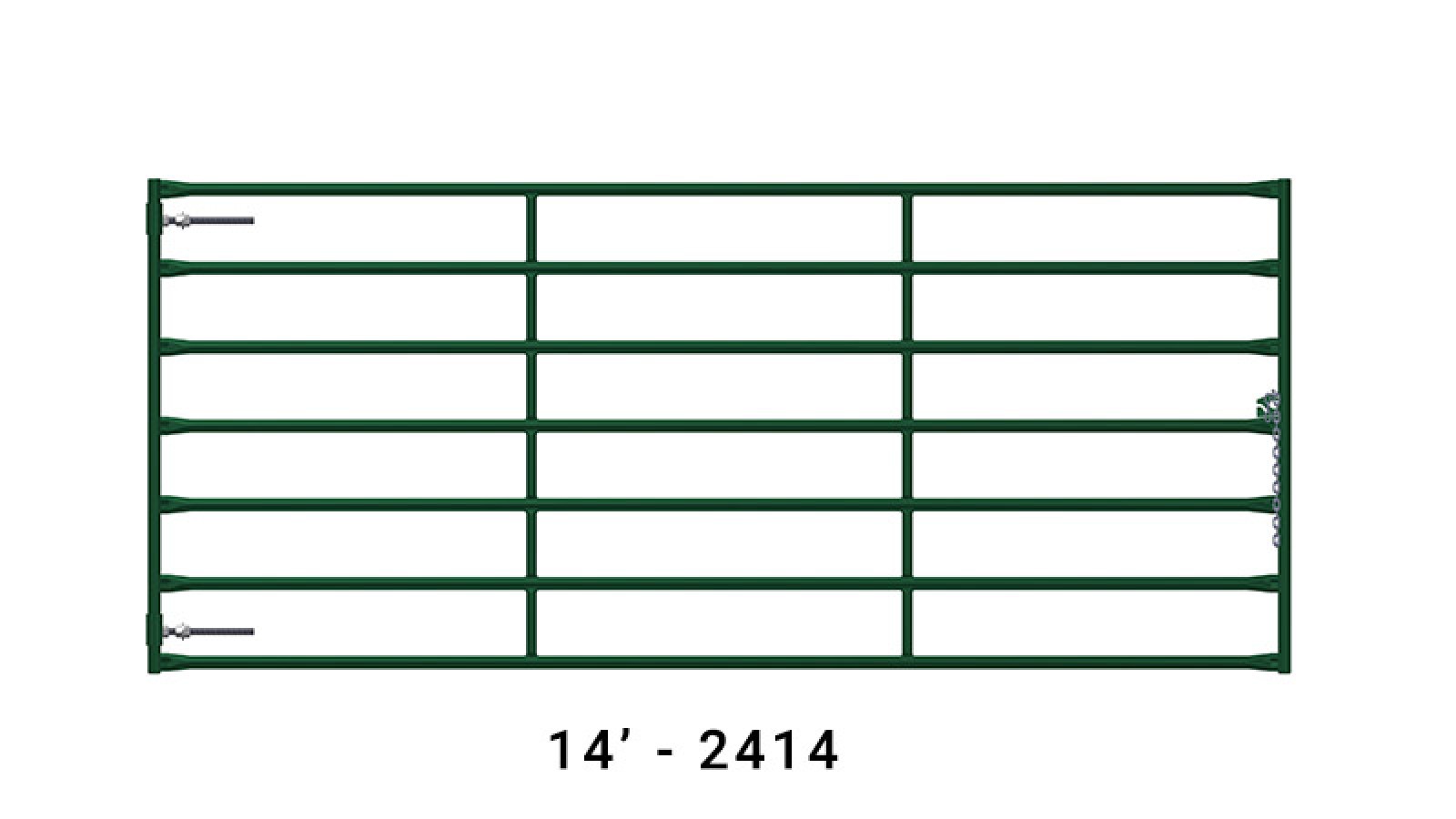

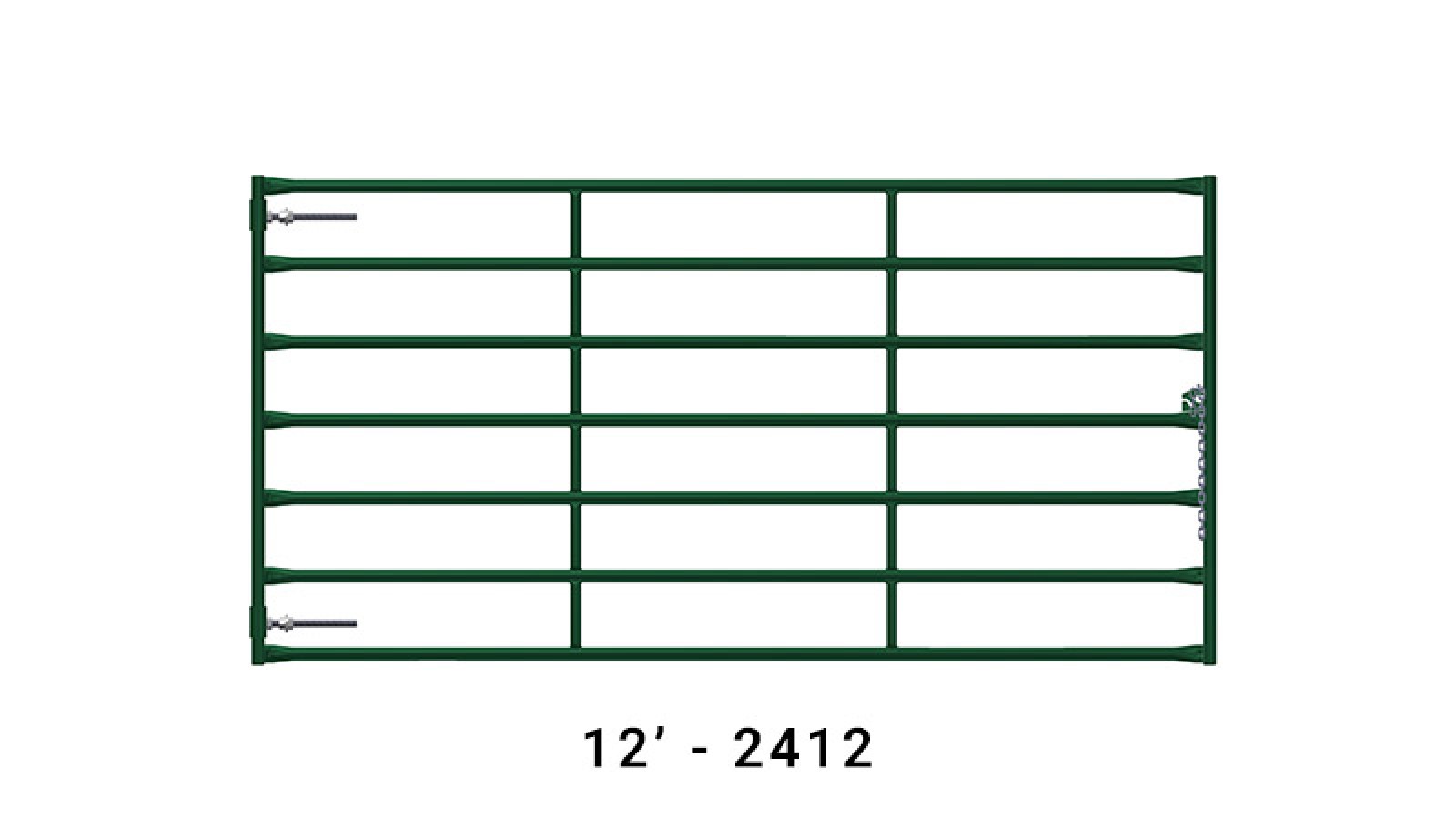

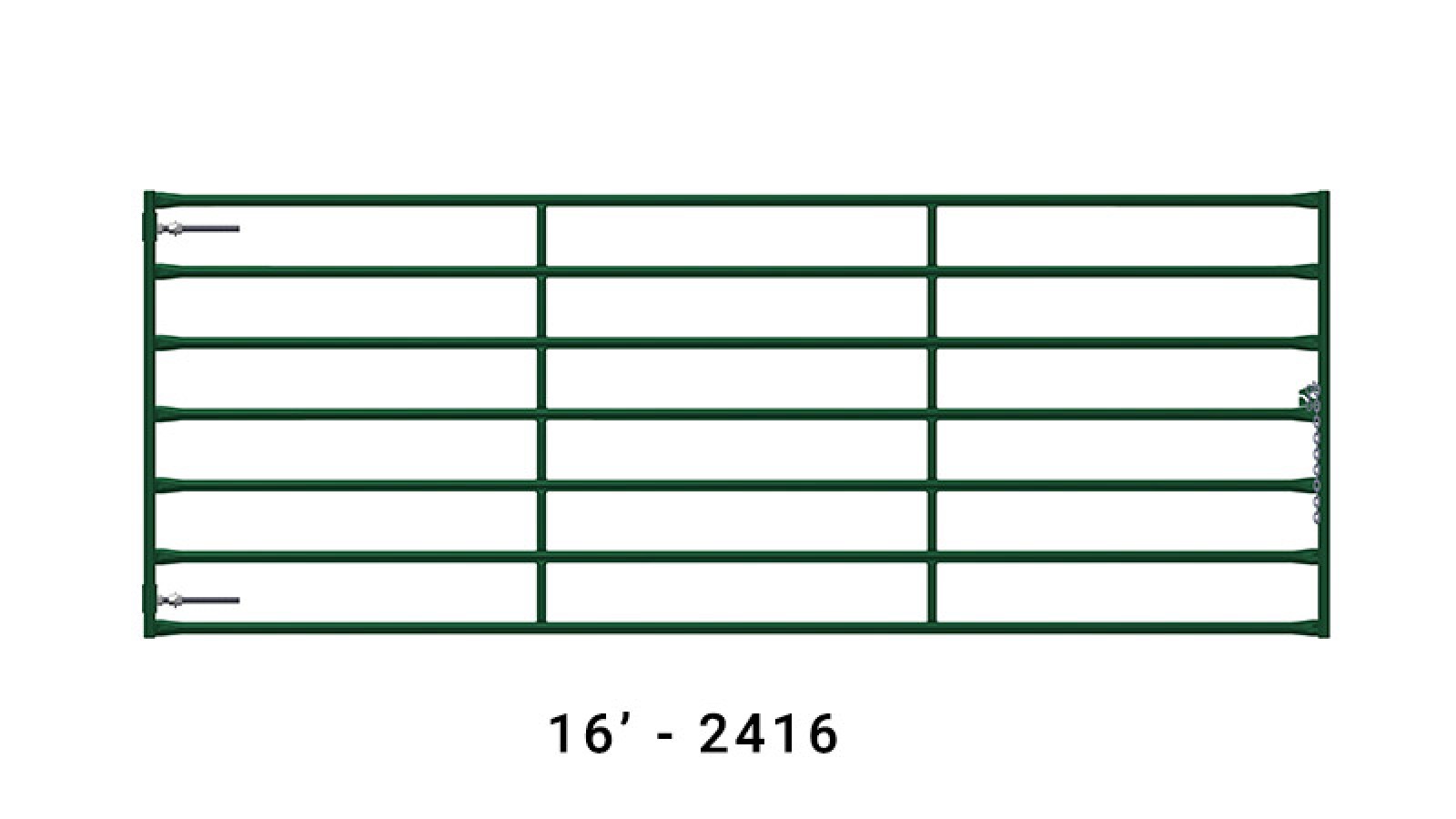

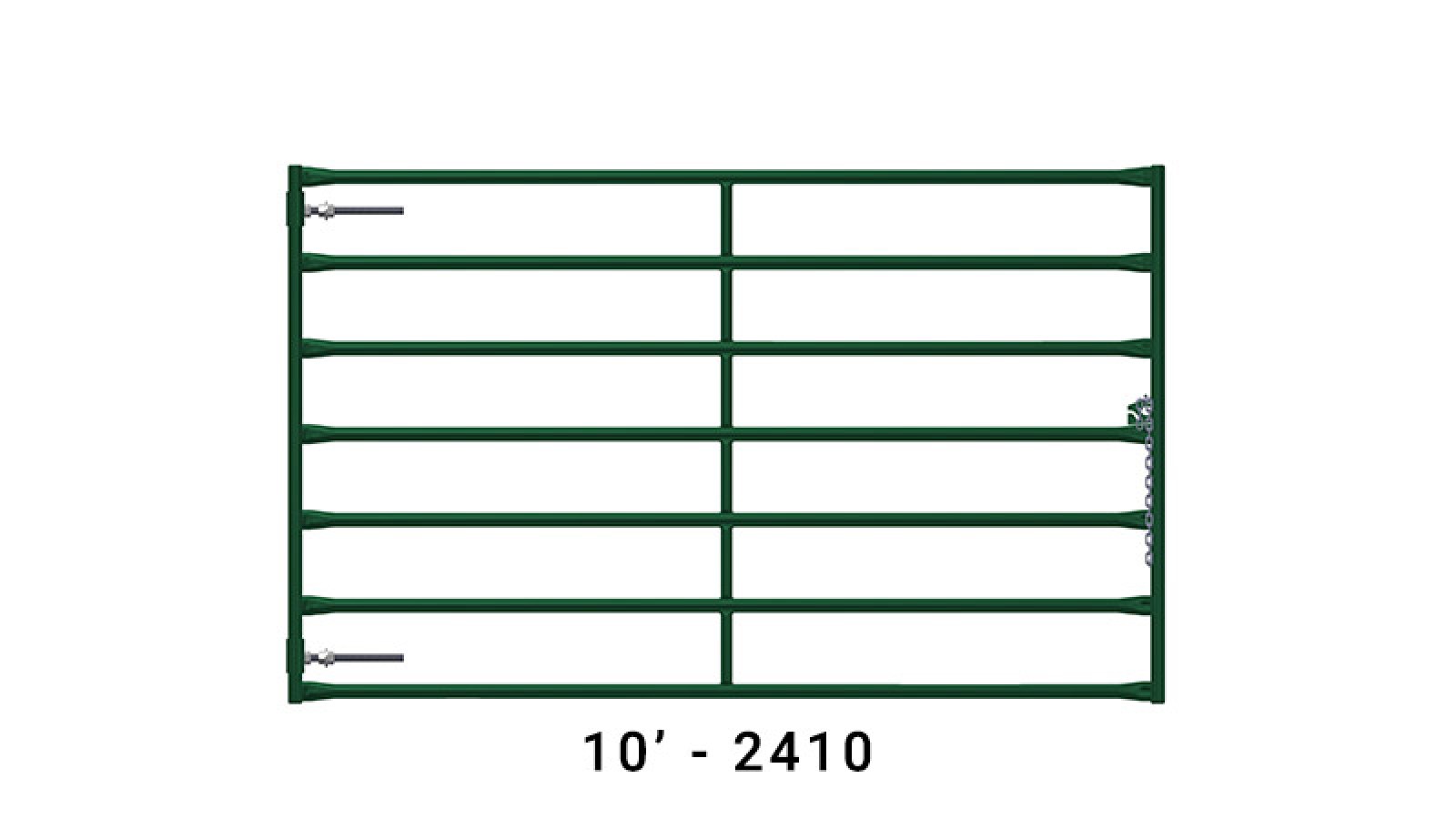

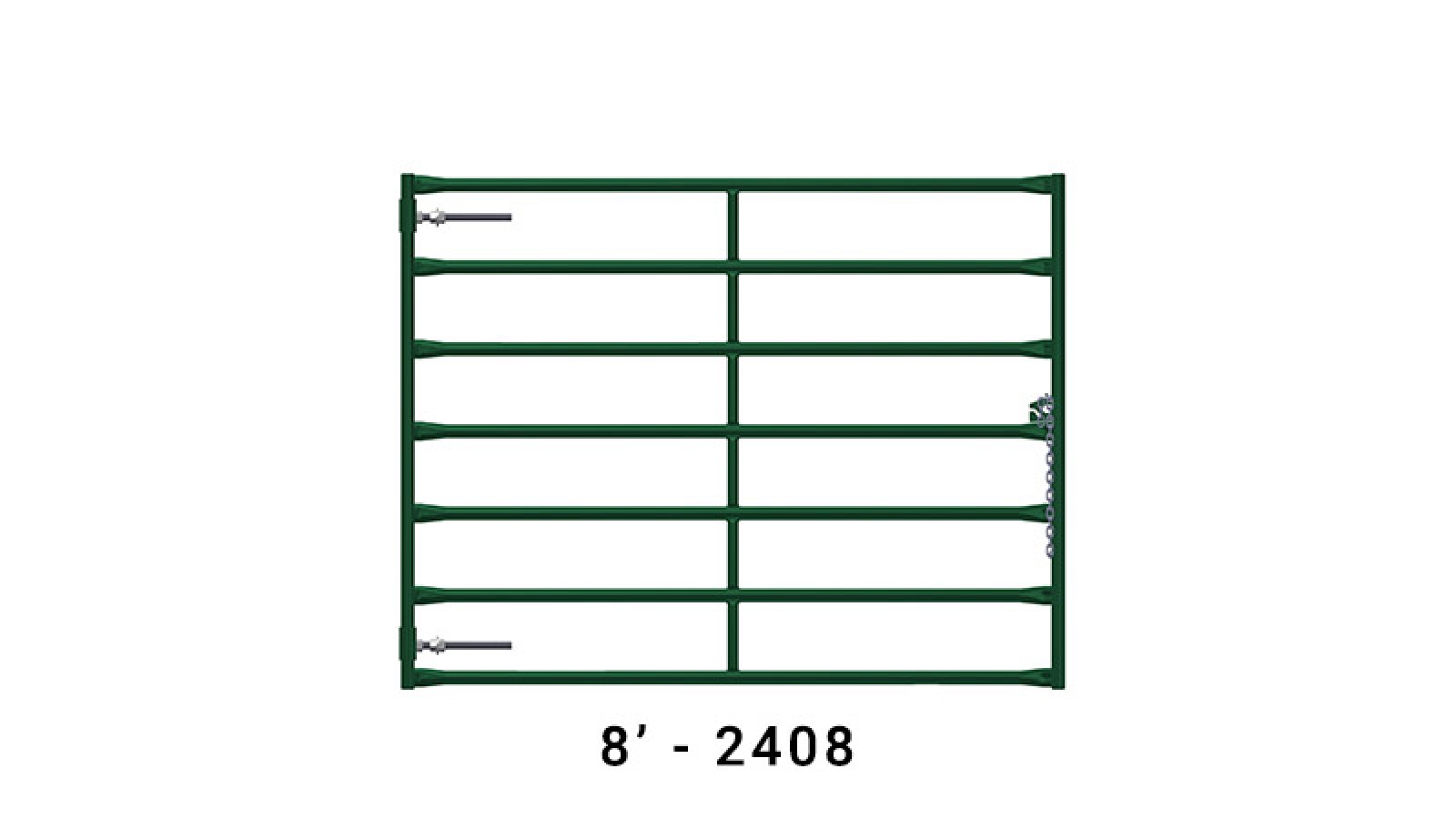

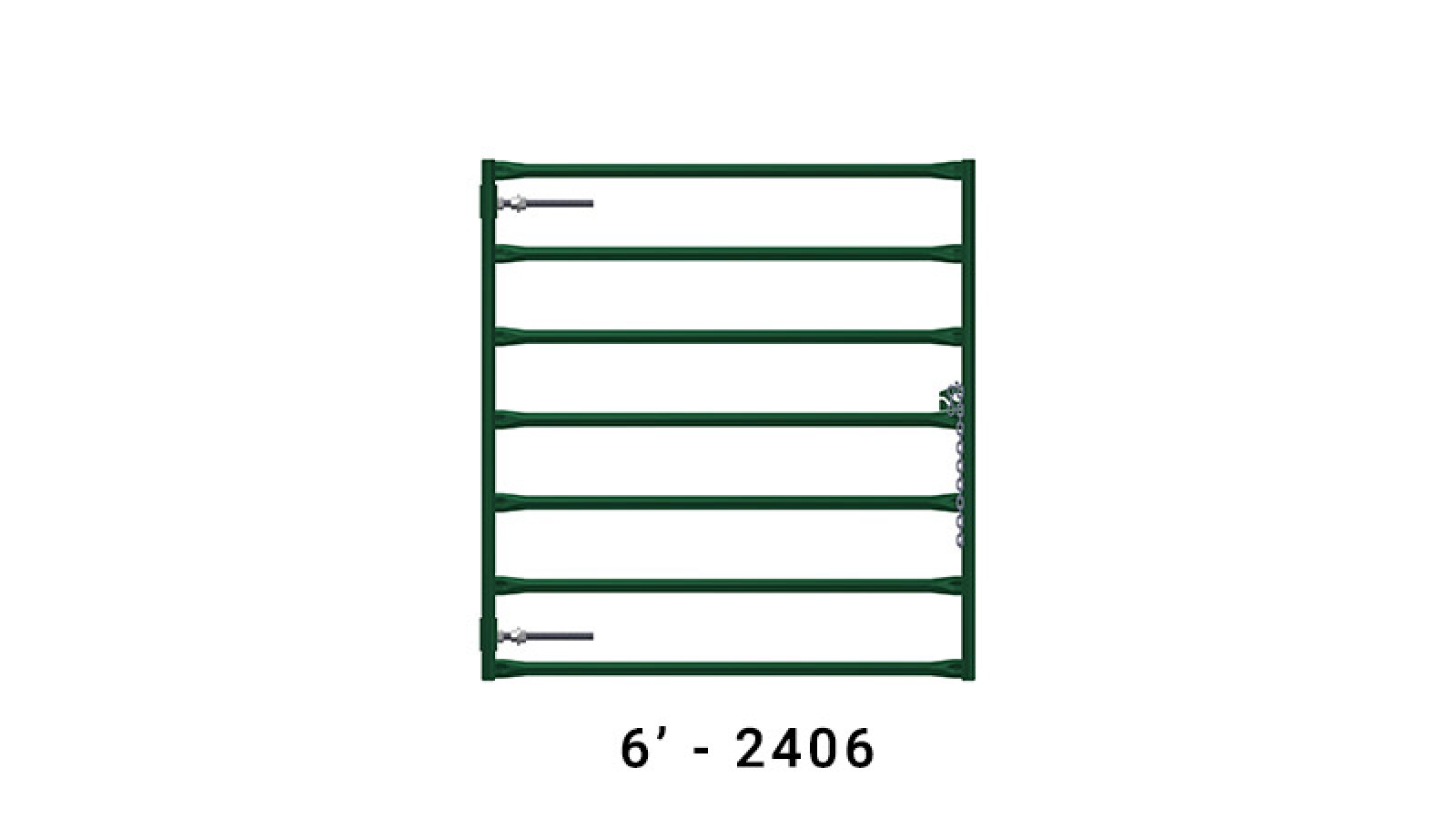

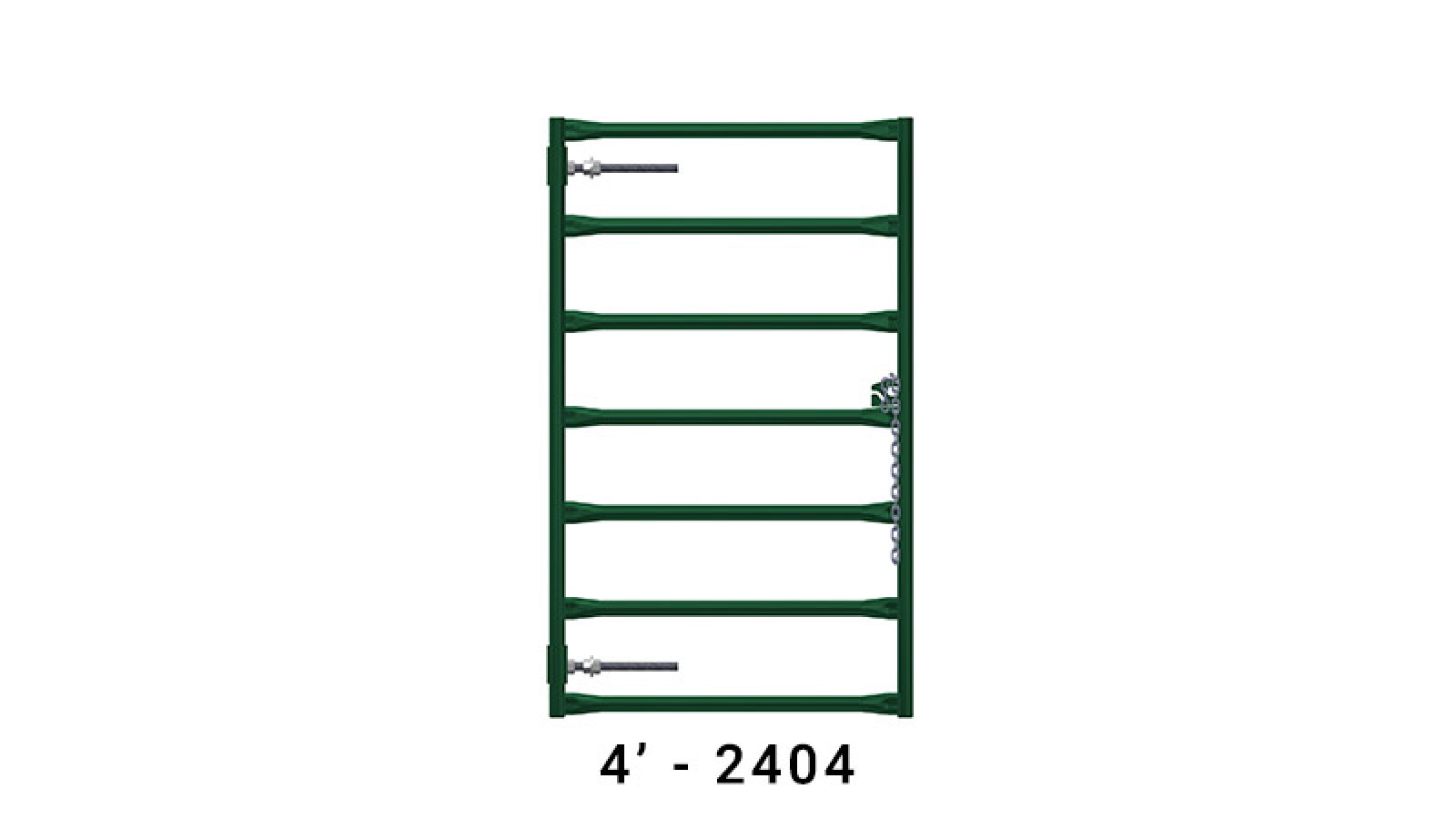

70.5" High, Heavy-Duty Bison Gate - 7-Bar

The heavy duty 7-bar gates (70.5" high) are designed for heavy use. These gates are primarily used in livestock handling applications. These gates are available in the following lengths: 4′, 6′, 8′, 10′, 12′, 14′, 16'

• Heavy duty gates are constructed of 1.9” OD 14-gauge, high tensile tubing throughout
• The end verticals are coned to remove sharp edges
• The inside opening between each of the horizontal bars is 9 3/8”
• The horizontals are reinforced with 1 1/2” OD 16-gauge tubing
• Each of the vertical supports is coped to fit the horizontals

Each gate comes with two 13” x 1” All-thread hinges on 4″ collars. The hinges are secured to the gate for shipping with a 1/4″ head self-drill screw. Each gate includes 48” of 1/4” zinc plated chain and a no-slip chain latch.

Note:

• The 70.5" high gate is normally mounted with the top horizontal rail at a height of 7' above the ground

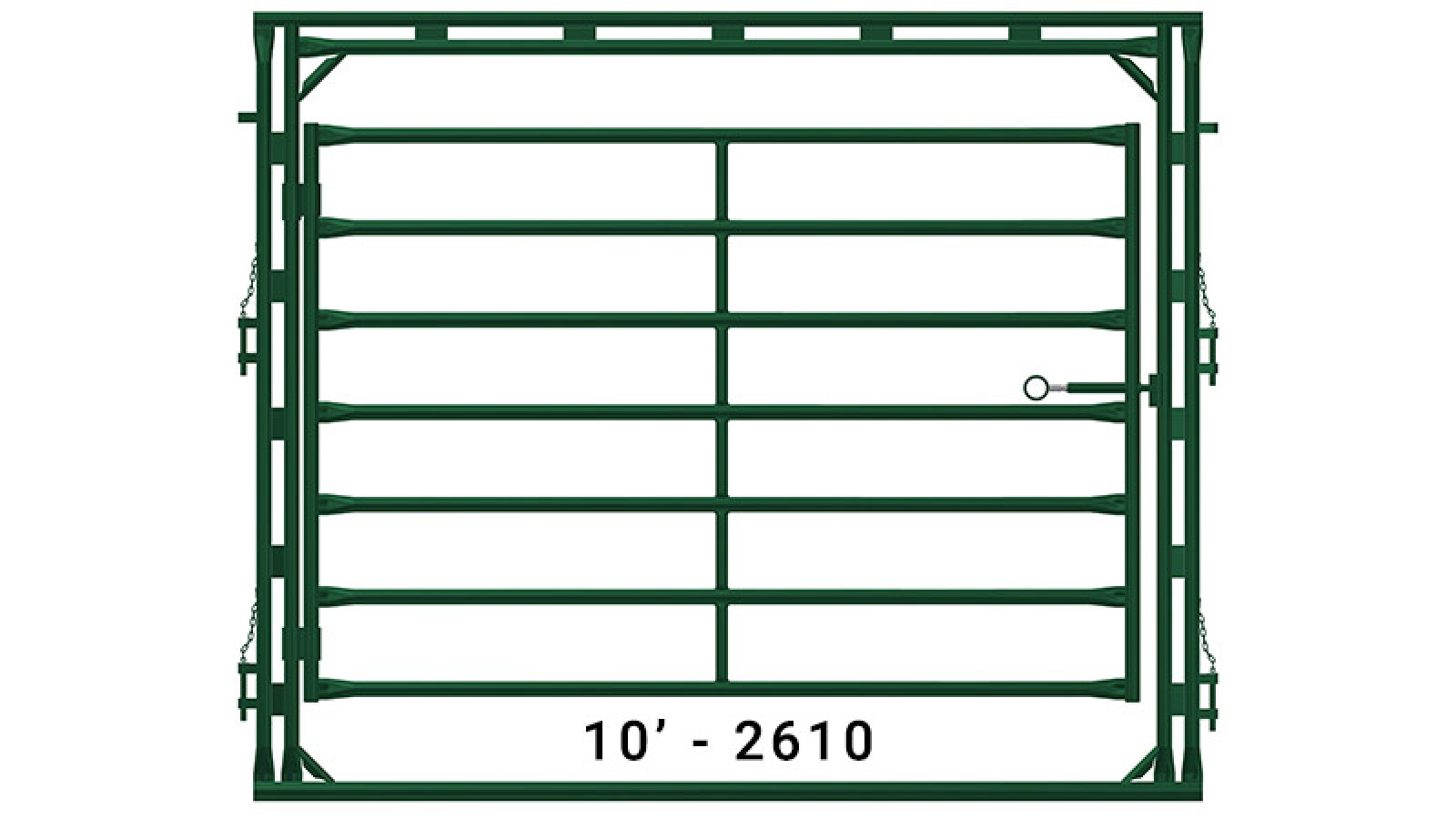

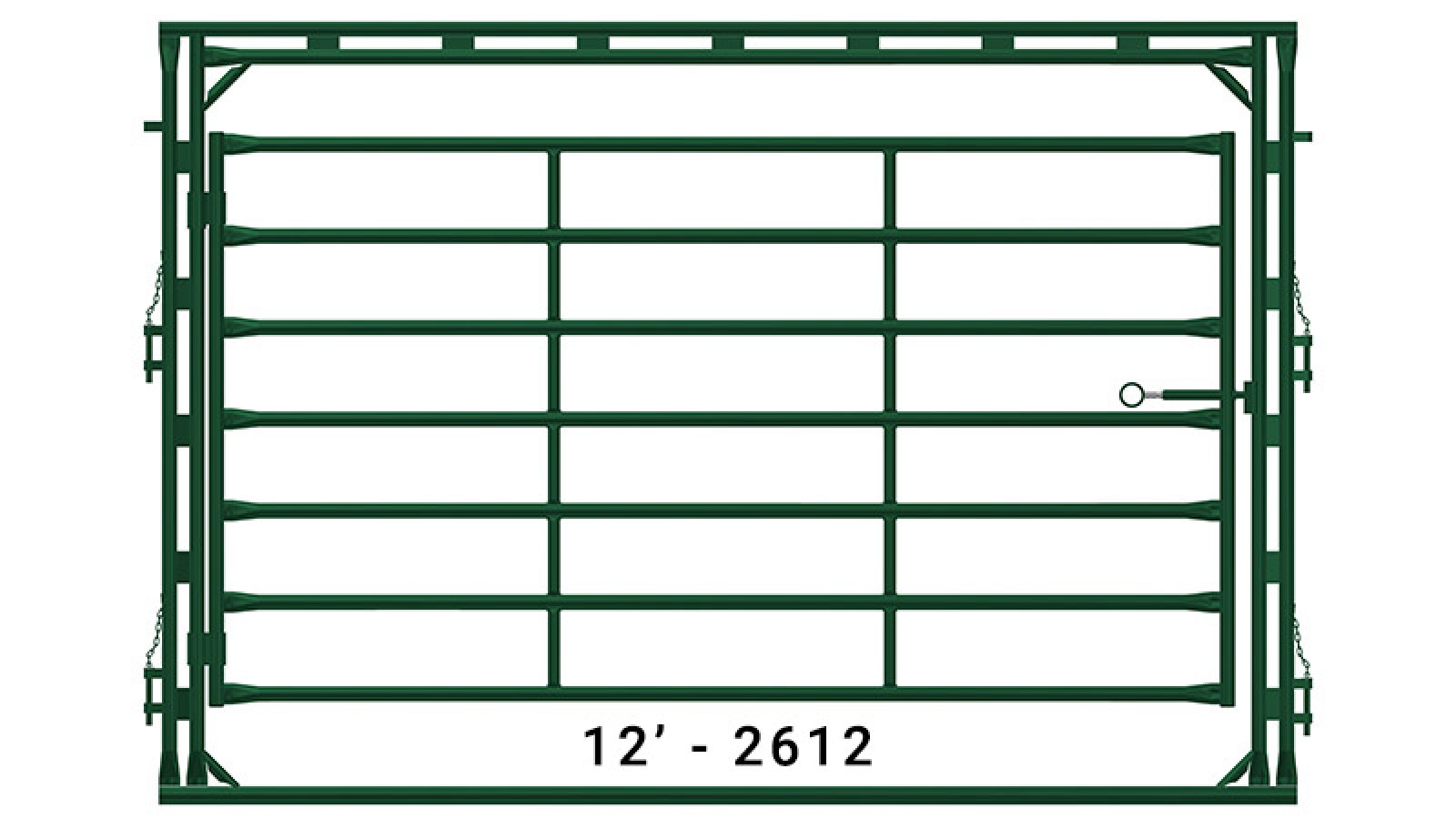

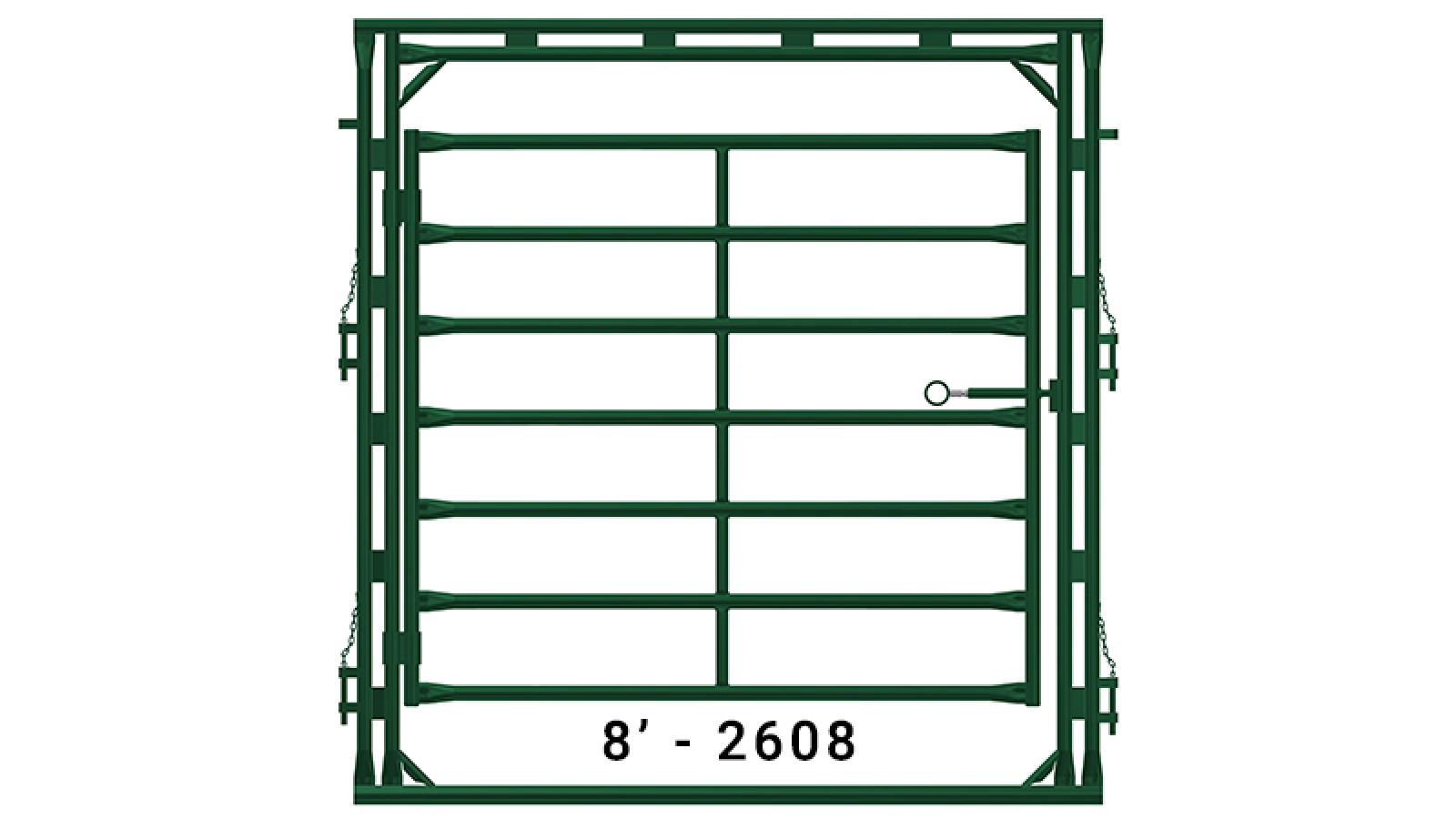

8' High Frame with 84" High, Heavy Duty Bison Gate - 7-Bar

The heavy-duty, one piece frame with built-in gate, also known as a bow gate, is commonly used for access, sorting and holding in working livestock handling systems. This is a heavy pressure frame & gate.

• The 8′ wide and wider frame & gates use an 8' high, double-tube frame
• The frame is constructed with 1.9” OD 14-gauge tubing for the end verticals and the top bars
• The bottom rail is 2 3/8” OD 0.125 wall

The Gate

• The heavy-duty gates are constructed of 1.9” OD 14-gauge tubing
• The end vertical supports are coned to remove sharp edges
• The inside opening between each of the five horizontal bars is 9 3/8”
• The horizontals are reinforced with 1 1/2” OD 16-gauge tubing
• Each of the verticals supports is coped to fit the horizontals
• The gate comes with a 7/8” plunger latch and striker plate

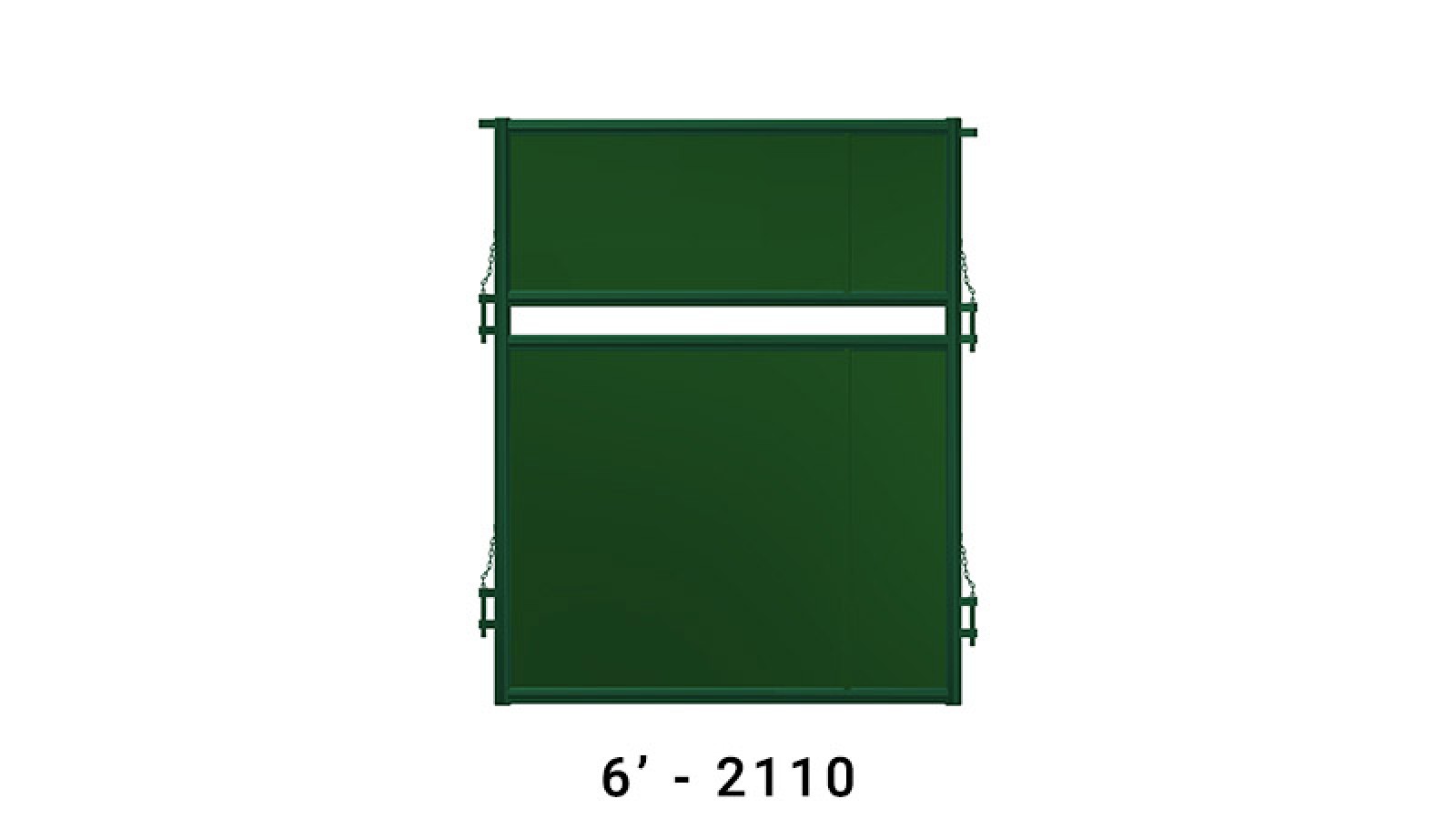

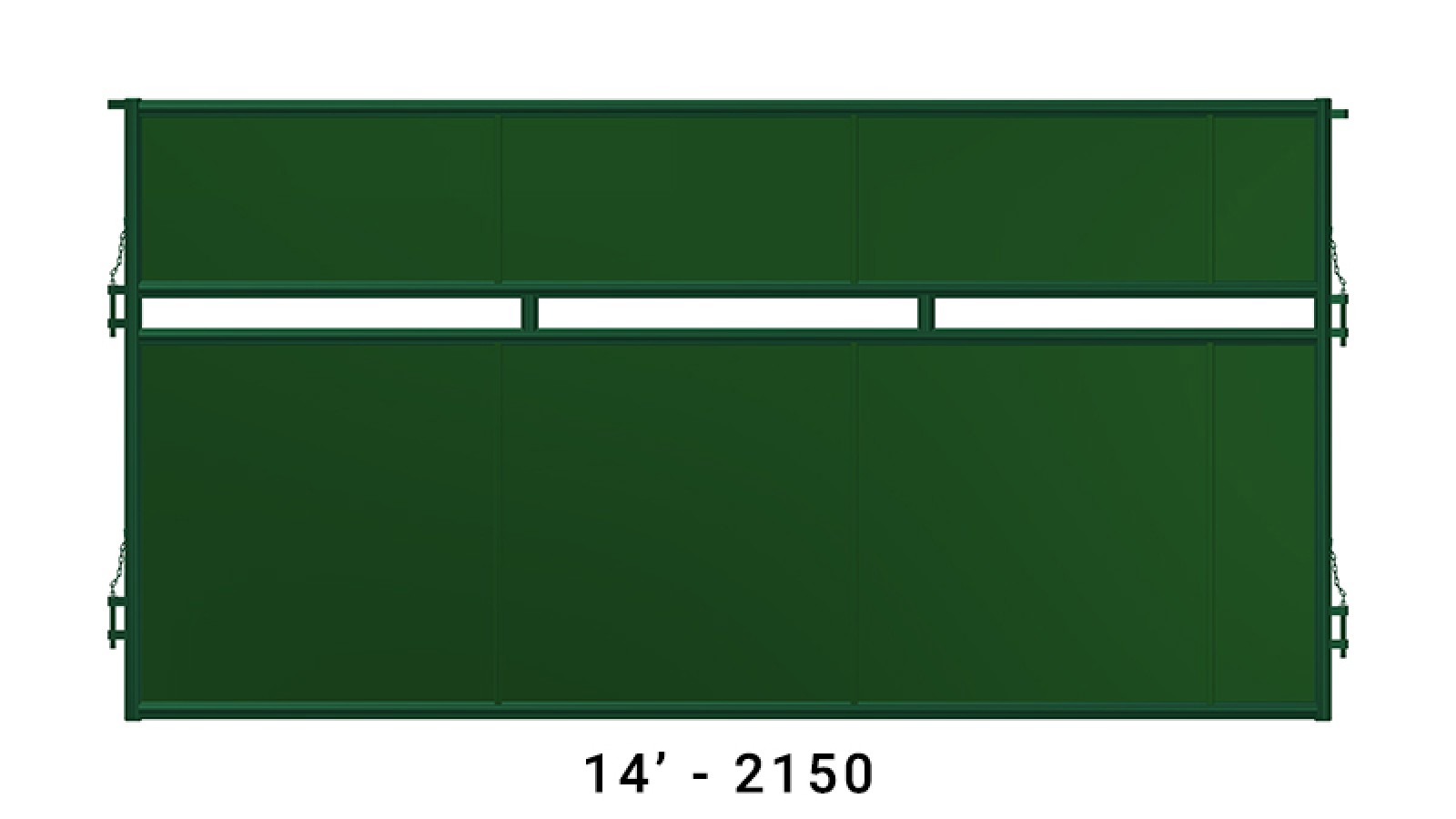

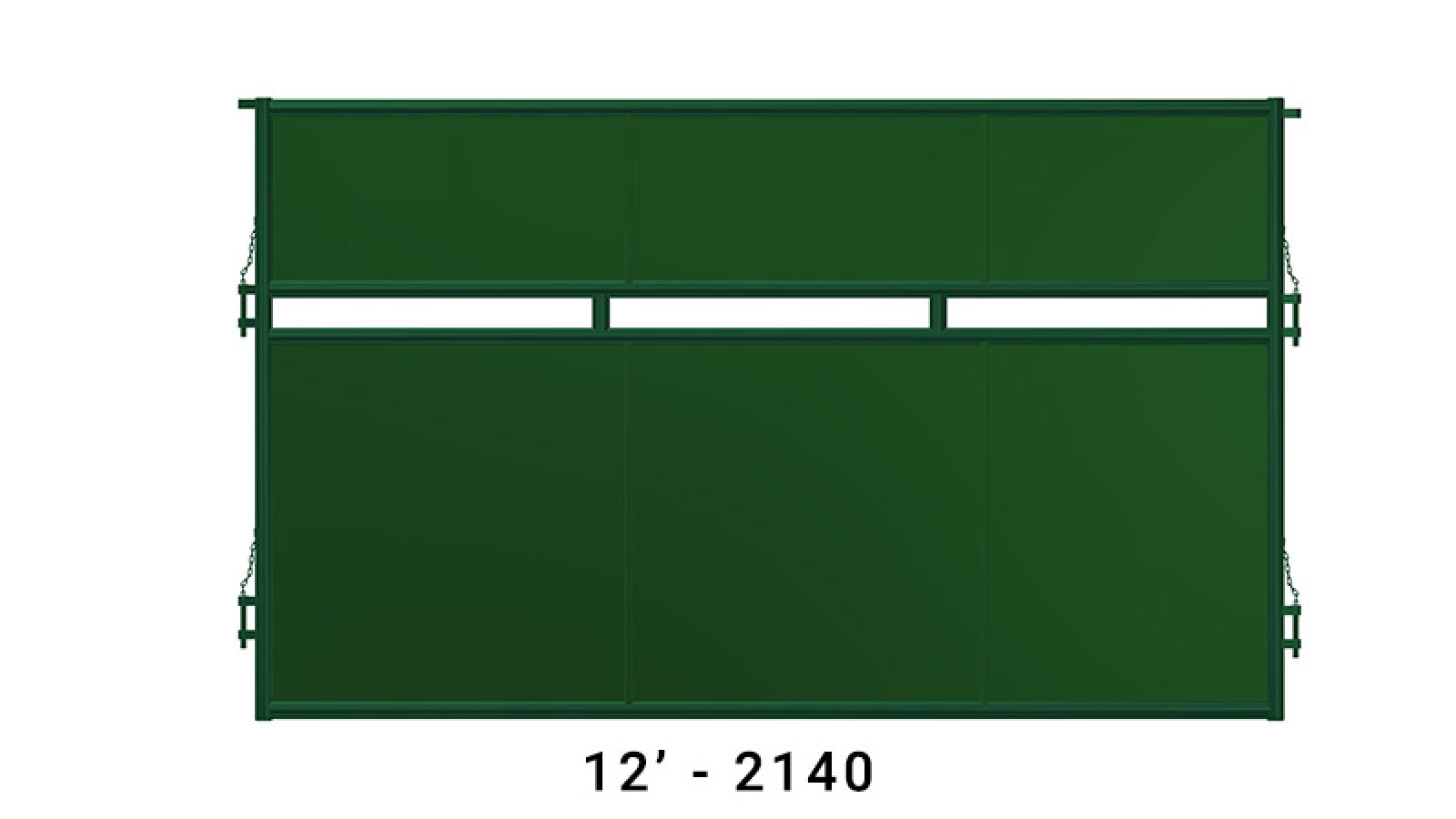

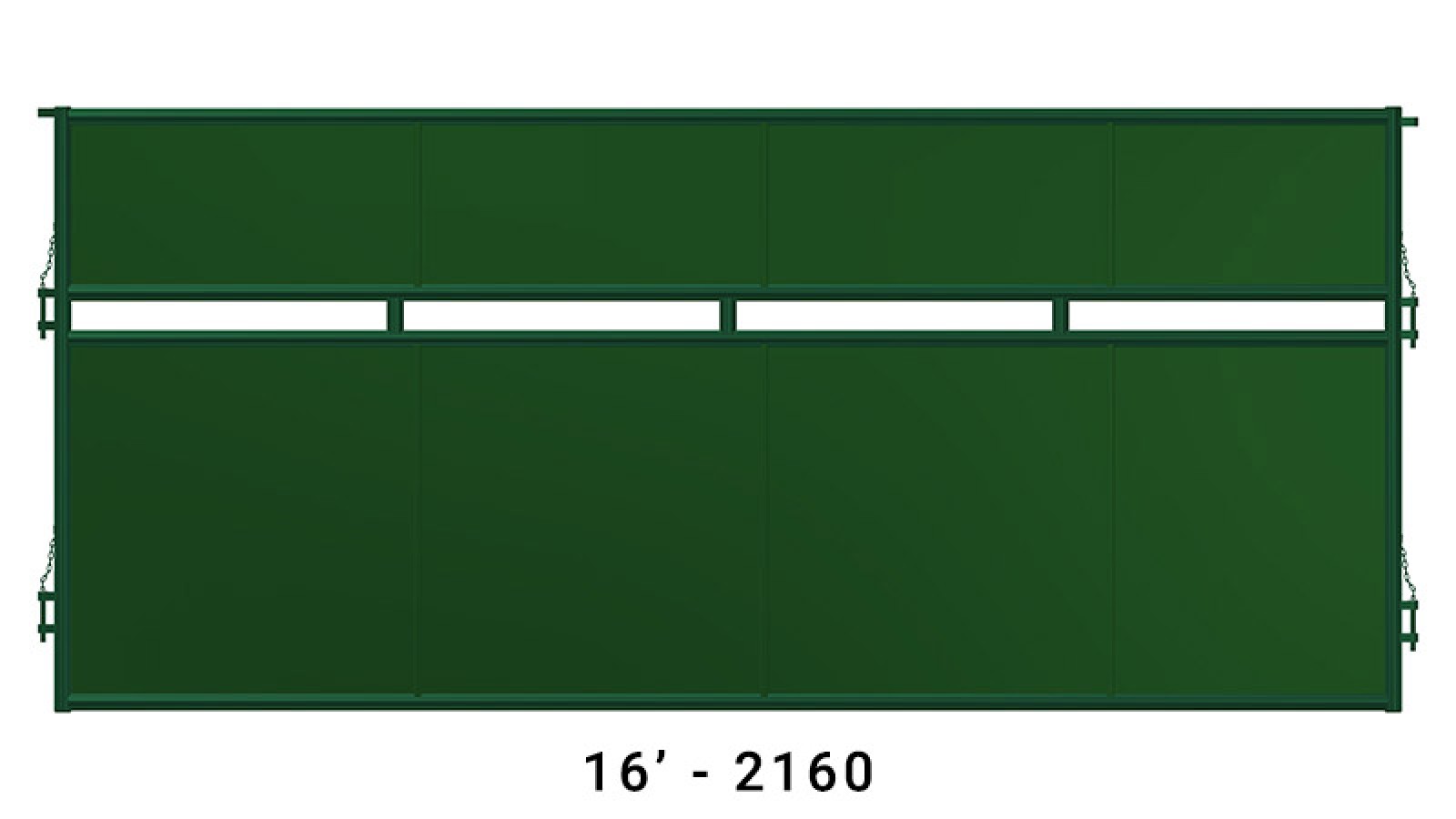

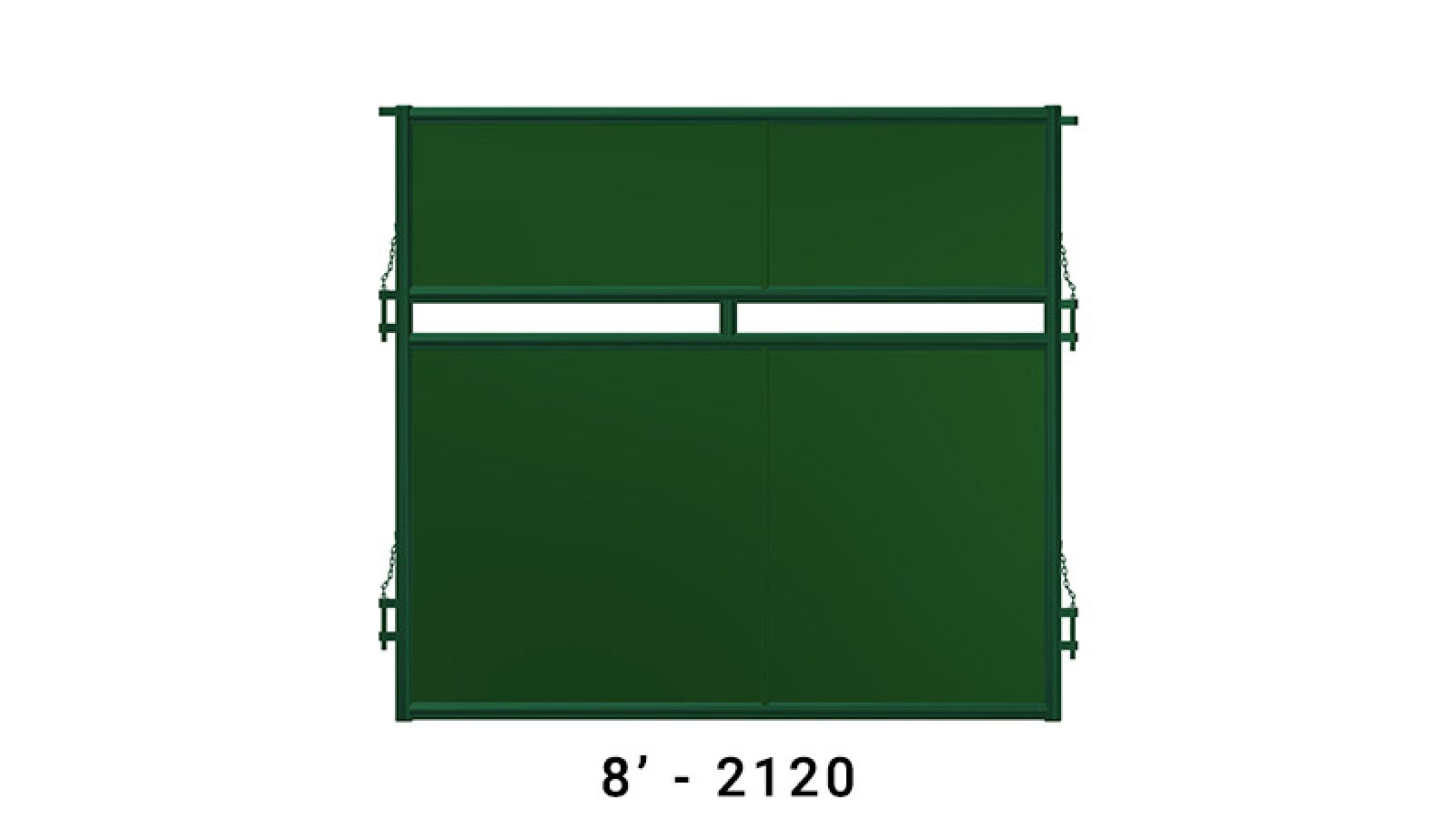

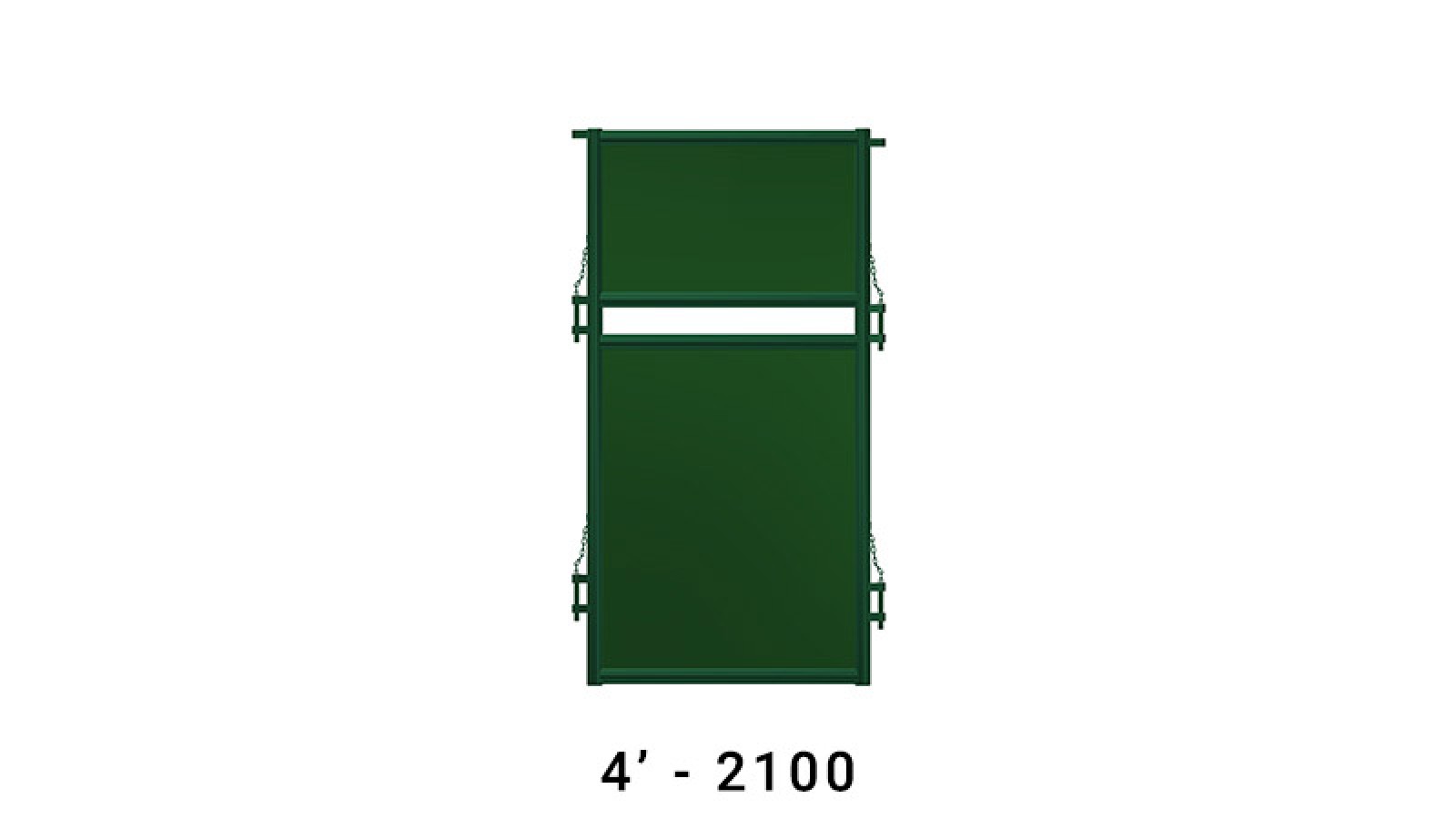

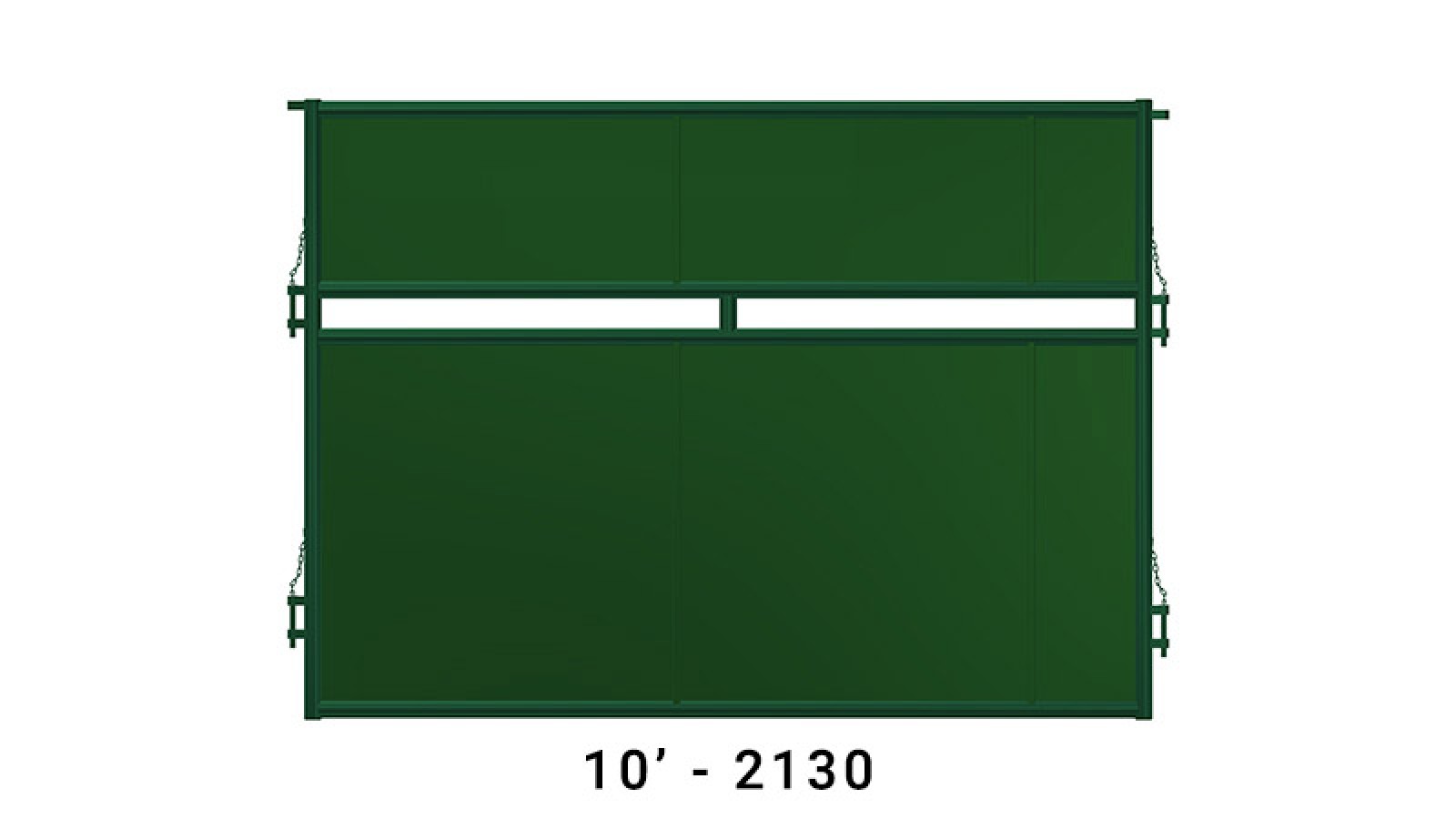

84" High, Heavy-Duty Bison Panel - Sheeted

These panels are used primarily by bison producers as part of their bison handling and working areas. The panel is constructed from 2-3/8" OD high tensile tubing in both 0.125 and 0.190 wall thickness and finished with 14 gauge sheet metal. The panels come with a 4" horizontal opening at 54" height. The gap provides access for the handler to work their animals.

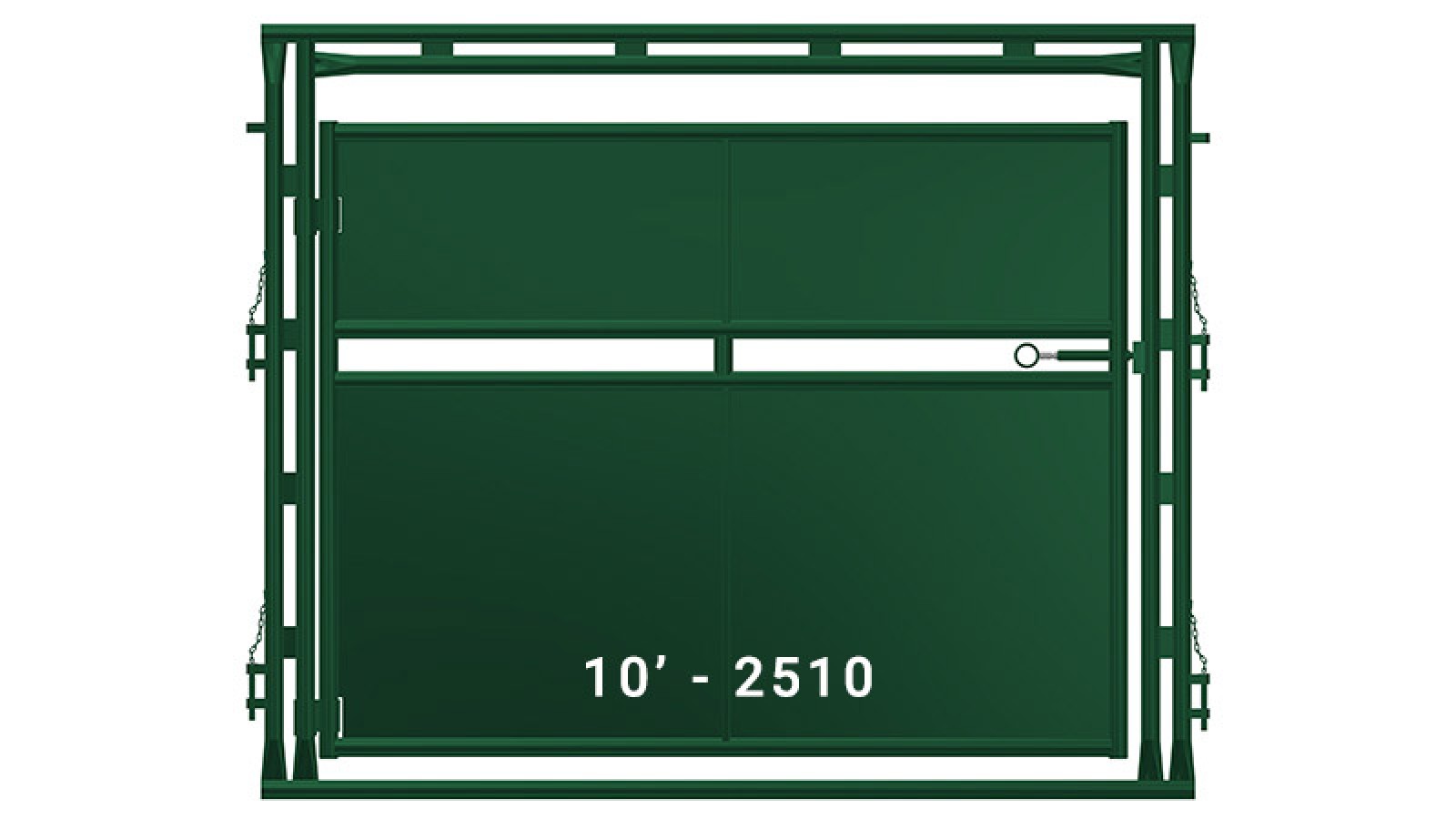

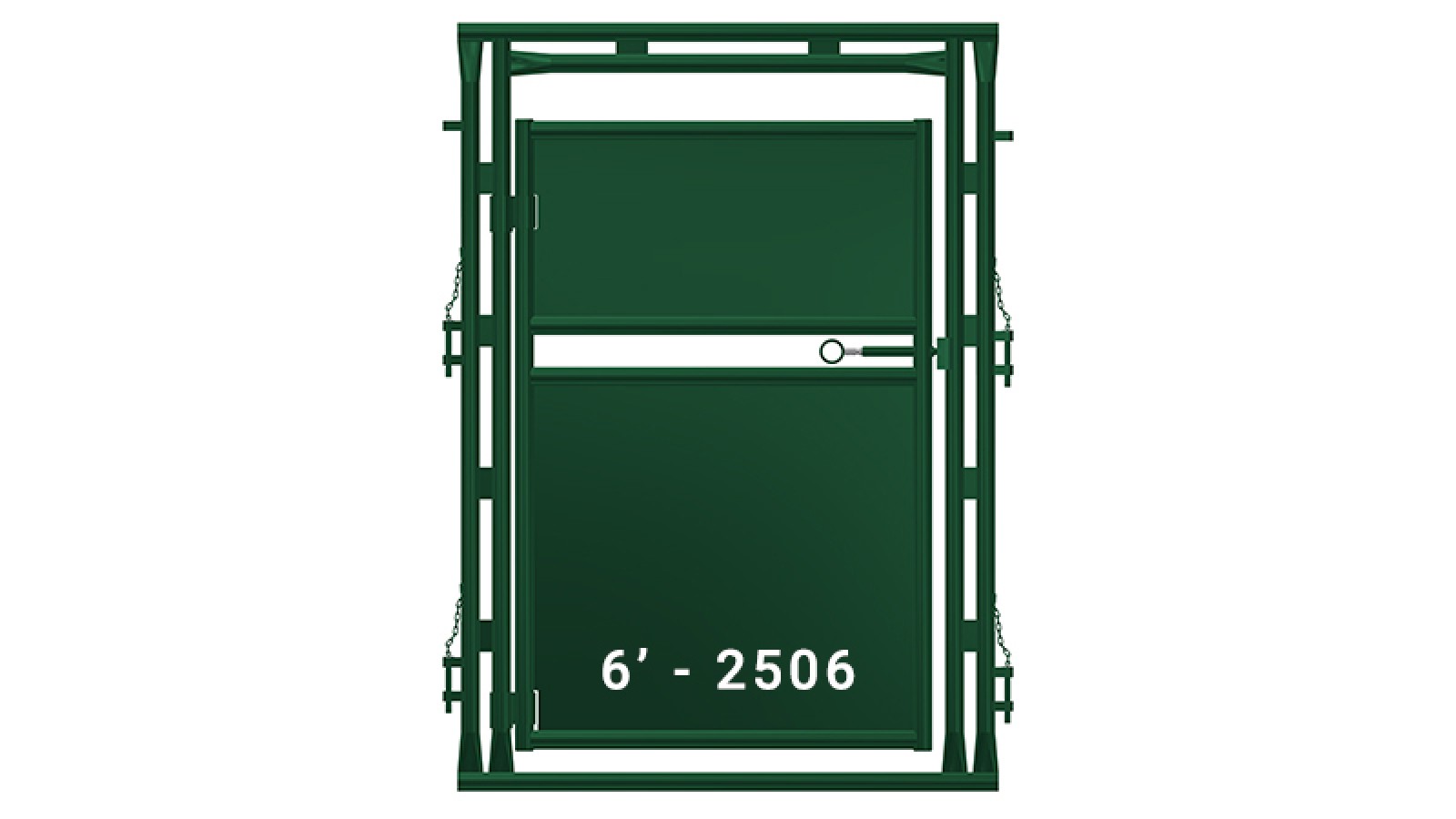

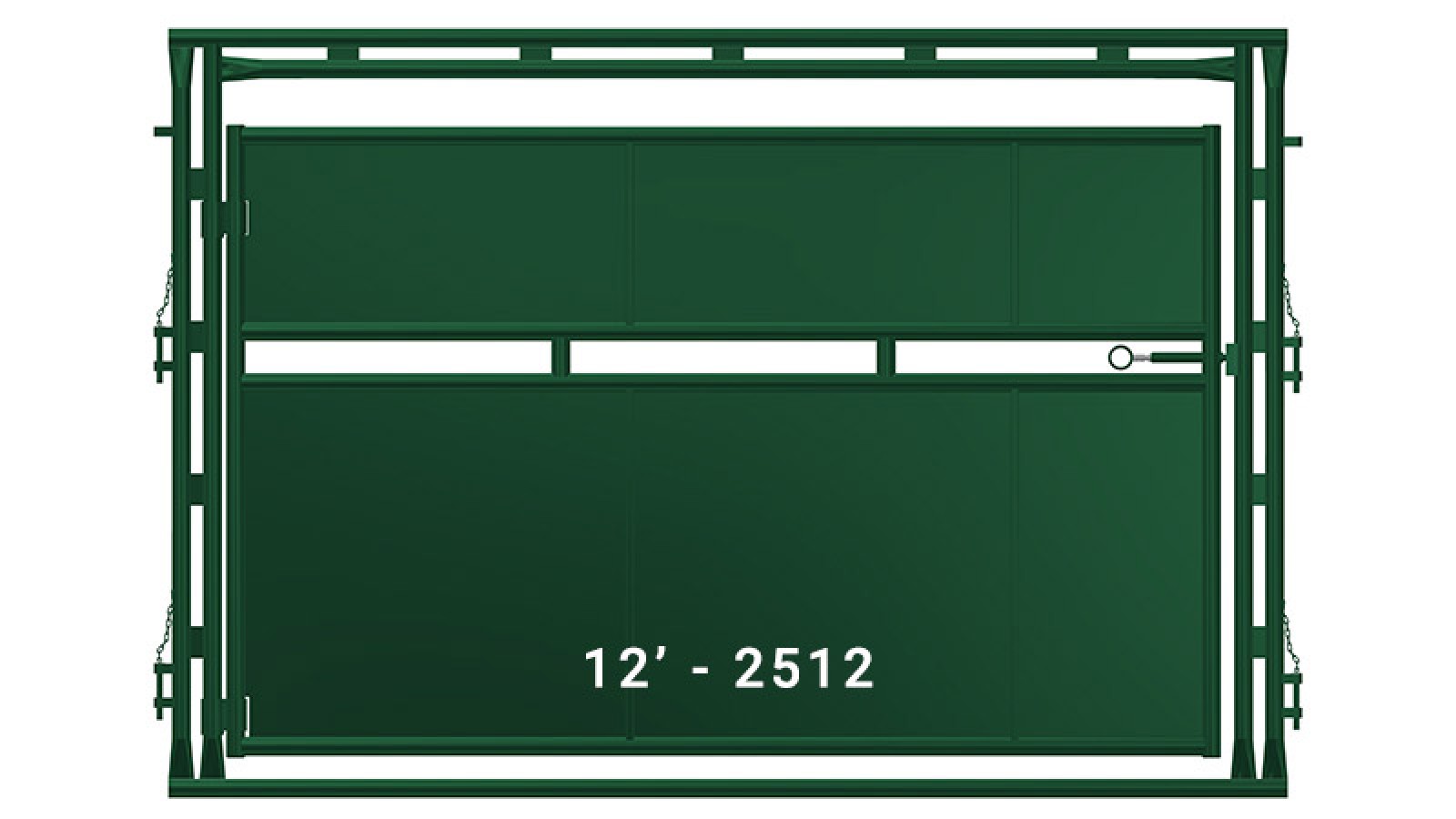

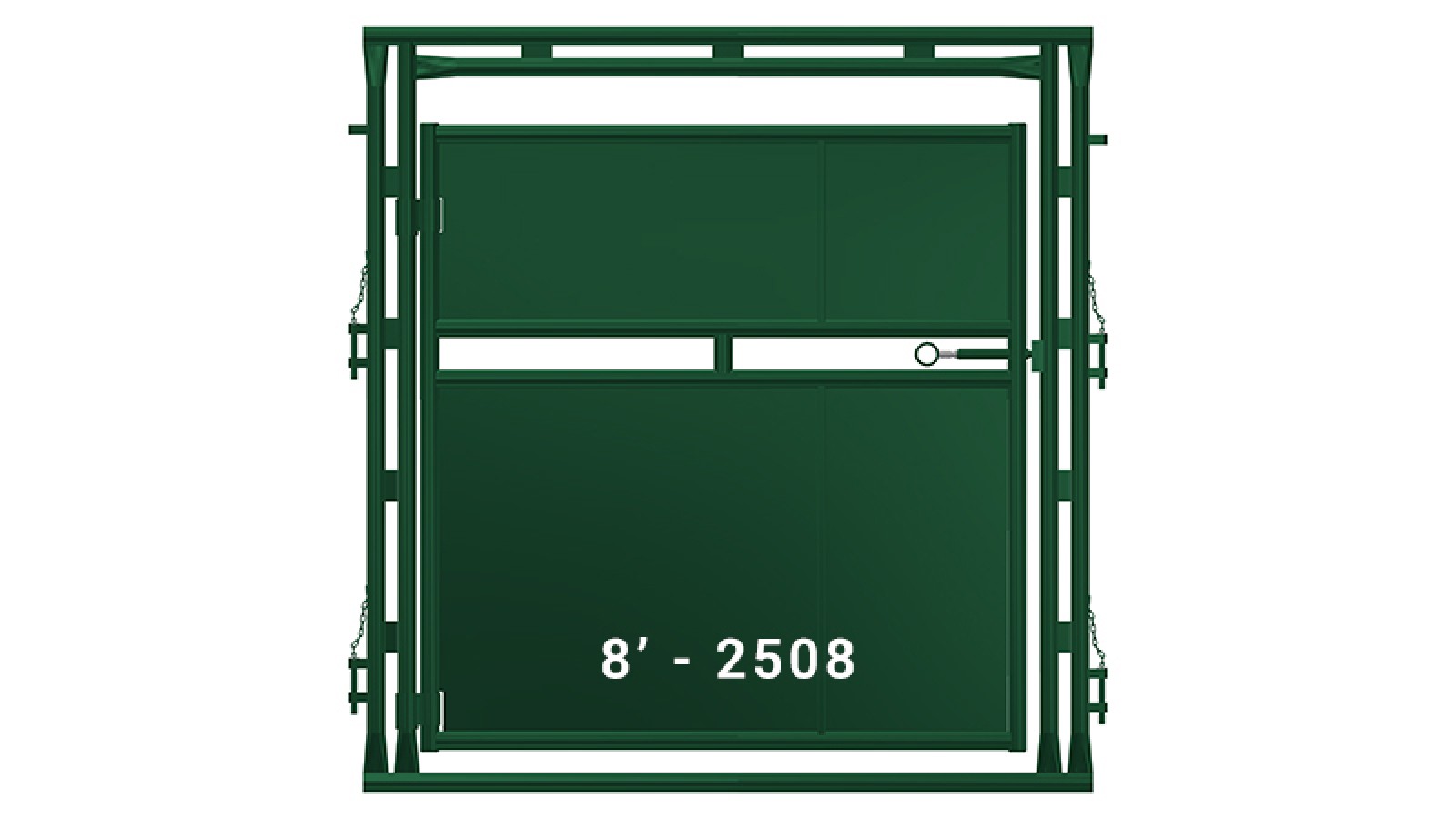

8' High Frame with 84" High, Heavy-Duty Bison Gate - Sheeted
