Item Number: Palpation Cages #80, #1560

Palpation Cages provide a safe environment for ranchers and vets to perform a wide range of livestock inspections and procedures including pregnancy checks and artificial insemination.

Hi-Hog offers both a fixed-width #80 Palpation Cage and an adjustable-width #1560 Palpation Cage.

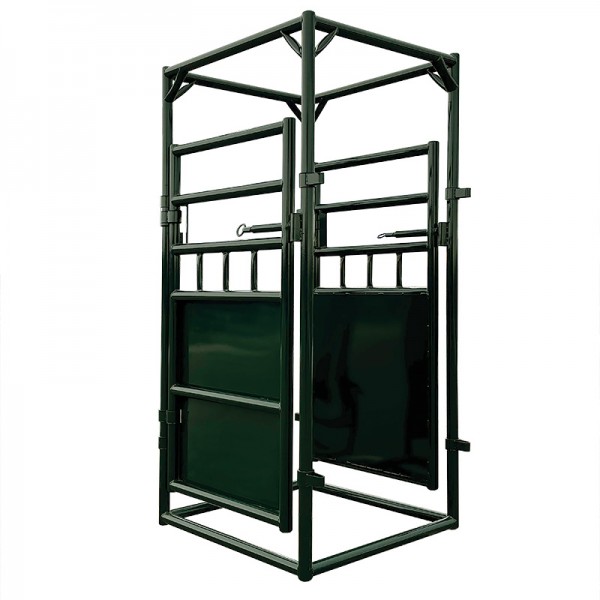

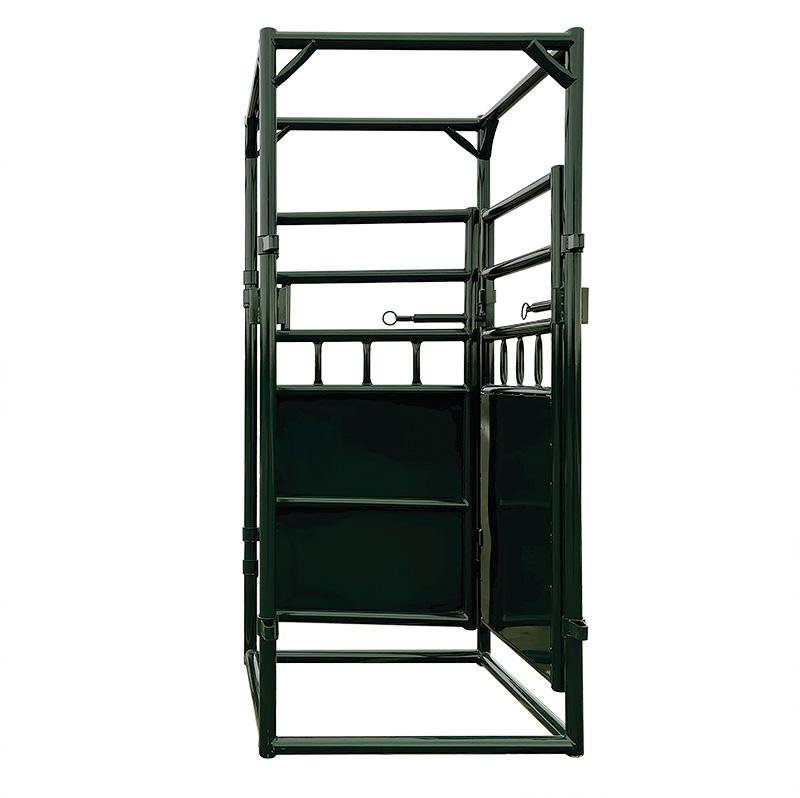

# 80 Non-Adjustable Palpation Cage

A metal cage for access to the rear of an animal for ceterinarian care manufactured by Hi-Hog Farm & Ranch Equipment

#80 Non-Adjustable Palpation Cage for Vet Care and System Access

Ask an expert about Hi-Hog's Palpation Cage options

Safe and secure access to your cattle

  • The #80 heavy duty non-adjustable Palpation Cage includes access gates on both sides of the cage.
  • Each 66″ high access gate comes with a spring-loaded slam-latch. For operator safety, the plunger on the slam-latches engage automatically when the gate is closed.
  • Both of the access gates can be swung into the Palpation Cage where they latch securely across the alley to block animals in the lead-up alley.
  • Both of the access gates can also be swung out of the Palpation Cage. This allows the Palpation Cage to also act as a sorting alley for small animals.
  • The Palpation Cage is designed to connect directly to other Hi-Hog system panels with our common connector system.
  • Another reason to consider a Palpation Cage on your chute is a Palpation Cage can double as a pass-through location for handlers.

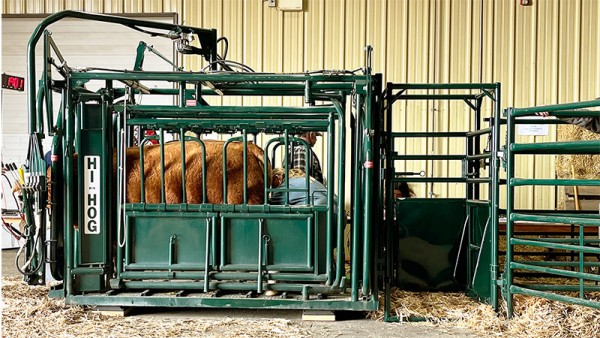

Apalpation cage for veterinarian access to the cattle squeeze chute

Hi-Hog's #80 Non-Adjustable Palpation Cage gives you secure access to the Squeeze / Alley / Across the Alley

Specifications

Non-Adjustable Palpation Cage

  • Item Number: 80
  • Length: 37”
  • Height: 80”
  • Width: 35-5/8”
  • Weight: 230 lbs

Ask an expert about Hi-Hog's palpation cage options

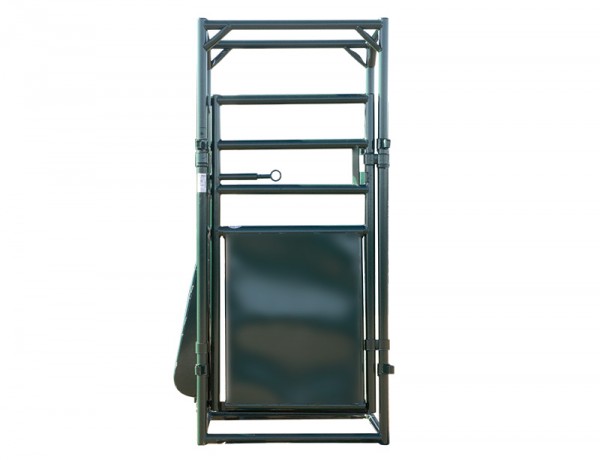

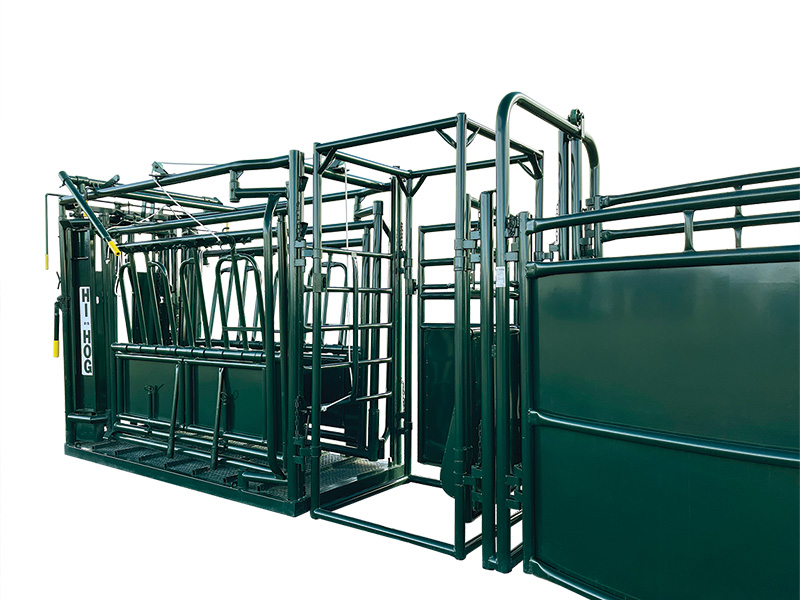

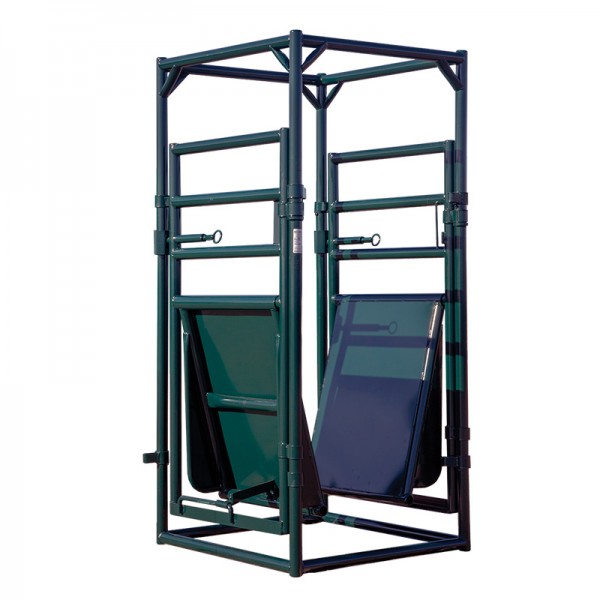

#1560 Adjustable Bottom Width Palpation Cage

A metal cage for animal and system access manufactured by Hi-Hog Farm & Ranch Equipment

Adjustable Slide Out Bottom Panels Lock In Place to Match the Width of the Alley

Advantages of Using an #1560 Adjustable Palpation/Veterinarian Cage:

  1. Provides a secure space for veterinarians to perform palpation, AI, or other health-related tasks safely and efficiently.
  2. Accommodates cattle of varying sizes, ensuring proper containment and reducing the risk of injury.
  3. Minimizes cattle stress by keeping them contained while allowing quick access for necessary treatments.
  4. Protects handlers and veterinarians from potential kicks or sudden movements of the cattle.
  5. Acts as an access point to the front of the Alley or for crossing through the alley.
  6. Facilitates seamless transitions between handling and treatment areas, saving time during processing.
  7. Quick and simple locking adjustments make it easy for handlers to position and secure cattle.
  8. Built to withstand heavy use, using Hi-Tensile, North American Steel Tubing, ensuring a long-lasting investment in your cattle handling system.



The adjustable Palpation Cage offers all the features of the non-adjustable Palpation Cage with the additional benefit of adjustable sides. The bottom of each gate includes an adjustable panel which can be swung in and quickly latched to provide a narrow interior for controlling calves. The width of the cage narrows to 14″ when both sides are set in.

Specifications
Adjustable Palpation Cage

  • Item Number: 1560
  • Length: 37”
  • Height: 80”
  • Interior Width: 14” to 35-5/8”
  • Weight: 275 lbs
A steel Palpation Cage manufactured by Hi-Hog Farm & Ranch Equipment that provides access to the rear of the animal for veterinarian care.

Safe Access to the Rear of the Squeeze Chute, Into the System or Across the Alley

Alternate Terms: vet cage, vet box
