Item Number: Livestock Gates

Bigger, Stronger, Better

Hi-Hog offers a wide range of outstanding livestock gates to meet your farm gate requirements. All gates are made with 60,000 psi high tensile steel tubing (or better). Gate widths from 4' to 20'

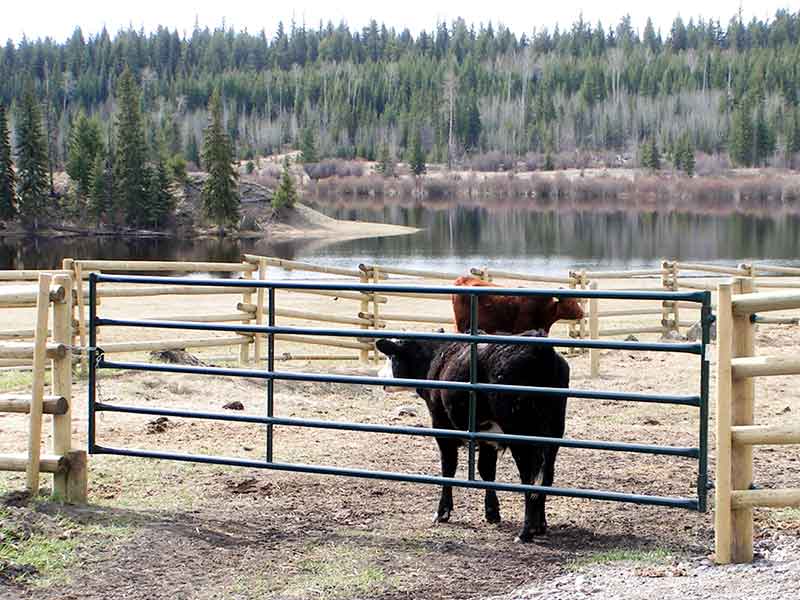

Hi-Hog livestock gates for the farm and ranch

Livestock Gates

Hi-Hog's farm gate collection includes:

Handy Gates (42" high)

A Farm Gate used for Horses or Cattle

FARM GATES - Hi-Hog Handy Gate 10' and 12'

Corral Gates (48" high)

Farm Gates used for enclosing Cattle and Horses

FARM GATES - Hi-Hog 4' -20' Cattle and Equine Corral Gates

Heavy Duty Gates (48", 59.25", and 70.5" high)

Gates used for enclosing the strongest of animals

FARM GATES - Hi-Hog 4' -20' Heavy Duty Ranch Gates

Gate Dimensions

The actual gate length is:

  • 5" shorter than the Handy Gate description
  • 5.25" shorter than the Corral Gate description
  • 5.25" shorter than the Heavy Duty Gate description


For example

  • A Handy Gate described as a 10' gate has an actual length of 9'-7" measured from the outside edges of the gate verticals (not including the hinge collars)
  • A Corral Gate described as a 10' gate has an actual length of 9'-6.75" measured from the outside edges of the gate verticals (not including the hinge collars)
  • A Heavy Duty Gate described as a 10' gate has an actual length of 9'-6.75" measured from the outside edges of the gate verticals (not including the hinge collars)

A 10' gate is designed to fit in a 10' opening between posts.

The center of the top hinge collar is designed to be set approximately 6" down from the top of the post (assuming the top horizontal of the gate aligns with the top of the post)

Gates are designed to be mounted so the bottom rail is approximately 10" above grade.

Ask an expert about Hi-Hog's livestock gates

________________________________________

Handy Gates

The handy gate is designed for low pressure uses such as acreage gates. These gates are available in the following lengths: 4′, 6′, 8′, 10′, 12′, 14′ 16, 18, 20′. The handy gate is frequently used in tandem with Hi-Hog cattle guards.

  • The tubing is 1 1/2″ OD 16 gauge tubing
  • The verticals are coned to remove sharp edges
  • The inside opening between each of the five horizontal bars is 8 3/8”
  • The horizontals are reinforced with 1.25” x 3/16” flat bar welded on alternating faces of the gate.

Each gate under 16' comes with two 13” x 3/4” All-thread hinges. Each gate 16' and longer comes with two 13" x 1" All-Thread hinges. The hinges are secured to the gate for shipping with a 1/4″ Hex-head self-drill screw. Each gate includes 48” of 1/4” zinc plated chain and a no-slip chain latch.

Ask an expert about Hi-Hog's livestock gates

Item Description Weight (lbs.)
500 4' long x 42" high Handy Gate 33
510 6' long x 42" high Handy Gate 46
520 8' long x 42" high Handy Gate 58
530 10' long x 42" high Handy Gate 68
540 12' long x 42" high Handy Gate 81
550 14' long x 42" high Handy Gate 91
560 16' long x 42" high Handy Gate 111
7018 18' long x 42" high Handy Gate 116
7020 20' long x 42" high Handy Gate 136





Corral Gates


The corral gate is designed for moderate to heavy uses such as corral applications.

  • The top, bottom, and end verticals are constructed of 1.9” OD, 14-gauge tubing
  • The interior horizontals are constructed of 1.5” OD, 16-gauge tubing
  • The verticals are coned to remove sharp edges
  • The inside opening between each of the six horizontal bars is 7 3/8”
  • The horizontals are reinforced with 1.25” x 3/16” flat bar welded on alternating faces of the gate.

Each gate comes with two 13” x 1” All-thread hinges. The hinges are secured to the gate for shipping with a 1/4″ Hex-head self-drill screw. Each gate includes 48” of 1/4” zinc plated chain and a no-slip chain latch.

Item Description Weight (lbs.)
570 4' long x 48" high Corral Gate 51
580 6' long x 48" high Corral Gate 68
590 8' long x 48" high Corral Gate 86
600 10' long x 48" high Corral Gate 100
610 12' long x 48" high Corral Gate 117
620 14' long x 48" high Corral Gate 132
630 16' long x 48" high Corral Gate 149
7118 18' long x 48" high Corral Gate 163
7120 20' long x 48" high Corral Gate 180



Heavy Duty Gates


The heavy duty 5, 6, and 7 bar gates (48" high, 59.25" high, and 70.5" high) are designed for heavy use. These gates are primarily used in livestock handling applications. These gates are available in the following lengths: 4′, 6′, 8′, 10′, 12′, 14′ 16, 18, 20′.

  • Heavy duty gates are constructed of 1.9” OD 14-gauge tubing throughout
  • The end verticals are coned to remove sharp edges
  • The inside opening between each of the horizontal bars is 9 5/16”
  • The horizontals are reinforced with 1 1/2” OD 16-gauge tubing
  • Each of the vertical supports is coped to fit the horizontals

Each gate comes with two 13” x 1” All-thread hinges on 4″ collars. The hinges are secured to the gate for shipping with a 1/4″ Hex-head self-drill screw. Each gate includes 48” of 1/4” zinc plated chain and a no-slip chain latch.

Note:

  • The 48" high gate is normally mounted with the top horizontal rail at a height of 5' above the ground
  • The 59.25" high gate is normally mounted with the top horizontal rail at a height of 6' above the ground
  • The 70.5" high gate is normally mounted with the top horizontal rail at a height of 7' above the ground

48" high Heavy Duty Gate - 5-Bar

Item Description Weight (lbs.)
640 4' long x 48" high Heavy Duty Gate 54
650 6' long x 48" high Heavy Duty Gate 70
660 8' long x 48" high Heavy Duty Gate 89
670 10' long x 48" high Heavy Duty Gate 105
680 12' long x 48" high Heavy Duty Gate 124
690 14' long x 48" high Heavy Duty Gate 140
700 16' long x 48" high Heavy Duty Gate 156
7218 18' long x 48" high Heavy Duty Gate 175
7220 20' long x 48" high Heavy Duty Gate 191

59.25" high Heavy Duty Gate - 6-Bar

Item Description Weight (lbs)
645 4' long x 59.25" high Heavy Duty gate 62
655 6' long x 59.25" high Heavy Duty gate 81
665 8' long x 59.25" high Heavy Duty gate 105
675 10' long x 59.25" high Heavy Duty gate 124
685 12' long x 59.25" high Heavy Duty gate 147
695 14' long x 59.25" high Heavy Duty gate 166
705 16' long x 59.25" high Heavy Duty gate 186
7318 18' long x 59.25" high Heavy Duty gate 208
7320 20' long x 59.25" high Heavy Duty gate 228

70.5" High Heavy Duty Gate - 7 Bar

Item Description Weight
2404 4' long x 70.5" high heavy duty gate 70
2406 6' long x 70.5" high heavy duty gate 93
2408 8' long x 70.5" high heavy duty gate 120
2410 10' long x 70.5" high heavy duty gate 143
2412 12' long x 70.5" high heavy duty gate 170
2414 14' long x 70.5" high heavy duty gate 192
2416 16' long x 70.5" high heavy duty gate 215
 2438 18' long x 70.5" high heavy duty gate  242
 2440 20' long x 70.5" high heavy duty gate  263
