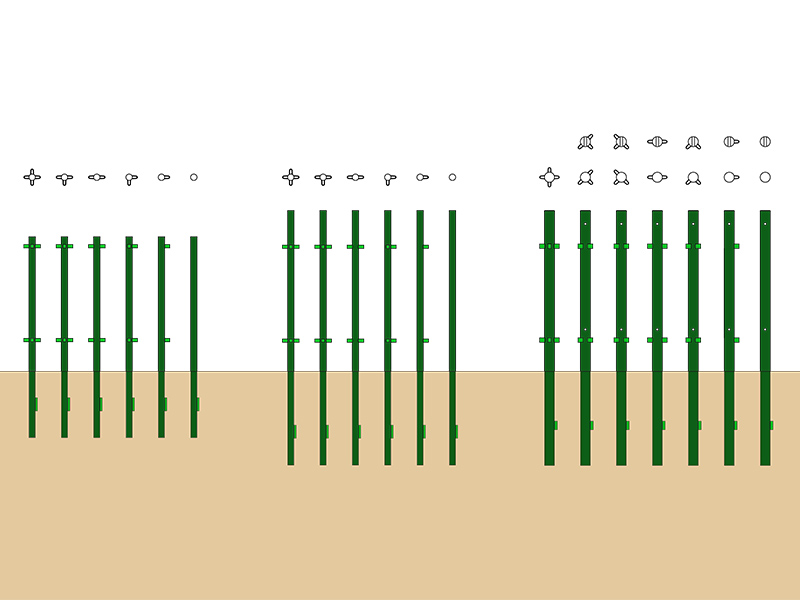

Hi-Hog offers both portable connector posts and permanent, anchored in the ground, connector posts.
Portable Connector Posts
Use a portable connector post to create a corral intersection with panels going in three or four directions.
5’ high Connector Posts
| Item | Description | Weight (lbs.) |
| 1090 | 1.5" OD x 58" high - 3-Way Connector Post | 7 |
| 1100 | 1.5" OD x 58" high - 4-Way Connector Post | 7 |
6’ high Connector Posts
| Item | Description | Weight (lbs.) |
| 1091 | 1.9" OD x 71.25" high - 3-Way Connector Post | 11 |
| 1101 | 1.9" OD x 71.25" high - 4-Way Connector Post | 11 |
Similar Products:
One can also use Hi-Hog’s Connector Links to connect multiple panels at one intersection.
Ask an expert about Hi-Hog's corral posts
Permanent Posts
2-7/8" OD and 4.5" OD steel posts
If you are looking for some heavy-duty permanent posts for your next penning project you may wish to consider investing in the strength of steel.
2 7/8” Diameter Posts
For medium to light pressure situations choose Hi-Hog’s 2-7/8" diameter posts. These posts are available in heights of 5’ or 6’.
- 5’ posts have a total length of 90” (30” in the ground)
- 6’ posts have a total length of 114” (42” in the ground)
5' Posts (above grade)
| Item | Description | Weight (lbs.) |
| 1669 | 2-7/8" OD x 90" long - 5' above grade - 4-Way Steel Post | 51 |
| 1652 | 2-7/8" OD x 90" long - 5' above grade - 3-Way Steel Post | 50 |
| 1653 | 2-7/8" OD x 90" long - 5' above grade - 2-Way Steel Post | 49 |
| 1654 | 2-7/8" OD x 90" long - 5' above grade - 2-Way Steel Post | 49 |
| 1655 | 2-7/8" OD x 90" long - 5' above grade - 1-Way Steel Post | 48 |
| 1668 | 2-7/8" OD x 90" long - 5' above grade - Plain Steel Post | 47 |
6' Posts (above grade)
| Item | Description | Weight (lbs.) |
| 1671 | 2 7/8" x 9'-6" 4-way post | 63 |
| 1656 | 2 7/8" x 9'-6" 3-way post | 62 |
| 1657 | 2 7/8" x 9'-6" 2-way post 180° | 61 |
| 1658 | 2 7/8" x 9'-6" 2-way post 90° | 61 |
| 1659 | 2-7/8" x 9'-6" 1-way post | 61 |
| 1672 | 2-7/8" x 9'-6" plain post (no connectors) | 60 |
Ask an expert about Hi-Hog's corral posts
4 1/2” Diameter Posts
For high pressure conditions choose Hi-Hog’s 4.5” diameter posts. These posts are 6’ high. These posts are also available with pre-drilled holes for installation of Hi-Hog’s 59.25” Heavy-duty gates.
• 6’ post a total length of 114” (42” in the ground).
4 1/2" Diameter Posts
| ITEM | DESCRIPTION | WEIGHT (LBS.) |
| 1261 | 4 1/2" x 9'-6" 4-way post | 108 |
| 1260 | 4 1/2" x 9'-6" 3-way post | 107 |
| 1258 | 4 1/2" x 9'-6" 2-way post 180° | 106 |
| 1259 | 4 1/2" x 9'-6" 2-way post 90° | 106 |
| 1257 | 4 1/2" x 9'-6" 1-way post | 105 |
| 1256 | 4 1/2" x 9'-6" plain post (no connectors) | 104 |
4 1/2" Diameter Gate Posts
| ITEM | DESCRIPTION | WEIGHT (LBS.) |
| 1254 | 4 1/2" x 9'-6" 3-way gate post - Right Hand | 106 |
| 1255 | 4 1/2" x 9'-6" 3-way gate post - Left Hand | 106 |
| 1252 | 4 1/2" x 9'-6" 2-way gate post 180° | 106 |
| 1253 | 4 1/2" x 9'-6" 2-way gate post 90° | 106 |
| 1251 | 4 1/2" x 9'-6" 1-way gate post | 105 |
| 1250 | 4 1/2" x 9'-6" plain gate post (no connectors) | 104 |
Similar Products
For portable corral installations consider Hi-Hog’s U-frames with gates, U-spreaders, as well as their frame & Gates and overhead alley spreaders.
