Hi-Hog offers both bolt-on and weld on striker plate options. Select the corresponding striker plate size to work with the Hi-Hog plunger latch you order.

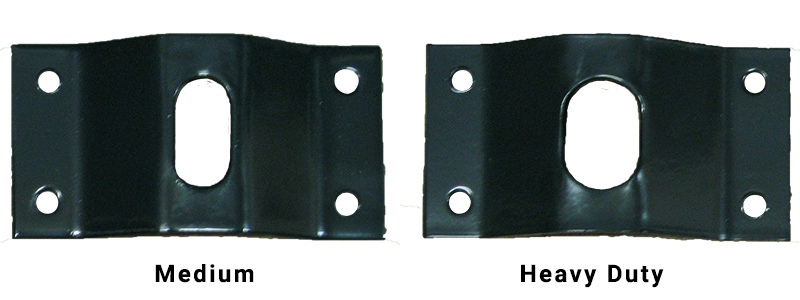

Bolt-On Striker Plates

• Designed to work with the 7/8” diameter plunger latch
• 1” Slot Width
• Item 1649
• Weight 2 lbs.

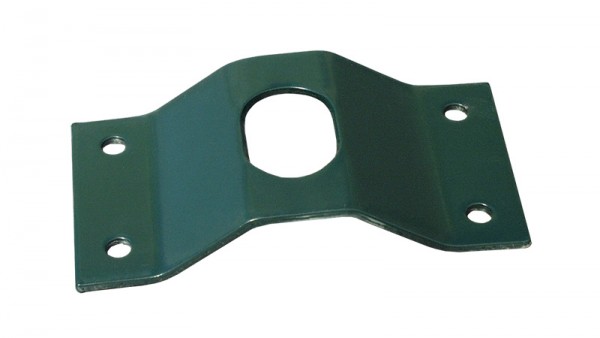

Heavy-duty Bolt-on Striker Plate

• Designed to work with the 1 1/8” diameter plunger latch
• 1 1/2” Slot Width
• Item 1651
• Weight 2 lbs

NOTE: fasteners not included. Bolt holes have a diameter of 7/16”. Plate dimensions are 7 3/8” wide x 4” high x 1 3/8” deep. Plate is 3/16” thick

Ask an expert about Hi-Hog's Livestock Gate Striker Plate Latches

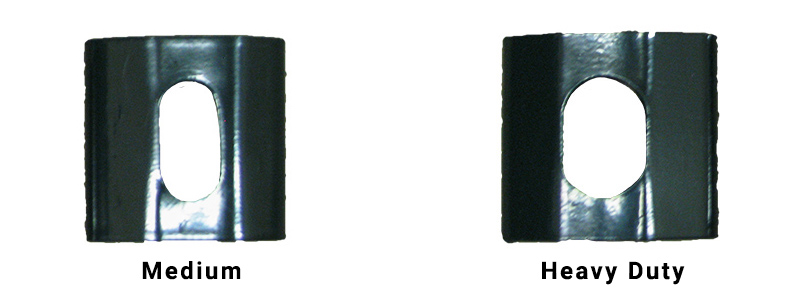

Weld On Striker Plates

Medium Weld-on Striker Plate

• Designed to work with the 7/8” diameter plunger latch
• 1” Slot Width
• Item 1648
• Weight 2 lbs

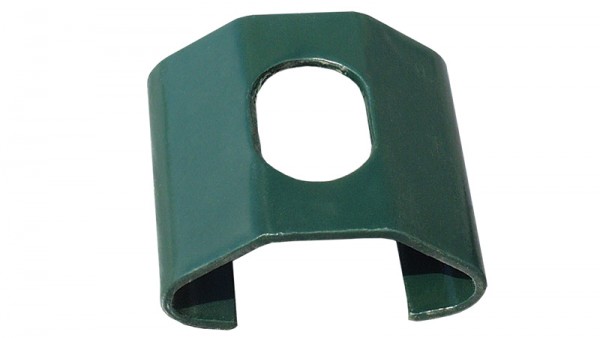

Heavy-duty Weld-on Striker Plate

• Designed to work with the 1 1/8” diameter plunger latch
• 1 1/2” Slot Width
• Item 1650
• Weight 2 lbs

NOTE: Plate dimensions are 4” wide x 4” high x 2” deep. Plate is 3/16” thick. Weld-on striker plates are designed to fit a 2 7/8” diameter post.

Ask an expert about Hi-Hog's Livestock Gate Striker Plate Latches
