Check out Hi-Hog's collection of sample cattle handling systems for some design inspiration.

Hi-Hog’s modular components offer tremendous freedom to modify any of the sample cattle handling systems to better meet your individual livestock management requirements.

Here are a few of the ways you can easily modify the sample systems shown below:


A fast and efficient Cattle Handling System manufactured by Hi-Hog Farm & Ranch Equipment

CROWDING TUB OPTIONS

  • Choose one of several crowding tub styles or replace your crowding tub with a Bud Box
  • Hi-Hog can re-design any system to change the direction of cattle flow through the tub. Do you require your cattle flow to flow clockwise or counter-clockwise?
  • Hi-Hog’s crowding tub components can be combined to create over 60 different crowding tub designs. Which one is right for you?

Alley Options:

Palpation Options:

Squeeze Options:

Additional Options:

54 Sample Cattle Handling System Drawings

If you want to switch from clockwise to counter-clockwise cattle flow, we suggest you contact Hi-Hog’s friendly design team to ensure your design includes all the correct components. This is a free service.

If you have any questions, or you would like Hi-Hog’s assistance to modify one of these plans, simply contact our sales office during business hours and one of our design staff with your design. Simply identify which drawing is closest to what you would like to have. This is a FREE service. If you’re calling from within mainland North America you can reach us toll free at 1-800-661-7002 (Monday to Friday 8:00 am to 4:30 pm MST).

NOTE: To see the drawing details we recommend viewing the samples drawings on a large screen. The PDF files provide a sharper image.


Sample System 001 Open PDF

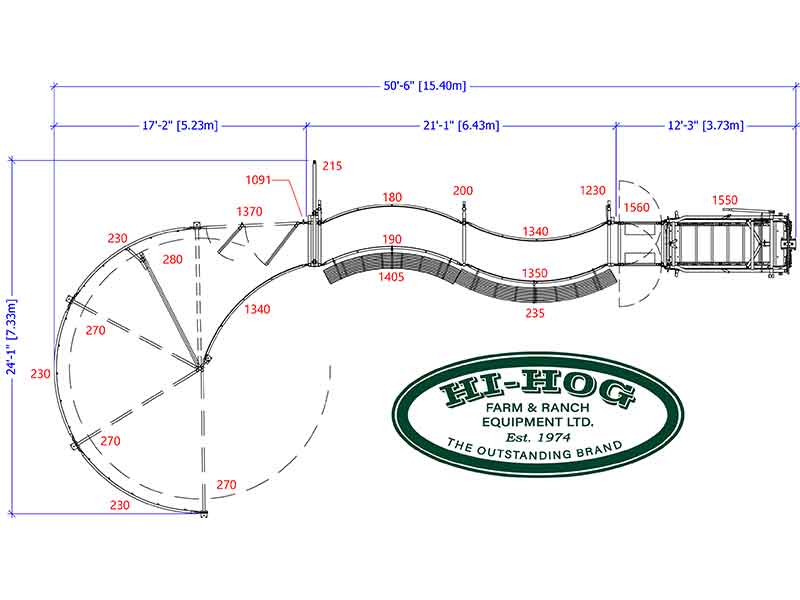

Cattle Handling System Sample 001

Sample System 002 Open PDF

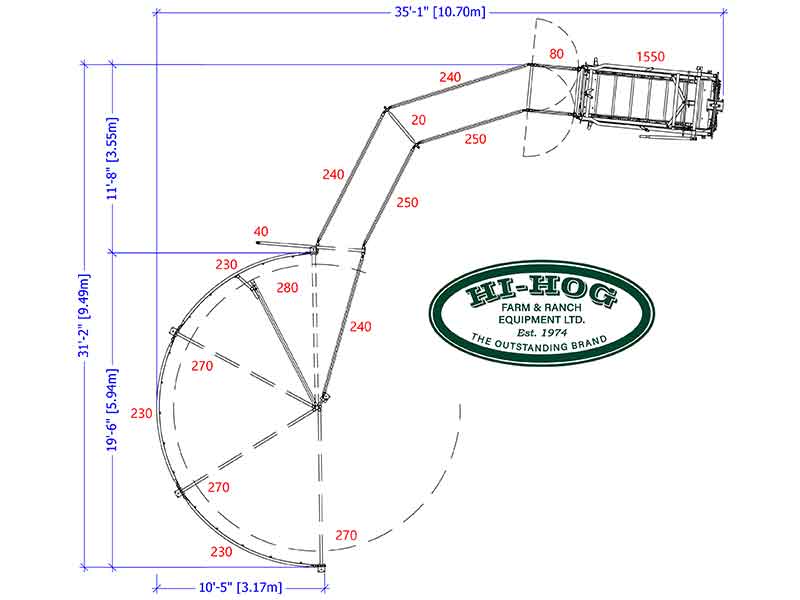

Cattle Handling System Sample 002



Sample System 003 Open PDF

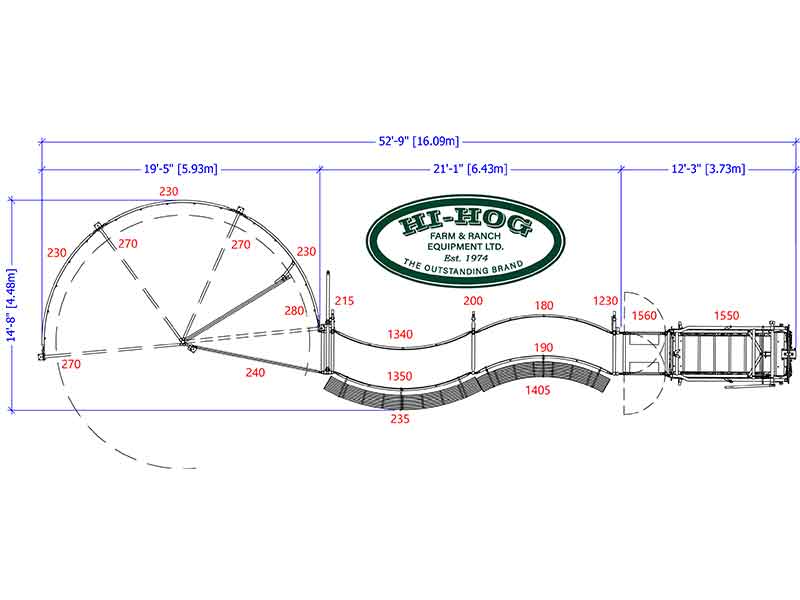

Cattle Handling System Sample 003

Sample System 004 Open PDF

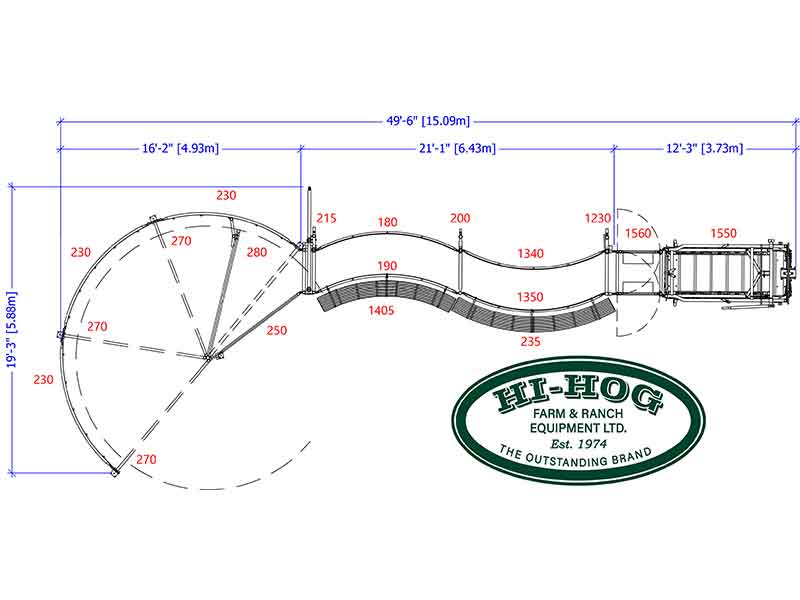

Cattle Handling System Sample 004

Sample System 05 Open PDF

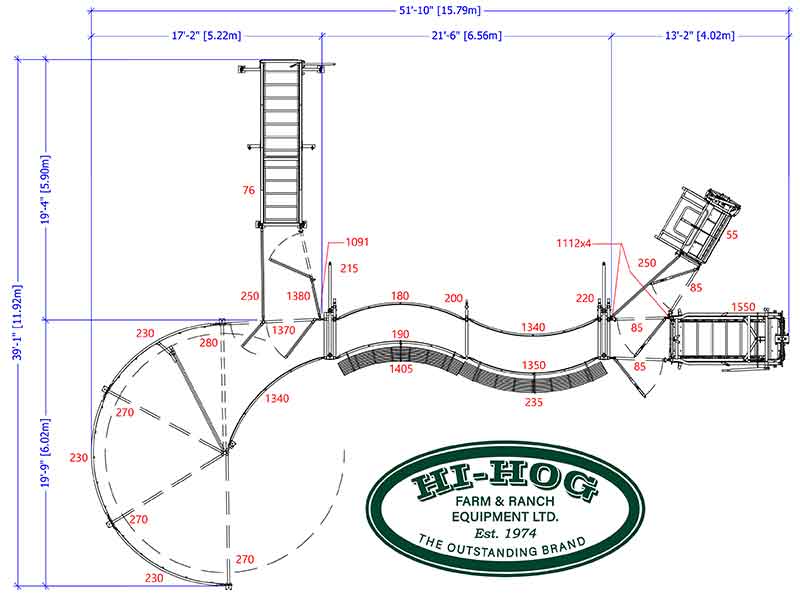

Cattle Handling System Sample 005

Sample System 06 Open PDF

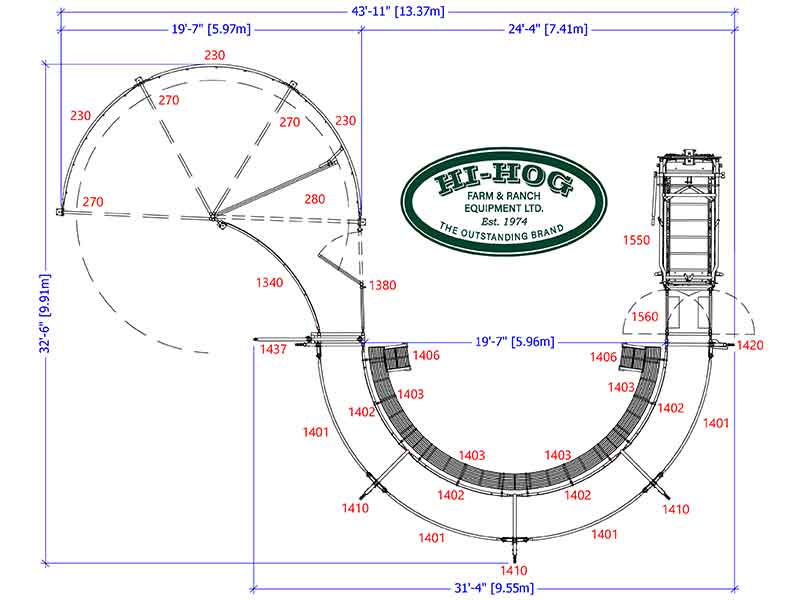

Cattle Handling System Sample 006

Sample System 07 Open PDF

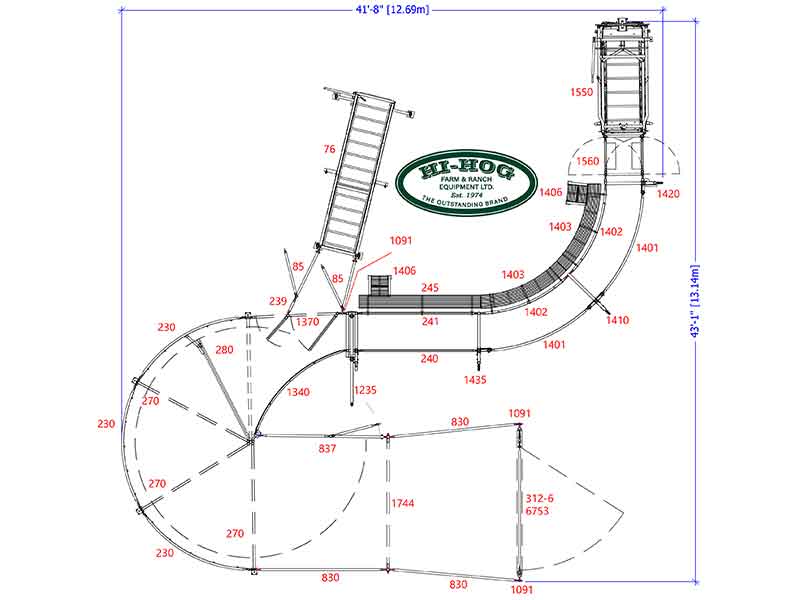

Cattle Handling System Sample 007

Sample System 08 Open PDF

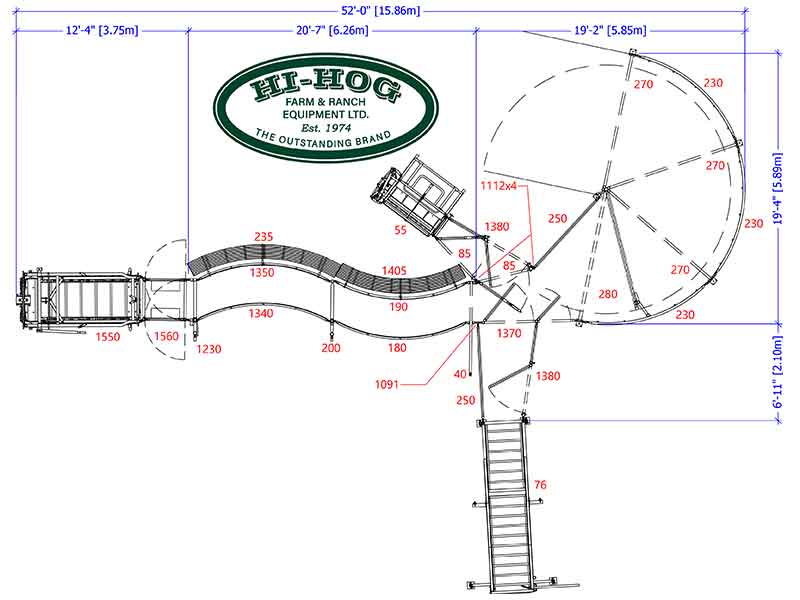

Cattle Handling System Sample 008

Sample System 09 Open PDF

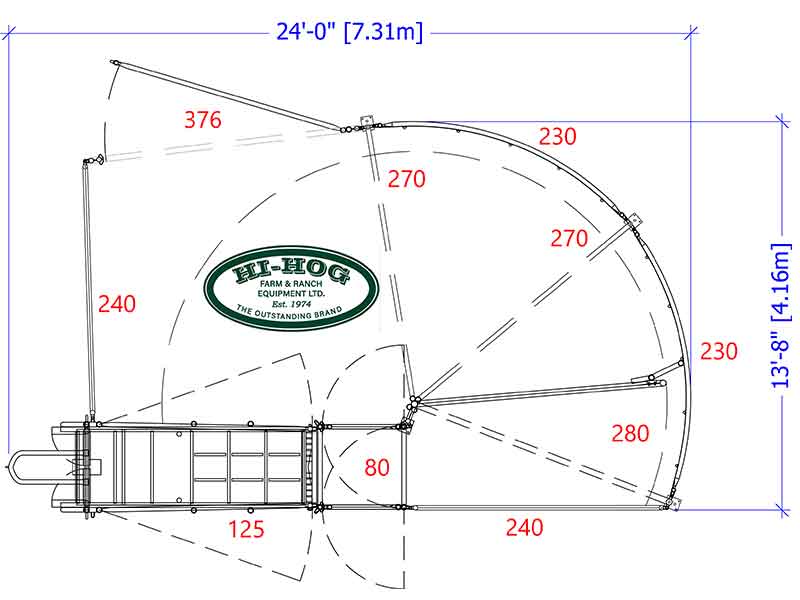

Cattle Handling System Sample 009

Sample System 10 Open PDF

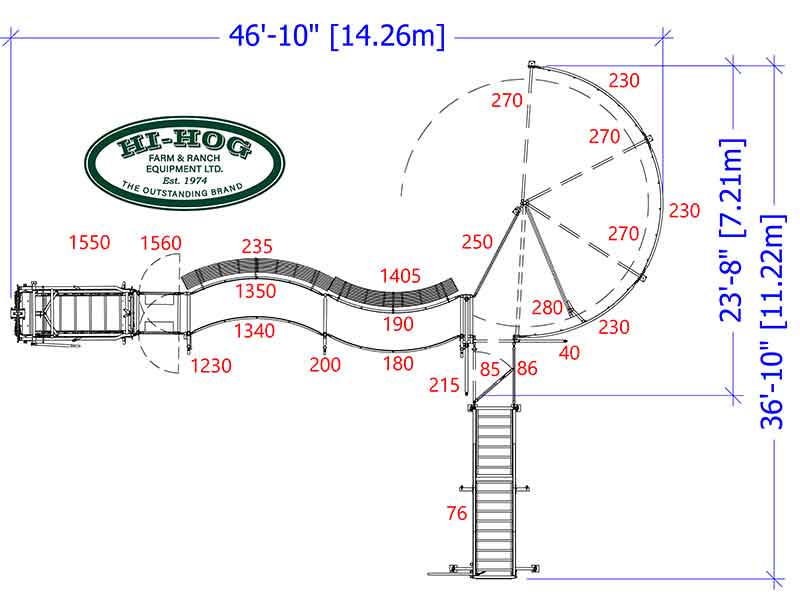

Cattle Handling System Sample 010

Sample System 11 Open PDF

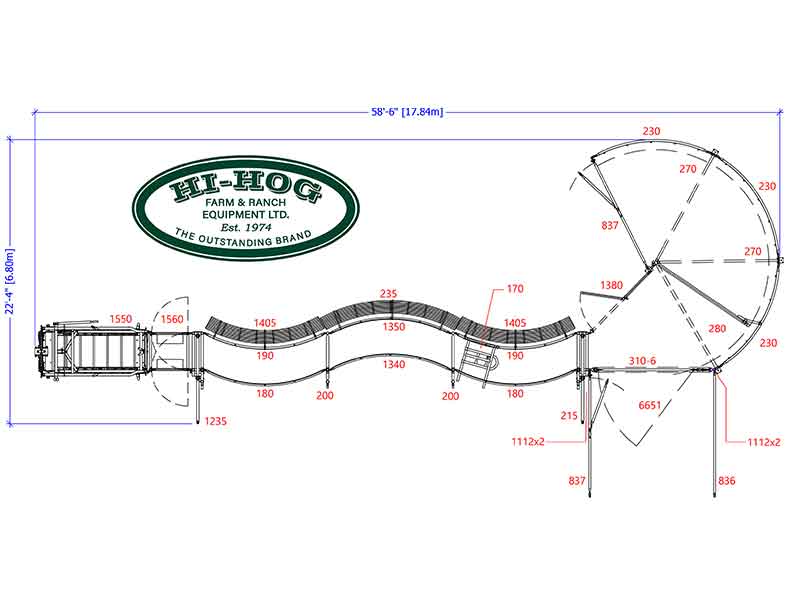

Cattle Handling System Sample 011

Sample System 12 Open PDF

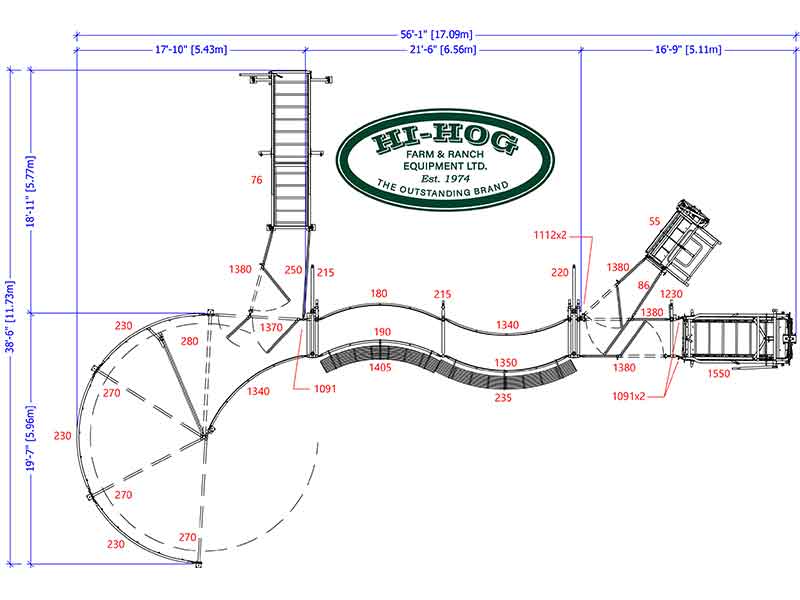

Cattle Handling System Sample 012

Sample System 13 Open PDF

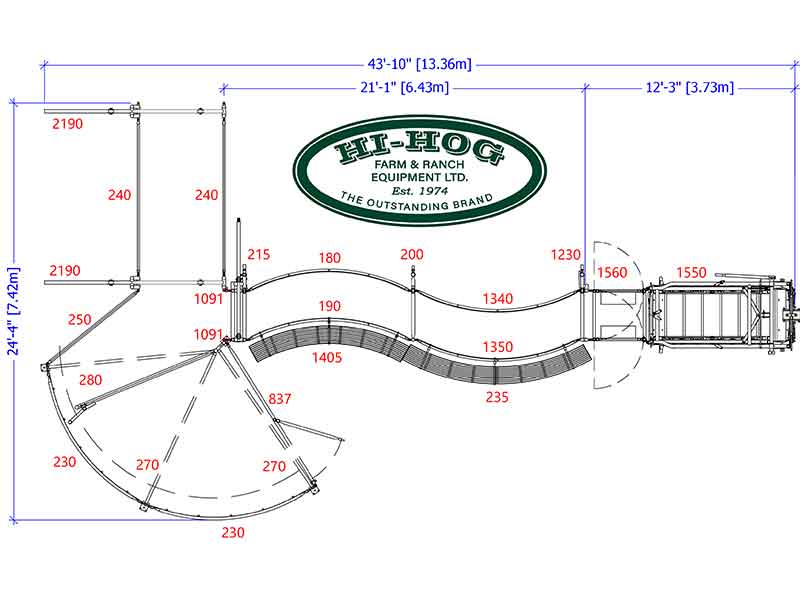

Cattle Handling System Sample 013

Sample System 14 Open PDF

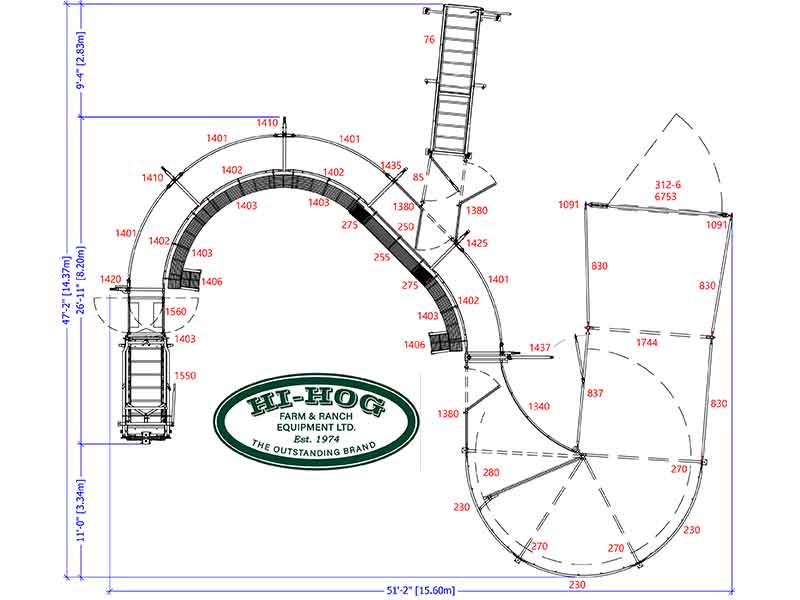

Cattle Handling System Sample 014

Sample System 15 Open PDF

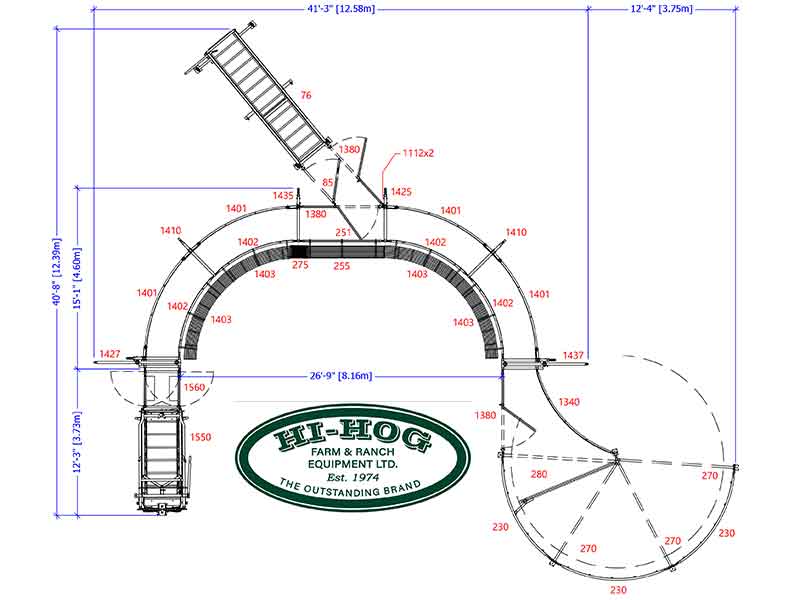

Cattle Handling System Sample 015

Sample System 16 Open PDF

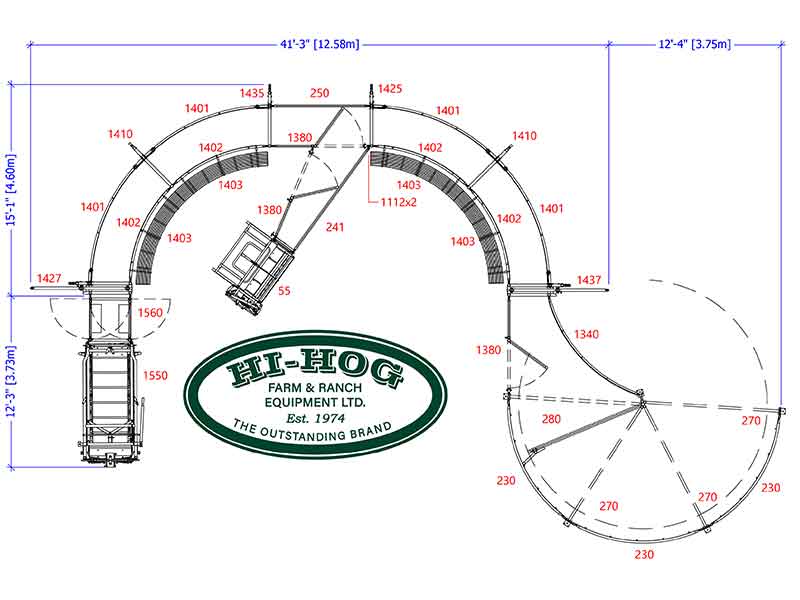

Cattle Handling System Sample 016

Sample System 17 Open PDF

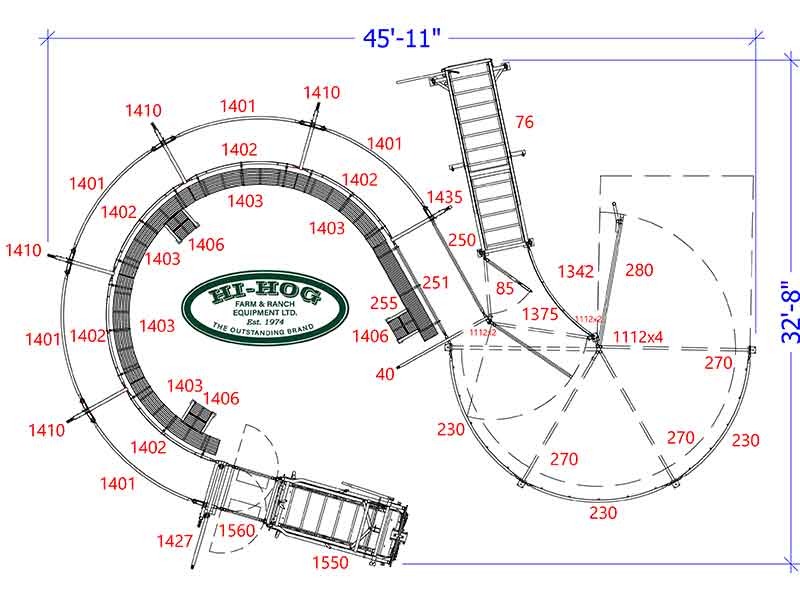

Cattle Handling System Sample 017

Sample System 18 Open PDF

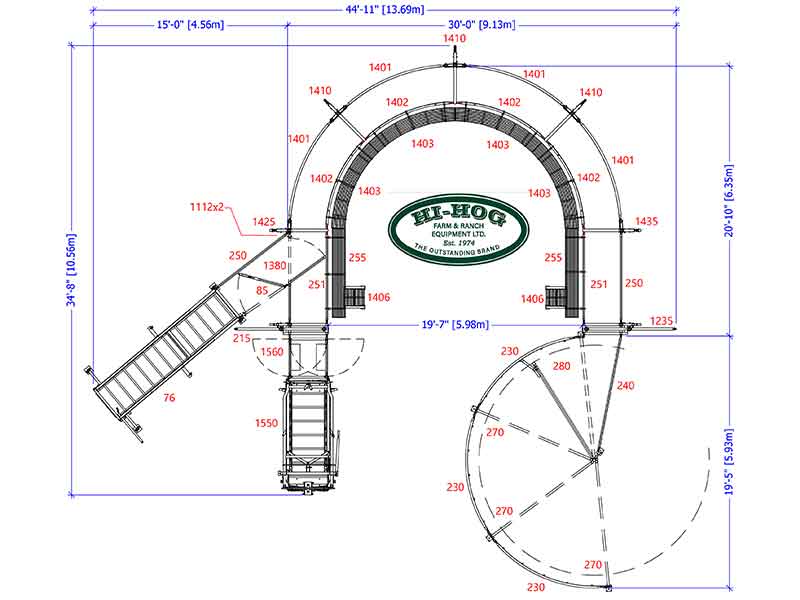

Cattle Handling System Sample 018

Sample System 19 Open PDF

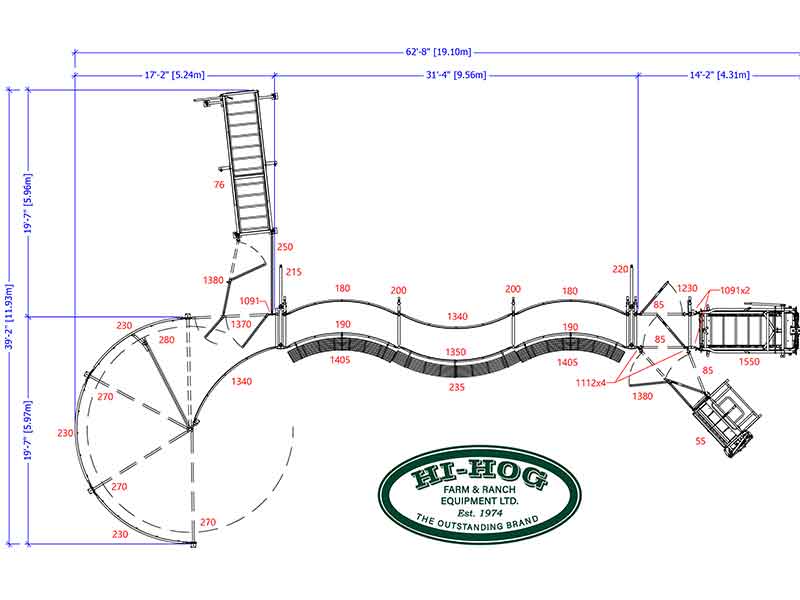

Cattle Handling System Sample 019

Sample System 20 Open PDF

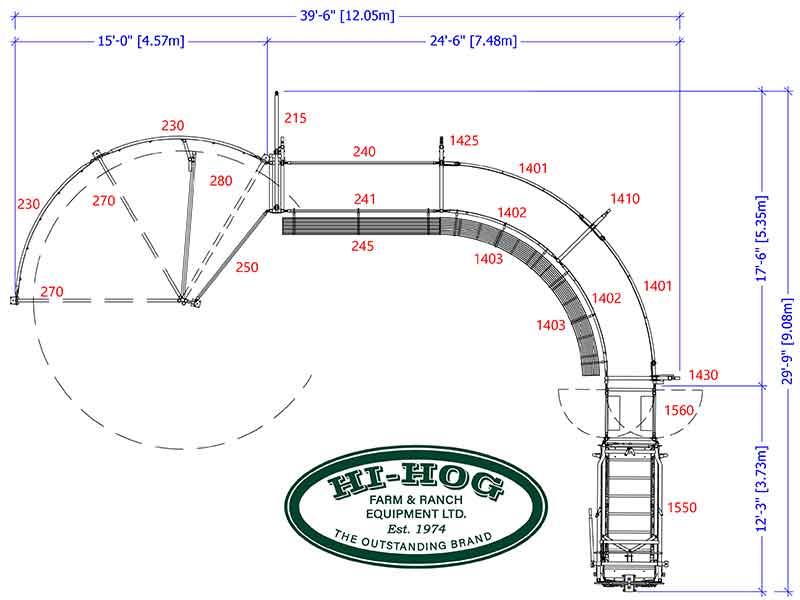

Cattle Handling System Sample 020

Sample System 21 Open PDF

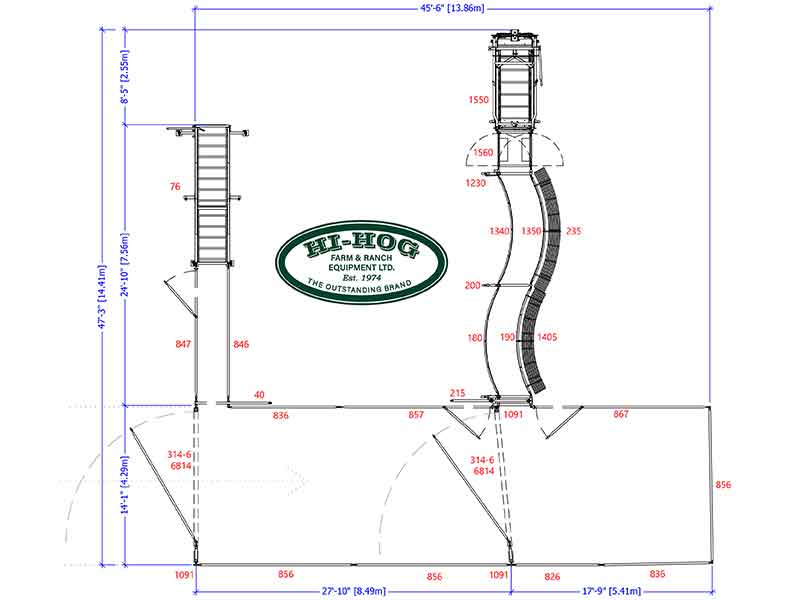

Cattle Handling System Sample 021

Sample System 22 Open PDF

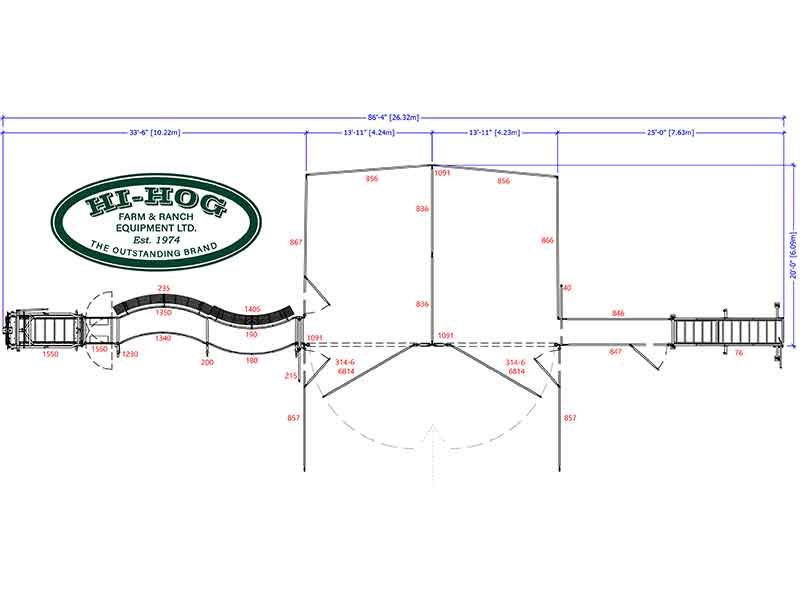

Cattle Handling System Sample 022

Sample System 23 Open PDF

A fast and efficient cattle handling system manufactured by Hi-Hog Farm & Ranch Equiment.

Sample System 24 Open PDF

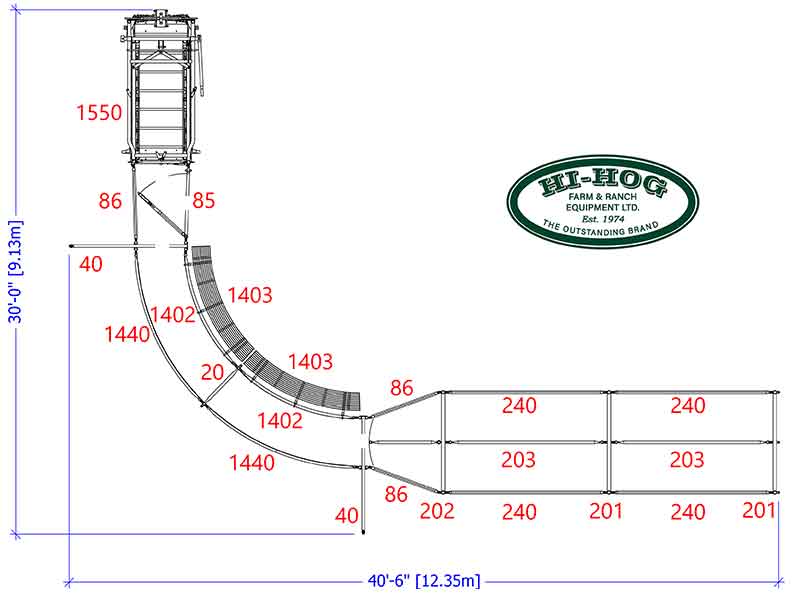

Cattle Handling System Sample 024

Sample System 25 Open PDF

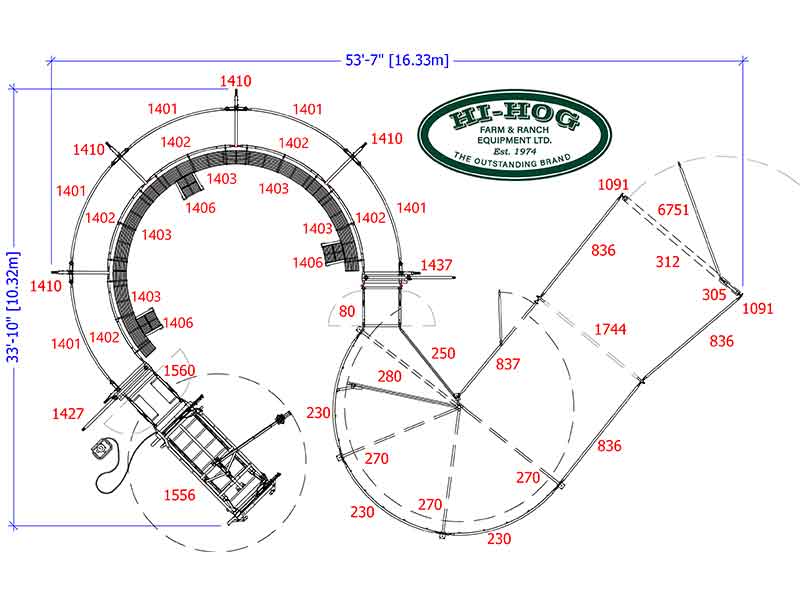

Cattle Handling System Sample 025

Sample System 26 Open PDF

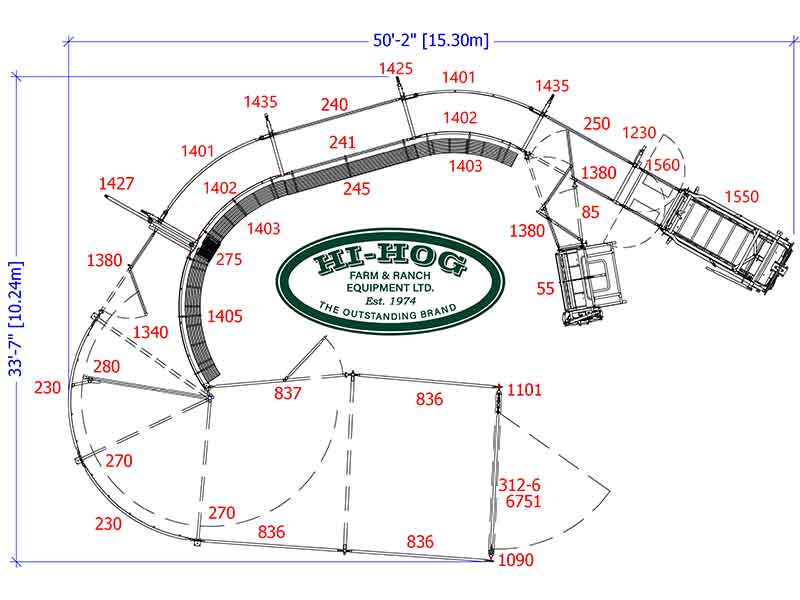

Cattle Handling System Sample 026

Sample System 27 Open PDF

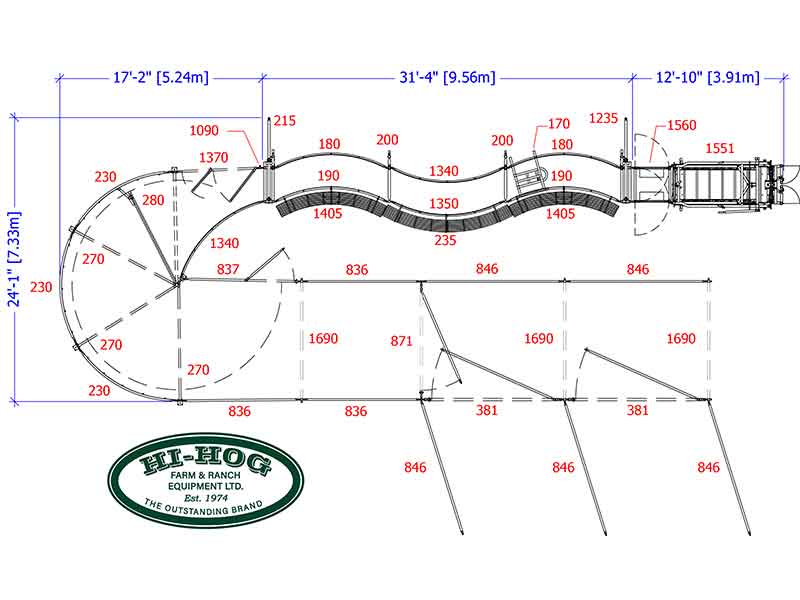

Cattle Handling System Sample 027

Sample System 28 Open PDF

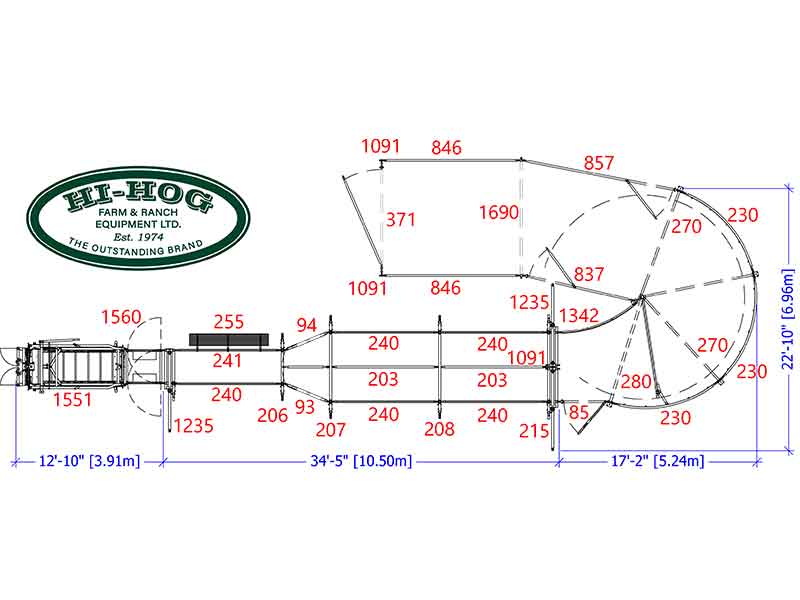

Cattle Handling System Sample 028

Sample System 29 Open PDF

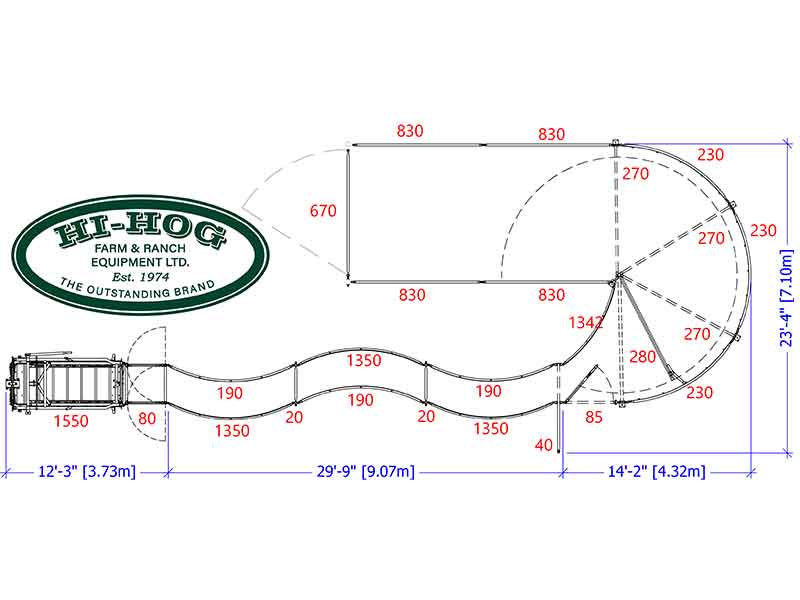

Cattle Handling System Sample 029

Sample System 30 Open PDF

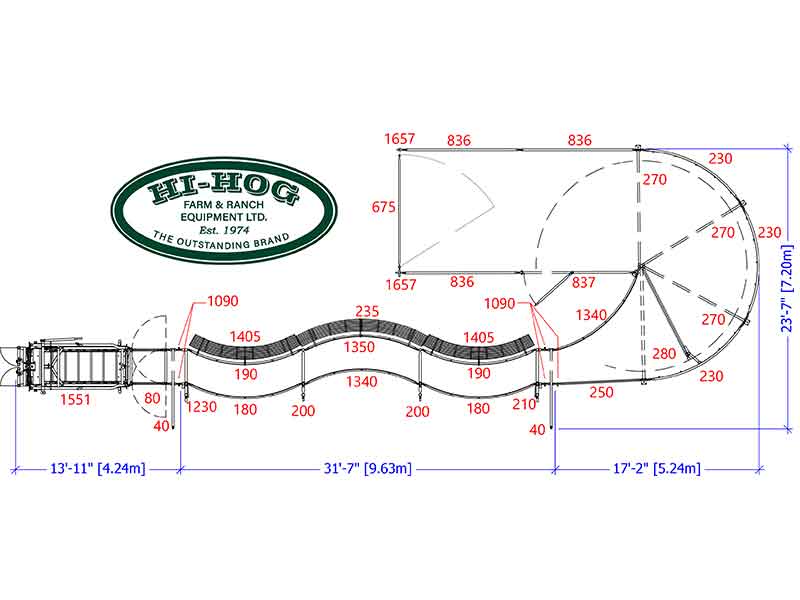

Cattle Handling System Sample 030



Sample System 31 Open PDF

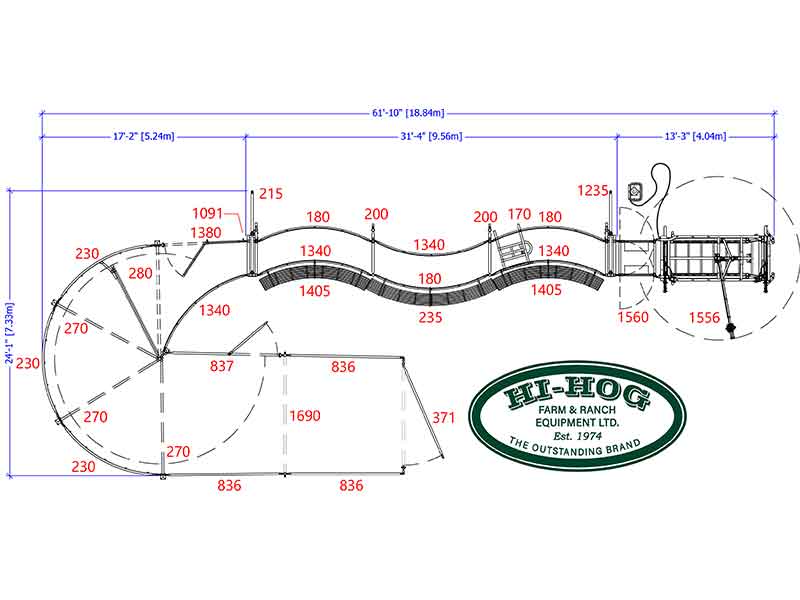

Cattle Handling System Sample 031



Sample System 32 Open PDF

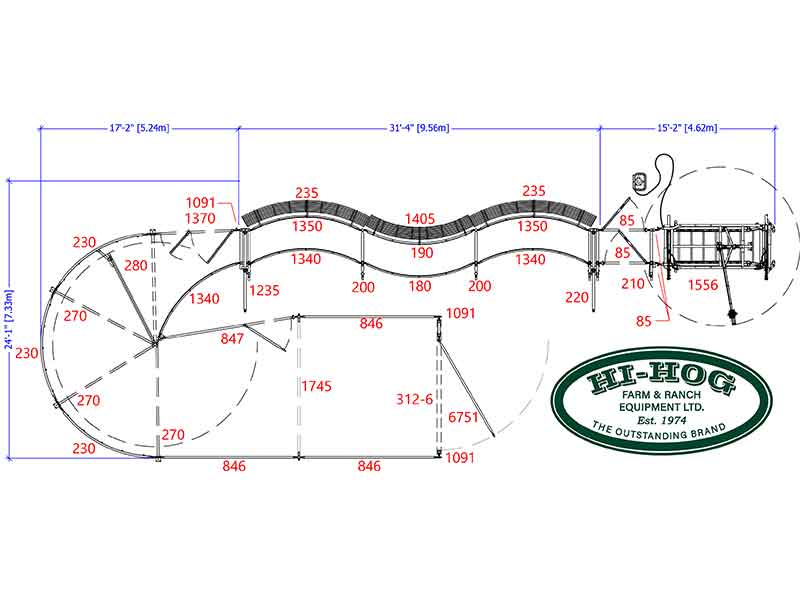

Cattle Handling System Sample 032



Sample System 33 Open PDF

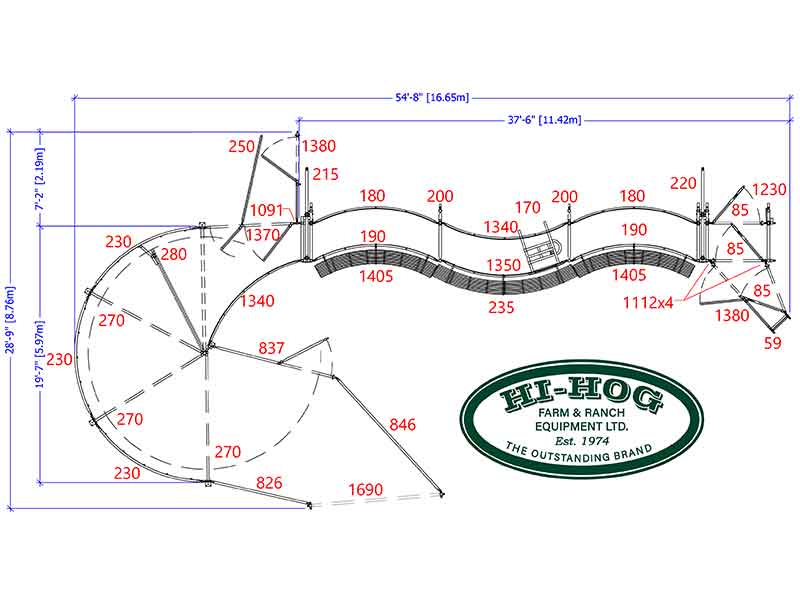

Cattle Handling System Sample 033



Sample System 34 Open PDF

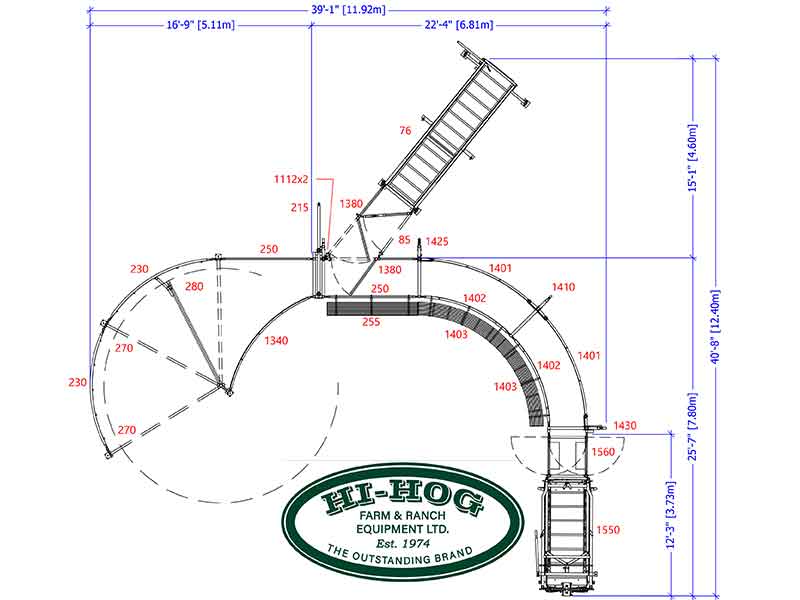

Cattle Handling System Sample 034



Sample System 35 Open PDF

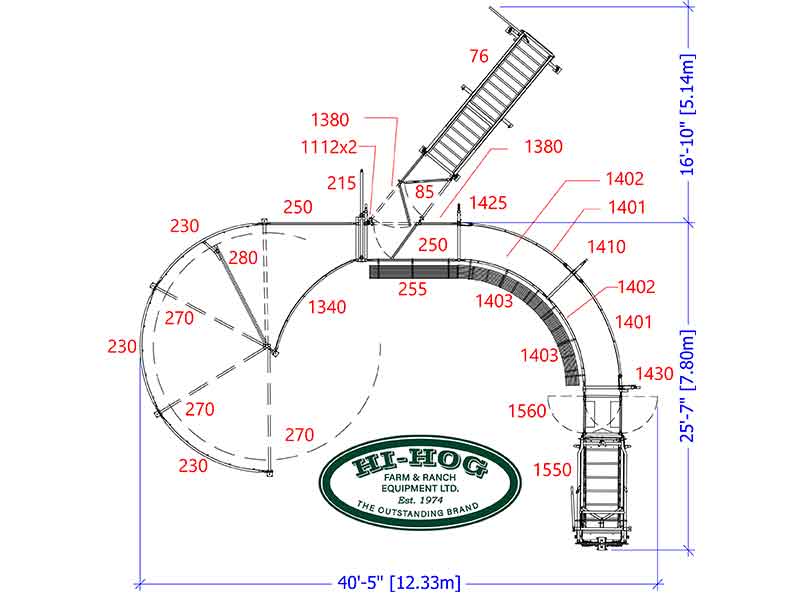

Cattle Handling System Sample 035



Sample System 36 Open PDF

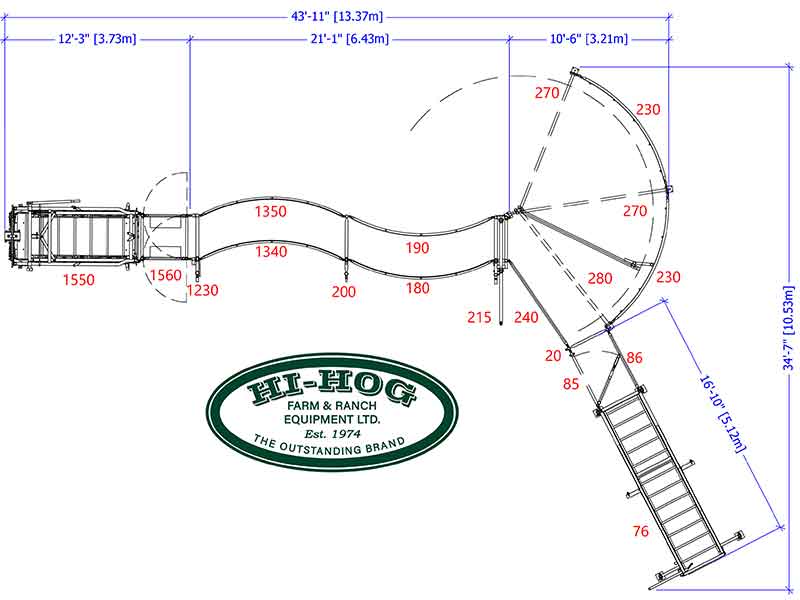

Cattle Handling System Sample 036



Sample System 37 Open PDF

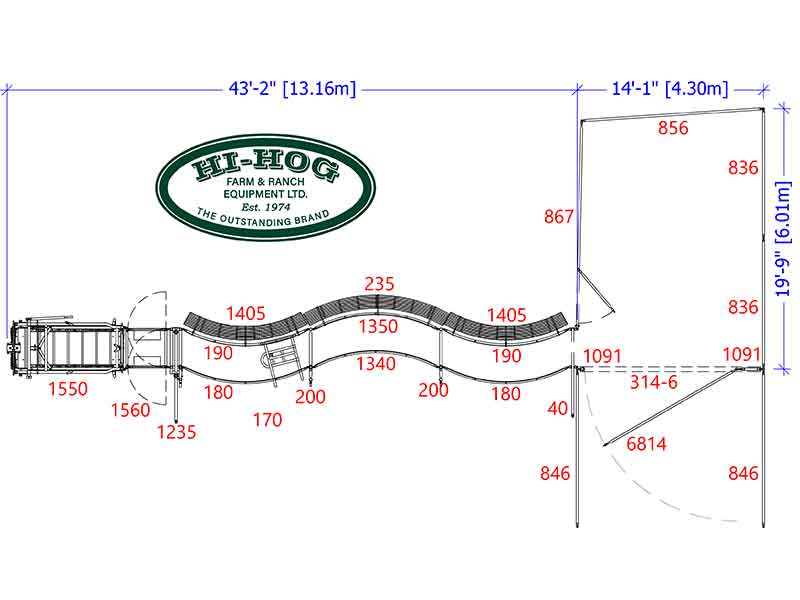

Cattle Handling System Sample 037



Sample System 38 Open PDF

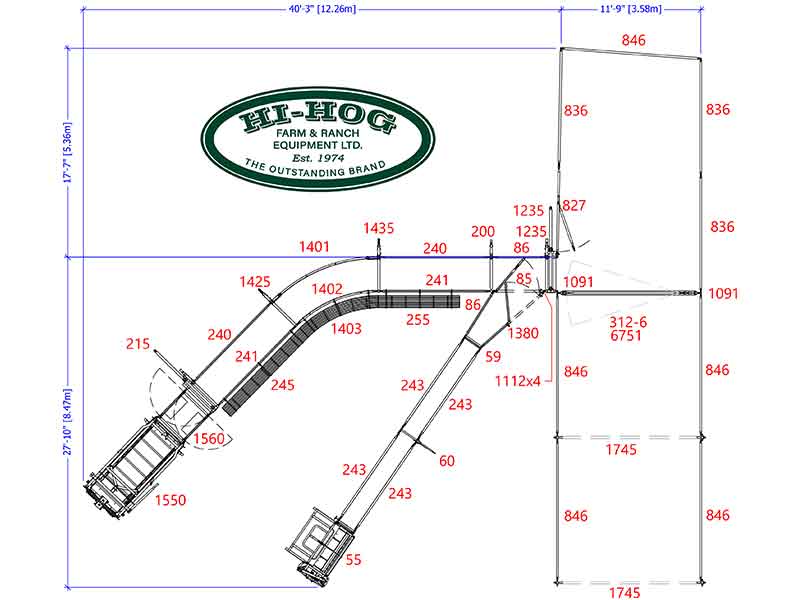

Cattle Handling System Sample 038



Sample System 39 Open PDF

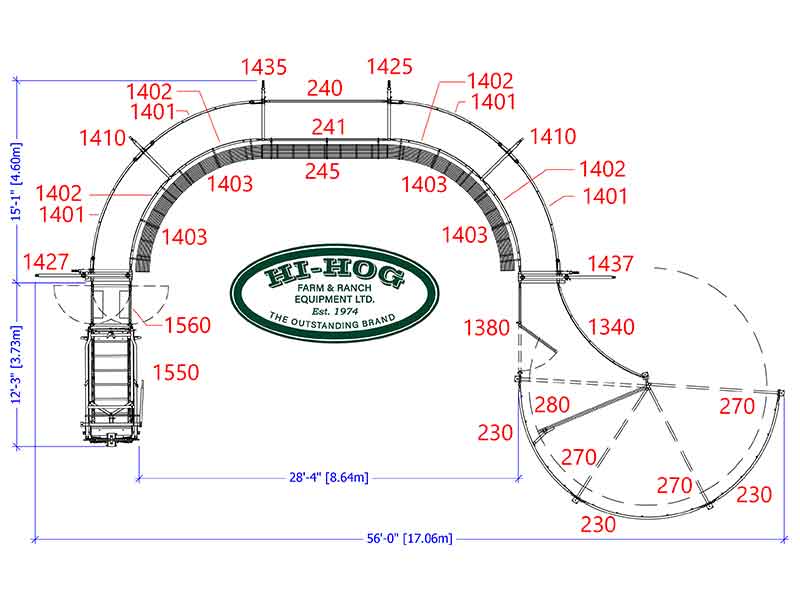

Cattle Handling System Sample 039



Sample System 40 Open PDF

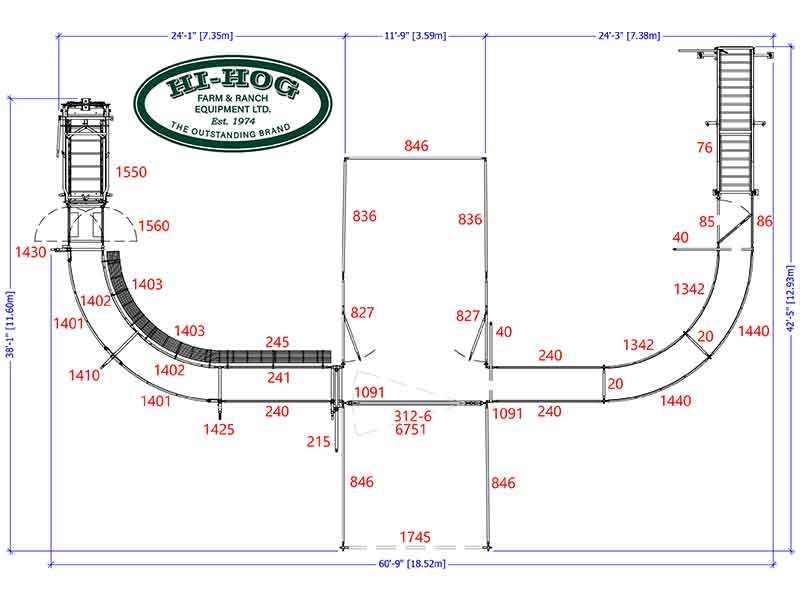

Cattle Handling System Sample 040



Sample System 41 Open PDF

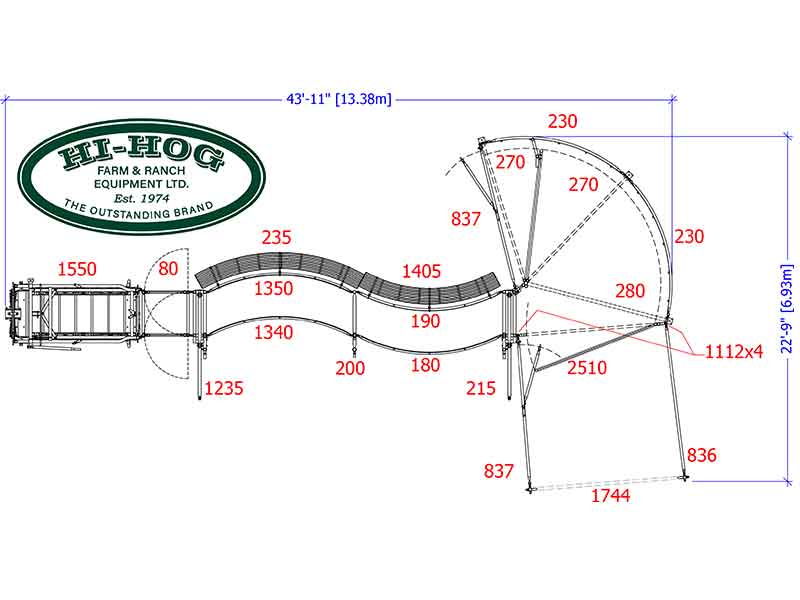

Cattle Handling System Sample 041



Sample System 42 Open PDF

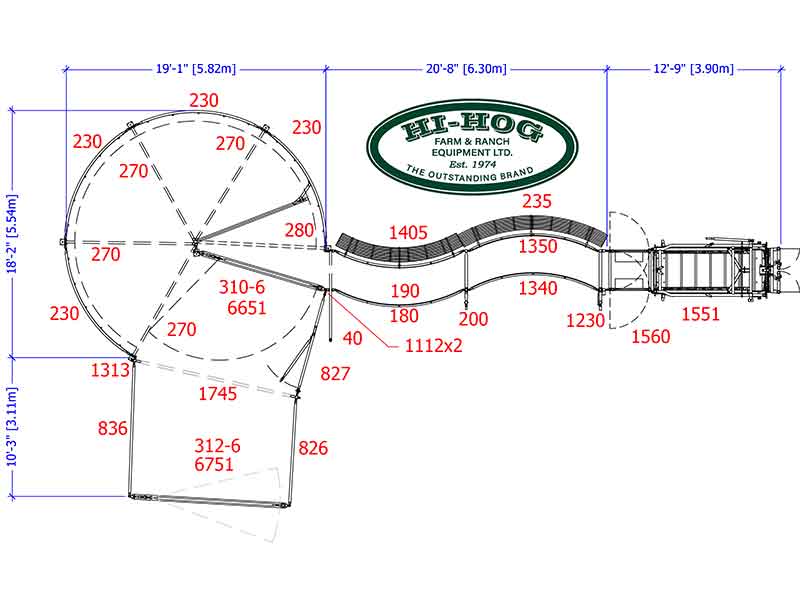

Cattle Handling System Sample 042



Sample System 43 Open PDF

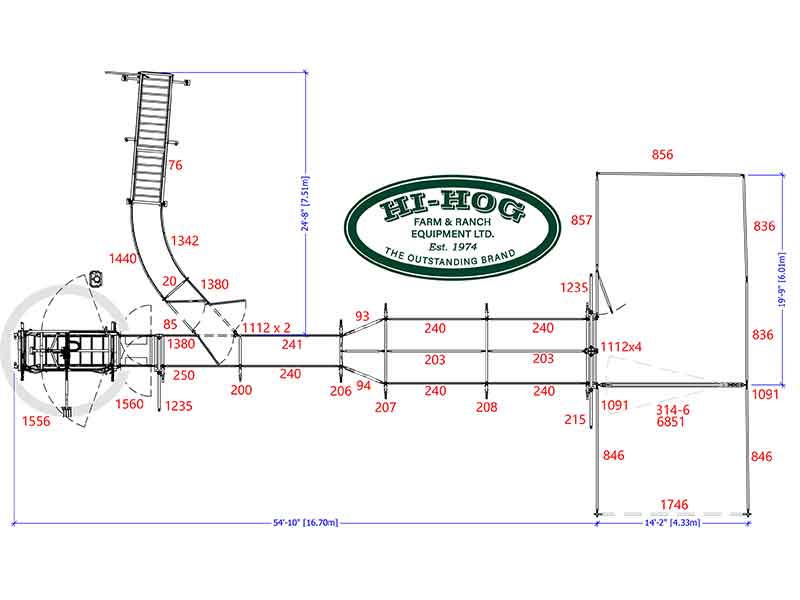

Cattle Handling System Sample 043



Sample System 44 Open PDF

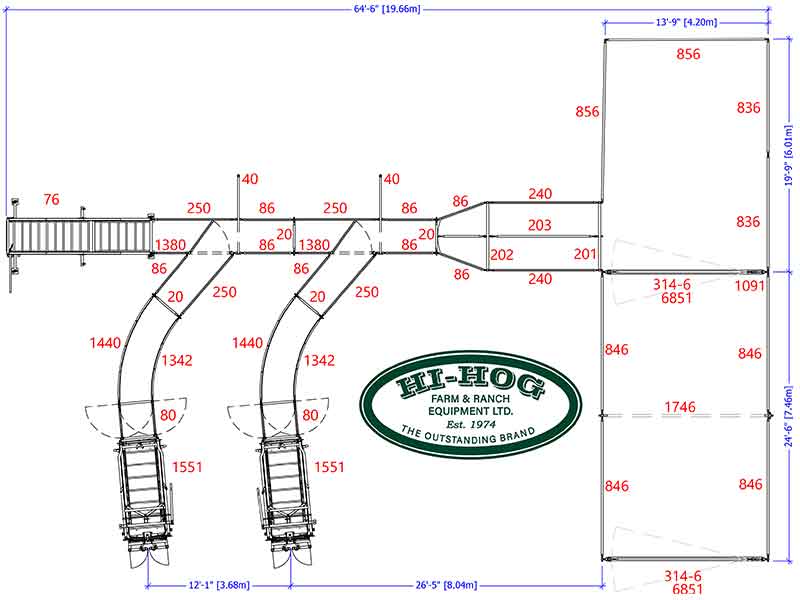

Cattle Handling System Sample 044



Sample System 45 Open PDF

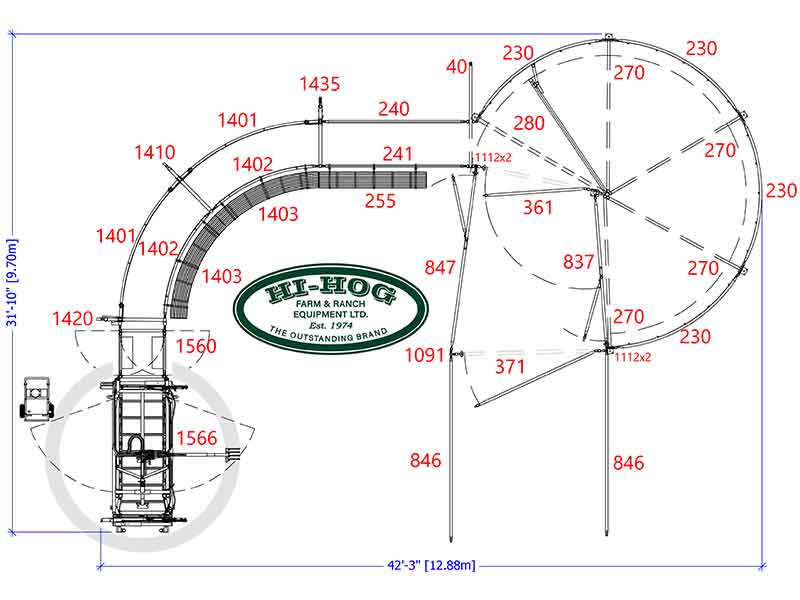

Cattle Handling System Sample 045



Sample System 46 Open PDF

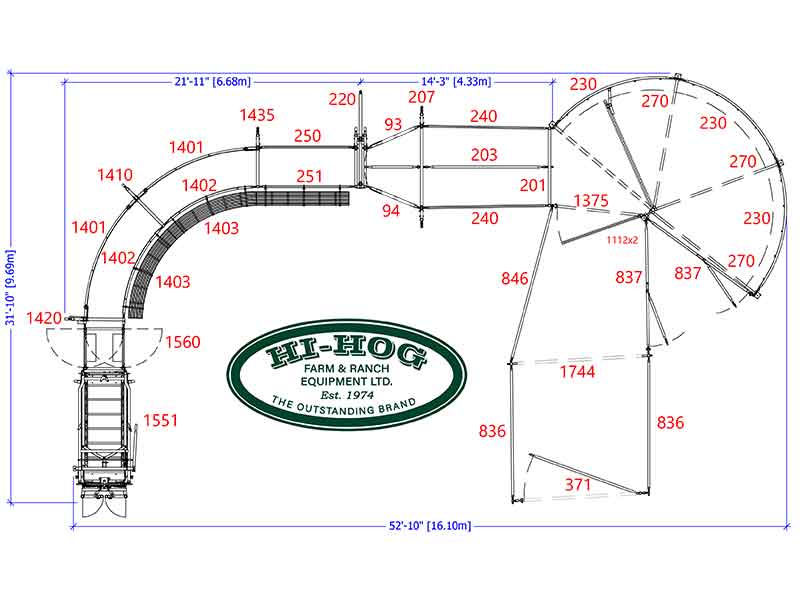

Cattle Handling System Sample 046



Sample System 47 Open PDF

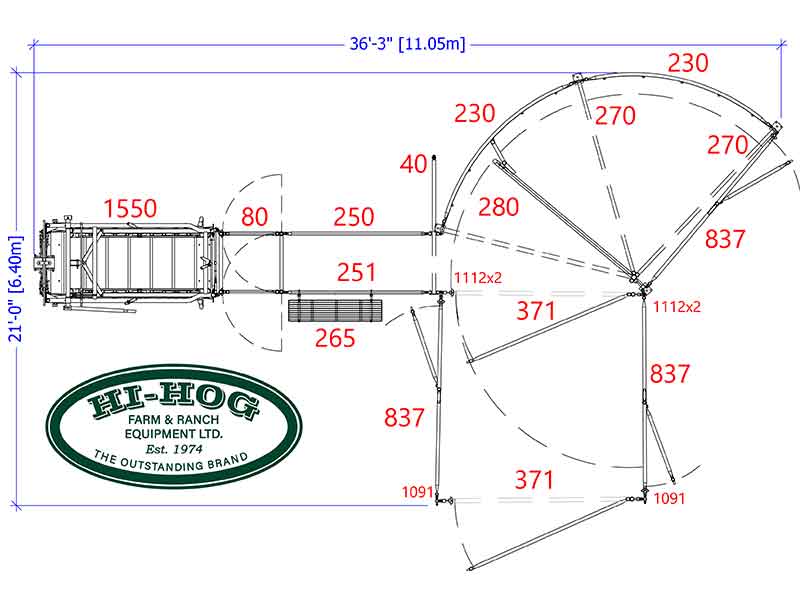

Cattle Handling System Sample 047



Sample System 48 Open PDF

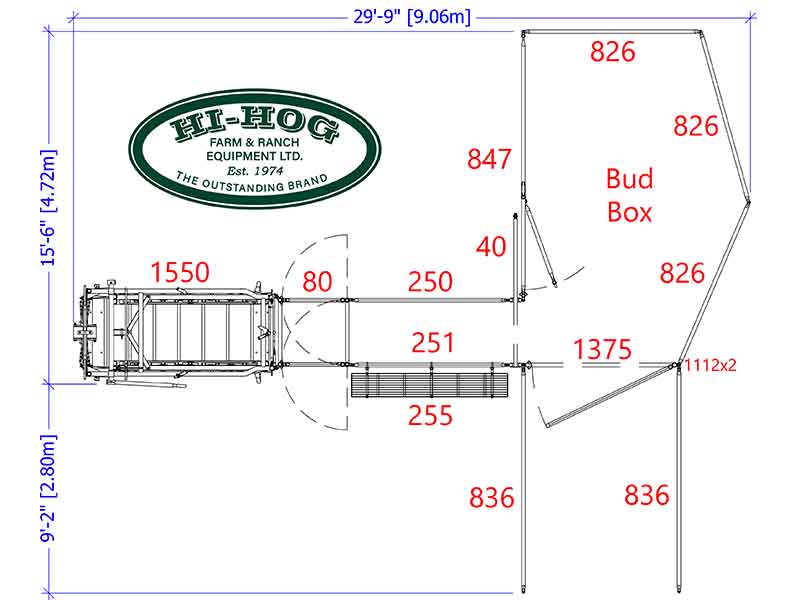

Cattle Handling System Sample 048



Sample System 49 Open PDF

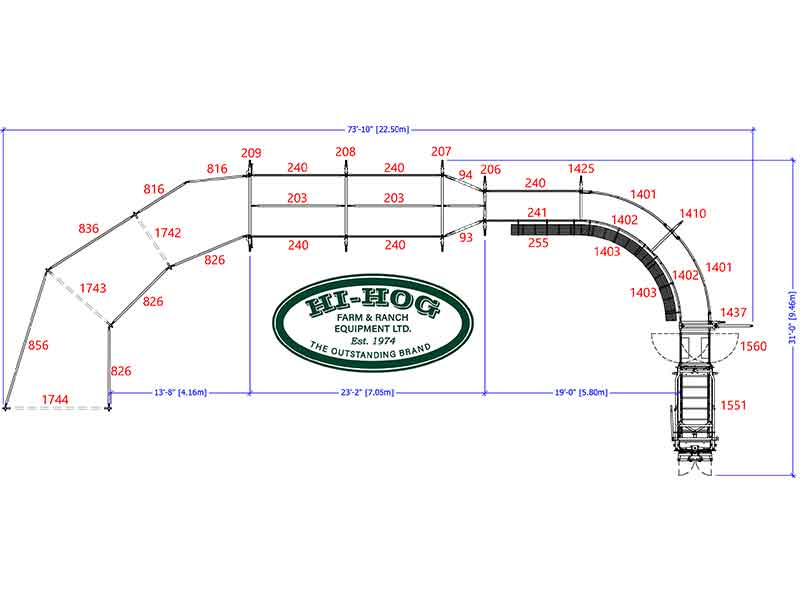

Cattle Handling System Sample 049



Sample System 50 Open PDF

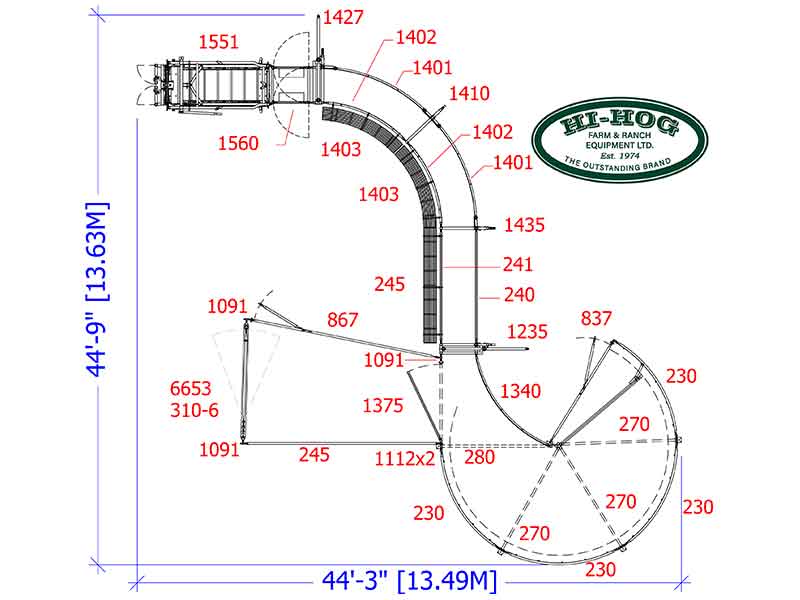

Cattle Handling System Sample 050

Sample System 51 Open PDF

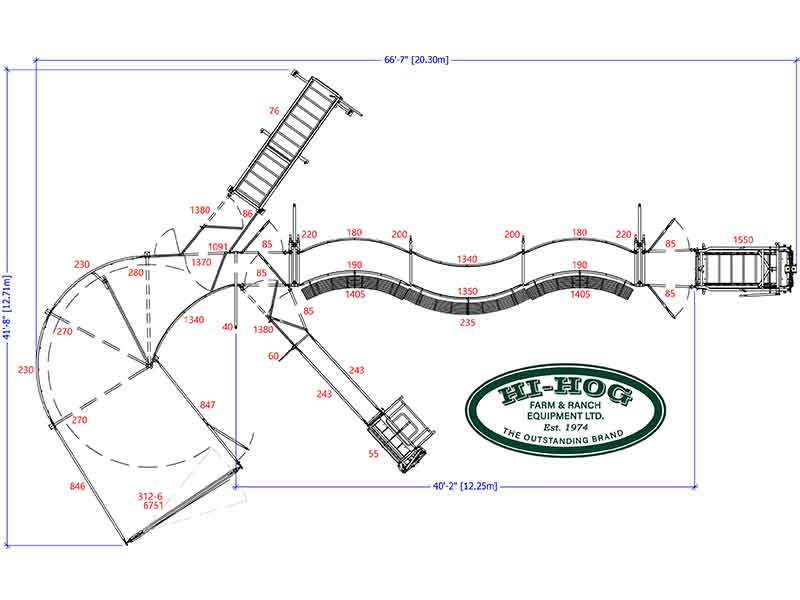

Cattle Handling System Sample 051

Sample System 52 Open PDF

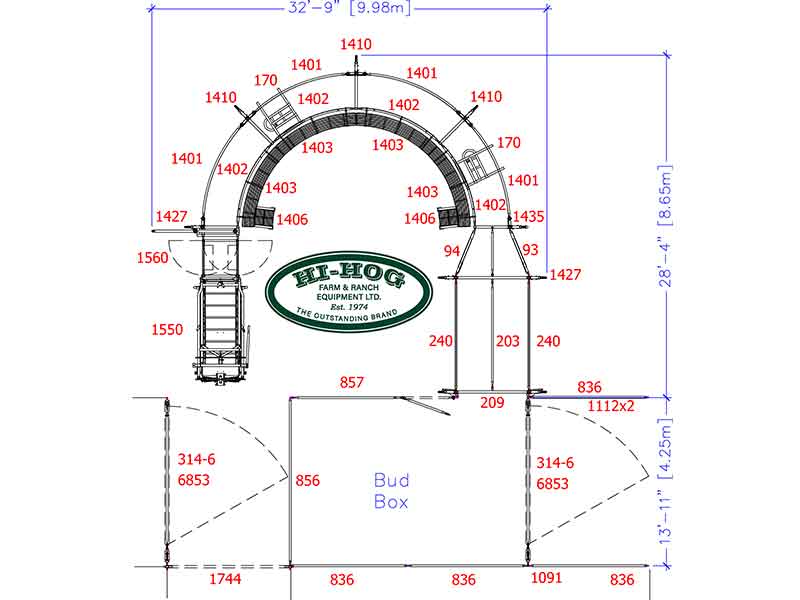

 Cattle Handling System Sample 53



Sample System 53 Open PDF

Cattle Handling System Sample 053


Sample System 54 Open PDF

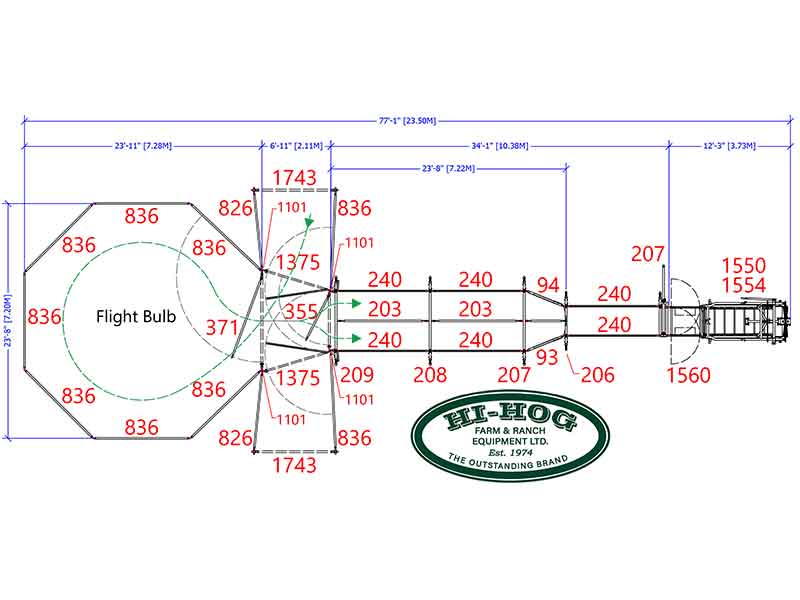

Cattle Handling System Sample 054
