Simply the best portable horse corral.
Easy installation, Secure, Flexible, Durable, Reliable
Portable Horse Corral Panels
Ask about Hi-Hog's outstanding portable horse corrals.
Easy to set up. Easy to use. Just one part.
You and your horse will appreciate the superior powder coated steel construction and simple, thoughtful design.
When you get to your destination you’ll also appreciate how quickly and easily you can set-up Hi-Hog’s freestanding horse corral. You won’t need any tools and there are no fiddly parts to worry about.
Your horse will be much happier in a portable pen then tied up to the trailer and you can rest comfortably knowing your horse is safe and secure. Each portable horse corral panel stands 50” high and includes three horizontal rails.

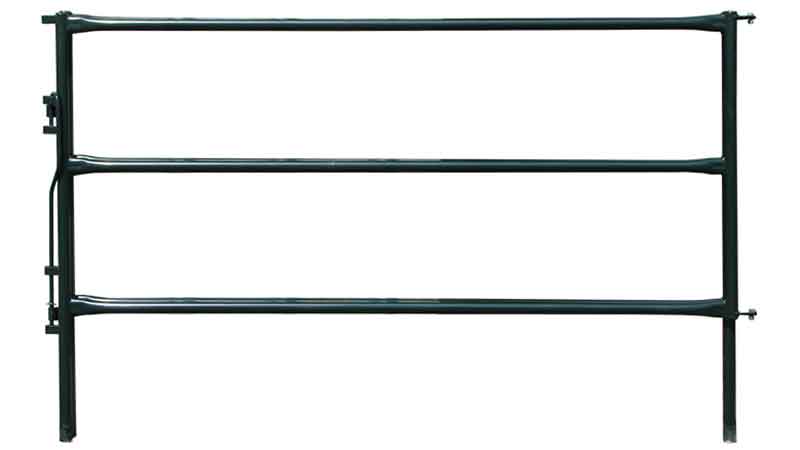

With a length of 6’-9” (in the folded position), these portable corral panels store neatly in your trailer for travel. Each corral panel is really two panels that are hinged together. Unfolded the panel extends to an overall length of 13’-6”. Each panel weighs 57 lbs.
One person set-up is easy when each panel can stand on its own.

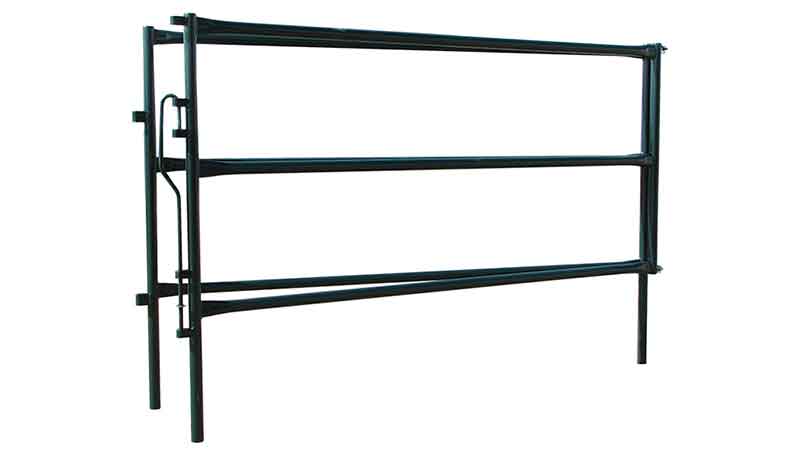

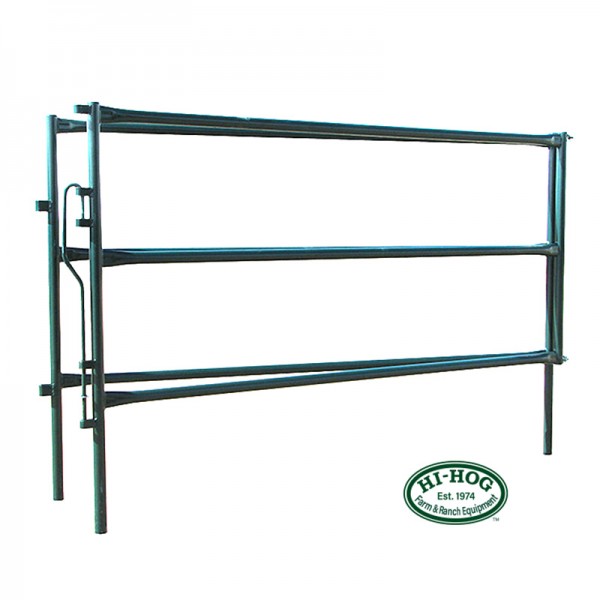

Each folding panel has three legs providing excellent stability which makes it super easy for one person to set up.
The panels latch to one another with a simple and secure integrated shepherds hook latch (this means there will be no pins or small parts to keep track of). The latch secures both the top and bottom of the panel for superior stability on any surface.
The latch can easily be opened or locked with one hand.
Hi-Hog's Portable Folding Corral Panels
Ask about Hi-Hog's outstanding portable horse corrals.
Set-up could not be easier

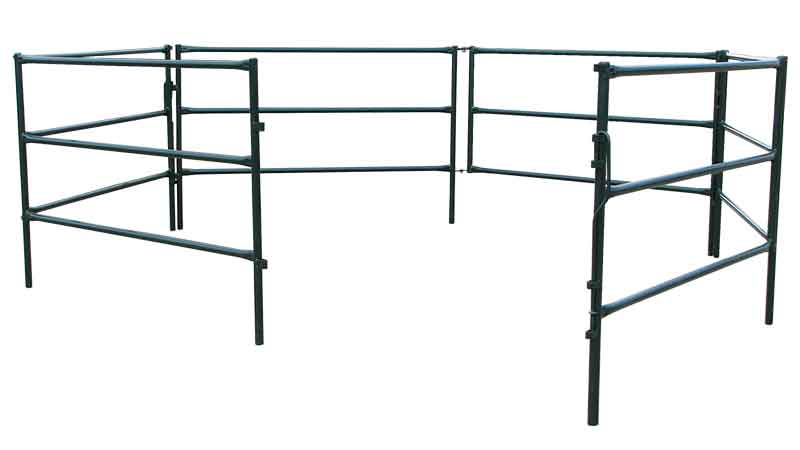

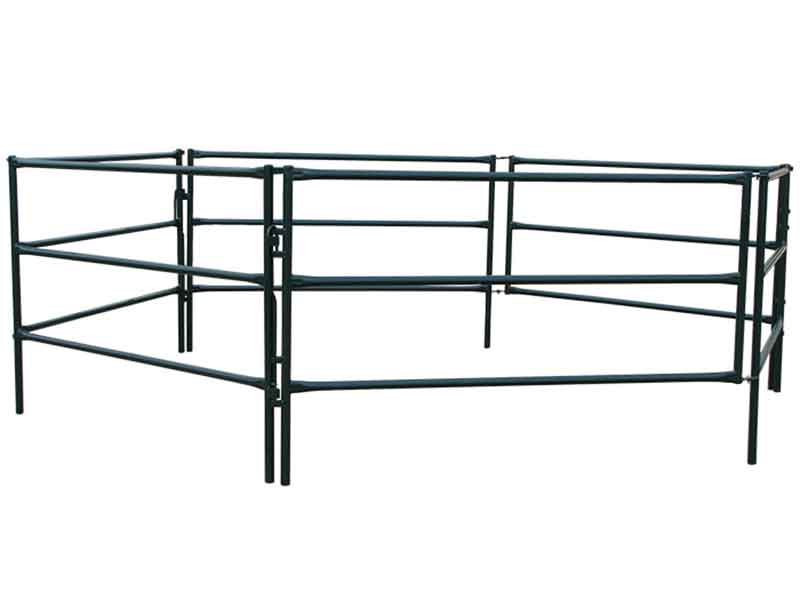

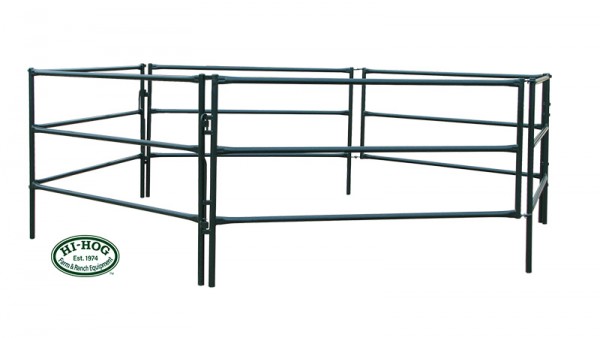

A variety of pen configurations can be created. For example, four panels can be set up to create a stable freestanding 13’-6” x 13’-6” square pen or a 16’-2” diameter round pen.
There is no need to worry about where to install a gate as each panel section can be used as a gate. Simply unlatch the panel and swing it open. The leg at the end of the panel will hold the gate in position as you gather your horse.
Safe, simple and secure.

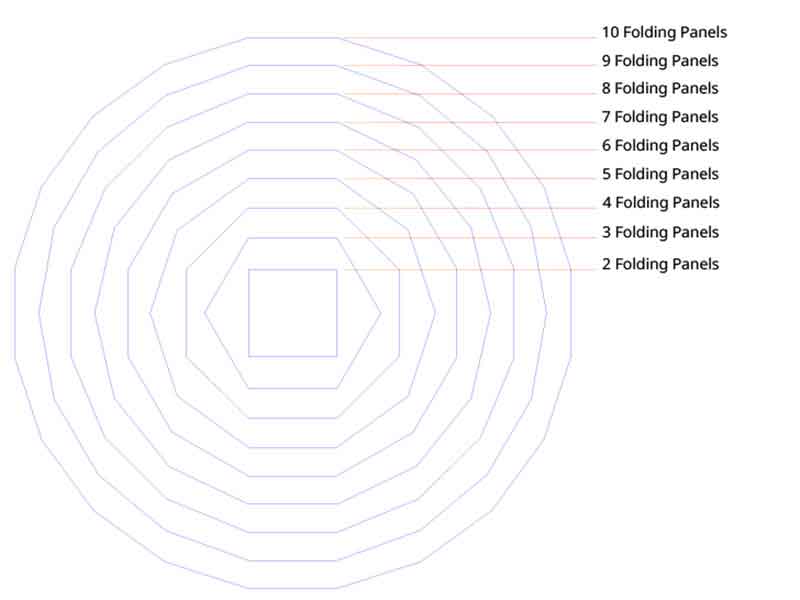

Simply add panels to increase the diameter of your horse corral. Each panel adds approximately 4.5' to the inside diameter
| Number of panels | Inside Diameter of Pen | Area in Square feet |
| 2 | 6'-9" | 45 ft² |
| 3 | 11'-8" | 117 ft² |
| 4 | 16'-3" | 218 ft² |
| 5 | 20'-8" | 347 ft² |
| 6 | 25' | 505 ft² |
| 7 | 29'-5" | 692 ft² |
| 8 | 33'-9" | 908 ft² |
| 9 | 38'-1" | 1152 ft² |
| 10 | 42'-5" | 1425 ft² |
Durability, Performance and Security
Portable horse corrals come in a number of designs but none compare to Hi-Hog’s when it comes to durability, performance and security.
Materials such as aluminum, light walled nominal dimension steel, and even plastics are used to produce some portable horse corrals. None of these corrals are designed with longevity, functionality, reliability and strength in mind.
Hi-Hog’s portable horse corrals are different. Durability, performance and security are at the core of Hi-Hog’s simple and thoughtful portable horse panel design.
Each panel is constructed with heavy duty 1.5” OD, 60,000 psi high tensile steel tubing and is then given a protective industrial grade, hunter green, powder coat paint finish for a long life. Each panel weighs 57 lbs.
Hi-Hog uses large, heavy duty connector loops. The large loops provide lots of room for aligning and connecting your panels; even on uneven terrain. The heavy-duty connectors will endure abuse so your corrals will remain reliably easy to set up season after season.
Stable, Strong, easily accessible
Ask about Hi-Hog's outstanding portable horse corrals.
Safe and Secure
To ensure your equine partner is safely housed each element of the design has been reviewed for potential danger.
All components have been prepared to ensure your horse will not be exposed to any sharp edges. In addition, the latch brackets and hinges are aligned with the panels top rail to ensure there are no leg traps in between the panels.
- No loose pins or parts because these will surely get left behind
- No flimsy pins waiting to get bent
- No plastic bits or caps for your horse to snack on
- No telescoping tubes waiting to fail the first time they get a slight bend, or filled with dirt
- No leg traps between panels
All you get is a safe portable horse corral that will perform every time for years to come.
If you want to add more pens simply add the optional four-way post.

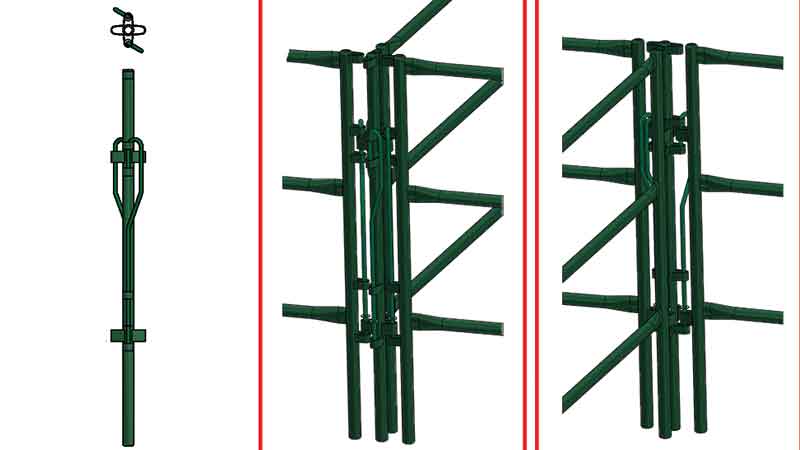

Portable Horse Corral 4-way post for multi-pen horse corral designs
If you want to combine your portable corral panels to create multiple pens just add a portable horse corral post. The post includes two integrated shepherd’s hook drop pins. Enjoy simple, quick and secure installation of any pen configuration you require. No tools needed. No loose parts to misplace. The standard hunter green post is item 742.

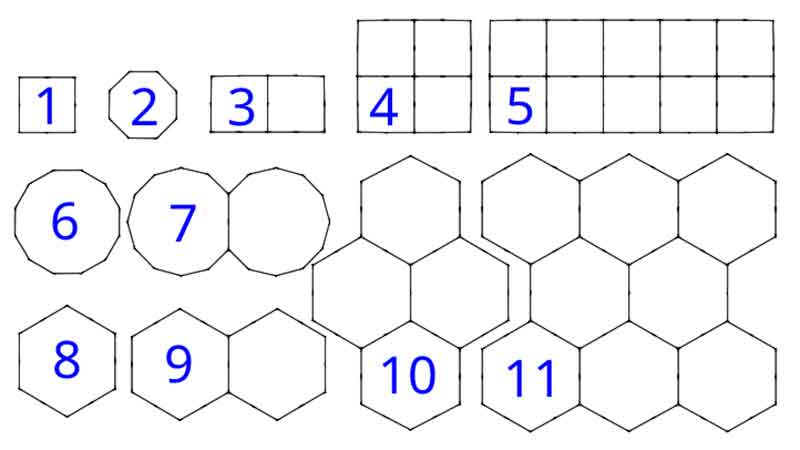

Some of the portable horse corral pen systems you can create
| Plan No. | # of Panels | # of Posts | # of pens | Single Pen Area | Panels/Pen |
| 1 | 4 | 0 | 1 | 181 ft² | 4 |
| 2 | 4 | 0 | 1 | 218 ft² | 4 |
| 3 | 7 | 2 | 2 | 181 ft² | 3.5 |
| 4 | 12 | 5 | 4 | 181 ft² | 3 |
| 5 | 27 | 14 | 10 | 181 ft² | 2.7 |
| 6 | 6 | 0 | 1 | 505 ft² | 6 |
| 7 | 11 | 2 | 2 | 504 ft² | 5.5 |
| 8 | 6 | 0 | 1 | 469 ft² | 6 |
| 9 | 11 | 2 | 2 | 469 ft² | 5.5 |
| 10 | 19 | 6 | 4 | 469 ft² | 4.75 |
| 11 | 35 | 14 | 8 | 469 ft² | 4.375 |
Hi-Hog’s portable horse corral is the perfect answer for those looking for temporary penning for their pony, horse, or llama. If you’re roping, penning, racing, showing, guiding, training, camping or trail riding, these portable horse corrals will help ensure your equine partner is happy, comfortable and secure.
Ask about Hi-Hog's outstanding portable horse corrals.
Additional Resources:
Stall Planning Guide
Alternate Terms:
Portable corrals, temporary corrals, travelling corral, travel corral, portable horse panels
