Hi-Hog offers three outstanding round pen options for horse trainers; the Rocky Mountain Round Pen, Savanna Round Pen and the Parkland Round Pen.
The panels used to create each of these round pens are designed specifically for safe horse training.
Designed specifically for the equine industry, Hi-Hog’s Premium Parkland Round Pen Panels represent the perfect balance of portability and strength. All of Hi-Hog's Round Pens use Hi-Tensile North American Steel Tubing and a Baked Polyester Powder-Coat Finish. Manufactured in our Shop in Calgary, Alberta.
Top of the Line "Rocky Mountain" Round Pen
The 6′ high Rocky Mountain sheeted round pen is designed for the equine enthusiast who wants the best. To create a smooth and continuous ’round’ ring each panel is curved. Additionally, the sides are tapered for superior protection of both horse and rider. The Rocky Mountain round pen is simply without peer.
Standard Colour is "Hi-Hog Green". Please inquire about additional colour options when placing your order.
Rocky Mountain Round Pen Parts
- Rocky Mountain Round Pen Panel, Item #2930, 203 lbs
- Rocky Mountain Round Pen Frame with Gate, Item #2935, 252 lbs
Rocky Mountain Round Pen
| Inside Pen Diameter | Outside Pen Diameter | Number of #2930 Panels | Number of #2935 Frame + Gates |
| 57' 8" | 60' | 17 | 1 |
| 61' 1" | 63' 5" | 18 | 1 |
| 64' 5" | 66' 9" | 19 | 1 |
| 67' 10" | 70' 2" | 20 | 1 |
| 71" | 73' 4" | 21 | 1 |
| 74' 4" | 76' 8" | 22 | 1 |
Ask an expert about Hi-Hog's Round Pens
Rocky Mountain Round Pens are made special to order. Please call Hi-Hog at 1-800-661-7002 to confirm production times, Rocky Mountain Round Pen dimensions and Colour.

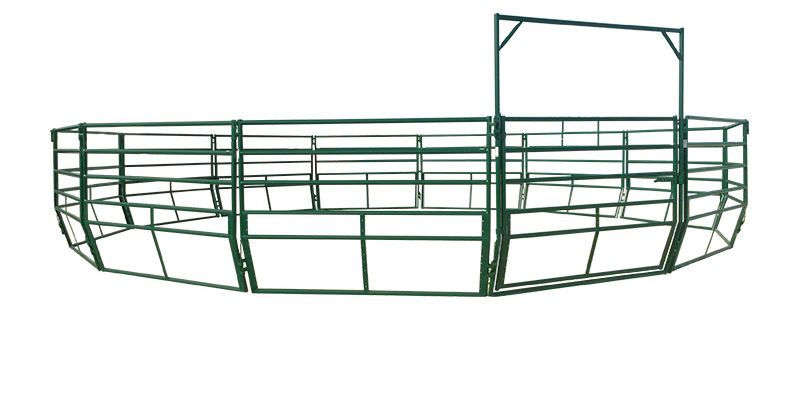

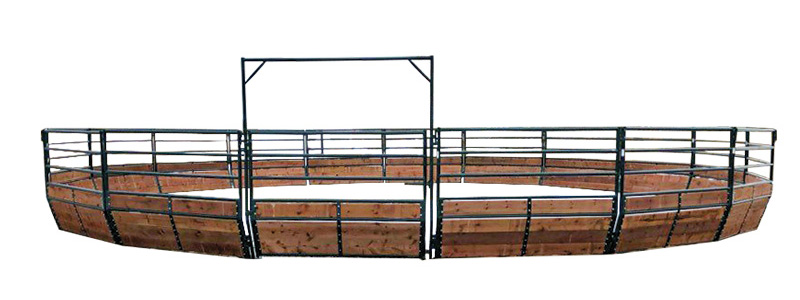

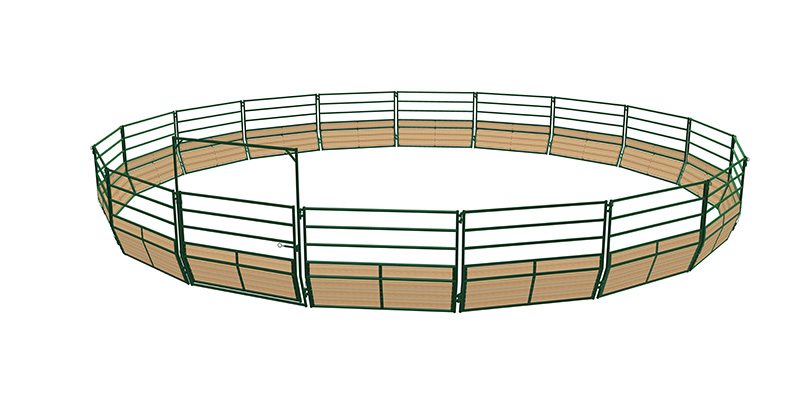

Savanna Round Pen
Hi-Hog's Savanna round pen positions itself between the Rocky Mountain round pen and the Parkland round pen (shown below).
Each panel section measures approximately 8'-6" in length (note: the panels are tapered at the bottom). Panels are 6' high.

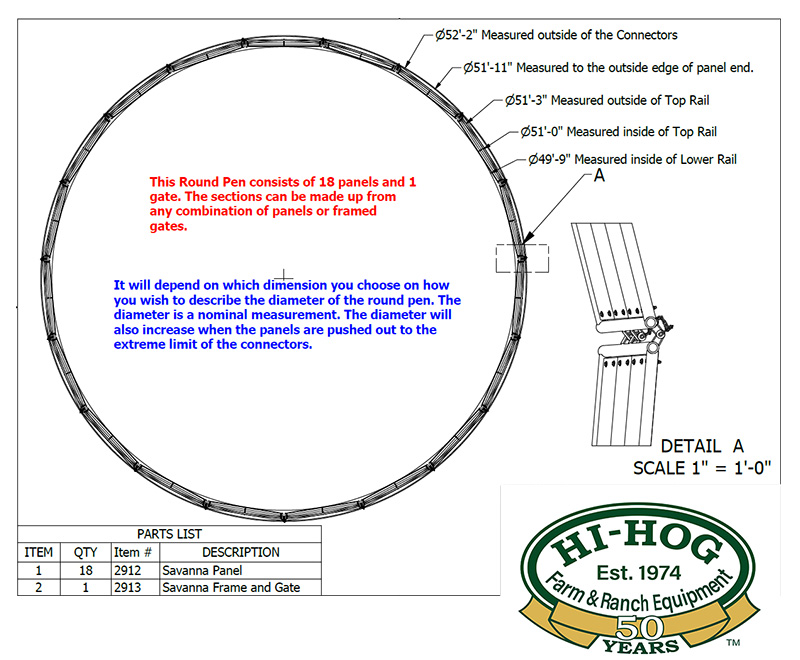

A 49' 9" inside radius round pen requires 18 panel sections and 1 Frame & Gate Section.
The frame with gate is the same length as the panels so you can relocate your gate, or add a gate, simply by swapping out panels.
Standard Colour is "Hi-Hog Green". Other Colours are available by special order at an additional cost.
Savanna Round Pen Parts
- Savanna Round Pen Panel, Item #2912, 89 lbs
- Savanna Round Pen Frame with Gate, Item #2913, 178 lbs
- Note: weights shown do not include the weight of the wood.
Note: Wood and wood fasteners are not included. The lower panel can be filled with whatever material you wish. Standard wood installation would be either:
- 4 pieces of 2 x 8, or
- 2 pieces of 2 x 12 and 1 piece of 2 x 8
- Recommend 5/16" Type B, Plain Washers, 5/16" - 18 UNC-@ 2.25 Hex Cap Screw, and 5/16 - 18 Top Insert Type Prevailing Torque Type Hex Nut
- Note: the longest piece of wood would be 8' and the lower wood pieces would be 95.75", 95", and 94.25" in length.
Savanna Round Pen
| Inside Pen Diameter | Outside Pen Diameter | Number of #2912 Panels | Number of #2913 Frame + Gates |
| 33' 1" | 35' 10" | 12 | 1 |
| 38' 8" | 41' 3" | 14 | 1 |
| 44' 3" | 46' 8" | 16 | 1 |
| 46' 11" | 49' 4" | 17 | 1 |
| 49' 9" | 52' 2" | 18 | 1 |
| 55' 3" | 57' 7" | 20 | 1 |
| 60' 7" | 62' 11" | 22 | 1 |
| 66' 1" | 68' 4" | 24 | 1 |
| 71' 5" | 73' 7" | 26 | 1 |
| 76' 10" | 79' 0" | 28 | 1 |
| 79' 7" | 81' 9" | 29 | 1 |
Ask an expert about Hi-Hog's Round Pens
Call Hi-Hog at 1-800-661-7002 to confirm the amount of panels and frame and gates for your round pen.

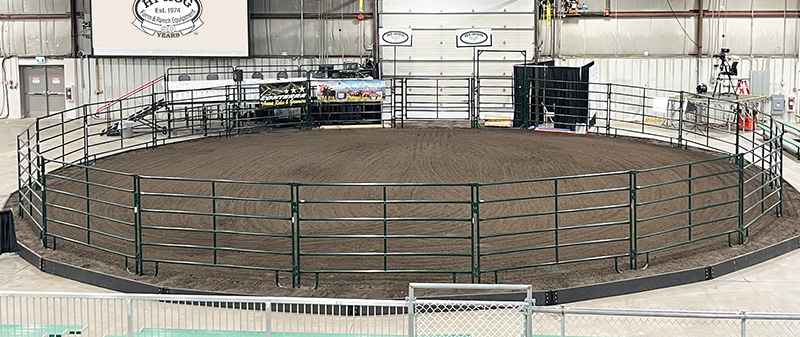

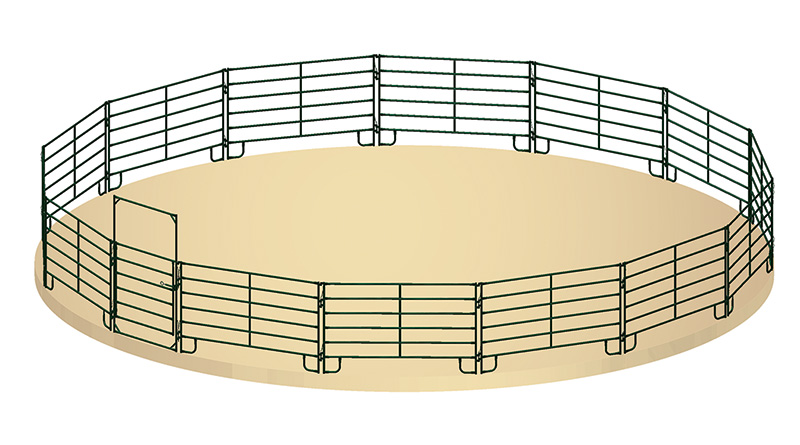

Parkland Round Pen
Parkland Round Pen
Designed specifically for the equine industry, Hi-Hog’s Parkland round pen panels represent the perfect balance of portability and strength.
Both the panels and gates are 6’ high; the height recommended by professional trainers. Constructed with 60,000 psi high tensile 1.5” steel tubing for superior strength (all tubing is 16 gauge. except for the gate frame which is built stronger with 1.9" OD 14 gauge).
Round Pen Features
- Coned vertical ends protect horses from sharp edges
- Mud legs inhibit sinking
- Coped vertical stays provide superior strength with no sharp edges
- Panels come with top rail extensions to eliminate the dangerous leg traps found on other round pen panels
- Corner gussets are included in the gate frame for superior strength
- Gate comes standard with our most popular plunger latch and striker plate
- Universal connectors give you the freedom to combine any Hi-Hog panel style without the need for adapters
- Standard colour is "Hi-Hog Green".
Parkland Round Pen Parts
- Parkland Round Pen Panel, 10’ w x 6’ high, Item 2910, 80 lbs.
- Parkland Round Pen Frame with Gate, 6’ w x 9’-3” high frame with 6’ high gate, Item 2906, 101 lbs.
Parkland Round Pen
| Inside Pen Diameter | Outside Pen Diameter | Number of #2910 Panels | Number of #2906 Frame + Gates |
| 28' 10" | 30' 7" | 9 | 1 |
| 35' 3" | 36' 10" | 11 | 1 |
| 38' 5" | 39' 10" | 12 | 1 |
| 44' 9" | 46' 0" | 14 | 1 |
| 48' 0" | 49' 3" | 15 | 1 |
| 54' 4" | 55' 5" | 17 | 1 |
| 57' 7" | 58' 7" | 18 | 1 |
| 63' 10" | 64' 10" | 20 | 1 |
| 67' 0" | 67' 11" | 21 | 1 |
Ask an expert about Hi-Hog's Round Pens
Call Hi-Hog at 1-800-661-7002 to confirm the amount of panels and frame and gates for your round pen.

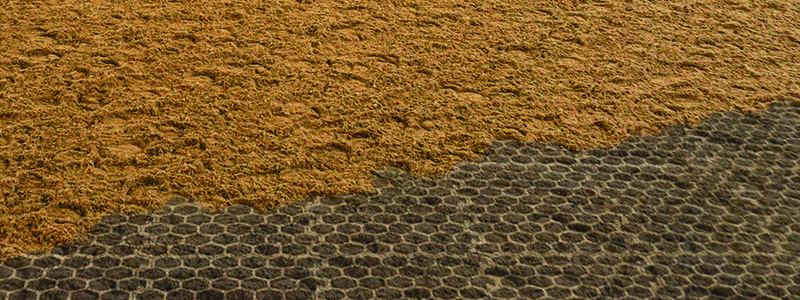

Better Footing
Footing plays an important role in the safety, conditioning, and training of your equine partner.
For superior footing that preserves footing materials, controls mud and promotes better drainage, start with a better foundation. Hold your ground with Hi-Hog’s permeable ground reinforcing paddock slabs.
Preserve your footing material with Hi-Hog's porous paddock slabs
Resources:
Stall Planning Guide
Alternate Terms
Round Pens: lunge pen, lunging pen, loping pen, bull pen, horse training, training arena, horse walker, working pen
Ask an Expert About Hi-Hog's Round Pens and Confirm Dimensions and Colour Before Ordering
