Hi-Hog offers four styles of Round Bale Livestock Feeders designed to help you save on feed. The design of the feeder panels allows the pieces to nest tightly for economic shipping. Each feeder requires three sections.
The design of the four livestock feeder panels allows the pieces to nest tightly for economic shipping. Each feeder requires three sections to create a complete round bale feeder. Hi-Hog's four styles of round bale feeder are:
- Tombstone Round Bale Feeder
- Twister Round Bale Feeder
- Hurricane Round Bale Feeder
- Tornado Round Bale Feeder
COW / CALF / BISON / HORSE FEEDER
Tombstone Round Bale Livestock Feeder
Design:
- The tombstones separate the livestock and reduces feed waste
- Three bent feeder sections pin together to create a solid stock feeder
- 12 feeding positions
Construction:
- 1.9” OD high tensile, 12-gauge tubing for the feeder frame
- 1.9” OD 14 gauge for the tombstone hoops
- Each of the hoops is filled with 1” OD 14-gauge
- Each corner and tombstone hoop is braced
- The 22” high base is sheeted on the outside with 16-gauge sheet metal
Specifications:
- Inside Diameter: 95.625”
- Outside Diameter: 113.625”
- Stanchion opening horizontal width: ~ 12.5”
- Feeder Height: 49.75”
- Feeder Weight: 390 lbs.
- Item 954
This feeder is preferred by ranchers with horned livestock. This is also a popular feeder for horses because there is no top horizontal hoop for the horses to wear their manes on.
COW / CALF FEEDER

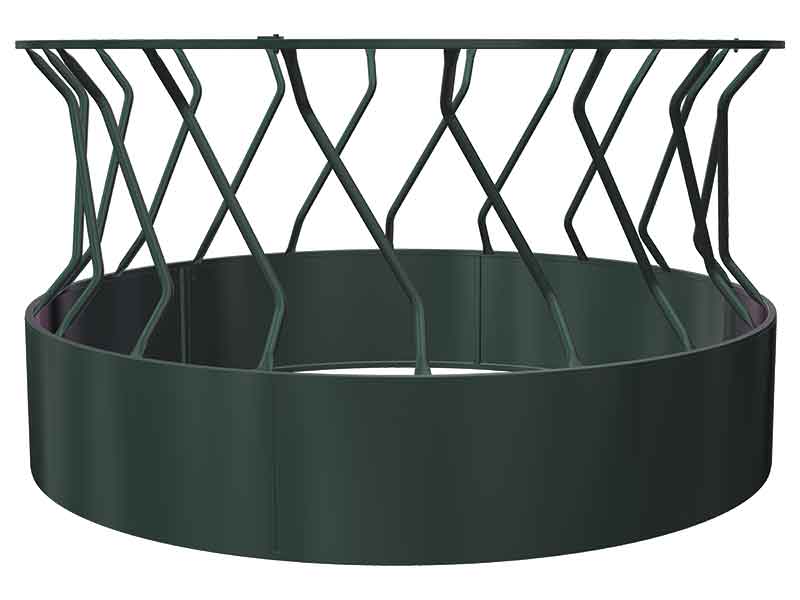

Twister Round Bale Feeder
Design:
- The bale saver stanchions project inwards to reduce feed waste
- The stanchions are slanted diagonally to deter livestock from climbing into the feeder
- Three curved feeder sections bolt together to create a solid cow/calf feeder
- 18 feeding positions
Construction:
- The frames are 1” square tubing 0.100 wall
- The stanchions are 1-5/16”, 0.125 wall
- The 20-3/4” high base is sheeted on the outside with 16-gauge sheet metal
Specifications:
- Inside diameter: 85.75”
- Outside diameter: 101.6”
- Stanchion opening horizontal width: ~ 13.6”
- Feeder Height: 56”
- Weight: 326 lbs.
- Item 961
The Twister round bale feeder provides the best value for your dollar.
COW / CALF FEEDER

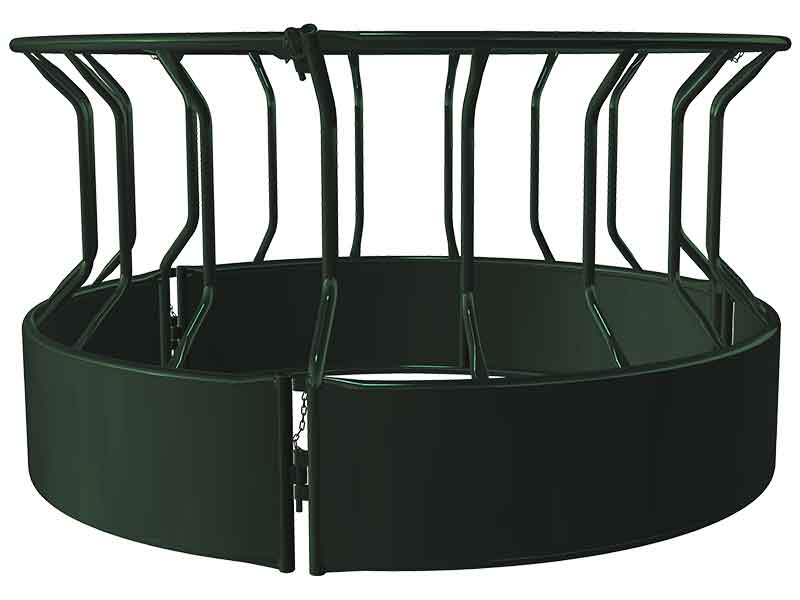

Hurricane Round Bale Feeder
Design:
- The bale saver stanchions project inwards to reduce feed waste
- Three curved feeder sections pin together to create a solid cow/calf feeder
- Pin together feeder provides fast access to your feeder
- 18 feeding positions
Construction:
- The frames are 1.9” OD 14-gauge
- The stanchions are 1-1/2”, 14-gauge
- The 22” high base is sheeted on the outside with 16-gauge sheet metal
Specifications:
- Inside diameter: 88.5”
- Outside diameter: 108”
- Stanchion opening horizontal width: ~ 14”
- Feeder Height: 60”
- Weight: 357 lbs.
- Item 913
BULL FEEDER

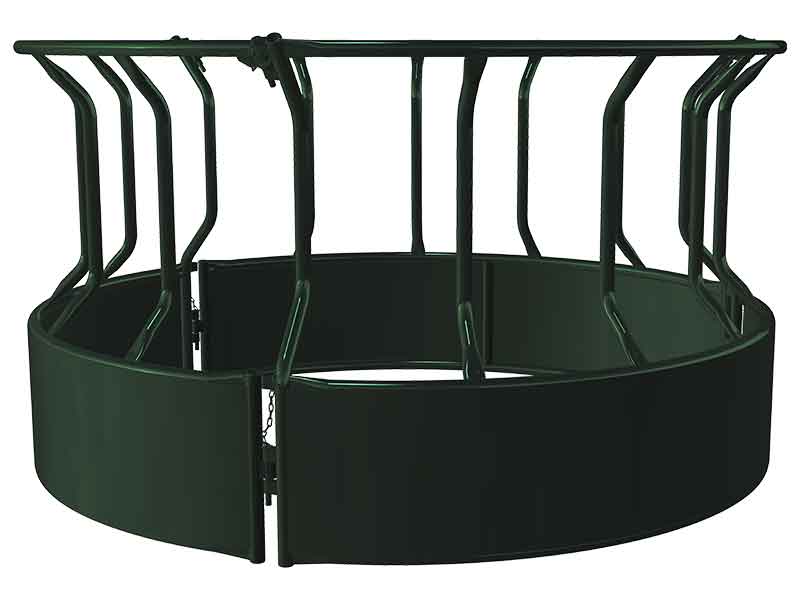

Tornado Round Bale Feeder
Design:
- The bale saver stanchions project inwards to reduce feed waste
- Three curved feeder sections pin together to create a solid bull feeder
- 15 feeding positions
Construction:
- The frames and stanchions are 1.9” OD 14-gauge
- The 22” high base is sheeted on the outside with 16-gauge sheet metal
Specifications:
- Inside diameter: 89.25”
- Outside diameter: 108”
- Stanchion opening horizontal width: 17”
- Feeder Height: 60”
- Weight: 355 lbs.
- Item 923
